Lenovo 00YG673 Disk – 4TB 7.2K NL-SAS SED 3.5" LFF HD

Lenovo 00YG673 Disk – 4TB 7.2K NL-SAS SED 3.5″ LFF HD

Anyone looking for exceptional performance should consider LENOVO’s products, which support a variety of density, performance, and service requirements. LENOVO hardware is the most widely used networking equipment for high-end enterprise and service provider applications.

DC Parts is a distributor of new and used LENOVO equipment. All of our equipment is backed by our warranty, and our manufacturer-certified engineers can help you troubleshoot any issues, including those related to our impressive inventory of new and used LENOVO hardware. If you would like to speak with a representative about purchasing LENOVO hardware, please contact us.

DC Parts is a distributor of new and refurbished LENOVO storage and accessories. Our technology experts can help you select and configure the right LENOVO appliance solution for your specific data needs.

With all of our IBM equipment and fully tested, you can count on worry-free service for years to come.

And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about LENOVO equipment offerings, please contact us.

LENOVO 00YG673 disk warranty and technical service for installation or support.

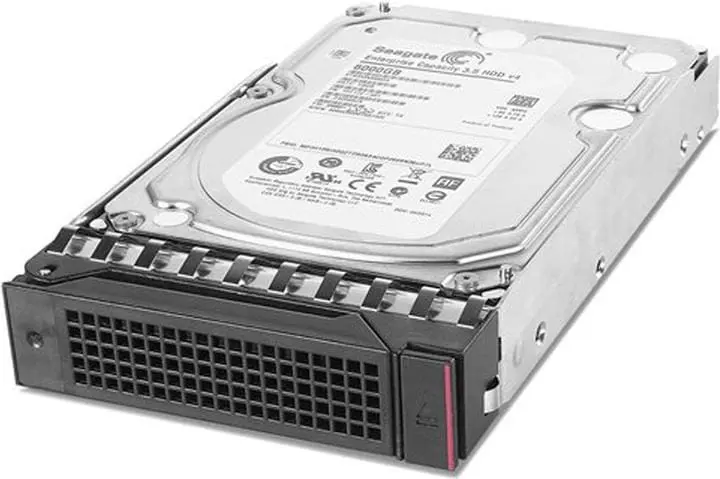

The Lenovo Storage 4TB 7.2K rpm 3.5″ NL-SAS SED LFF (Part Number 00YG673) is an enterprise-class hard drive designed for Lenovo ThinkSystem DS Series storages. Compatible with DS6200, DS4200, DS2200 and the D1212 enclosure, it comes with a carrier and front LEDs for monitoring the status of the drive when inserted into the dual-path direct dock SAS interface.

Product Highlights

4TB capacity for large-scale data
7,200 rpm rotation for balance between performance and cost
NL-SAS interface for enterprise storage environments
Format 3.5″ LFF (Large Form Factor)
Self-Encrypting Drive (SED) for hardware-level data security
Compatible with ThinkSystem DS6200/DS4200/DS2200 and D1212
Includes carrier and front LEDs for status and simplified hot-swap
Dual-path SAS backplane integration with direct dock

Compatibility

Lenovo ThinkSystem Storages: DS6200, DS4200, DS2200
Lenovo ThinkSystem Enclosure: D1212
Machine Types: 4619, 4617, 4599, 4588
Part Number: 00YG673 (SED)

Note: For full compatibility, it is recommended to maintain firmware revisions approved by the manufacturer and validate the combination of controllers and bays used in each chassis.

Applications and benefits

High-density archive, backup, and archiving workloads
Media repositories, surveillance, cold data, and tiering
Environments that require native data protection with SED
Capacity expansion on Lenovo ThinkSystem DS arrays with simplified management and front-facing status LEDs

Main Technical Specifications

Capacity: 4TB
Rotation: 7,200 rpm
Interface: NL-SAS
Format: 3.5″ LFF
Security: SED (Self-Encrypting Drive)
Accessories: Carrier installed and status front LEDs
Integration: direct dock to dual-path SAS backplane

Note: Additional parameters (SAS bandwidth, logical sector, consumption, and vibration) may vary by batch/firmware. Request the technical sheet according to your environment.

Included items

1x Lenovo 4TB NL-SAS SED 3.5″ LFF – Part Number 00YG673
Carrier compatible with ThinkSystem DS/D1212 bays
Built-in front LEDs for status monitoring

Commercial conditions at DC Parts

Options: new or used tested (on request)
Warranty: according to current DC Parts policy
Tests: equipment tested and with verified origin
Support: Lenovo ThinkSystem Expert Technical Team
Shipping: logistics throughout Brazil

Frequently Asked Questions (FAQ)

Is this album SED?

Yes. The 00YG673 is a Self-Encrypting Drive (SED), adding hardware-level data protection.

Can I mix this SED with non-SED in the same storage?

It is technically possible, but it is recommended to standardize by disk group/pool to simplify security and management policies.

Is this drive compatible with all DS bays?

It is designed for the DS6200, DS4200, DS2200 models and the D1212 enclosure. Confirm the slot position and firmware of the controller as per your configuration.

Does the product include carrier?

Yes. The module already comes with a carrier and front LEDs for monitoring the status of the drive.

How to request a quote?

Click “Request Quote” or speak with a DC Parts expert to validate compatibility, timeframe, and price.
