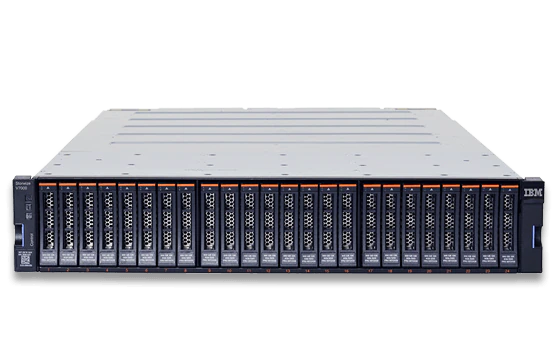

IBM Storwize V7000

SKU Storage IBM Storwize V7000 Category Storwize Line, IBM, IBM Storage Line Tags IBM, IBM Storwize, storage, IBM Storage, Storwize V7000

Storage IBM Storwize V7000 – With warranty and technical service for installation or support.

A DC Parts is a distributor of new and refurbished IBM equipment and accessories. Our technology experts can help you select and configure the right IBM server solution for your specific data needs. Like all of our equipment, IBM arrays are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers are on hand to provide support for any issues you may have. If you would like to speak with a representative about IBM equipment offerings, please contact us.

The IBM Storwize V7000 Storage Array is a powerful block storage system that combines hardware and software components to provide a single point of control to help support improved storage efficiency. It is designed to improve application availability and resource utilization by enabling virtualization, consolidation and tiering in organizations of all sizes.

The IBM Storwize V7000 Storage Array combines a variety of IBM technologies, including thin provisioning, automated tiering, storage virtualization, real-time compression, clustering, highly efficient and highly capable next-generation information infrastructure. Optimizing resources through consolidation can reduce costs and improve productivity. Consolidation can also lead to more efficient maintenance and management of your information infrastructure. By allowing you to efficiently scale your storage, consolidation can provide you with the capacity you need within the budget you have for the performance you want.

Virtualizing your storage infrastructure can optimize your spend, resources, and capabilities. It allows you to more easily scale system capacity and performance to meet your growing information infrastructure needs, reduce management complexity, and reduce the risk of system failure for your business.

Specifications

host interface SAN-attached 8 Gbps Fiber Channel, 1 Gbps iSCSI, and optional 10 Gbps iSCSI/FCoE Ethernet
1 Gbps and 10 Gbps connected to NAS
user interface Graphical User Interface (GUI)
Supported Units 3,5-inch disk drives:
2TB, 3TB, 4TB 7,2k Nearline SAS Disk
2,5-inch disk drives:

  • 146GB, 300GB 15k SAS Disk
  • 300GB, 600GB, 900GB, 1,2TB 10k SAS disk
  • 200GB E-MLC SSD, 400GB
  • 1TB 7,2k nearline SAS disk

RAID Levels RAID 0, 1, 5, 6 and 10
Maximum supported units 240 per control cabinet; 960 per clustered system
Fans and power supplies Fully redundant, hot-swappable
rack support 19 inch standard
management software Unified Storwize V7000 and Storwize V7000 software
Cache per controller/control cabinet/clustered system 8 GB / 16 GB / 64 GB
Advanced features included with every system System Storage Easy Tier, FlashCopy, thin provisioning, Active Cloud Engine (Storwize V7000 Unified only)
Additional advanced features available Remote mirroring, external virtualization unified storage, FlashCopy Manager, IBM Tivoli Storage Productivity Center Select, Tivoli Storage Manager, Tivoli Storage Manager FastBack, IBM Systems Director, Flex System Manager, IBM Real-time Compression
replication services FlashCopy, FlashCopy Manager, Metro Mirror (synchronous), Global Mirror (asynchronous), local and asynchronous remote file-based replication
Dimensions Control and expansion cabinets

  • Width: 483 mm (19,0 in.)
  • Depth: 630 mm (24,8 in.)
  • Height: 87,9 mm (3,46 in.)
    file modules
  • Width: 443 mm (17,5 in.)
  • Depth: 698 mm (27,5 in.)
  • Height: 85 mm (3,36 in.)

Shot Put 12 bay cabinets:

  • Drive ready (no drive modules installed): 17,7 kg (37,6 lb)
  • Fully configured (12 drive modules installed): 27,2 kg (59,8 lb)

24 bay cabinets:

  • Drive ready (no drive modules installed): 17,7 kg (37,6 lb)
  • Fully configured (24 drive modules installed): 25,2 kg (55,4 lb)
    file modules
  • Maximum configuration: 29,6 kg (65 lb)
