IBM Storwize V7000 Gen2 Storage – With warranty and technical service for installation or support.
DC Parts is a distributor of refurbished IBM equipment and accessories. Our technology experts can help you select and configure the right IBM server solution for your specific data needs. Like all of our equipment, IBM arrays are fully tested, you can count on worry-free service for years to come. And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about IBM equipment offerings, please contact us.

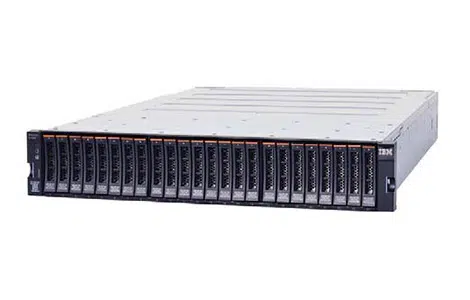

IBM Storwize V7000 is a virtualized storage system designed to consolidate workloads onto a single storage system. Storwize V7000 SFF Model 524 Control Cabinet Used Features:
Two node boxes, each with an 8C processor and 32 GB of cache for a total system of 64 GB of cache
Standard 1 Gb Ethernet ports for 1 Gb
iSCSI connectivity Up to 2 I/O adapter capabilities for 8 Gb FC and 10 Gb iSCSI/FCoE
connectivity Supports up to twenty-four 2.5-inch
drives 19-inch
2U rack-mount enclosureThe Storwize V7000 offers LFF and SFF 12 Gb SAS expansion enclosure models. The used Storwize V7000 LFF Expansion Enclosure Model 12F supports up to twelve 3.5″ drives, while the Refurbished V7000 Expansion Enclosure Model 24F supports up to twenty-four 2.5″ SFF drives.
A Storwize V7000 Model 524 system scales up to 504 units (up to 20 expansion enclosures). Storwize V7000 systems can be clustered to help provide increased performance, bandwidth, and scalability. A clustered system can contain up to four V7000 systems and up to 1,056 drives.
| Host | SAN-attached 16 Gbps Fibre Channel, 1 Gbps iSCSI, and optional 10 Gbps iSCSI/FCoE optional 1 Gbps and 10 Gbps Ethernet attached to the NAS |
|---|---|
| User | Graphical User Interface (GUI) |
| Supported Drives | 3.5-inch disk drives:
2.5-inch disk drives:
2.5-inch flash drives
|
| RAID | RAID 0, 1, 5, 6, 10, Distributed |
| Maximum | 504 per control cabinet; 1,056 per clustered system |
| Fans and power | Fully redundant, hot-swappable |
| Rack | 19-inch standard |
| Management | IBM Spectrum Virtualize software. IBM Spectrum Scale for Storwize V7000 Unified. |
| Cores per controller/control cabinet/clustered | 10/20/80 |
| Cache per controller/control cabinet/clustered | 32 or 64 GB/64 or 128 GB/up to 512 GB |
| Additional advanced features available | Remote mirroring, IBM Easy Tier, IBM Real-time Compression, external virtualization unified storage, IBM Spectrum Control, IBM Spectrum Protect Snapshot |
| Dimensions | Control cabinets and file modules
|
| Weight | Control cabinets:
|
| Operating environment | Air temperature:
Relative humidity:
Electrical energy:
|
Some segments of the economy we help
Some segments of the economy we help
Third-party maintenance for IBM End-of-Life (EOL) and IBM End-of-Service-Life (EOSL)
DC Parts has analyzed more than 250 customer contracts using storage, servers, networks, and tapes and shown us that 40-60% of these customers’ equipment operates beyond their end-of-support dates.
There are simple options so you can reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.
How we can help:
We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in a more affordable way, without compromising their performance.
IBM Server Support
DC Parts support services provide IBM server support. We work to match the right approach with the right equipment to meet your IBM server support needs.
With a highly trained team of certified engineers ready to troubleshoot any IBM server issues, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing IBM storage support, please contact us.
DC Parts support helps businesses of all sizes better manage their IT data centers by providing third-party support and maintenance services to leading equipment manufacturers including: IBM, HPE (HP), DELL, NUTANIX and more.
With DC Parts support, we manage all your hardware, between manufacturers via one call. DC Parts support offers flexible service level agreements, certified engineering support teams, and dedicated customer service representatives.
Extend the life and value of your IT assets. Contact DC Parts support immediately.
