Storage IBM Storwize V5000 – With warranty and technical service for installation or support.
A DC Parts is a distributor of new and refurbished IBM equipment and accessories. Our technology experts can help you select and configure the right IBM server solution for your specific data needs. Like all of our equipment, IBM arrays are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers are on hand to provide support for any issues you may have. If you would like to speak with a representative about IBM equipment offerings, please contact us.

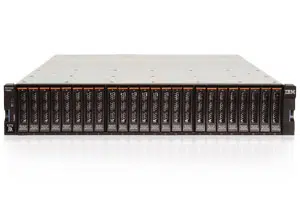

The IBM V5000 is a flexible storage solution that offers extraordinary scalability from the smallest system to the largest non-disruptive. Built with IBM Spectrum Virtualize™ software, it can help you reduce capital and operational costs of storage with heterogeneous data services. The Storwize V5000 is an easily customizable and upgradable solution for better investment protection, improved performance and improved efficiency.
To enter the new era of business, organizations need robust storage solutions like the Storwize V5000 to deliver comprehensive storage services, extraordinary scale, and simplified management with all-flash or hybrid-flash options—all designed to support leading initiatives. of business.
Three Storwize V5000 hybrid models—IBM Storwize V5030, IBM Storwize V5020, and IBM Storwize V5010—provide the flexibility to start small and continue to grow while leveraging existing storage investments. And to enable organizations with midsize workloads to achieve advanced performance, the IBM Storwize V5030F provides an all-flash solution at an affordable price.
Specifications
Connectivity
1Gb iSCSI or 10Gb iSCSI
Optional:
16 Gb Fiber Channel
12Gb SAS
25Gbps iSCSI
10Gb iSCSI/FCoE
1Gb iSCSI
user interface web based GUI
Supported Drives 2,5-inch Small Form Factor Disk Drives:
- 300 GB, 600 GB at 15.000 rpm
- 900GB, 1,2TB, 1,8TB and
2,4TB @ 10k rpm - 2TB @ 7,2k rpm nearline SAS
3,5-inch Large Form Factor Disk Drives:
- 00GB, 600GB, 900GB @ 15k rpm,
SAS (2,5 inch drive in a
3,5 inch drive bracket) - 900GB, 1,2TB, 1,8TB @ 10k rpm,
SAS (2,5 inch drive in a
3,5 inch drive bracket) - 2TB, 3TB, 4TB, 6TB, 8TB, 10TB,
12TB @ 7,2k rpm
2,5 inch flash drives:
- 400GB, 800GB, 1,6TB, 1,92TB,
3,2TB, 3,84TB, 7,68TB and 15,36TB
RAID Levels RAID 0, 1, 5, 6, 10, striped
Maximum supported units Maximum 392 units per system
- Small Form Factor Enclosure:
24 units of 2,5 inches - Large Form Factor Enclosure:
12 units of 3,5 inches - High Density Expansion Enclosure:
92 x 3,5 inch units
Fans and power supplies Fully redundant, hot-swappable
rack support 19 inch standard
management software IBM Spectrum Virtualize software for Storwize V5000 series
cache per system 16 GB, 32 GB or 64 GB
Advanced features included with every system Easy Tier, FlashCopy, Remote Mirroring
Dimensions 8,7 cm (3,4 in.) H x 48,3 cm (19,0 in.)
L x 55,6 cm (21,9 in.)
Third party maintenance for IBM End-of-Life (EOL) and IBM End-of-Service-Life (EOSL)
A DC Parts made an analysis on more than 250 customer contracts that use storage, servers, networks and tapes and showed us that 40-60% of the equipment of these customers operate beyond the end dates of support.
There are simple options for you to reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.
Learn more at IBM Storage Support and Maintenance
How can we help:
We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in the most affordable way, without compromising their performance.
IBM Storage Leases
A DC Parts provides IBM storage rentals for a convenient and affordable solution to a range of data center problems such as seasonal spikes and data center relocation. We work to match the right approach with the right equipment to properly meet your customized need for IBM Storage and Blade leases. With a highly trained team of certified engineers ready to troubleshoot any problems, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about renting IBM machines enter in contact us.
Support for IBM equipment
Support services DC Parts provide support for IBM equipment. We work to match the right approach with the right equipment to meet your IBM equipment support needs. With a highly trained team of certified engineers ready to solve any problems with IBM equipment, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing support for IBM equipment, please contact us. THE DC Parts helps companies of all sizes better manage their IT data centers by providing third-party support services to leading equipment manufacturers, including: IBM, HPE, DELL EMC, NETAPP and much more. With support DC Parts, we manage all your hardware, between the manufacturers through a link. Support from DC Parts offers flexible service level agreements, certified engineering support teams and dedicated customer service representatives. Extend the life and value of your IT assets. contact support DC Parts immediately.
