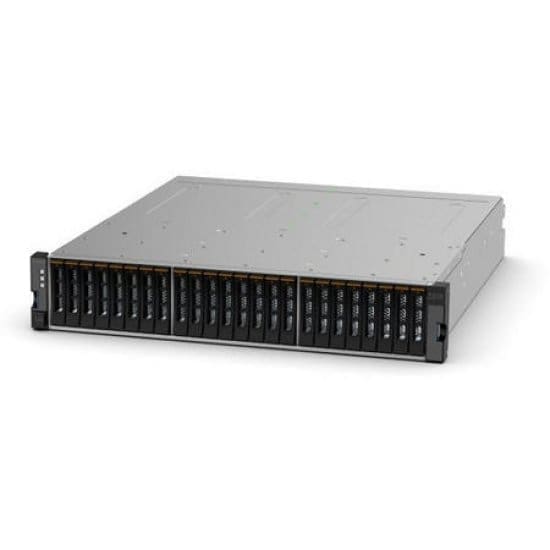

Storage IBM Storwize V3700
A DC Parts IBM Corp. is a distributor of refurbished IBM equipment and accessories. Our technology experts can help you select and configure the right IBM server solution for your specific data needs. Like all of our equipment, IBM storage is fully tested, so you can count on years of worry-free service. And if needed, our team of certified engineers is available to provide support for any issues you may have. If you would like to speak with a representative about IBM equipment offerings, please contact us.
The IBM Storwize family, including IBM Storwize V3700, helps organizations achieve a more efficient data economy by supporting these new workloads critical to their success. Systems in the Storwize family can handle large volumes of data from mobile and social applications, enable agile and flexible deployments of cloud services, and provide the performance and scalability needed to gain insights from the latest analytics technologies.
IBM Storwize V3700, the entry-level system in the IBM Storwize family, is a powerful, easy-to-use system designed to complement virtual server environments by offering flexibility and innovative storage functions.
To meet block storage requirements, the Storwize V3700 is designed to provide small and medium-sized organizations the ability to consolidate and share data at an affordable price, leveraging advanced software capabilities typically found in more expensive systems. Offering up to 240 units of capacity, the Storwize V3700 provides proven ease of management, functionality and interoperability.
IBM Storwize V3700 – Disk System Overview
| Host Interface | 1 Gbps iSCSI and 6 Gbps SAS (optional 8 Gbps Fiber Channel,
1 Gbps iSCSI, 6 Gbps SAS or 10 Gbps iSCSI/Fibre Channel over Ethernet) |
| User Interface | Storwize V3700 Graphical User Interface |
| Controller | Two controllers |
| Cache by Controller | 4GB upgradable to 8GB |
| Unit type | 6Gb, dual-port, hot-swappable SAS disk drives |
| Supported Disks | 2.5-inch small form factor disk drives:
● 1TB at 7.2k rpm SAS nearline ● 600GB, 900GB, 1.2TB and 1.8TB at 10k rpm ● 146 GB, 300 GB and 600 GB at 15k rpm Large form-factor 3.5-inch disk drives: ● 2TB, 3TB, 4TB and 6TB at 7.2k rpm ● 900 GB, 1.2 TB and 1.8 TB at 10k rpm (2.5-inch 1.8 TB drive in a 3.5-inch drive carrier) ● 300GB and 600GB at 15k rpm Solid-state drives (SSD) drives: ● 200GB, 400GB and 800GB |
| Maximum Disks Supported | 240 units per system |
| RAID Levels | RAID 0, 1, 5, 6 and 10 |
| Fans and Power Supplies | Fully redundant and hot-swappable |
| Rack Support | Standard 19-inch rack-mount housing |
| Management Software | Storwize V3700 Machine Code |
| Advanced Functions Included in Each System | Internal virtualization, thin provisioning, one-way data migration and FlashCopy (up to 64 destinations) |
| Optional Licensed Functions | FlashCopy upgrade (up to 2,040 destinations), Easy Tier, Remote Mirror and turbo performance |
| Warranty |
|
Some segments of the economy that we help
Some segments of the economy that we help
Third party maintenance for IBM End-of-Life (EOL) and IBM End-of-Service-Life (EOSL)
A DC Parts made an analysis on more than 250 customer contracts that use storage, servers, networks and tapes and showed us that 40-60% of the equipment of these customers operate beyond the end dates of support.
There are simple options for you to reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.
Learn more at IBM Storage Support and Maintenance
How can we help:
We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in the most affordable way, without compromising their performance.
IBM Storage Leases
A DC Parts provides IBM storage rentals for a convenient and affordable solution to a range of data center problems such as seasonal spikes and data center relocation. We work to match the right approach with the right equipment to properly meet your customized need for IBM Storage and Blade leases. With a highly trained team of certified engineers ready to troubleshoot any problems, DC Parts is exclusively qualified to serve you. If you would like to speak to a representative about renting IBM machines please contact us.
Support for IBM equipment
Support services DC Parts provide support for IBM equipment. We work to match the right approach with the right equipment to meet your IBM equipment support needs. With a highly trained team of certified engineers ready to solve any problems with IBM equipment, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing support for IBM equipment, please contact us. THE DC Parts helps companies of all sizes better manage their IT data centers by providing third-party support services to leading equipment manufacturers, including: IBM, HPE, DELL EMC, NETAPP and much more. With support DC Parts, we manage all your hardware, between the manufacturers through a link. Support from DC Parts offers flexible service level agreements, certified engineering support teams and dedicated customer service representatives. Extend the life and value of your IT assets. contact support DC Parts immediately.
