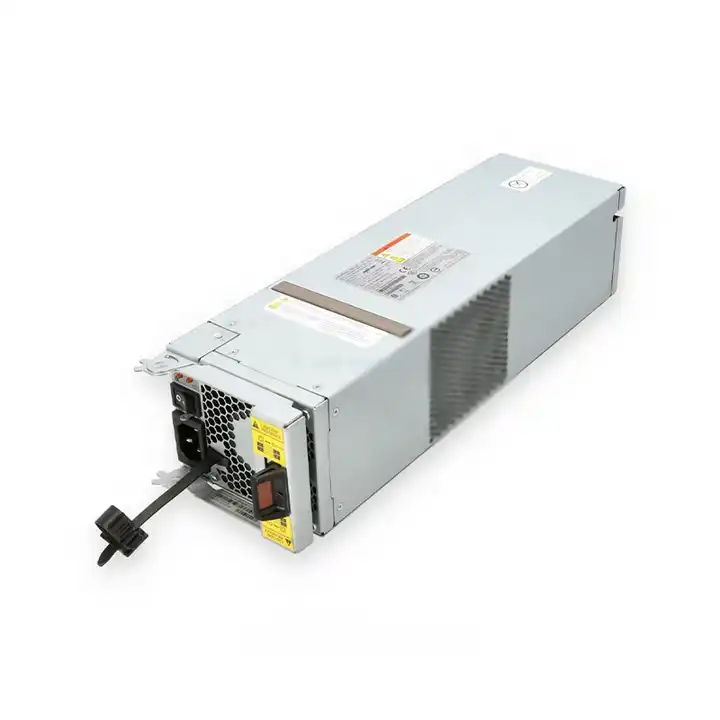

IBM 85Y6074 Power Supply

IBM V7000 580W Power Supply – Model: HB-PCM01-580-AC FRU(s): 85Y6074 00L4605 00AR038

Technical specifications:

  • Type: IBM 580W Storage Power Supply
  • Condition: Recondicioned
  • Warranty: up to 1 (one) year
Category IBM Parts, IBM Tags 85Y6074, IBM, IBM 85Y6074

Power supply IBM 85Y6074 - StorWize V7000 580W HB-PCM01-580-AC

- With warranty and technical service for installation or support.

The IBM 85Y6074 Power Supply is a reliable and efficient solution designed to meet the specific needs of the IBM StorWize V7000 system. With warranty and technical support offered by DC Parts, you can count on the quality and performance of IBM products.

Technical specifications:

  • Type: IBM 580W Storage Power Supply
  • Condition: Recondicioned
  • Warranty: up to 1 (one) year

Main Points to Note:

  • IBM Genuine 580W Power Supply for StorWize V7000.
  • Associated Chassis and PSU models for planning power and cooling requirements.

Description: The IBM 580W Power Supply, model HB-PCM01-580-AC and FRU part numbers 85Y6074, 00L4605, and 00AR038, offers a genuine, efficient power solution designed to meet the specific requirements of the IBM StorWize V7000 system.

This power supply is a reliable choice to ensure the stable and efficient operation of your storage system, providing peace of mind and performance.

If you are interested in this power supply or have any questions about IBM products, please don't hesitate to contact us. Our team of experts is here to help you find the right solutions for your data needs.

Compatibility:

  • Storwize V7000 2076-124, 2076-324 (764W PSU)
  • Storwize V7000 2076-224, 2076-212 (580W PSU)
  • Storwize V7000 2076-524 (1200W PSU)
  • Storwize V7000 2076-24F, 2076-12F (800W PSU)
PSU Input Maximum Power Output Caloric value BTU/hr
1200w 100 – 240V 12 – 7A 50Hz or 60Hz 1200w 4095
800w 100 – 240V 10 – 6A 50Hz or 60Hz 800w 2730
764w 100 – 240V 10 – 6A 50Hz or 60Hz 764w 2607
580w 100 – 240V 8 – 3A 50Hz or 60Hz 580w 1980
  1. Environmental Variation:
    • Variation in ambient temperature can significantly influence power consumption and heat dissipation in a data center environment. Higher temperatures generally lead to an increase in energy consumption and heat production, while lower temperatures can reduce these effects.
  2. Different Settings:
    • The examples provided highlight how power consumption and heat generation can vary based on the specific system configuration, such as the number of solid-state drives (SSDs), host adapters, and other components. Configurations with more storage devices tend to consume more power and generate more heat than configurations with fewer devices.
  3. Power and Cooling Planning:
    • This data is essential for effectively planning power and cooling requirements in a data center. Data center administrators can use this information to properly size power and cooling capacity, ensuring there are enough resources to handle Storwize V7000 system workloads without overheating or power outage issues.
  4. Own Tests:
    • While this data provides a useful estimate, it is crucial that customers conduct their own testing to validate power and cooling requirements in their specific environments. Operating conditions may vary between data centers, and proprietary testing ensures an accurate understanding of infrastructure requirements,
    1. Energy consumption:
      • Power consumption is a critical consideration for properly sizing data center electrical capacity and planning operational costs. The data provided indicates the total power consumption in watts (W) for different configurations of the Storwize V7000 system. For example:
        • Configuration 2076-524 (24 solid state drives): Total Power Consumption 452W.
        • 2076-24F Configuration (24 solid state drives): 151W Total Power Consumption.
        • Configuration 2076-124 (24 solid state drives): Total Power Consumption 530W.
      • These numbers are essential to ensure that the data center's electrical infrastructure can provide enough power to support Storwize V7000 system workloads without exceeding capacity limits.
      • Power consumption is a key metric for understanding the operational and financial requirements of a storage system and must be carefully considered during IT infrastructure planning and deployment.
Model Asset Total energy consumption Calorific Power BTU/hour
2076 - 524 1 enclosure with 24 solid state drives, 2 host adapters, 2 compression accelerators 452 W 1542
2076-24F 1 enclosure with 24 solid state drives 151 W 515
2076 - 124 1 enclosure with 24 solid state drives 530 W 1800
2076 - 324 1 enclosure with 24 solid state drives 560 W 1800
2076 - 524 1 enclosure with 24, 10k SAS Drives, 2 host adapters, 2 compression accelerators 430 W 1467
2076-24F 1 enclosure with 24, 10k SAS Drives 175 W 597
2076 - 124 1 enclosure with 24, 10k SAS Drives 410 W 1400
2076 - 224 1 enclosure with 24, 10k SAS Drives 205 W 700
2076 - 324 1 enclosure with 24, 10k SAS Drives 440 W 1500
2076 - 524 1 enclosure with 24, 15k SAS Drives, 2 host adapters, 2 compression accelerators 471 W 1607
2076-24F 1 enclosure with 24, 15k SAS Drives 234 W 798
2076 - 124 1 enclosure with 24, 15k SAS Drives 430 W 1460
2076 - 224 1 enclosure with 24, 15k SAS Drives 215 W 730
2076 - 324 1 enclosure with 24, 15k SAS Drives 460 W 1560
2076-12F 1 enclosure with 12 7,2k nearline SAS drives 158 W 539
2076 - 112 1 enclosure with 12 7,2k nearline SAS drives 380 W 1300
2076 - 212 1 enclosure with 12 7,2k nearline SAS drives 175 W 600
2076 - 312 1 enclosure with 12 7,2k nearline SAS drives 410 W 1400

Important Notes:

    • Each Storwize V7000 model includes 2 PSUs for redundancy, ensuring high availability and fault tolerance.
    • The data provided is specific to the operating environment mentioned and may vary in other environments, therefore, it is recommended to carry out your own tests to validate the energy consumption and heat generated.
    • This IBM 580W Power Supply offers reliability and performance to ensure stable operation of your storage system, making it an ideal choice for corporate environments that require high availability and consistent performance.
