NetApp FAS8060 Storage (FAS8060AE) – With warranty and technical service for installation or support.
NetApp storage offers industry-leading availability, storage density and upgradability to meet today's growing and demanding IT needs.
These storage solutions offer the best price / performance features and the best price / availability for environments of all types and sizes, from minimal I / O workloads (reference data, archiving and disk-to-disk backup) to remote offices and distributed computing environments for large datacenter deployments.
Each NetApp storage solution is designed to be easy to deploy, protect and reduce management costs, while generating a quick return on investment.
A DC Parts is a distributor of refurbished NetApp storage and accessories. Our technology experts can help you select and configure the right NetApp storage solution for your specific data needs.
Like all of our equipment, NetApp arrays are fully tested, so you can count on worry-free service for many years to come.
And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.

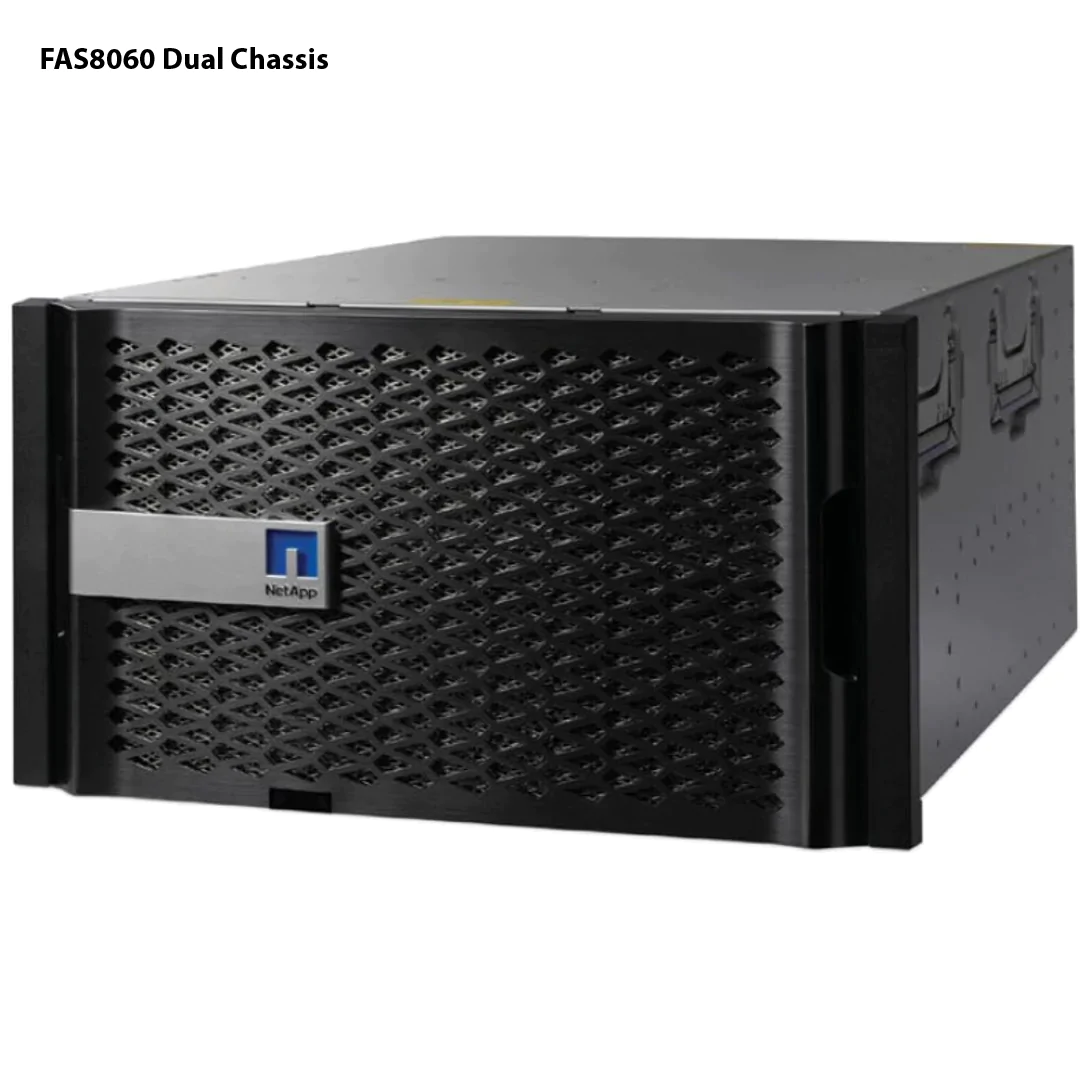

NetApp FAS8060 Filer Head Storage Array
The FAS8000 hybrid storage systems are specifically designed to meet these needs. Powered by NetApp® ONTAP® data management software, the FAS8000 series unifies your SAN and NAS storage infrastructure. When FAS8000 systems are teamed with NetApp AFF all-flash arrays and integrated into the cloud, you have the control to easily move your data to where your business needs it and place it in the storage environment that delivers the best combination of data performance. flash, storage capacity and cost efficiency. With proven agility and data management capabilities, the FAS8000 has the flexibility to keep up with changing business needs while meeting key IT requirements.
EOS: 31/01/2023
NetApp Expansion Storage Array Technical Specifications:
| ### System Configuration |
|---|
| Categories | Details |
|---|---|
| Córdoba | NetApp FAS8060 |
| Chassis | Single Chassis |
| Total Rack Height | 6U |
| Controladores | Dual Controller (HA) |
| Memory (HA) | 128GB |
| Processor Model | 4x 64-bit 8-core 2.10 Ghz |
| Ethernet ports | 8 x RJ45 (1Gb) + 8 x SFP (10Gb) |
| UTA2 ports | 8 x SFP+ (10Gb/16Gb) |
| SAS ports | 8 x QSFP (6Gb) |
| PCIe Expansion Slots | 8 x PCIe |
| Max Drives (total) | 1200 |
| Maximum capacity | 15,000TB (15PB) |
| Disc Shelves | DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C |
| Filer Heads | N/A |
Dimensions and Weight
| Feature | Details |
|---|---|
| Chassis Height | 10.2 ″ (25.9 cm) |
| Chassis Width (without flanges) | 17.6 ″ (44.7 cm) |
| Chassis Depth (with cable mgmt) | 28.9 ″ (73.4 cm) |
| Chassis Weight | Up to 121.5 lb (55.1 kg) |
Controller Specifications
| Feature | Details |
|---|---|
| Maximum Controllers | 2 (Per Chassis) |
| PCI slot (per controller) | 4 x PCIe |
| Ethernet ports (per controller) | 4 x RJ45 (1Gb) + 4 x SFP (10Gb) |
| Fibre Channel ports (per controller) | N/A |
| UTA2 ports (per controller) | 4 x SFP+ (10Gb/16G) |
| SAS ports (per controller) | 4 x QSFP (6Gb) |
| Remote Management | Yes |
| Processor Model (by controller) | 2x 64-bit 8-core 2.10 Ghz |
| Memory (Single/HA) | 64GB / 128GB |
| NVRAM (Single/HA) | 8GB / 16GB |
Storage
| Feature | Details |
|---|---|
| Maximum Number of Internal Drives | 0 |
| Maximum Number of Drives (total) | 1200 |
| Maximum capacity | 15,000TB (15PB) |
| Max # of MSATA Drives | 1200 |
| Max # of SATA Drives | 1200 |
| Max # of NL-SAS Drives | 1200 |
| Max # of SAS Drives | 1200 |
| Max # of SSD Drives | 240 |
| Drive Interface | mSATA, SATA, NL-SAS, SAS, SSD |
| RAID | RAID 4, RAID 6 (RAID-DP), RAID-TEC |
Maximum Number of Shelves
| Shelf Type | Maximum Quantity |
|---|---|
| DS212C | 50 external |
| DS2246 | 50 external |
| DS224C | 50 external |
| DS4243 | 50 external |
| DS4246 | 50 external |
| DS4448 | 25 external |
| DS460C | 20 external |
