Storage NetApp FAS8040 (FAS8040A) – With warranty and technical service for installation or support.
NetApp storage delivers industry-leading availability, storage density, and upgradeability to meet today’s growing and demanding IT needs.
These storage solutions offer the best price/performance and price/availability for environments of all types and sizes, from minimal I/O workloads (reference data, archiving, and disk-to-disk backup) to remote offices and distributed computing environments for large datacenter deployments.
Each NetApp storage solution is designed to be easy to deploy, secure, and reduce management costs while generating a rapid return on investment.
DC Parts is a distributor of refurbished storage and accessories. Our technology experts can help you select and configure the right NetApp storage solution for your specific data needs.
Like all of our equipment, NetApp arrays are fully tested, so you can count on worry-free service for years to come.
And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.

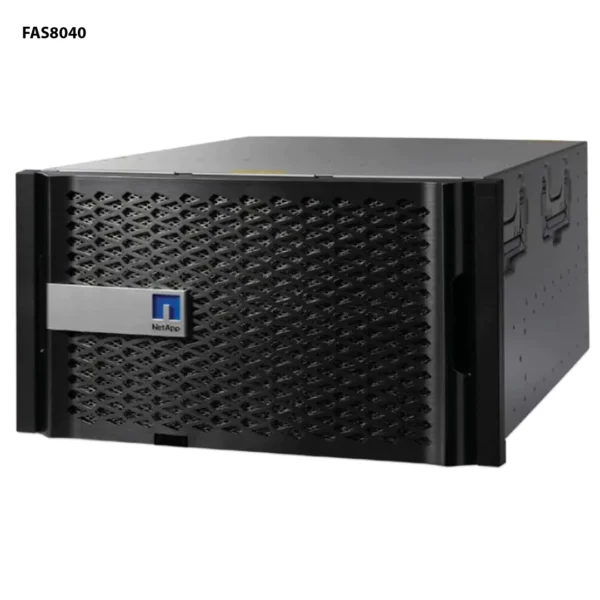

NetApp FAS8040 Filer Head Storage Array
Hybrid storage systems are FAS8000 specifically designed to meet these needs. Powered by NetApp® ONTAP® data management software, the FAS8000 Series unifies your SAN and NAS storage infrastructure. When FAS8000 systems are bundled with NetApp AFF all-flash arrays and integrated with the cloud, you have the control to easily move your data to where it’s needed for your business and place it in the storage environment that delivers the best combination of flash performance, storage capacity, and cost efficiency. With proven agility and data management capabilities, FAS8000 has the flexibility to keep up with changing business needs while meeting key IT requirements.
EOS: 31/01/2023
NetApp Expansion Storage Array Technical Specifications:
| ### System Configuration |
|---|
| Category | Details |
|---|---|
| Model | NetApp FAS8040 |
| Chassis | Single Chassis |
| Total Rack Height | 3U |
| Controllers | Dual Controller (HA) |
| Memory (HA) | 64GB |
| Processor Model | 2x 64-bit 8-core 2.10 Ghz |
| Ethernet | 8 x RJ45 (1Gb) + 8 x SFP (10Gb) |
| UTA2 | 8 x SFP+ (10Gb/16Gb) |
| SAS | 8 x QSFP (6Gb) |
| PCIe | 8 x PCIe |
| Max Drives (total) | 720 |
| Maximum Capacity | 11,520TB (11.52PB) |
| Disc Shelves | DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C |
| Filer Heads | N/A |
Dimensions and Weight
| Characteristic | Details |
|---|---|
| Chassis Height | 10.2″ (25.9 cm) |
| Chassis Width (without flanges) | 17.6″ (44.7 cm) |
| Chassis Depth (with mgmt cable) | 28.9″ (73.4 cm) |
| Chassis Weight | Up to 119.5 lb (54.2 kg) |
Controller Specifications
| Characteristic | Details |
|---|---|
| Maximum Controllers | 2 (Per Chassis) |
| PCI Slot (per controller) | 4 x PCIe |
| Ethernet ports (per controller) | 4 x RJ45 (1Gb) + 4 x SFP (10Gb) |
| Fibre Channel ports (per controller) | N/A |
| UTA2 ports (per controller) | 4 x SFP+ (10Gb/16G) |
| SAS ports (per controller) | 4 x QSFP (6Gb) |
| Remote Management | Yes |
| Processor Model (per controller) | 1x 64-bit 6-core 2.00 Ghz |
| Memory (Single/HA) | 32GB/64GB |
| NVRAM (Single/HA) | 8GB/16GB |
Storage
| Characteristic | Details |
|---|---|
| Maximum Number of Internal Drives | 0 |
| Maximum Number of Drives (total) | 720 |
| Maximum Capacity | 11,520TB (11.52PB) |
| Max # of MSATA Drives | 720 |
| Max # of SATA Drives | 720 |
| Max # of NL-SAS Drives | 720 |
| Max # of SAS Drives | 720 |
| Max # of SSD Drives | 240 |
| Drive Interface | MSATA, SATA, NL-SAS, SAS, SSD |
| RAID | RAID 4, RAID 6 (RAID-DP), RAID-TEC |
Maximum Number of Shelves
| Shelf Type | Maximum Quantity |
|---|---|
| DS212C | 30 external |
| DS2246 | 30 external |
| DS224C | 30 external |
| DS4243 | 30 external |
| DS4246 | 30 external |
| DS4448 | 15 external |
| DS460C | 12 external |
Some segments of the economy we help
Some segments of the economy we help
Third-Party Maintenance for NetApp End-of-Life (EOL) and NetApp End-of-Service-Life (EOSL)
DC Parts has analyzed more than 250 customer contracts using storage, servers, networks, and tapes and shown us that 40-60% of these customers’ equipment operates beyond their end-of-support dates.
There are simple options so you can reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.
How we can help:
We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in a more affordable way, without compromising their performance.
NetApp Storage Leases
DC Parts provides NetApp storage rentals for a convenient and affordable solution to a number of data center problems, such as seasonal spikes and data center relocation. We work to match the right approach with the right equipment to properly meet your custom NetApp Storage Lease needs. With a highly trained team of certified engineers ready to troubleshoot any issues, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about renting NetApp Storage machines, please contact us.
NetApp storage support
DC Parts Support Services provides support for NetApp storage. We work to match the right approach with the right equipment to meet your NetApp storage support needs.
With a highly trained team of certified engineers ready to troubleshoot any issues on NetApp storage , DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing Fujitsu storage media, please contact us.
DC Parts support helps businesses of all sizes better manage their IT data centers by providing third-party support and maintenance services to leading equipment manufacturers including: IBM, HPE (HP), DELL EMC, DELL, NETAPP, and more.
With DC Parts support, we manage all your hardware, between manufacturers via one call. DC Parts support offers flexible service level agreements, certified engineering support teams, and dedicated customer service representatives.
Extend the life and value of your IT assets. Contact DC Parts support immediately.
