NetApp FAS2720

$9.999.999,00

Warranty: up to 12 months

SKU Storage NetApp FAS2720 Categories , , Brand:

Storage NetApp FAS2720 – With warranty and technical service for installation or support.

NetApp storage delivers industry-leading availability, storage density, and upgradeability to meet today’s growing and demanding IT needs.

These storage solutions offer the best price/performance and price/availability for environments of all types and sizes, from minimal I/O workloads (reference data, archiving, and disk-to-disk backup) to remote offices and distributed computing environments for large datacenter deployments.

Each NetApp storage solution is designed to be easy to deploy, secure, and reduce management costs while generating a rapid return on investment.

DC Parts is a distributor of refurbished storage and accessories. Our technology experts can help you select and configure the right NetApp storage solution for your specific data needs.

Like all of our equipment, NetApp arrays are fully tested, so you can count on worry-free service for years to come.

And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.

NetApp FAS2720 Specifications



General Information

Expansion Slots

Category Details
Model NetApp FAS2720 10GBASE-T
Format 2U
PCIe None
Disc Shelves DS212C, DS224C, DS460C
Filer Heads N/A

Dimensions and Weight

Characteristic Details
Chassis Height 3.42″ (8.69 cm)
Chassis Width (without flanges) 17.6″ (44.7 cm)
Chassis Depth (with mgmt cable) 25.12″ (63.8 cm)
Chassis Weight Up to 61.1 lb (27.7 kg)

Controller Specifications

Characteristic Details
Controllers Dual Controller (10GBASE-T HA Pair)
Maximum Controllers 2
PCI Slot (per controller) None
Ethernet ports (per controller) 4 x RJ45 (10Gb) + 2 x SFP+ (10Gb)
Fibre Channel ports (per controller) N/A
UTA2 ports (per controller) N/A
SAS ports (per controller) 2 x MiniSAS HD (12Gb)
Remote Management Yes
Processor Model (per controller) 1x 64-bit 12-core 1.50 Ghz
Memory (Single/HA) 32GB/64GB
NVME (per controller) 1024GB
NVMEM (per controller) 4GB

Storage

Drives

Drives

Drives

Drives

Interface

Characteristic Details
Maximum Number of Internal Drives 12
Maximum Number of Drives (total) 144
Maximum Capacity 3,168TB (3.16PB)
Maximum Number of NL-SAS HA Pair: 144
Maximum Number of SAS HA Pair: 144
Maximum Number of SATA HA Pair: 144
Maximum Number of SSD HA Pair: 136
Drive NL-SAS, SAS, SATA, SSD
RAID RAID 4, RAID 6 (RAID-DP), RAID-TEC

Maximum Number of Shelves

Shelf Type Maximum Quantity
DS212C 1 Internal + 9 External OR 0 Internal + 10 External
DS224C 6 External
DS460C 2 External

Operating System Version: ONTAP 9.4 RC1 and later
Supported Storage Protocols: FC, FCoE, iSCSI, NFS, pNFS, CIFS/SMB

EOS: Not announced

Flexibly adapt to evolving business needs
Provision storage in minutes.
Go from initial go-live to data delivery in less than 10 minutes with provisioning for key business applications.

Simplify ongoing management.
Update software or service storage during normal business hours without downtime.

Streamline operations.
Leverage a unified system for SAN and NAS with proven storage efficiency.

Protect and secure your data in your hybrid cloud
Local and public clouds, we’ve got you
coveredStart small and scale non-disruptively as your data requirements grow, on-premises and in the cloud.

The Best Cloud Integration
Easily connect to the cloud with leading integration with Amazon AWS, Microsoft Azure, Google Cloud, and others.

Prevent problems before they impact your business
Optimize your storage environment and reduce costs with NetApp ® Active IQ’s® predictive analytics and proactive care.

Customer-proven for diverse workloads
Protect your sensitive
informationProtect your data at rest and in transit with our portfolio of security features.

Protect against data
lossEfficiently replicate data and accelerate recovery with application-consistent data protection.

Eliminate business
disruptionsMaintain access to data at all times during service, failures, and on-site disasters.

Customer-proven
real-world resultsThe IDC whitepaper validates that NetApp customers achieve six nines availability.

Storage NetApp FAS2720
NetApp Storage FAS2720 – Whether you need replacement parts, service on your netapp or extended warranty contract. Call DC Parts.
Storage NetApp FAS2720
NetApp Storage FAS2720 – Whether you need replacement parts, service on your netapp or extended warranty contract. Call DC Parts.

































Some segments of the economy we help

Some segments of the economy we help

Third-Party Maintenance for NetApp End-of-Life (EOL) and NetApp End-of-Service-Life (EOSL)

DC Parts has analyzed more than 250 customer contracts using storage, servers, networks, and tapes and shown us that 40-60% of these customers’ equipment operates beyond their end-of-support dates.

There are simple options so you can reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.

How we can help:

We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in a more affordable way, without compromising their performance.

NetApp Storage Leases

DC Parts provides NetApp storage rentals for a convenient and affordable solution to a number of data center problems, such as seasonal spikes and data center relocation. We work to match the right approach with the right equipment to properly meet your custom NetApp Storage Lease needs. With a highly trained team of certified engineers ready to troubleshoot any issues, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about renting NetApp Storage machines, please contact us.

NetApp storage support

DC Parts Support Services provides support for NetApp storage. We work to match the right approach with the right equipment to meet your NetApp storage support needs.

With a highly trained team of certified engineers ready to troubleshoot any issues on NetApp storage , DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing Fujitsu storage media, please contact us.

DC Parts support helps businesses of all sizes better manage their IT data centers by providing third-party support and maintenance services to leading equipment manufacturers including: IBM, HPE (HP), DELL EMC, DELL, NETAPP, and more.

With DC Parts support, we manage all your hardware, between manufacturers via one call. DC Parts support offers flexible service level agreements, certified engineering support teams, and dedicated customer service representatives.

Extend the life and value of your IT assets. Contact DC Parts support immediately.

Weight 27,7 kg
Netapp

Storage NetApp FAS

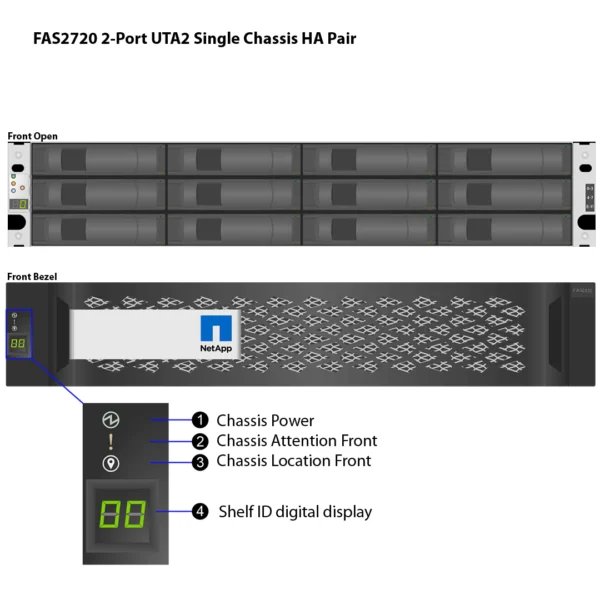

Platform LED for FAS2720

Supported shelf units for FAS2720

Supported RAID Configurations - FAS2720

Supported adapter cards - FAS2720

Supported connections for FAS2720

Platform Combination Rules FAS2720

Compliance with the product standard FAS2720

Supported OS version FAS2720

Supported power cords for FAS2720

Configuration of integrated ports FAS2720

Supported Platform Configurations FAS2720

FAS2720 Platform Memory Specifications

Supported rail kit for FAS2720

Supported Firmware Matrix FAS2720

Product Certificates FAS2720

Size, Weight, Acoustic, Power FAS2720

Número da peça associadaConfiguraçãoUnidades de RackPesoPotência sonoraPressão sonoraTensão de linha real (mín a máx)Amplificadores TípicosAmps pioresWatts típicosWatts PiorBTU / H TípicoBTU / Hora Pior
FAS2720-104-CFAS2720 2 PCM 12x10TB NSE260,4 lb (27,4 kg)6,7 Bels51 dBA100 (100 a 120)3.924.8238447213111611
FAS2720-104-CFAS2720 2 PCM 12x10TB NSE260,4 lb (27,4 kg)6,7 Bels51 dBA200 (200 a 240)1.932.3737746312871581
FAS2720-105-CFAS2720 2 PCM 12x10TB260,4 lb (27,4 kg)6,7 Bels51 dBA100 (100 a 120)3.924.8238447213111611
FAS2720-105-CFAS2720 2 PCM 12x10TB260,4 lb (27,4 kg)6,7 Bels51 dBA200 (200 a 240)1.932.3737746312871581
FAS2720-105-CFAS2720 2 PCM 12x10TB NSE260,4 lb (27,4 kg)6,7 Bels51 dBA100 (100 a 120)3.924.8238447213111611
FAS2720-105-CFAS2720 2 PCM 12x10TB NSE260,4 lb (27,4 kg)6,7 Bels51 dBA200 (200 a 240)1.932.3737746312871581
FAS2720-115-CFAS2720 2 PCM 12x16TB NL-SAS260,6 libras (27,5 kg)6,7 Bels51 dBA100 (100 a 120)3.894.7938146913011601
FAS2720-115-CFAS2720 2 PCM 12x16TB NL-SAS260,6 libras (27,5 kg)6,7 Bels51 dBA200 (200 a 240)1.912.3537446012771570
Configuração de unidade incorporada (mista)
FAS2720-106-CFAS2720 2 PCM 4x960GB, 8x2TB255,1 lb (25,0 kg)6,7 Bels51 dBA100 (100 a 120)3.84.737246012701570
FAS2720-106-CFAS2720 2 PCM 4x960GB, 8x2TB255,1 lb (25,0 kg)6,7 Bels51 dBA200 (200 a 240)1.872.3136545112461540
FAS2720-107-CFAS2720 2 PCM 4x960GB, 8x4TB256,4 lb (25,6 kg)6,7 Bels51 dBA100 (100 a 120)4.054.9439648413521652
FAS2720-107-CFAS2720 2 PCM 4x960GB, 8x4TB256,4 lb (25,6 kg)6,7 Bels51 dBA200 (200 a 240)1.992.4338947513281622
FAS2720-108-CFAS2720 2 PCM 4x960GB, 8x8TB258,0 lb (26,3 kg)6,7 Bels51 dBA100 (100 a 120)4.074.9639848613591659
FAS2720-108-CFAS2720 2 PCM 4x960GB, 8x8TB258,0 lb (26,3 kg)6,7 Bels51 dBA200 (200 a 240)22.4439147713351628
FAS2720-109-CFAS2720 2 PCM 4x960GB, 8x10TB256,0 lb (25,4 kg)6,7 Bels51 dBA100 (100 a 120)3.94.838247013041605
FAS2720-109-CFAS2720 2 PCM 4x960GB, 8x10TB256,0 lb (25,4 kg)6,7 Bels51 dBA200 (200 a 240)1.922.3637546112801574
FAS2720-111-CFAS2720 2 PCM 4x3.8TB, 8x4TB256,4 lb (25,6 kg)6,7 Bels51 dBA100 (100 a 120)4.084.9739948713621663
FAS2720-111-CFAS2720 2 PCM 4x3.8TB, 8x4TB256,4 lb (25,6 kg)6,7 Bels51 dBA200 (200 a 240)22.4439247813381632
FAS2720-112-CFAS2720 2 PCM 4x3.8TB, 8x8TB258,0 lb (26,3 kg)6,7 Bels51 dBA100 (100 a 120)4.11540249013721673
FAS2720-112-CFAS2720 2 PCM 4x3.8TB, 8x8TB258,0 lb (26,3 kg)6,7 Bels51 dBA200 (200 a 240)2.022.4639448113451642
FAS2720-116-CFAS2720 2 PCM 4x960GB, 8x16TB254,9 lb (24,9 kg)6,7 Bels51 dBA100 (100 a 120)3.634.5335544312121512
FAS2720-116-CFAS2720 2 PCM 4x960GB, 8x16TB254,9 lb (24,9 kg)6,7 Bels51 dBA200 (200 a 240)1.782.2234843511881485
FAS2720-117-CFAS2720 2 PCM 4x3.8TB, 8x16TB254,9 lb (24,9 kg)6,7 Bels51 dBA100 (100 a 120)3.634.5335544312121512
FAS2720-117-CFAS2720 2 PCM 4x3.8TB, 8x16TB254,9 lb (24,9 kg)6,7 Bels51 dBA200 (200 a 240)1.782.2234843511881485
Configuração de unidade incorporada (vazia)
FAS2720-100-CFAS2720 2 PCM sem unidades241,2 lb (18,7 kg)6,7 Bels51 dBA100 (100 a 120)2.533.422473358431144
FAS2720-100-CFAS2720 2 PCM sem unidades241,2 lb (18,7 kg)6,7 Bels51 dBA200 (200 a 240)1.241.682433298301123
Configuração de unidade incorporada (completa)
FAS2720-101-CFAS2720 2 PCM 12x2TB NL-SAS259,1 lb (26,8 kg)6,7 Bels51 dBA100 (100 a 120)3.654.5535744512191519
FAS2720-101-CFAS2720 2 PCM 12x2TB NL-SAS259,1 lb (26,8 kg)6,7 Bels51 dBA200 (200 a 240)1.792.2335043711951492
FAS2720-102-CFAS2720 2 PCM 12x4TB261,1 lb (27,7 kg)6,7 Bels51 dBA100 (100 a 120)4.145.0440549313831683
FAS2720-102-CFAS2720 2 PCM 12x4TB261,1 lb (27,7 kg)6,7 Bels51 dBA200 (200 a 240)2.032.4739748413551652
FAS2720-102-CFAS2720 2 PCM 12x4TB NSE261,1 lb (27,7 kg)6,7 Bels51 dBA100 (100 a 120)4.145.0440549313831683
FAS2720-102-CFAS2720 2 PCM 12x4TB NSE261,1 lb (27,7 kg)6,7 Bels51 dBA200 (200 a 240)2.032.4739748413551652
FAS2720-103-CFAS2720 2 PCM 12x8TB263,5 libras (28,8 kg)6,7 Bels51 dBA100 (100 a 120)4.185.0740949613961693
FAS2720-103-CFAS2720 2 PCM 12x8TB263,5 libras (28,8 kg)6,7 Bels51 dBA200 (200 a 240)2.052.4940148713691663
FAS2720-104-CFAS2720 2 PCM 12x10TB260,4 lb (27,4 kg)6,7 Bels51 dBA100 (100 a 120)3.924.8238447213111611
FAS2720-104-CFAS2720 2 PCM 12x10TB260,4 lb (27,4 kg)6,7 Bels51 dBA200 (200 a 240)1.932.3737746312871581
