Storage NetApp FAS2554 (FAS2554HA)
- With warranty and technical service for installation or support.
NetApp storage offers industry-leading availability, storage density and upgradability to meet today's growing and demanding IT needs.
These storage solutions offer the best price / performance features and the best price / availability for environments of all types and sizes, from minimal I / O workloads (reference data, archiving and disk-to-disk backup) to remote offices and distributed computing environments for large datacenter deployments.
Each NetApp storage solution is designed to be easy to deploy, protect and reduce management costs, while generating a quick return on investment.
A DC Parts is a distributor of refurbished NetApp storage and accessories. Our technology experts can help you select and configure the right NetApp storage solution for your specific data needs.
Like all of our equipment, NetApp arrays are fully tested, so you can count on worry-free service for many years to come.
And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.

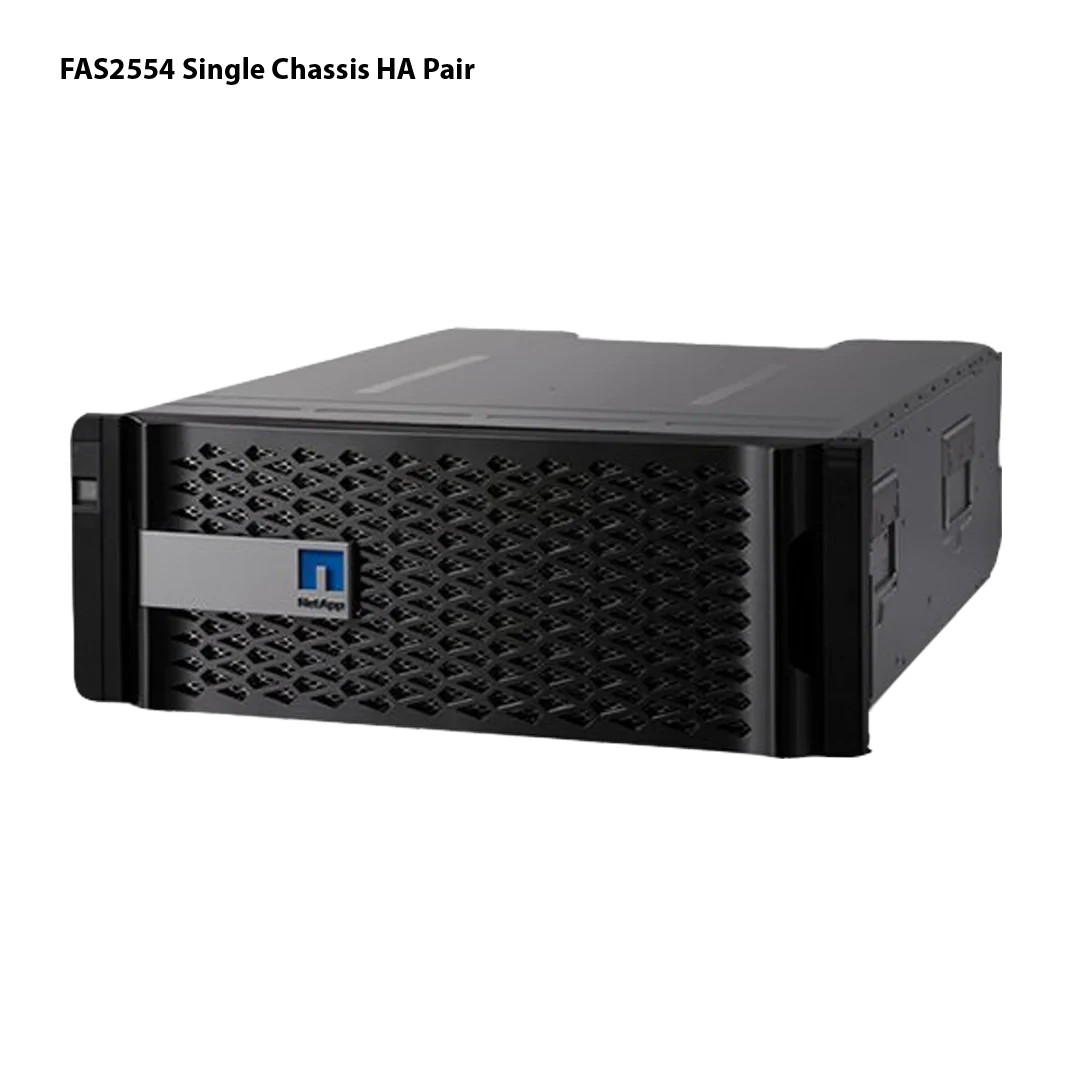

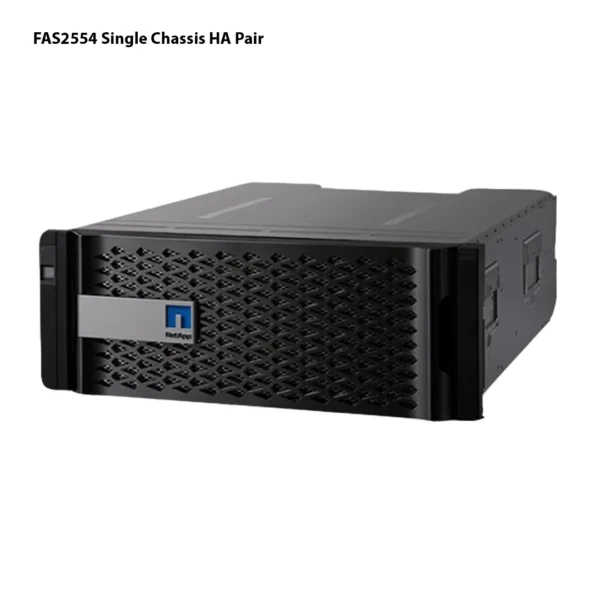

NetApp FAS2554 Enterprise Storage System
Maximum gross capacity (HA): 576 TB
Maximum disk drives: 144
Maximum indoor units: 24
Controller form factor: 4U
Maximum memory: 36 GB
Disk type: NL-SAS, SAS, SATA
Disk form factor: 2,5, 3,5
Host connectivity: 16Gb Fiber Channel (FC), 10Gb Fiber Channel over Ethernet (FCoE), 1GbE, 10GbE
Supported storage protocols: CIFS (NAS), Fiber Channel (FC), Fiber Channel over Ethernet (FCoE), NFS (NAS), iSCSI (IP SAN)
Supported RAID: RAID 4, RAID 6 (RAID-DP)
EOS: 31/01/2023
*Available in single or dual controller (active-active 'C' / 'A' cluster / 'HA' high availability). Ask for disc pricing. Call for details and pricing
The NetApp FAS2500 series hybrid storage arrays offer more value for your money than any other system in its class. Each FAS2554 hybrid storage array includes unified support for NAS or SAN workloads and can be configured as a hybrid or all-flash system to meet specific price or performance goals.
The FAS2554 is equipped for higher capacity needs and is a great choice for midsize organizations, Windows applications and virtual server consolidation with multiple workloads. The FAS2554 is also ideal for customers who demand I/O flexibility and cost-effective large-capacity systems.
You don't have to be a storage expert to implement and manage NetApp storage systems. The FAS2500 Series offers a powerful range of technologies to help reduce complexity and increase efficiency for your storage administrators. The FAS2500 series features 3x faster system setup, lets you easily manage 2-3x more storage, and quickly tune and troubleshoot virtual server environments with ease and in real-time.
Technical Specifications FAS2554
| SCALE SPECIFICATIONS | |
|---|---|
| NAS/SAN Expansion | 1-8 nodes (4 HA pairs) |
| Maximum Units | 576 |
| Maximum Gross Capacity | 2.30PB |
| Maximum Flash Set | 16 TB |
| Maximum Memory | 144 GB |
| cluster interconnect | 10GbE |
| PER HA PAIR SPECIFICATIONS (ACTIVE-ACTIVE DUAL CONTROLLER) | |
|---|---|
| Maximum Units | 144 |
| Maximum Gross Capacity | 576 |
| controller form factor | 4U/24 Units |
| ECC memory | 36 GB |
| Maximum Flash Set | 4TB |
| NVEM/NVRAM | 4GB |
| Integrated I/O: UTA 2 (8Gb FC / 16Gb FC / FCoE / 10GbE) | 8 |
| Integrated I/O: 10G Base-T | N / D |
| Onboard I/O: GbE | 4 |
| Onboard I/O: 6Gb SAS | 4 |
| OSVersion | Date ONTAP 8.2.2 or later |
| Supported storage protocols | FCP, iSCSI, NFS, CIFS, FCoE |
| Supported host/client operating systems | Windows 2000, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Linux, Oracle Solaris, AIX, HP-UX, Mac OS, VMware, ESX |
| ADDITIONAL TECHNICAL SPECIFICATIONS FOR SINGLE AND HA CONFIGURATIONS | |
|---|---|
| Maximum Gross Capacity (HA) | 576 TB |
| Minimum recommended raw capacity (GB) array LUNs | N / D |
| Minimum absolute raw capacity (GB) array LUNs | N / D |
| Maximum Storage Devices (HA) | 144 discos |
| Max DS2246 Shelves (HA) | 5 |
| Max DS4243 Shelves (HA) | 5 |
| Max DS4246 Shelves (HA) | 5 |
| Max DS4486 Shelves (HA) | N / D |
| Shelves Class DS14 Max (HA) | N / D |
| Maximum nodes per cluster (NAS) | Not supported |
| Maximum nodes per cluster (SAN) | Not supported |
| 32-bit aggregate size (TiB) | 16 |
| 64-bit aggregate size (TiB) | 120 |
| Minimum size for an array LUN aggregate (GB) | N / D |
| Flexible volume size 32-bit (TiB) | 16 |
| Flexible volume size 64-bit (TiB) | 60 |
| Maximum Infinite Volume Data Constituent Size (TiB) | Not supported |
| Maximum volume count (single) | 1000 |
| Maximum array LUN size (GB) | N / D |
| Minimum array LUN size (GB) | N / D |
| Minimum array LUN size – root volume (GB) | N / D |
| Minimum Root Volume Size (Single/HA) | 250 GB / 250 GB |
| Spare Core Array Minimum LUN Size (GB) | N / D |
| Maximum RAID Groups in an Aggregate | N / D |
| Block Size (Bytes) | N / D |
| Chassis Height | 7,05" |
| Chassis Width | 17,70" |
| Chassis Depth | 21,94" |
| Rack Units (Single/HA) | 4U/4U |
| Operating temperature range | 50°F to 104°F |
| Thermal Storage Range | -40° to 158°F |
| Input supply voltage | 100v to 120v, 200v to 240v |
| Processor (single) | 1 x 2 cores 64-bit with HT 1,73 Ghz |
| Memory (Single/HA) | 18GB / 36GB |
| NVRAM (single) | 1,25 GB (NVMEM) |
| Ethernet ports (Single) | 2 x RJ45 (1Gbps) |
| Fiber Channel Ports (Single) | N / D |
| UTA2 Ports (Single) | 4x SFP+ (16Gbps) |
| Expansion Slots (Single) | N / D |
| SAS Ports (Single) | 2x QSFP (6Gbps) |
| Max backend FC (HA) loops | 1 |
| Minimum version of Data ONTAP 7 | N / D |
| Minimum version of Data ONTAP 8 (both modes) | 8.2.2RC1, 8.3RC1 |
| Maximum version of Data ONTAP 8 (both modes) | 8.2.4, 8.3.2RC1 |
