NetApp FAS2552 (FAS2552HA)

Warranty: up to 12 months

SKU Storage NetApp FAS2552 (FAS2552HA) Category netapp, FAS line, Netapp Storage Tags FA2552, FAS2552HA, netapp, storage, netapp storage

Storage NetApp FAS2552 (FAS2552HA)

- With warranty and technical service for installation or support.

NetApp storage offers industry-leading availability, storage density and upgradability to meet today's growing and demanding IT needs.

These storage solutions offer the best price / performance features and the best price / availability for environments of all types and sizes, from minimal I / O workloads (reference data, archiving and disk-to-disk backup) to remote offices and distributed computing environments for large datacenter deployments.

Each NetApp storage solution is designed to be easy to deploy, protect and reduce management costs, while generating a quick return on investment.

A DC Parts is a distributor of refurbished NetApp storage and accessories. Our technology experts can help you select and configure the right NetApp storage solution for your specific data needs.

Like all of our equipment, NetApp arrays are fully tested, so you can count on worry-free service for many years to come.

And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.

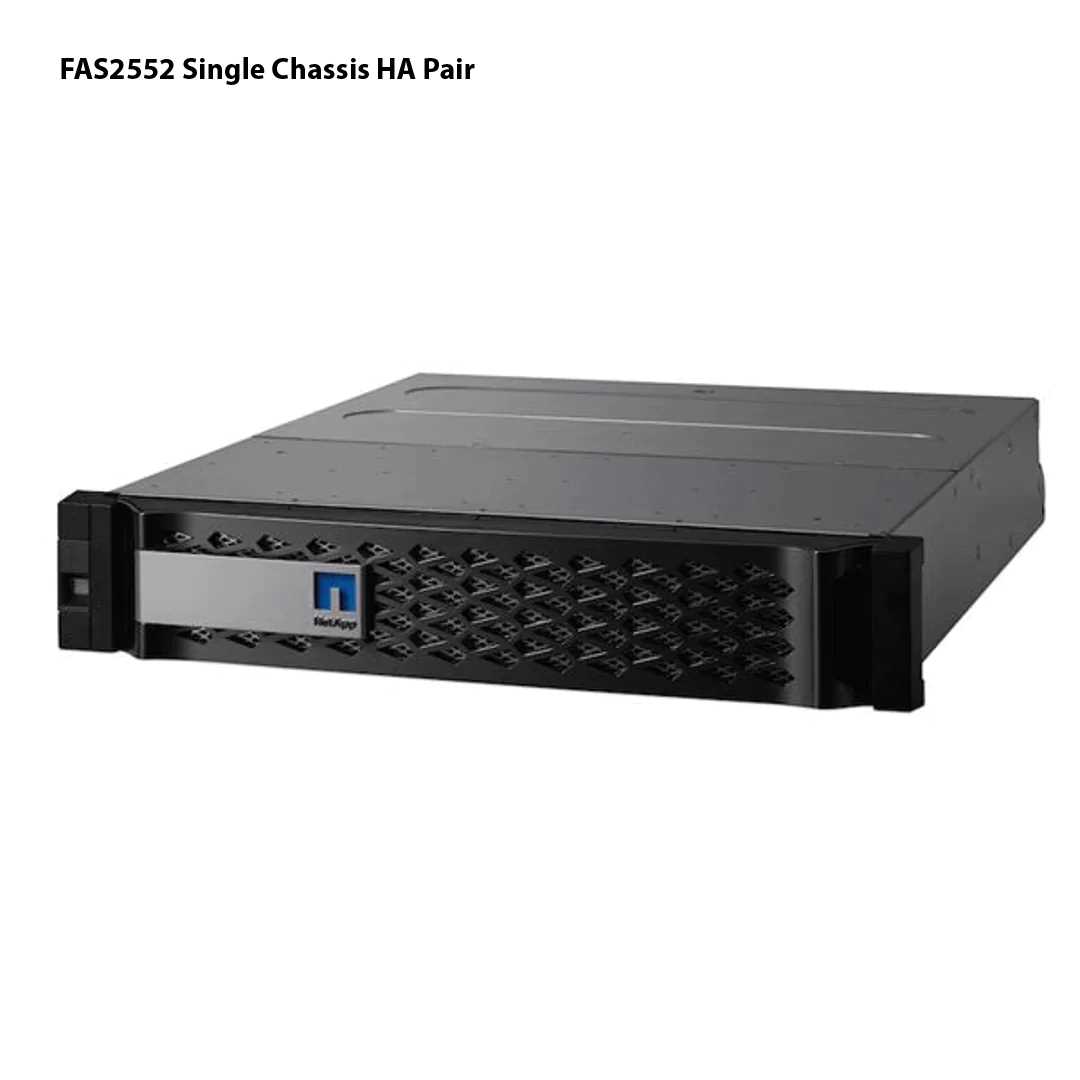

NetApp FAS2552 Enterprise Storage System

Maximum gross capacity (HA):  518 TB
Maximum disk drives:  144
Maximum indoor units:  24 Factor
of form of controller:  2U
Maximum memory:  36 GB
Disk type:  SSD/Flash, NL-SAS, SAS, SATA
Disk form factor:  2,5, 3,5
Host connectivity:  16Gb Fiber Channel (FC), 10Gb Fiber Channel over Ethernet (FCoE), 1GbE, 10GbE
Supported storage protocols:  CIFS (NAS), Fiber Channel (FC), Fiber Channel over Ethernet (FCoE), NFS (NAS), iSCSI (IP SAN)
Supported RAID: RAID 4, RAID 6 (RAID-DP)

EOS: 31/01/2023

The NetApp FAS2500 series hybrid storage arrays offer more value for your money than any other system in its class. Each FAS2552 hybrid storage array includes unified support for NAS or SAN workloads and can be configured as a hybrid or all-flash system to meet specific price or performance goals.

The FAS2552 is equipped for higher performance needs and is a great choice for midsize organizations, Windows applications and virtual server consolidation with multiple workloads. The FAS2552 is also ideal for customers who demand I/O flexibility and investment protection for future growth.

You don't have to be a storage expert to implement and manage NetApp storage systems. The FAS2500 Series offers a powerful range of technologies to help reduce complexity and increase efficiency for your storage administrators. The FAS2500 series features 3x faster system setup, lets you easily manage 2-3x more storage, and quickly tune and troubleshoot virtual server environments with ease and in real-time.

NetApp Storage FAS2552HA
NetApp Storage FAS2552HA – If you need replacement parts, service on your netapp or extended warranty contract. Call her DC Parts.
NetApp Storage FAS2552HA
NetApp Storage FAS2552HA – If you need replacement parts, service on your netapp or extended warranty contract. Call her DC Parts.



























Technical Specifications FAS2552

SCALE SPECIFICATIONS
NAS/SAN Expansion 1-8 nodes (4 HA pairs)
Maximum Units 576
Maximum Gross Capacity 2.07PB
Maximum Flash Set 16 TB
Maximum Memory 144 GB
cluster interconnect 10GbE
PER HA PAIR SPECIFICATIONS (ACTIVE-ACTIVE DUAL CONTROLLER)
Maximum Units 144
Maximum Gross Capacity 518
controller form factor 2U/24 Units
ECC memory 36 GB
Maximum Flash Set 4TB
NVEM/NVRAM 4GB
Integrated I/O: UTA 2 (8Gb FC / 16Gb FC / FCoE / 10GbE) 8
Integrated I/O: 10G Base-T N / D
Integrated I/O: GbE 4
Integrated I/O: 6Gb SAS 4
operating system version Date ONTAP 8.2.2 or later
Supported storage protocols FCP, iSCSI, NFS, CIFS, FCoE
Supported host/client operating systems Windows 2000, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Linux, Oracle Solaris, AIX, HP-UX, Mac OS, VMware, ESX
ADDITIONAL TECHNICAL SPECIFICATIONS FOR SINGLE AND HA CONFIGURATIONS
Maximum Gross Capacity (HA) 518 TB
Minimum recommended raw capacity (GB) array LUNs N / D
Minimum absolute raw capacity (GB) array LUNs N / D
Maximum Storage Devices (HA) 144 discos
Max DS2246 Shelves (HA) 5
Max DS4243 Shelves (HA) 5
Max DS4246 Shelves (HA) 5
Max DS4486 Shelves (HA) N / D
Shelves Class DS14 Max (HA) N / D
Maximum nodes per cluster (NAS) Not supported
Maximum nodes per cluster (SAN) Not supported
32-bit aggregate size (TiB) 16
64-bit aggregate size (TiB) 120
Minimum size for an array LUN aggregate (GB) N / D
Flexible volume size 32-bit (TiB) 16
Flexible volume size 64-bit (TiB) 60
Maximum Infinite Volume Data Constituent Size (TiB) Not supported
Maximum volume count (single) 1000
Maximum array LUN size (GB) N / D
Minimum array LUN size (GB) N / D
Minimum array LUN size – root volume (GB) N / D
Minimum Root Volume Size (Single/HA) 250 GB / 250 GB
Spare Core Array Minimum LUN Size (GB) N / D
Maximum RAID Groups in an Aggregate N / D
Block Size (Bytes) N / D
Chassis Height 3,35"
Chassis Width 17,61"
Chassis Depth 19.02"
Rack Units (Single/HA) 2U/2U
Operating temperature range 50°F to 104°F
Thermal Storage Range -40° to 158°F
Input supply voltage 100v to 120v, 200v to 240v
Processor (single) 1 x 2 cores 64-bit with HT 1,73 Ghz
Memory (Single/HA) 18GB / 36GB
NVRAM (single) 2GB (NVMEM)
Ethernet ports (Single) 2x RJ45 (1Gbps)
Fiber Channel Ports (Single) N / D
UTA2 Ports (Single) 4x SFP+ (16Gbps)
Expansion Slots (Single) N / D
SAS Ports (Single) 2x QSFP (6Gbps)
Max backend FC (HA) loops 1
Minimum version of Data ONTAP 7 N / D
Minimum version of Data ONTAP 8 (both modes) 8.2.2RC1, 8.3RC1
Maximum version of Data ONTAP 8 (both modes) 8.2.4, 8.3.2RC1

Some segments of the economy that we help

Some segments of the economy that we help



Third-party maintenance for NetApp End-of-Life (EOL) and NetApp End-of-Service-Life (EOSL)

A DC Parts made an analysis on more than 250 customer contracts that use storage, servers, networks and tapes and showed us that 40-60% of the equipment of these customers operate beyond the end dates of support.

There are simple options for you to reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.

How can we help:

We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in the most affordable way, without compromising their performance.

NetApp storage leases

A DC Parts provides NetApp storage rentals for a convenient and affordable solution to a range of data center issues such as seasonal spikes and data center relocation. We work to match the right approach with the right equipment to properly meet your customized need for NetApp Storage Leases. With a highly trained team of certified engineers ready to solve any problems, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about leasing NetApp Storage machines, please contact us.

NetApp storage support

Support services DC Parts provide support for NetApp storage. We work to combine the right approach with the right equipment to meet your NetApp storage support needs.

With a highly trained team of certified engineers ready to solve any problems in NetApp storage, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing Fujitsu Storage Stand, please contact us.

A DC Parts helps companies of all sizes better manage their IT data centers by providing third-party support services to leading equipment manufacturers, including: Hitachi HDS, NetApp, Dell EMC, Oracle Sun, Cisco , and more.

With support DC Parts, we manage all your hardware, between the manufacturers through a link. Support from DC Parts offers flexible service level agreements, certified engineering support teams and dedicated customer service representatives.

Extend the life and value of your IT assets. contact support DC Parts immediately.



Shot Put 22,5 kg
netapp

Storage NetApp FAS

LED platform for FAS2552HA

Supported Shelves Units for FAS2552HA

Supported connections for FAS2552HA

Supported RAID Configurations - FAS2552HA

FAS2552HA Platform Combination Rules

Product Standard Compliance - FAS2552HA

Supported OS Version - FAS2552HA

Supported power cords for FAS2552HA

FAS2552HA Integrated Port Configuration

Supported Platform Configurations - FAS2552HA

Platform Memory Specifications - FAS2552HA

Bracket Rail Kit for FAS2552HA

Field Replacement Unit Parts - FAS2552HA

Compatible Firmware Matrix - FAS2552HA

Product Certificates - FAS2552HA

Size, Weight, Acoustic, Power FAS2552HA
