NetApp FAS2240-4

Warranty: up to 12 months

SKU NetApp Storage FAS2240-4 Category netapp, FAS line, Netapp Storage Tags FAS2240-4, netapp, storage, netapp storage

  Storage NetApp FAS2240-4 – With warranty and technical service for installation or support.

NetApp storage offers industry-leading availability, storage density and upgradability to meet today's growing and demanding IT needs.

These storage solutions offer the best price / performance features and the best price / availability for environments of all types and sizes, from minimal I / O workloads (reference data, archiving and disk-to-disk backup) to remote offices and distributed computing environments for large datacenter deployments.

Each NetApp storage solution is designed to be easy to deploy, protect and reduce management costs, while generating a quick return on investment.

A DC Parts is a distributor of refurbished NetApp storage and accessories. Our technology experts can help you select and configure the right NetApp storage solution for your specific data needs.

Like all of our equipment, NetApp arrays are fully tested, so you can count on worry-free service for many years to come.

And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.

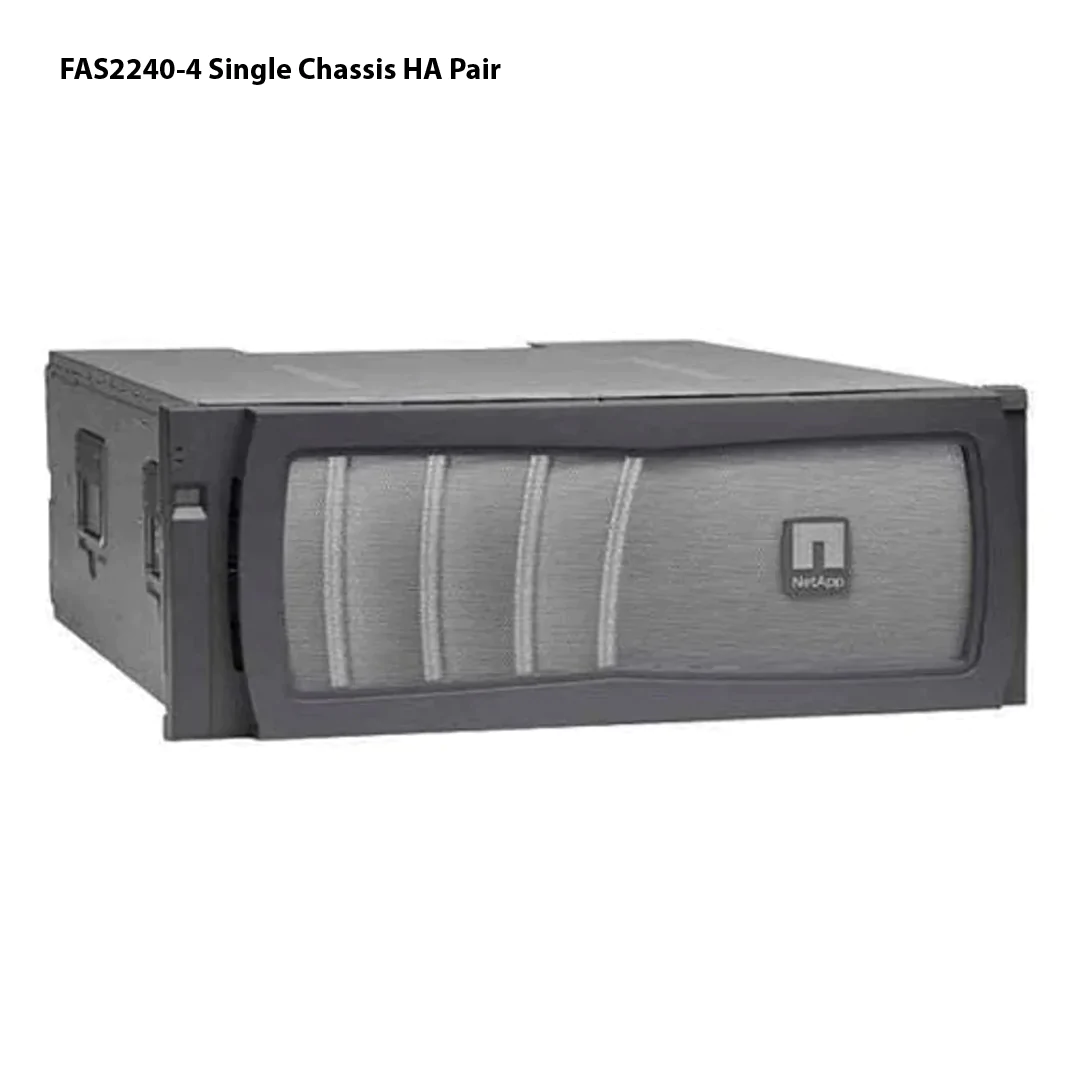

NetApp FAS2240-4 Enterprise Storage System

Maximum gross capacity (HA):  576 TB
Maximum disk drives:  144
Maximum indoor units:  24
Controller form factor:  4U
Maximum memory:  12 GB
Disk type:  SSD/Flash, NL-SAS, SAS, SATA
Disk form factor:  2,5, 3,5
Host connectivity:  2 Gb Fiber Channel (FC), 4 Gb Fiber Channel (FC), 8 Gb Fiber Channel (FC), 1 GbE, 10 GbE
Supported storage protocols: CIFS (NAS), Fiber Channel (FC), NFS (NAS), iSCSI (IP SAN),
HTTP Supported RAID: RAID 4, RAID 6 (RAID-DP)

EOS: 30/03/2020

The FAS2200 Series is not only affordable, it also offers a more powerful platform than other systems in its class. The FAS2200 series supports SSDs in all FAS systems. The FAS2200 series has the ability to get more out of applications and improve storage efficiency with ultra-fast flash using Flash Pool technology.

You don't have to be a storage expert to implement and manage NetApp storage systems. The NetApp FAS2200 series offers a powerful array of technologies to help increase the efficiency of your storage administrators. The FAS2200 series gives you the option to optimize your data, whether it's stored on flash or disk, for better performance and management simplicity.

Clustered Data ONTAP allows you to expand to more nodes. Seamlessly upgrade to other NetApp systems using the same operating system and software tools. The FAS2240 gives you the ability to convert your storage system into an external disk shelf to upgrade to larger NetApp systems. NetApp FAS2240-4 uses up to 144 disks and can provide up to 576 TB of raw capacity.

fas 2240 4 rear 2000x DC Parts fas 2240 4 controller 2000x DC Parts

FAS2240-4 Technical Specifications

FAS2240-4 OVERVIEW
Form factor 4U/24 unit
dual controllers Yes
Maximum disk drives 144
Maximum Ethernet ports 8
Onbaord SAS ports 4
NetApp Flash pool support Yes
8Gb FC support Yes
10GbE support Yes
Remote management Yes
storage protocols FCP, iSCSI, NFS, CIFS
TECHNICAL SPECIFICATIONS FOR SINGLE AND HA CONFIGURATIONS
Maximum Gross Capacity (HA) 576 TB
Minimum recommended raw capacity (GB) array LUNs N / D
Minimum absolute raw capacity (GB) array LUNs N / D
Maximum Storage Devices (HA) 144 discos
Max DS2246 Shelves (HA) 5
Max DS4243 Shelves (HA) 5
Max DS4246 Shelves (HA) 5
Max DS4486 Shelves (HA) N / D
Shelves Class DS14 Max (HA) 6
Maximum nodes per cluster (NAS) Not supported
Maximum nodes per cluster (SAN) Not supported
32-bit aggregate size (TiB) 16
64-bit aggregate size (TiB) 60
Minimum size for an array LUN aggregate (GB) N / D
Flexible volume size 32-bit (TiB) 16
Flexible volume size 64-bit (TiB) 60
Maximum Infinite Volume Data Constituent Size (TiB) Not supported
Maximum volume count (single) 500
Maximum array LUN size (GB) N / D
Minimum array LUN size (GB) N / D
Minimum array LUN size – root volume (GB) N / D
Minimum Root Volume Size (Single/HA) 162 GB / 162 GB
Spare Core Array Minimum LUN Size (GB) N / D
Maximum RAID Groups in an Aggregate N / D
Block Size (Bytes) N / D
Chassis Height 7,01"
Chassis Width 17,68"
Chassis Depth 21,94"
Rack Units (Single/HA) 4U/4U
Operating temperature range 50°F to 104°F
Thermal Storage Range -40° to 158°F
Input supply voltage 100v to 120v, 200v to 240v
Processor (single) 1 x 2 cores 64-bit with HT 1,73 Ghz
Memory (Single/HA) 6GB / 12GB
NVRAM (single) 786,43 MB (NVMEM)
Ethernet ports (Single) 4 x RJ45 (1Gbps)
Fiber Channel Ports (Single) N / D
UTA2 Ports (Single) N / D
Expansion Slots (Single) 1x Mezzanine
SAS Ports (Single) 2x QSFP (6Gbps)
Max backend FC (HA) loops 1
Minimum version of Data ONTAP 7 N / D
Minimum version of Data ONTAP 8 (both modes) 8.1, 8.2RC1, 8.3RC1
Maximum version of Data ONTAP 8 (both modes) 8.1.4, 8.2.4, 8.3.2RC1

Some segments of the economy that we help

Some segments of the economy that we help



Third-party maintenance for NetApp End-of-Life (EOL) and NetApp End-of-Service-Life (EOSL)

A DC Parts made an analysis on more than 250 customer contracts that use storage, servers, networks and tapes and showed us that 40-60% of the equipment of these customers operate beyond the end dates of support.

There are simple options for you to reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.

How can we help:

We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in the most affordable way, without compromising their performance.

NetApp storage leases

A DC Parts provides NetApp storage rentals for a convenient and affordable solution to a range of data center issues such as seasonal spikes and data center relocation. We work to match the right approach with the right equipment to properly meet your customized need for NetApp Storage Leases. With a highly trained team of certified engineers ready to solve any problems, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about leasing NetApp Storage machines, please contact us.

NetApp storage support

Support services DC Parts provide support for NetApp storage. We work to combine the right approach with the right equipment to meet your NetApp storage support needs.

With a highly trained team of certified engineers ready to solve any problems in NetApp storage, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing Fujitsu Storage Stand, please contact us.

A DC Parts helps companies of all sizes better manage their IT data centers by providing third-party support services to leading equipment manufacturers, including: Hitachi HDS, NetApp, Dell EMC, Oracle Sun, Cisco , and more.

With support DC Parts, we manage all your hardware, between the manufacturers through a link. Support from DC Parts offers flexible service level agreements, certified engineering support teams and dedicated customer service representatives.

Extend the life and value of your IT assets. contact support DC Parts immediately.

Shot Put 34,5 kg
