NetApp Storage FAS2240-2 – With warranty and technical service for installation or support.
NetApp storage delivers industry-leading availability, storage density, and upgradeability to meet today’s growing and demanding IT needs.
These storage solutions offer the best price/performance and price/availability for environments of all types and sizes, from minimal I/O workloads (reference data, archiving, and disk-to-disk backup) to remote offices and distributed computing environments for large datacenter deployments.
Each NetApp storage solution is designed to be easy to deploy, secure, and reduce management costs while generating a rapid return on investment.
DC Parts is a distributor of refurbished storage and accessories. Our technology experts can help you select and configure the right NetApp storage solution for your specific data needs.
Like all of our equipment, NetApp arrays are fully tested, so you can count on worry-free service for years to come.
And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.

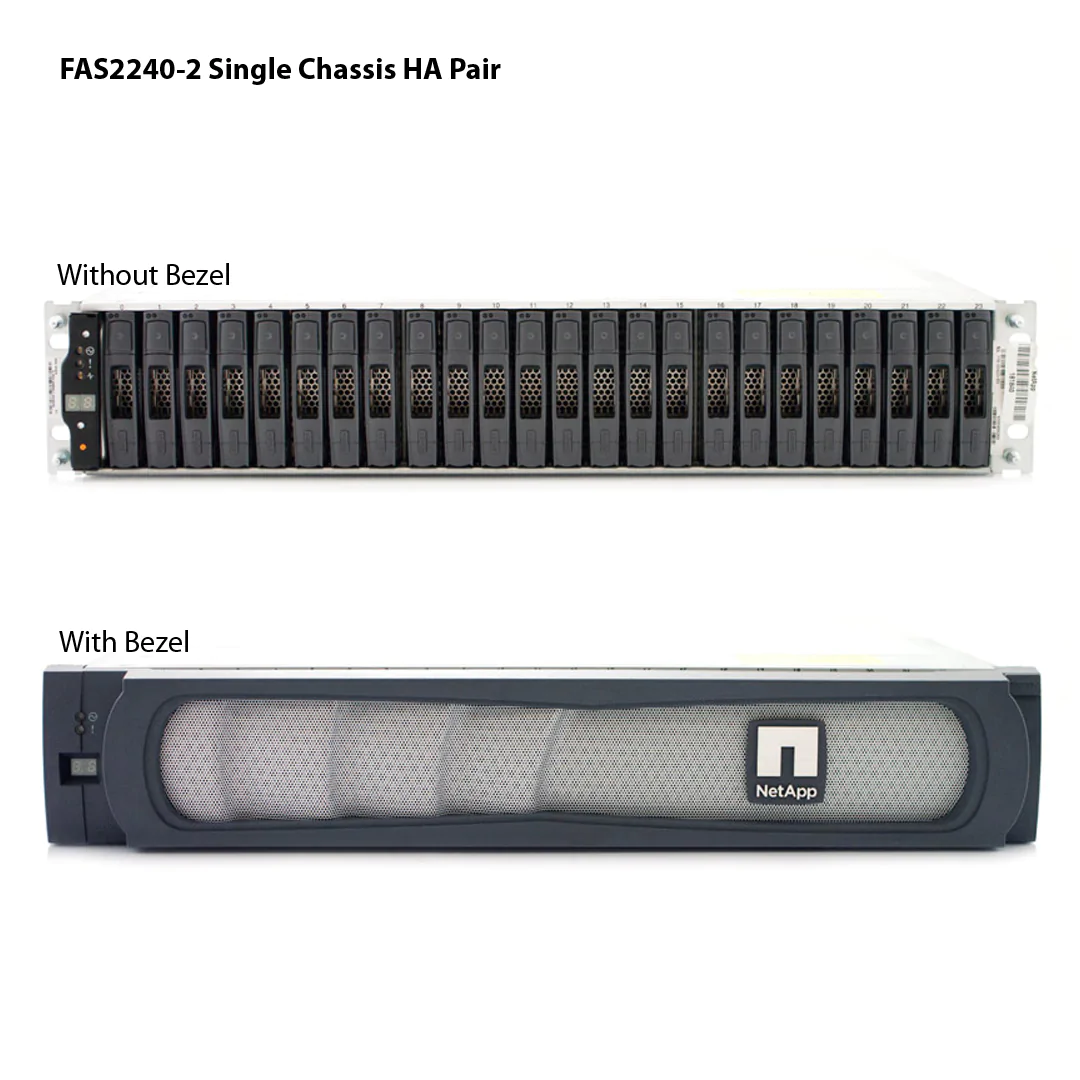

NetApp FAS2240-2 Enterprise Storage System
Maximum Raw Capacity (HA): 518 TB
Maximum Disk Drives: 144
Maximum Internal Drives: 24
Controller Form Factor: 2U
Maximum Memory: 12 GB
Disk Type: SSD/Flash, NL-SAS, SAS, SATA, Fibre Channel Disk Form Factor: 2.5″ 3.5″
Host Connectivity: 2 Gb Fibre Channel (FC), 4 Gb Fibre Channel (FC), 8 Gb Fibre Channel (FC), 1 GbE, 10 GbE
Supported Storage Protocols: CIFS (NAS), Fibre Channel (FC), NFS (NAS), iSCSI (IP SAN), HTTP-supported RAID: RAID 4, RAID 6 (RAID-DP)
EOS: 30/03/2020
The FAS2200 series is not only affordable, but it also offers a more powerful platform than other systems in its class. The FAS2200 series supports SSDs on all FAS systems. The FAS2200 series has the ability to get more out of applications and improve storage efficiency with ultra-fast flash using Flash Pool technology.
You don’t need to be a storage expert to implement and manage NetApp storage systems. The NetApp FAS2200 series offers a powerful range of technologies to help increase the efficiency of your storage administrators. The FAS2200 series gives you the option to optimize your data, whether it’s stored on flash or disk, for improved performance and management simplicity.
Clustered Data ONTAP allows you to expand to more nodes. Seamlessly upgrade to other NetApp systems using the same operating system and software tools. FAS2240 provides the ability to convert your storage system to an external disk shelf to upgrade to larger NetApp systems. NetApp FAS2240-2 utilizes up to 144 disks and can deliver up to 518 TB of raw capacity in a 2U/24 drive configuration.
Technical Specifications FAS2240-2
| FAS2240-2 OVERVIEW | |
|---|---|
| Form | 2U/24 Unit |
| Dual controllers | Yes |
| Maximum | 144 |
| Maximum Ethernet | 8 |
| Onbaord | 4 |
| NetApp | Yes |
| 8 Gb | Yes |
| 10GbE | Yes |
| Remote | Yes |
| Storage | FCP, iSCSI, NFS, CIFS |
| TECHNICAL SPECIFICATIONS FOR SINGLE AND HA CONFIGURATIONS | |
|---|---|
| Maximum Gross Capacity (HA) | 518 TB |
| Minimum Recommended Raw Capacity (GB) | N/A |
| Minimum Absolute Raw Capacity (GB) | N/A |
| Maximum Storage Devices (HA) | 144 discs |
| Max DS2246 Shelves (HA) | 5 |
| Max DS4243 Shelves (HA) | 5 |
| Max DS4246 Shelves (HA) | 5 |
| Max DS4486 Shelves (HA) | N/A |
| Class DS14 Max (HA) | 6 |
| Maximum nodes per cluster (NAS) | Not Supported |
| Maximum nodes per cluster (SAN) | Not Supported |
| Aggregate size 32 bits (TiB) | 16 |
| Aggregate size 64-bit (TiB) | 60 |
| Minimum size for an array LUN aggregate (GB) | N/A |
| Flexible volume size 32-bit (TiB) | 16 |
| Flexible volume size 64-bit (TiB) | 60 |
| Maximum Infinite Volume Data Constituent Size (TiB) | Not Supported |
| Maximum Volume Count (Single) | 500 |
| Maximum Array LUN Size (GB) | N/A |
| Minimum array LUN size (GB) | N/A |
| Minimum Array LUN Size – Root Volume (GB) | N/A |
| Minimum Root Volume Size (Single/HA) | 162 GB / 162 GB |
| Minimum spare core array LUN size (GB) | N/A |
| Maximum RAID Groups in an Aggregate | N/A |
| Block Size (Bytes) | N/A |
| Chassis Height | 3.34″ |
| Chassis Width | 17.61″ |
| Chassis Depth | 19.03″ |
| Rack Units (Single/HA) | 2U/2U |
| Operating | 50°F to 104°F |
| Storage | -40° to 158°F |
| Input | 100v to 120v, 200v to 240v |
| Processor (single) | 1 x 2 x 64-bit HT cores 1.73 Ghz |
| Memory (Single/HA) | 6GB/12GB |
| NVRAM (single) | 786.43 MB (NVMEM) |
| Ethernet Ports (Single) | 4 x RJ45 (1Gbps) |
| Fibre Channel ports (single) | N/A |
| UTA2 Ports (Single) | N/A |
| Expansion Slots (Single) | 1x Mezzanine |
| SAS Ports (Single) | 2x QSFP (6 Gbps) |
| FC Backend Maximum Loops (HA) | 1 |
| Minimum Data ONTAP version 7 | N/A |
| Minimum Data ONTAP version 8 (both modes) | 8.1, 8.2RC1, 8.3RC1 |
| Data ONTAP maximum version 8 (both modes) | 8.1.4, 8.2.4, 8.3.2RC1 |
Some segments of the economy we help
Some segments of the economy we help
Third-Party Maintenance for NetApp End-of-Life (EOL) and NetApp End-of-Service-Life (EOSL)
DC Parts has analyzed more than 250 customer contracts using storage, servers, networks, and tapes and shown us that 40-60% of these customers’ equipment operates beyond their end-of-support dates.
There are simple options so you can reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.
How we can help:
We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in a more affordable way, without compromising their performance.
NetApp Storage Leases
DC Parts provides NetApp storage rentals for a convenient and affordable solution to a number of data center problems, such as seasonal spikes and data center relocation. We work to match the right approach with the right equipment to properly meet your custom NetApp Storage Lease needs. With a highly trained team of certified engineers ready to troubleshoot any issues, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about renting NetApp Storage machines, please contact us.
NetApp storage support
DC Parts Support Services provides support for NetApp storage. We work to match the right approach with the right equipment to meet your NetApp storage support needs.
With a highly trained team of certified engineers ready to troubleshoot any issues on NetApp storage , DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing Fujitsu storage media, please contact us.
DC Parts support helps businesses of all sizes better manage their IT data centers by providing third-party support and maintenance services to leading equipment manufacturers including: IBM, HPE (HP), DELL EMC, DELL, NETAPP, and more.
With DC Parts support, we manage all your hardware, between manufacturers via one call. DC Parts support offers flexible service level agreements, certified engineering support teams, and dedicated customer service representatives.
Extend the life and value of your IT assets. Contact DC Parts support immediately.
