Storage NetApp AFF C190A – With warranty and technical service for installation or support.
NetApp storage delivers industry-leading availability, storage density, and upgradeability to meet today’s growing and demanding IT needs.
These storage solutions offer the best price/performance and price/availability for environments of all types and sizes, from minimal I/O workloads (reference data, archiving, and disk-to-disk backup) to remote offices and distributed computing environments for large datacenter deployments.
Each NetApp storage solution is designed to be easy to deploy, secure, and reduce management costs while generating a rapid return on investment.
DC Parts is a distributor of refurbished storage and accessories. Our technology experts can help you select and configure the right NetApp storage solution for your specific data needs.
Like all of our equipment, NetApp arrays are fully tested, so you can count on worry-free service for years to come.
And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.

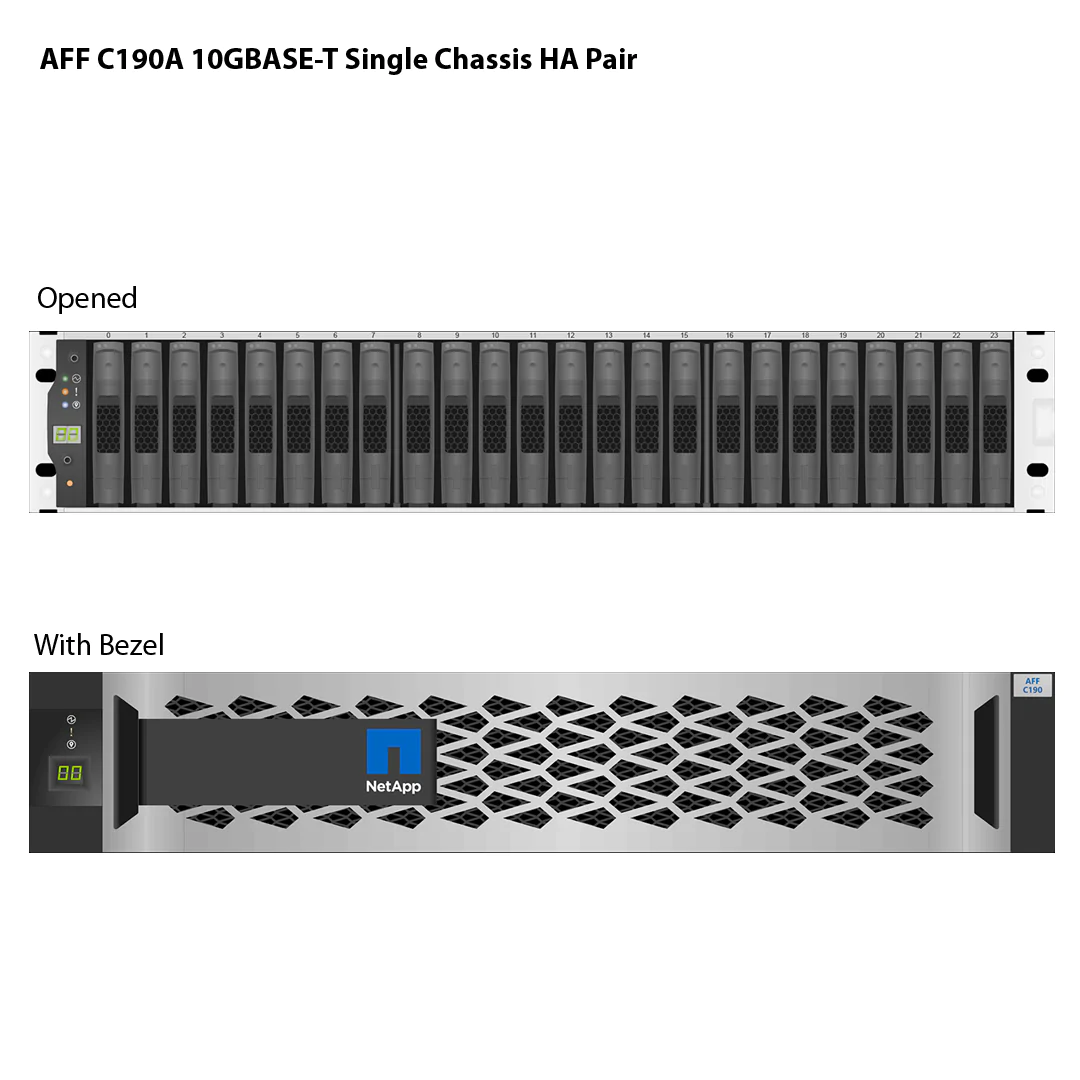

NetApp All Flash Filer (AFF) C190 Entry-Level Storage
Organizations large and small are navigating a rapid pace of change in a data-driven economy. Delivering data simply, quickly, and cost-effectively is essential to driving business growth, and hybrid cloud has emerged as the most efficient way to meet changing business needs. Every IT organization is trying to determine how to modernize with hybrid cloud, and all-flash storage systems are essential on-premises to accelerate enterprise applications. However, small businesses have continued to use hard disk storage systems due to the high cost of all-flash solutions.
All-flash storage systems are no longer out of reach. The NetApp® AFF C190 storage system built with NetApp ONTAP® data management software delivers a simple, intelligent, and secure enterprise-class flash system at an affordable price. Designed for IT generalists, it helps you meet new business requirements with a modern all-flash array that provides comprehensive data services, built-in data protection, seamless scalability, new levels of performance, and cloud integration.
One system to control all workloads. All-flash storage systems are critical to accelerating enterprise applications and creating a modern hybrid cloud infrastructure. They provide comprehensive data services, built-in data protection, seamless scalability, new levels of performance, and cloud integration. That said, the high cost of all-flash systems forces most small businesses to stick to hard drive storage. Or at least it used to. With NetApp’s AFF C190 entry-level storage system, the benefits of all-flash are no longer out of reach. Not only is it easy to install and deploy, but it gives you the security you need with the flexibility to connect to the cloud — all at a very low price.
Key Benefits Simple
- Provision storage in minutes.
- Manage file and block data in a single system.
- Easily connect to any public cloud.
Intelligent
- Lower TCO with data reduction.
- Accelerate application performance and improve response time.
- Optimize availability and performance.
Insurance
- Protect your data.
- Protect your data at rest and in transit.
- Never lose data with zero data loss protection.
NetApp All Flash Filer (AFF) C190 Entry-Level Storage Array Specifications
1. Overview
| Characteristic | Detail |
|---|---|
| Model | NetApp AFF-C190 UTA2 (All-Flash FAS) |
| Format | 2U Single Chassis |
| Controllers | 2 (HA – High Availability) |
| Processors | 2x Intel 8-core @ 1.50 GHz (1 per controller) |
| Memory | 64GB (32GB per controller) |
| Connectivity | 4x SFP+ (10GbE) + 8x UTA2 SFP+ (16Gb) + 4x MiniSAS HD (12Gb) |
2. Storage
| Parameter | Value |
|---|---|
| Internal Drives | 24x 2.5″ (SSD) |
| Max. Capacity | 23TB (with ~1TB SSDs each) |
| Expansion | 1x internal DS224C (24 additional drives) |
| Total Drives | 24 (no external expansion) |
| RAID Supported | RAID 4, RAID-DP (6), RAID-TEC |
3. Expected Performance
| Metric | Performance |
|---|---|
| IOPS (4K) | ~150,000 |
| Throughput | ~2GB/s |
| Latency | <2ms |
4. Detailed Connectivity
| Port Type | Quantity (per chassis) | Speed |
|---|---|---|
| Ethernet (SFP+) | 4 | 10GbE |
| UTA2 (SFP+) | 8 | 16Gb |
| MiniSAS HD | 4 | 12Gb |
5. Physical Dimensions
| Dimension | Value |
|---|---|
| Height | 2U (3.35″ / 8.5cm) |
| Width | 17.6″ (44.7cm) without flanges |
| Depth | 24.13″ (61.3cm) with cables |
| Weight | 60.8 lbs (27.6kg) |
6. Recommended Use Cases
✅ Enterprise branch office (ROBO)
✅ Lightweight virtualization (VMware, Hyper-V)
✅ Storage for low-end
✅ applications High-performance local backup
7. Comparisons
| Feature | AFF-C190 | AFF-A220 |
|---|---|---|
| CPU Cores | 8 | 12 |
| Memory | 64GB | 64GB |
| 10GbE ports | 4 | 4 |
| 16Gb | 8 | 8 |
| PCIe | 0 | 0 |
Differential: The C190 has a smaller maximum capacity (23TB vs 4.4PB) but retains the same connectivity as the A220.
8. Basic Configuration Example
- 24x 960GB SSDS (RAID-DP: ~21TB usable)
- 2x redundant 10GbE switches
- Full HA configuration
Estimated Cost: On request (varies by selected SSDs)
9. Important Observations
- Ideal for environments that do not need external expansion
- Does not support additional shelves (only the internal DS224C)
- Cost-effective for lightweight workloads
