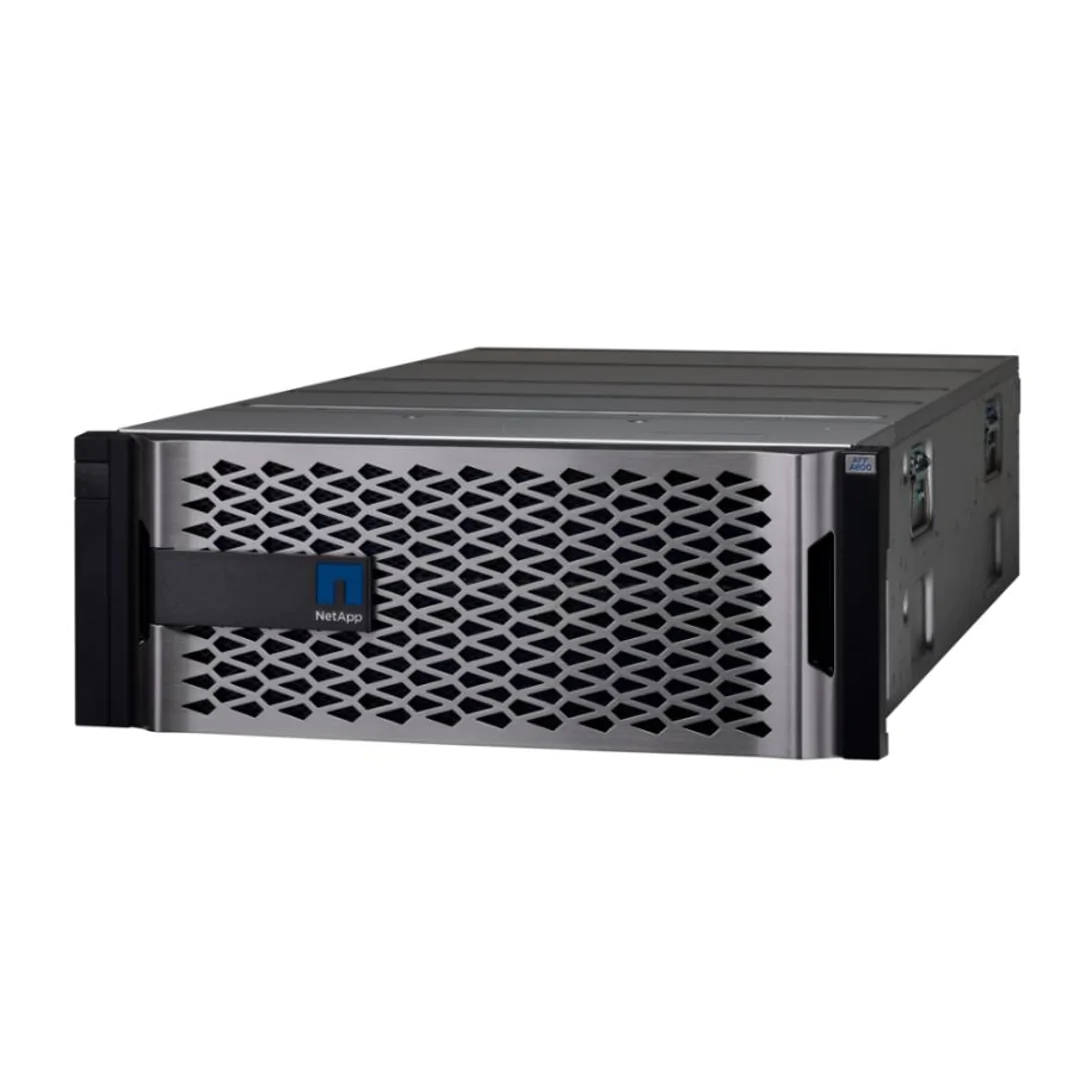

Storage NetApp AFF A800A – With warranty and technical service for installation or support.
NetApp storage delivers industry-leading availability, storage density, and upgradeability to meet today’s growing and demanding IT needs.
These storage solutions offer the best price/performance and price/availability for environments of all types and sizes, from minimal I/O workloads (reference data, archiving, and disk-to-disk backup) to remote offices and distributed computing environments for large datacenter deployments.
Each NetApp storage solution is designed to be easy to deploy, secure, and reduce management costs while generating a rapid return on investment.
DC Parts is a distributor of refurbished storage and accessories. Our technology experts can help you select and configure the right NetApp storage solution for your specific data needs.
Like all of our equipment, NetApp arrays are fully tested, so you can count on worry-free service for years to come.
And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.
NetApp AFF A800: Powering the Best of Hybrid Cloud
Looking to power your data-intensive applications like artificial intelligence, deep learning, and big data analytics? Or scale your massive file workloads used in the media and entertainment and EDA industries? The AFF A800 answers your call. With its ultra-low latency of 100 us and throughput of up to 300 GB/s, you can unleash the power of your data at lightning speed, no matter where your data resides, on-premises, in any cloud, or anywhere in between.
Incredibly fast, surprisingly elegant
With everything powered by industry-leading data management software—ONTAP, discover how to enable new data-driven applications and create opportunities for innovation in your organization. With a sleek form factor, the AFF A800 also saves a lot of data center space and carbon footprint. Now that’s a win-win-win!
Technical specifications of AFF A800 hardware
Here is the complete NetApp AFF-A800 datasheet, professionally formatted for easy reference:
1. Main Specifications
| Category | Detail |
|---|---|
| Format | 4U Single Chassis |
| Controllers | 2x HA (High Availability) |
| Processors | 4x Intel Xeon 24-core @ 2.10GHz (2 per controller) |
| Memory | 1280GB (640GB per controller) |
| NVRAM | 64GB (32GB per controller) |
| PCIe | 10x (5 per controller) |
2. Storage & Expansion
| Component | Ability |
|---|---|
| Internal Drives | 48x 2.5″ (hot-swappable) |
| Max. Total of Drives | 216 (48 internal + 168 via shelves) |
| Maximum Capacity | 6.60PB (NVMe/SSD) |
| Drive | NVMe SSD / SAS SSD |
| RAID Supported | RAID 4, RAID-DP (6), RAID-TEC |
3. Supported Shelves
| Kind | Max. Qty. | Interface | Use Cases |
|---|---|---|---|
| FS4483 (Internal) | 1x | SAS/SATA | General Storage |
| DS224C (External) | 8x | SAS/SATA | Economic expansion |
| NS224 (External) | 8x | NVMe | Low latency (AI/ML, DBs) |
| NS224 + NSM100B | 8x | NVMe-oF | Extreme Performance (NVMe SAN) |
4. Connectivity & Management
- Flexible PCIe Modules:
- 100GbE/40GbE Ethernet
- 32/64Gb Fibre Channel
- NVMe-over-Fabrics (RoCE, iWARP)
- Management:
- ONTAP System Manager (GUI)
- Automation via REST/Python API
- SnapMirror/SnapVault for backup
5. Dimensions & Weight
| Dimension | Imperial | Metric |
|---|---|---|
| Height | 6.89″ (4U) | 17.5 cm |
| Width (without flange) | 17.6″ | 44.7 cm |
| Depth (w/ cables) | 36.57″ | 92.9 cm |
| Maximum Weight | 132.5 lbs | 60.1 kg |
6. Expected Performance
- IOPS (4K random): ~1.8M
- Throughput: ~35GB/s
- NVMe Latency: <1ms
7. Ideal Use Cases
✔ Critical virtualization (VMware vSAN, Nutanix)
✔ Databases (SAP HANA, Oracle Exadata)
✔ AI/ML (NVMe Model Training)
✔ Unified enterprise storage
Comparison AFF-A800 vs AFF-A700
| Feature | AFF-A800 | AFF-A700 |
|---|---|---|
| Rack Space | 4U (More compact) | 8U |
| CPU | 96 (4×24-core) | 72 (4×18-core) |
| NVMe Max. | 240 drives | 240 drives |
| Connectivity | PCIe + shelves | 24x IOMs |
→ The A800 offers better density per U with comparable performance to the A700.
Configuration Example
(1PB usable with redundancy)
- 1x AFF-A800
- 48x NVMe 15.36TB SSDs (RAID-DP: ~614TB usable)
- 3x NS224 Shelves
- +72x NVMe (920TB usable)
- Redundancy:
- HA controllers + redundant 100GbE switches
Estimated Cost: On request (depends on SSDs/shelves)
Some segments of the economy we help
Some segments of the economy we help
Third-Party Maintenance for NetApp End-of-Life (EOL) and NetApp End-of-Service-Life (EOSL)
DC Parts has analyzed more than 250 customer contracts using storage, servers, networks, and tapes and shown us that 40-60% of these customers’ equipment operates beyond their end-of-support dates.
There are simple options so you can reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.
How we can help:
We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in a more affordable way, without compromising their performance.
NetApp Storage Leases
DC Parts provides NetApp storage rentals for a convenient and affordable solution to a number of data center problems, such as seasonal spikes and data center relocation. We work to match the right approach with the right equipment to properly meet your custom NetApp Storage Lease needs. With a highly trained team of certified engineers ready to troubleshoot any issues, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about renting NetApp Storage machines, please contact us.
NetApp storage support
DC Parts Support Services provides support for NetApp storage. We work to match the right approach with the right equipment to meet your NetApp storage support needs.
With a highly trained team of certified engineers ready to troubleshoot any issues on NetApp storage , DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing Fujitsu storage media, please contact us.
DC Parts support helps businesses of all sizes better manage their IT data centers by providing third-party support and maintenance services to leading equipment manufacturers including: IBM, HPE (HP), DELL EMC, DELL, NETAPP, and more.
With DC Parts support, we manage all your hardware, between manufacturers via one call. DC Parts support offers flexible service level agreements, certified engineering support teams, and dedicated customer service representatives.
Extend the life and value of your IT assets. Contact DC Parts support immediately.
