Storage NetApp AFF A700S – With warranty and technical service for installation or support.
NetApp storage delivers industry-leading availability, storage density, and upgradeability to meet today’s growing and demanding IT needs.
These storage solutions offer the best price/performance and price/availability for environments of all types and sizes, from minimal I/O workloads (reference data, archiving, and disk-to-disk backup) to remote offices and distributed computing environments for large datacenter deployments.
Each NetApp storage solution is designed to be easy to deploy, secure, and reduce management costs while generating a rapid return on investment.
DC Parts is a distributor of refurbished storage and accessories. Our technology experts can help you select and configure the right NetApp storage solution for your specific data needs.
Like all of our equipment, NetApp arrays are fully tested, so you can count on worry-free service for years to come.
And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.

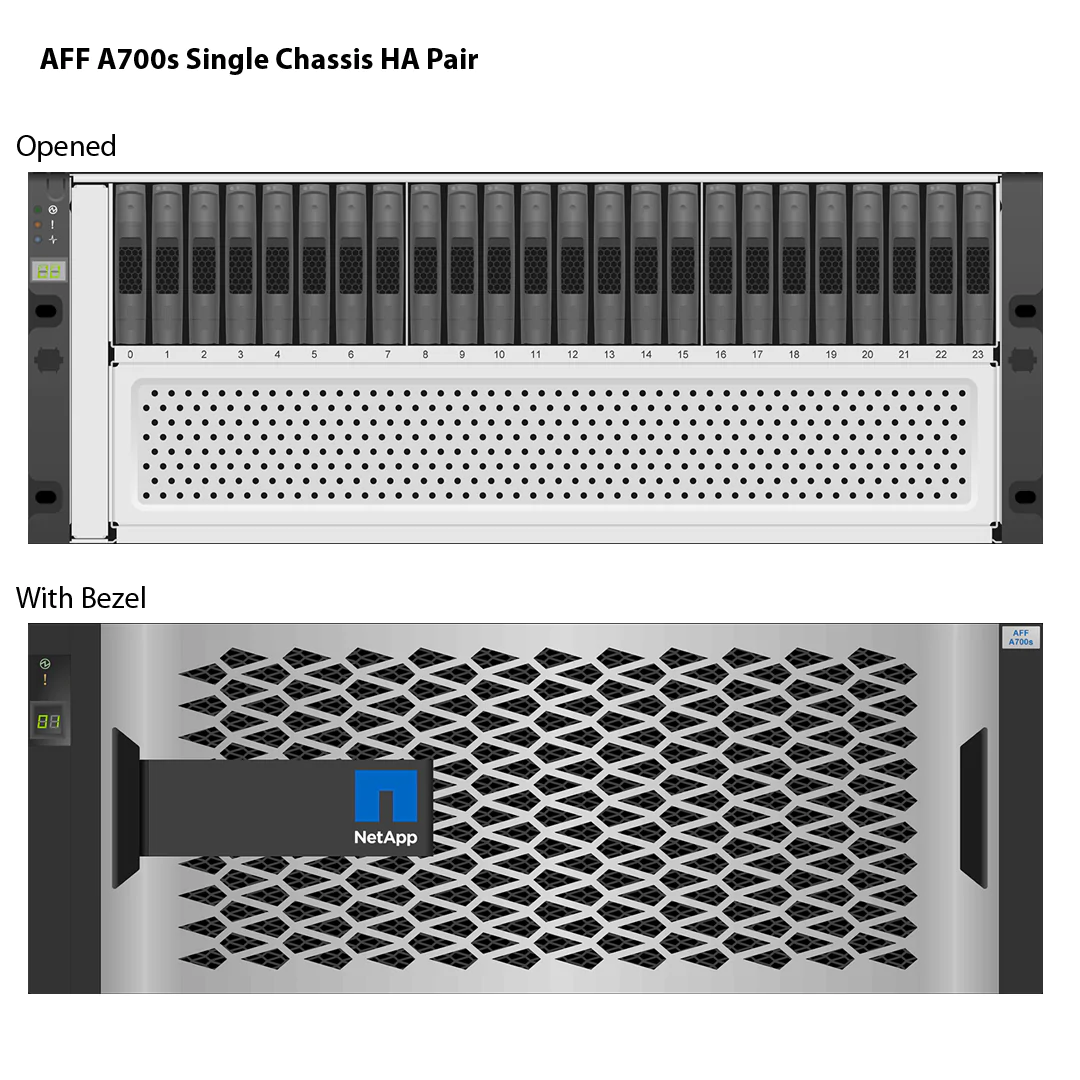

NetApp All Flash FAS (AFF) A700s Enterprise Storage System
While each AFF A-Series model features the same ONTAP software, they differ in hardware capabilities. From modernizing your IT to moving data in and out of multiple clouds, find the right solution for your data needs in the AFF A-Series. NetApp is a leader in data insight, access, and control for hybrid cloud environments. Offering a full range of hybrid cloud data services, NetApp simplifies the management of data and applications in the cloud and on-premises environments.
Here’s a comprehensive technical specification for the NetApp AFF-A700 in European Portuguese format:
### Datasheet: NetApp AFF-A700
1. System Overview
Model: AFF-A700 (All-Flash Array)
Configuration Type: High Availability (Dual Controller)
Form Factor: 8U (Single Chassis)
Processors: 4x Intel Xeon 18-core @ 2.30GHz
Total Memory: 1024GB (512GB per controller)
NVRAM: 64GB (32GB per controller)
Operating system: ONTAP 9+
2. Storage Specifications
Maximum Capacity: 14.68PB (14,688TB)
Maximum Total Drives: 480
NVMe SSDs: Up to 240 drives
SAS/SATA SSDs: Up to 480 drives
Supported RAID Technologies:
RAID 4
RAID-DP (RAID 6)
RAID-TEC
3. Expansion and Connectivity
I/O Module Slots: 24 (12 per controller)
– Configurable with:
– 100GbE/40GbE Ethernet
32Gb/64Gb Fibre Channel
NVMe over Fabrics
Supported Shelves:
DS224C (SAS/SATA): Up to 20 external shelves
NS224 (NVMe): Up to 10 external shelves
NS224+NSM100B: Up to 10 external shelves (NVMe-oF)
4. Physical Dimensions
Parameter
Imperial Measure
Metric Measure
Rack Height
8U
14.02″
Width (without flange)
17.72″
45 cm
Depth (w/ cables)
36.81″
93.5 cm
Maximum Weight
214.5 lbs
97.3 kg
5. Expected Performance
IOPS (4K random): Up to 2 million
Throughput: ~50GB/s
Latency: <1ms (NVMe)
6. Key Use Cases
Mission-critical enterprise data centers
Large-scale virtualization (VMware, Hyper-V)
High-performance databases (SAP HANA, Oracle)
AI/ML and Big Data Applications
Storage for 8K video editing
Comparison with Previous Models:
Characteristic
AFF-A700
AFF-A400
Maximum Capacity
14.68PB
14.68PB
CPU
Cores
72
40
Maximum Memory
1TB
256GB
NVMe Max
240
96
Note: The AFF-A700 offers almost twice the processing power and greater connection flexibility compared to the AFF-A400.
Storage NetApp AFF A700S – Whether you need replacement parts, service on your netapp or extended warranty contract. Call DC Parts.Storage NetApp AFF A700S – Whether you need replacement parts, service on your netapp or extended warranty contract. Call DC Parts.Storage NetApp AFF A700S – Whether you need replacement parts, service on your netapp or extended warranty contract. Call DC Parts.
Storage NetApp AFF A700S – Whether you need replacement parts, service on your netapp or extended warranty contract. Call DC Parts.
Some segments of the economy we help
Some segments of the economy we help
Third-Party Maintenance for NetApp End-of-Life (EOL) and NetApp End-of-Service-Life (EOSL)
DC Parts has analyzed more than 250 customer contracts using storage, servers, networks, and tapes and shown us that 40-60% of these customers’ equipment operates beyond their end-of-support dates.
There are simple options so you can reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.
How we can help:
We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in a more affordable way, without compromising their performance.
NetApp Storage Leases
DC Parts provides NetApp storage rentals for a convenient and affordable solution to a number of data center problems, such as seasonal spikes and data center relocation. We work to match the right approach with the right equipment to properly meet your custom NetApp Storage Lease needs. With a highly trained team of certified engineers ready to troubleshoot any issues, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about renting NetApp Storage machines, please contact us.
NetApp storage support
DC Parts Support Services provides support for NetApp storage. We work to match the right approach with the right equipment to meet your NetApp storage support needs.
With a highly trained team of certified engineers ready to troubleshoot any issues on NetApp storage , DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing Fujitsu storage media, please contact us.
DC Parts support helps businesses of all sizes better manage their IT data centers by providing third-party support and maintenance services to leading equipment manufacturers including: IBM,HPE (HP),DELL EMC, DELL, NETAPP, and more.
With DC Parts support, we manage all your hardware, between manufacturers via one call. DC Parts support offers flexible service level agreements, certified engineering support teams, and dedicated customer service representatives.
