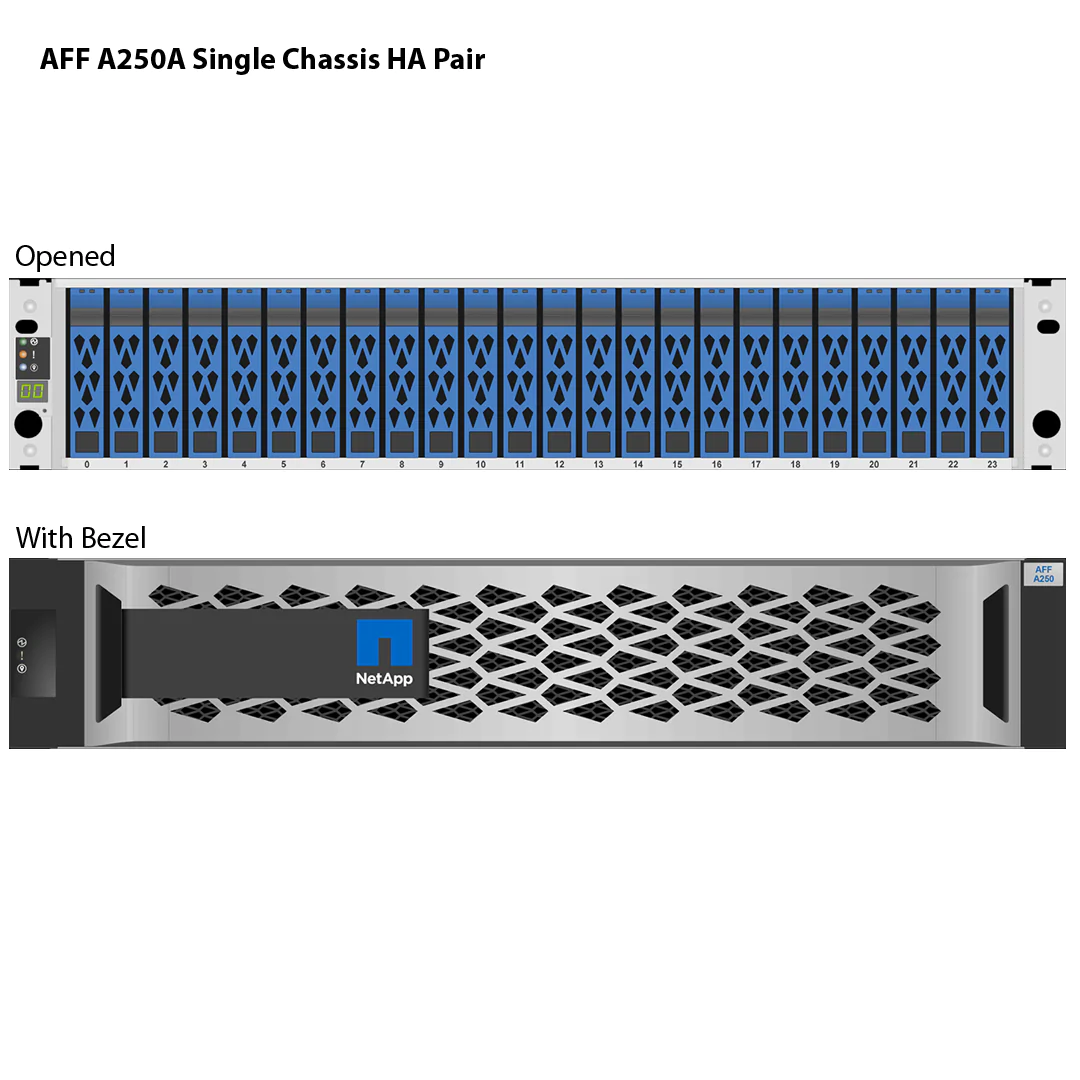

NetApp AFF A250A

Warranty: up to 12 months

SKU Storage NetApp AFF A250A Category netapp, AFF line, Netapp Storage Tags AFF A250A, netapp, storage, netapp storage

NetApp AFF A250A Storage – With warranty and technical service for installation or support.

NetApp storage offers industry-leading availability, storage density and upgradability to meet today's growing and demanding IT needs.

These storage solutions offer the best price / performance features and the best price / availability for environments of all types and sizes, from minimal I / O workloads (reference data, archiving and disk-to-disk backup) to remote offices and distributed computing environments for large datacenter deployments.

Each NetApp storage solution is designed to be easy to deploy, protect and reduce management costs, while generating a quick return on investment.

A DC Parts is a distributor of new and refurbished NetApp storage and accessories. Our technology experts can help you select and configure the right NetApp storage solution for your specific data needs.

Like all of our equipment, NetApp arrays are fully tested, so you can count on worry-free service for many years to come.

And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.

NetApp All Flash FAS (AFF) A250A Enterprise Storage System

AFF A-Series systems support end-to-end NVMe technologies, from NVMe-attached SSDs to NVMe front-end host connectivity over Fiber Channel (NVMe/FC). These systems provide the industry's lowest latency for an enterprise all-flash array, making them a superior choice for driving the most demanding workloads and AI/DL applications. With a simple software upgrade to modern NVMe/FC SAN infrastructure, you can drive more workloads with faster response times without disruption or data migration.

Key Benefits NetApp AFF A250A
Accelerate your mission-critical applications with the industry's fastest end-to-end NVMe enterprise all-flash array.

Accelerate artificial intelligence and machine learning applications with the lowest latency.

Support 2X more workloads and cut application response time in half with a modern NVMe-based SAN infrastructure.

AFF A220A Technical Specifications

PER SYSTEM SPECIFICATIONS (ACTIVE-ACTIVE DUAL CONTROLLER)
controller form factor 2U with 24 SSD slots
PCIe Expansion Slots N / D
FC destination ports (32 Gb Autoranging) N / D
FC destination ports (16 Gb Autoranging) 8
FCoE, UTA2 destination ports 8
100GbE Ports (40GbE Autoranging) N / D
40GbE Ports (10GbE Autoranging) N / D
25GbE ports N / D
10GbE ports 12
10Gbase-T (1GbE Autoranging) N / D
12Gb/6Gb SAS ports 4
Supported storage network FC, FCoE, iSCSI, NFS, pNFS, SMB
operating system version ONTAP 9.4 RC1 or later
Shelves and Media DS224C (2U; 24 drives, 2,5” SFF); DS2246 (2U; 24 units, 2,5” SFF)
Supported host/client operating systems Microsoft Windows 2000, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Linux, Oracle Solaris, AIX, HP-UX, Mac OS, VMware, ESX

Smarter than your average storage array
Deep integration with your critical business applications enables storage provisioning in minutes. Industry-leading data reduction features ensure maximum storage savings. And move your data wherever you need it, on premises or in the cloud, seamlessly.

There's powerful, and then there's powerful AFF A-Series
Boost the performance of your enterprise applications and AI/ML with the industry's lowest latency NVMe storage. Dual NVMe/FC and NVMe/TCP connectivity support lets you choose the best fit to maximize performance with easy integration into your existing SAN. Plus, scale performance and capacity non-disruptively.

No other array works so hard to earn your trust.
Meet your strictest SLAs with built-in, application-consistent data protection. Optimized Tier One SAN resiliency provides zero data loss and zero downtime. Automatic ransomware protects against next-generation attacks with industry-leading security enhancement for an extra layer of detection and recovery. And SupportEdge streamlines your systems with streamlined, predictive support services.

Storage NetApp AFF A250A
Storage NetApp AFF A250A – If you need spare parts, service on your netapp or extended warranty contract. Call her DC Parts.
Storage NetApp AFF A250A
Storage NetApp AFF A250A – If you need spare parts, service on your netapp or extended warranty contract. Call her DC Parts.



























Some segments of the economy that we help

Some segments of the economy that we help



Third-party maintenance for NetApp End-of-Life (EOL) and NetApp End-of-Service-Life (EOSL)

A DC Parts made an analysis on more than 250 customer contracts that use storage, servers, networks and tapes and showed us that 40-60% of the equipment of these customers operate beyond the end dates of support.

There are simple options for you to reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.

How can we help:

We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in the most affordable way, without compromising their performance.

NetApp storage leases

A DC Parts provides NetApp storage rentals for a convenient and affordable solution to a range of data center issues such as seasonal spikes and data center relocation. We work to match the right approach with the right equipment to properly meet your customized need for NetApp Storage Leases. With a highly trained team of certified engineers ready to solve any problems, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about leasing NetApp Storage machines, please contact us.

NetApp storage support

Support services DC Parts provide support for NetApp storage. We work to combine the right approach with the right equipment to meet your NetApp storage support needs.

With a highly trained team of certified engineers ready to solve any problems in NetApp storage, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing Fujitsu Storage Stand, please contact us.

A DC Parts helps companies of all sizes better manage their IT data centers by providing third-party support services to leading equipment manufacturers, including: Hitachi HDS, NetApp, Dell EMC, Oracle Sun, Cisco , and more.

With support DC Parts, we manage all your hardware, between the manufacturers through a link. Support from DC Parts offers flexible service level agreements, certified engineering support teams and dedicated customer service representatives.

Extend the life and value of your IT assets. contact support DC Parts immediately.

Shot Put 21,1 kg
netapp

Storage NetApp AFF

Compatible OS Version - AFF A220A

Major OS VersionSupported operating system versionsupported milestonesRecommend version
OS currently supported
ONTAP 9.11.19.11.1, 9.11.1RC1End of full support: July 31, 20259.11.1
End of limited support: July 31, 2027
End of self-service support: July 31, 2030
ONTAP 9.10.19.10.1P5, 9.10.1P7, 9.10.1P6, 9.10.1P4, 9.10.1P3, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1End of full support: January 31, 20259.10.1P7, 9.10.1P6
End of limited support: January 31, 2027
End of self-service support: January 31, 2030
ONTAP 9.9.19.9.1P11, 9.9.1P10, 9.9.1P9, 9.9.1P8, 9.9.1P7, 9.9.1P6, 9.9.1P5, 9.9.1P4, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9. 1RC1End of full support: June 30, 20249.9.1P11, 9.9.1P10, 9.9.1P9
End of limited support: June 30, 2026
End of self-service support: June 30, 2029
ONTAP 9.89.8P13, 9.8P12, 9.8P11, 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1End of full support: December 31, 20239.8P13, 9.8P12
End of limited support: December 31, 2025
End of self-service support: December 31, 2028
ONTAP 9.79,7P19, 9,7P18, 9,7P17, 9,7P16, 9,7P15, 9,7P14, 9,7P13, 9,7P12, 9,7P11, 9,7P10, 9,7P9, 9,7P8, 9,7, 7P9,7, 6P9,7, 5P9,7, 3P9,7, 3P9.7, 2P9.7, 1P9.7, 9.7, 1RCXNUMXEnd of full support: January 31, 20239.7P19
End of limited support: January 31, 2025
End of self-service support: January 31, 2028
SO EOS
ONTAP 9.79,7P19, 9,7P18, 9,7P17, 9,7P16, 9,7P15, 9,7P14, 9,7P13, 9,7P12, 9,7P11, 9,7P10, 9,7P9, 9,7P8, 9,7, 7P9,7, 6P9,7, 5P9,7, 3P9,7, 3P9.7, 2P9.7, 1P9.7, 9.7, 1RCXNUMXEnd of full support: January 31, 20239.7P19
End of limited support: January 31, 2025
End of self-service support: January 31, 2028
ONTAP 9.69.6P18, 9.6P17, 9.6P16, 9.6P15, 9.6P14, 9.6P13, 9.6P12, 9.6P11, 9.6P10, 9.6P9, 9.6P8, 9.6P7, 9.6P6, 9.6P5, 9.6P4, 9.6P3, 9.6. 2P9.6 , 1P9.6, 9.6, 2RC9.6, 1RCXNUMXEnd of full support: June 30, 20229.6P18
End of limited support: June 30, 2024
End of self-service support: June 30, 2027
ONTAP 9.59,5P19, 9,5P18, 9,5P17, 9,5P16, 9,5P15, 9,5P14, 9,5P13, 9,5P12, 9,5P11, 9,5P10, 9,5P9, 9,5P8, 9,5, 7P9,5, 6P9,5, 5P9,5, 3P9,5, 4P9,5, 2P9,5, 1P9,5, 9,5, 1RCXNUMXEnd of full support: January 31, 20229.5P19
End of limited support: January 31, 2024
End of self-service support: January 31, 2027
Definitions:
[1] End of Full Support: The date that marks the end of Full Support for a given feature release of a NetApp system software and the start of Limited Support. Abbreviated as EOES.
[2] End of Limited Support: The date that marks the end of limited support for a specific feature release of a product and the transition to self-service support. Abbreviated as EOVS.
[3] End of Self-Service Support: NetApp does not provide support for a release of a software product, but related documentation is still available on the NetApp support site. NetApp customers are expected to use the documentation to resolve issues.

Supported shelf units for AFF A220A

piece numberCapacityRPMdrive typeCryptographyRoot Data PartitioningRoot Data PartitioningStorage pool partitioningMaximum unit countFlexArray
AFF A220A 10GBASE-T Internal Drives
X319A7,6 TB-SSDNoNoYesNo24No
X356A-R63,84 TB-SSDNoNoYesNo24No
X357A3,84 TB-SSDNoNoYesNo24No
X358A [1]3,84 TB-SSDFIPS 140-2 Level 2, NSENoYesNo24No
X359A30,6 TB-SSDNoNoYesNo24No
X365A-R6 [1]1,6 TB-SSDFIPS 140-2 Level 2, NSENoYesNo24No
X371A960 GB-SSDNoNoYesNo24No
X386A [1]960 GB-SSDFIPS 140-2 Level 2, NSENoYesNo24No
X438A-R6400 GB-SSDNoNoYesNo24No
X439A-R61,6 TB-SSDNoNoYesNo24No
X440A-R6 [1]800 GB-SSDFIPS 140-2 Level 2, NSENoYesNo24No
X440B-R6 [1]800 GB-SSDFIPS 140-2 Level 2, NSENoYesNo24No
X447A-R6800 GB-SSDNoNoYesNo24No
X670A15,3 TB-SSDNoNoYesNo24No
DS224C with IOM12B / IOM12 shelf modules
X319A7,6 TB-SSDNoNoYesNo120No
X356A-R63,84 TB-SSDNoNoYesNo120No
X357A3,84 TB-SSDNoNoYesNo120No
X358A [1]3,84 TB-SSDFIPS 140-2 Level 2, NSENoYesNo120No
X359A30,6 TB-SSDNoNoYesNo120No
X365A-R6 [1]1,6 TB-SSDFIPS 140-2 Level 2, NSENoYesNo120No
X371A960 GB-SSDNoNoYesNo120No
X386A [1]960 GB-SSDFIPS 140-2 Level 2, NSENoYesNo120No
X438A-R6400 GB-SSDNoNoYesNo120No
X439A-R61,6 TB-SSDNoNoYesNo120No
X440A-R6 [1]800 GB-SSDFIPS 140-2 Level 2, NSENoYesNo120No
X440B-R6 [1]800 GB-SSDFIPS 140-2 Level 2, NSENoYesNo120No
X446B-R6200 GB-SSDNoNoNoNo120No
X447A-R6800 GB-SSDNoNoYesNo120No
X670A15,3 TB-SSDNoNoYesNo120No
DS2246 with IOM12 / IOM12B / IOM6 shelf modules
X356A-R63,84 TB-SSDNoNoYesNo120No
X357A3,84 TB-SSDNoNoYesNo120No
X358A [1]3,84 TB-SSDFIPS 140-2 Level 2, NSENoYesNo120No
X365A-R6 [1]1,6 TB-SSDFIPS 140-2 Level 2, NSENoYesNo120No
X371A960 GB-SSDNoNoYesNo120No
X438A-R6400 GB-SSDNoNoYesNo120No
X439A-R61,6 TB-SSDNoNoYesNo120No
X440A-R6 [1]800 GB-SSDFIPS 140-2 Level 2, NSENoYesNo120No
X440B-R6 [1]800 GB-SSDFIPS 140-2 Level 2, NSENoYesNo120No
X446B-R6200 GB-SSDNoNoNoNo120No
X447A-R6800 GB-SSDNoNoYesNo120No
Footnote:
[1] Combining NSE drives or enclosures with any other type of encrypted or unencrypted drives or enclosures in a standalone platform or high availability (HA) pair is not supported.

Size, Weight, Acoustic, Power AFF A220A

Associated part numberAssetRack UnitsShot Putsound powersound pressureActual line voltage (min to max)Typical Amplifiersworse ampstypical wattsWatts worseBTU / H TypicalBTU / Worst Hour
Embedded unit configuration (half)
AFF-A220-100-CAFF A220 2PCM 10GBASE-T 12x960GB SSD251,8 lbs (23,5 kg)6,9 Bells51 dBA100 (100 to 120)3.244.6731745710821560
AFF-A220-100-CAFF A220 2PCM 10GBASE-T 12x960GB SSD251,8 lbs (23,5 kg)6,9 Bells51 dBA200 (200 to 240)1.592.2931144810621529
AFF-A220-100-CSSD AFF A220 2 PCM UTA2 12x960GB251,8 lbs (23,5 kg)6,9 Bells51 dBA100 (100 to 120)3.244.6731745710821560
AFF-A220-100-CSSD AFF A220 2 PCM UTA2 12x960GB251,8 lbs (23,5 kg)6,9 Bells51 dBA200 (200 to 240)1.592.2931144810621529
AFF-A220-102-CSSD AFF A220 2 PCM 10GBASE-T 3,8TB251,8 lbs (23,5 kg)6,9 Bells51 dBA100 (100 to 120)3.214.6431445410721550
AFF-A220-102-CSSD AFF A220 2 PCM 10GBASE-T 3,8TB251,8 lbs (23,5 kg)6,9 Bells51 dBA200 (200 to 240)1.582.2830844510521519
AFF-A220-102-CSSD AFF A220 2 PCM UTA2 12x3,8TB251,8 lbs (23,5 kg)6,9 Bells51 dBA100 (100 to 120)3.214.6431445410721550
AFF-A220-102-CSSD AFF A220 2 PCM UTA2 12x3,8TB251,8 lbs (23,5 kg)6,9 Bells51 dBA200 (200 to 240)1.582.2830844510521519
AFF-A220-104-CAFF A220 2 PCM 10GBASE-T 12x3.8TB SSD NSE251,8 lbs (23,5 kg)6,9 Bells51 dBA100 (100 to 120)3.214.6431445410721550
AFF-A220-104-CAFF A220 2 PCM 10GBASE-T 12x3.8TB SSD NSE251,8 lbs (23,5 kg)6,9 Bells51 dBA200 (200 to 240)1.582.2830844510521519
AFF-A220-104-CAFF A220 2 PCM UTA2 12x3.8TB SSD NSE251,8 lbs (23,5 kg)6,9 Bells51 dBA100 (100 to 120)3.214.6431445410721550
AFF-A220-104-CAFF A220 2 PCM UTA2 12x3.8TB SSD NSE251,8 lbs (23,5 kg)6,9 Bells51 dBA200 (200 to 240)1.582.2830844510521519
AFF-A220-106-CAFF A220 2 PCM 10GBASE-T 12x7,6TB248,7 lbs (22,1 kg)6,9 Bells51 dBA100 (100 to 120)3.324.7532546511101587
AFF-A220-106-CAFF A220 2 PCM 10GBASE-T 12x7,6TB248,7 lbs (22,1 kg)6,9 Bells51 dBA200 (200 to 240)1.632.3331945610891557
AFF-A220-106-CAFF A220 2PCM UTA2 12x7.6TB248,7 lbs (22,1 kg)6,9 Bells51 dBA100 (100 to 120)3.324.7532546511101587
AFF-A220-106-CAFF A220 2PCM UTA2 12x7.6TB248,7 lbs (22,1 kg)6,9 Bells51 dBA200 (200 to 240)1.632.3331945610891557
AFF-A220-108-CAFF A220 2PCM 10GBASE-T 12x15.3TB SSD248,7 lbs (22,1 kg)6,9 Bells51 dBA100 (100 to 120)3.344.7832746811171598
AFF-A220-108-CAFF A220 2PCM 10GBASE-T 12x15.3TB SSD248,7 lbs (22,1 kg)6,9 Bells51 dBA200 (200 to 240)1.642.3532145910961567
AFF-A220-108-CSSD AFF A220 2 PCM UTA2 12x15,3TB248,7 lbs (22,1 kg)6,9 Bells51 dBA100 (100 to 120)3.344.7832746811171598
AFF-A220-108-CSSD AFF A220 2 PCM UTA2 12x15,3TB248,7 lbs (22,1 kg)6,9 Bells51 dBA200 (200 to 240)1.642.3532145910961567
AFF-A220-111-CAFF A220 2PCM 10GBASE-T 12x960GB SSD251,8 lbs (23,5 kg)6,9 Bells51 dBA100 (100 to 120)3.244.6731745710821560
AFF-A220-111-CAFF A220 2PCM 10GBASE-T 12x960GB SSD251,8 lbs (23,5 kg)6,9 Bells51 dBA200 (200 to 240)1.592.2931144810621529
AFF-A220-111-CSSD AFF A220 2 PCM UTA2 12x960GB251,8 lbs (23,5 kg)6,9 Bells51 dBA100 (100 to 120)3.244.6731745710821560
AFF-A220-111-CSSD AFF A220 2 PCM UTA2 12x960GB251,8 lbs (23,5 kg)6,9 Bells51 dBA200 (200 to 240)1.592.2931144810621529
Embedded unit configuration (complete)
AFF-A220-101-CAFF A220 2PCM 10GBASE-T 24x960GB SSD260,8 lbs (27,6 kg)6,9 Bells51 dBA100 (100 to 120)3.755.1836750712531731
AFF-A220-101-CAFF A220 2PCM 10GBASE-T 24x960GB SSD260,8 lbs (27,6 kg)6,9 Bells51 dBA200 (200 to 240)1.842.5436049712291697
AFF-A220-101-CSSD AFF A220 2 PCM UTA2 24x960GB260,8 lbs (27,6 kg)6,9 Bells51 dBA100 (100 to 120)3.755.1836750712531731
AFF-A220-101-CSSD AFF A220 2 PCM UTA2 24x960GB260,8 lbs (27,6 kg)6,9 Bells51 dBA200 (200 to 240)1.842.5436049712291697
AFF-A220-103-CSSD AFF A220 2 PCM 10GBASE-T 24x3,8TB260,8 lbs (27,6 kg)6,9 Bells51 dBA100 (100 to 120)3.695.1236150112331710
AFF-A220-103-CSSD AFF A220 2 PCM 10GBASE-T 24x3,8TB260,8 lbs (27,6 kg)6,9 Bells51 dBA200 (200 to 240)1.812.5135449112091676
AFF-A220-103-CSSD AFF A220 2 PCM UTA2 24x3,8TB260,8 lbs (27,6 kg)6,9 Bells51 dBA100 (100 to 120)3.695.1236150112331710
AFF-A220-103-CSSD AFF A220 2 PCM UTA2 24x3,8TB260,8 lbs (27,6 kg)6,9 Bells51 dBA200 (200 to 240)1.812.5135449112091676
AFF-A220-105-CAFF A220 2 PCM 10GBASE-T 24x3.8TB SSD NSE260,8 lbs (27,6 kg)6,9 Bells51 dBA100 (100 to 120)3.695.1236150112331710
AFF-A220-105-CAFF A220 2 PCM 10GBASE-T 24x3.8TB SSD NSE260,8 lbs (27,6 kg)6,9 Bells51 dBA200 (200 to 240)1.812.5135449112091676
AFF-A220-105-CAFF A220 2 PCM UTA2 24x3.8TB SSD NSE260,8 lbs (27,6 kg)6,9 Bells51 dBA100 (100 to 120)3.695.1236150112331710
AFF-A220-105-CAFF A220 2 PCM UTA2 24x3.8TB SSD NSE260,8 lbs (27,6 kg)6,9 Bells51 dBA200 (200 to 240)1.812.5135449112091676
AFF-A220-107-CAFF A220 2PCM 10GBASE-T 24x7.6TB254,5 lb (24,7 kg)6,9 Bells51 dBA100 (100 to 120)3.915.3538352413081789
AFF-A220-107-CAFF A220 2PCM 10GBASE-T 24x7.6TB254,5 lb (24,7 kg)6,9 Bells51 dBA200 (200 to 240)1.922.6337651412841755
AFF-A220-107-CAFF A220 2PCM UTA2 24x7.6TB254,5 lb (24,7 kg)6,9 Bells51 dBA100 (100 to 120)3.915.3538352413081789
AFF-A220-107-CAFF A220 2PCM UTA2 24x7.6TB254,5 lb (24,7 kg)6,9 Bells51 dBA200 (200 to 240)1.922.6337651412841755
AFF-A220-109-CSSD AFF A220 2 PCM 10GBASE-T 24x15,3TB254,5 lb (24,7 kg)6,9 Bells51 dBA100 (100 to 120)3.955.3938752813211803
AFF-A220-109-CSSD AFF A220 2 PCM 10GBASE-T 24x15,3TB254,5 lb (24,7 kg)6,9 Bells51 dBA200 (200 to 240)1.942.6538051812971768
AFF-A220-109-CSSD AFF A220 2 PCM UTA2 24x15,3TB254,5 lb (24,7 kg)6,9 Bells51 dBA100 (100 to 120)3.955.3938752813211803
AFF-A220-109-CSSD AFF A220 2 PCM UTA2 24x15,3TB254,5 lb (24,7 kg)6,9 Bells51 dBA200 (200 to 240)1.942.6538051812971768
AFF-A220-112-CAFF A220 2PCM 10GBASE-T 24x960GB SSD260,8 lbs (27,6 kg)6,9 Bells51 dBA100 (100 to 120)3.755.1836750712531731
AFF-A220-112-CAFF A220 2PCM 10GBASE-T 24x960GB SSD260,8 lbs (27,6 kg)6,9 Bells51 dBA200 (200 to 240)1.842.5436049712291697
AFF-A220-112-CSSD AFF A220 2 PCM UTA2 24x960GB260,8 lbs (27,6 kg)6,9 Bells51 dBA100 (100 to 120)3.755.1836750712531731
AFF-A220-112-CSSD AFF A220 2 PCM UTA2 24x960GB260,8 lbs (27,6 kg)6,9 Bells51 dBA200 (200 to 240)1.842.5436049712291697

Platform mixing rules - AFF A220A

Platform configuration typeMaximum nodes (NAS) [1]Maximum nodes (SAN) [1]Minimum version of ONTAP for platform mixing
FAS - Current Configuration(s)
FAS2720A 10GBASE-T24 knots12 knots9.4RC1
FAS2720A UTA224 knots12 knots9.4RC1
FAS2750A 10GBASE-T24 knots12 knots9.4RC1
FAS2750A UTA224 knots12 knots9.4RC1
FAS500fA24 knots12 knots9.8RC1
Ethernet FAS8300A Pack24 knots12 knots9.7RC1
FC FAS8300A Package24 knots12 knots9.7RC1
Ethernet FAS8700A Pack24 knots12 knots9.7RC1
FC FAS8700A Package24 knots12 knots9.7RC1
FAS9000A24 knots12 knots9.4RC1
FAS9500A24 knots12 knots9.10.1P3
AllFlashFAS - Current Configuration(s)
AFF A250A24 knots12 knots9.8RC1
AFF A250A 100V24 knots12 knots9.8P4
AFF A400A Ethernet Bundle24 knots12 knots9.7RC1
AFF A400A FC Pack24 knots12 knots9.7RC1
AFF A700A24 knots12 knots9.4RC1
AFF A800A24 knots12 knots9.4RC1
AFF A900A24 knots12 knots9.10.1
FAS - Legacy OAE configuration(s)
FAS8200A24 knots12 knots9.4RC1
AllFlashFAS - Legacy OAE Configuration(s)
AFF A220A 10GBASE-T24 knots12 knots9.4RC1
AFF A220A UTA224 knots12 knots9.4RC1
AFF A300A24 knots12 knots9.4RC1
AFF A320A24 knots12 knots9.6RC2
AFF A700s24 knots12 knots9.4RC1
Footnote:
[1] The maximum number of nodes in a cluster is determined by the platform that supports the least number of nodes

Field Replacement Unit Parts - AFF A220A

Marketing Part No.manufacturing part no.Overview
X66032A-NC112 - 00437Cable, 12Gb, Mini SAS HD, 2m, -C
X800-42U-43-KNN / DJumper Crd, In Cab, C13-C14,43 inches
X66034A112 - 00439Cable, 12 Gb, Mini SAS HD, 5 m
X800-42U-43-NN / DPower cable, in cabinet, C13-C14, 43 inches
X66034A-C112 - 00439Cable, 12Gb, Mini SAS HD, 5m, -C
X800-42U-64N / DJumper Crd, In Cab, C13-C14,64 inches
X66034A-KN112 - 00439Cable, 12 Gb, Mini SAS HD, 5 m
X800-42U-64-CN / DJumper Crd,In Cab,C13-C14,64 inch,-C
X66034A-N112 - 00439Cable, 12 Gb, Mini SAS HD, 5 m
X800-42U-64-KNN / DJumper Crd, In Cab, C13-C14,64 inches
X66034A-NC112 - 00439Cable, 12Gb, Mini SAS HD, 5m, -C
X800-42U-64-NN / DPower cable, in cabinet, C13-C14, 64 inches
X66040A112 - 00449Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 1 m
X800-42U-R6N / DJumper Crd, In Cab, C13-C14
X66040A-C112 - 00449Cable, 12Gb, SAS Opt, AOC, Mini SAS HD, 1m, -C
X800-42U-R6-CN / DJumper Crd,In Cab,C13-C14,-C
X66040A-KN112 - 00449Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 1 m
X800B-R6N / DPower cord, Continental Europe, R6
X66040A-N112 - 00449Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 1 m
X800B-R6-CN / DPower Cord,Continental Europe,-C,R6
X66040A-NC112 - 00449Cable, 12Gb, SAS Opt, AOC, Mini SAS HD, 1m, -C
X800C-R6N / DPower cord, UK and Ireland, R6
X66041A112 - 00450Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 2 m
X800C-R6-CN / DPower cord, UK and Ireland,-C,R6
X66041A-C112 - 00450Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 2m, -C
X800D-R6N / DPower cord, Japan, R6
X66041A-KN112 - 00450Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 2 m
X800D-R6-CN / DPower cord, Japan,-C,R6
X66041A-N112 - 00450Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 2 m
X800E-R6N / DPower cord, North America, R6
X66041A-NC112 - 00450Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 2m, -C
X800E-R6-CN / DPower cord, North America, -C,R6
X66042A112 - 00451Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 3 m
X800F-R6N / DPower cord, Australia/New Zealand, R6
X66042A-C112 - 00451Cable, 12Gb, SAS Opt, AOC, Mini SAS HD, 3m, -C
X800F-R6-CN / DPower cord, Australia/New Zealand,-C,R6
X66042A-KN112 - 00451Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 3 m
X800G-R6N / DPower cord, Switzerland, R6
X66042A-N112 - 00451Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 3 m
X800G-R6-CN / DPower cord, Switzerland,-C,R6
X66042A-NC112 - 00451Cable, 12Gb, SAS Opt, AOC, Mini SAS HD, 3m, -C
X800H-R6N / DPower cord, Argentina, R6
X66043A112 - 00452Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 5 m
X800H-R6-CN / DPower cord,Argentina,-C,R6
X66043A-C112 - 00452Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 5m, -C
X800I-R6N / DPower cord, China, R6
X66043A-KN112 - 00452Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 5 m
X800I-R6-CN / DPower cord,China,-C,R6
X66043A-N112 - 00452Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 5 m
X800J-R6N / DPower cord, Denmark, R6
X66043A-NC112 - 00452Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 5m, -C
X800J-R6-CN / DPower cord, Denmark,-C,R6
X66044A112 - 00453Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 15 m
X800K-R6N / DPower cord, India, South Africa, R6
X66045A112 - 00454Cable, 12Gb, SAS Opt, AOC, Mini SAS HD, 30m
X800K-R6-CN / DPower cord, India, South Africa, -C,R6
X66046A112 - 00455Cable, 12 Gb, SAS Opt, AOC, Mini SAS HD, 50 m
X800L-R6N / DPower cord, Israel, R6
X66047A112 - 00456Cable, 12 Gb, SAS Opt, Mini SAS HD to LC, 5 m
X800L-R6-CN / DPower cord,Israel,-C,R6
X66047A-C112 - 00456Cable, 12 Gb, SAS Opt, Mini SAS HD to LC, 5m, -C
X800M-R6N / DPower cord, Italy, R6
X66047A-NC112 - 00456Cable, 12 Gb, SAS Opt, Mini SAS HD to LC, 5m, -C
X800M-R6-CN / DPower cord, Italy,-C,R6
X66048A112 - 00457Cable, 12 Gb, SAS Opt, Mini SAS HD to LC, 30m
X800P-R6N / DPower cord, North America, 250V, R6
X66048A-C112 - 00457Cable, 12 Gb, SAS Opt, Mini SAS HD to LC, 30m, -C
X800P-R6-CN / DPower cord, North America, 250V, -C, R6
X66048A-NC112 - 00457Cable, 12 Gb, SAS Opt, Mini SAS HD to LC, 30m, -C
X800T-R6N / DPower cable, Taiwan, BSMI, R6
X66120-3112 - 00545Cable, direct connect CU 40G QSFP/4x10G SFP, 3m
X800T-R6-CN / DPower cable,Taiwan,BSMI,-C,R6
X66120-3-C112 - 00545Corporal, Dir. Attach CU 40G QSFP/4x10G SFP,3m,-C
X800W-R6N / DPower cord, Taiwan, 250V, BSMI, R6
X66120-3-NC112 - 00545Cable, Dir Attach CU 40G QSFP/4x10G SFP, 3m, -C
X800W-R6-CN / DPower cord, Taiwan, 250V, BSMI, -C
X66120-5112 - 00546Cable, Direct Connect CU 40G QSFP/4x10G SFP, 5m
X800Y-R6N / DPower cord, Japan, 250V/15A
X66120-5-C112 - 00546Corporal, Dir. Attach CU 40G QSFP/4x10G SFP,5m,-C
X800Y-R6-CN / DPower cord, Japan, 250V/15A,-C
X66120-5-NC112 - 00546Cable, Dir Attach CU 40G QSFP/4x10G SFP, 5m, -C
Charger
X66205-30112 - 00261Cable, Cntlr-Switch OM4, MPO/4x10G LC, 30m
X97600A114 - 00146Power supply, 1600W
X66205-30-C112 - 00261Cable, Cntlr-Switch OM4, MPO/4x10G LC, 30m, -C
X97600A-C114 - 00146Power Supply, 1600W, -C
X66205-30-NC112 - 00261Cable, Cntlr-Switch OM4, MPO/4x10G LC, 30m, -C
X97601A114 - 00146Power supply, 1600W
X66205-5112 - 00260Cable, Cntlr-Switch OM4, MPO/4x10G LC, 5m
Processor controller module (PCM)
X66205-5-C112 - 00260Cable, Cntlr-Switch OM4, MPO/4x10G LC, 5m, -C
X93400A111 - 03811PCM, Memory, mSATA Module, FAS9000
X66205-5-NC112 - 00260Cable, Cntlr-Switch OM4, MPO/4x10G LC, 5m, -C
Transceiver
X66250-15112 - 00346Cable, LC-LC, OM4,15m
X65402332 - 00389QSFP, Opt, 40 Gb, Shortwave
X66250-15-C112 - 00346Cable,LC-LC,OM4,15m,-C
X65402-C332 - 00389QSFP, Opt, 40Gb, Shortwave, -C
X66250-15-NC112 - 00346Cable,LC-LC,OM4,15m,-C
X65402-NC332 - 00389QSFP, Opt, 40Gb, Shortwave, -C
X66250-2112 - 00342Cable, LC-LC, OM4,2m
X65403332 - 00376SFP+ Optical, UTA, 16GbE LongReach
X66250-2-C112 - 00342Cable,LC-LC,OM4,2m,-C
X65403-C332 - 00376SFP+ Optical,UTA,16GbE LongReach,C
X66250-2-NC112 - 00342Cable,LC-LC,OM4,2m,-C
X65403-NC332 - 00376SFP+ Optical,UTA,16GbE LongReach,C
X66250-30112 - 00347Cable, LC-LC, OM4,30m
X65404332 - 00436SFP28,25GbE,SR
X66250-30-C112 - 00347Cable,LC-LC,OM4,30m,-C
X65404-C332 - 00436SFP28,25GbE,SR,-C
X66250-30-NC112 - 00347Cable,LC-LC,OM4,30m,-C
X65404-NC332 - 00436SFP28,25GbE,SR,-C
X66250-5112 - 00344Cable, LC-LC, OM4,5m
X65405332 - 00440QSFP28,100GbE,SR
X66250-5-C112 - 00344Cable,LC-LC,OM4,5m,-C
X65405-C332 - 00440QSFP28,100GbE,SR,-C
X66250-5-NC112 - 00344Cable,LC-LC,OM4,5m,-C
X65405-NC332 - 00440QSFP28,100GbE,SR,-C
Blank-fill disk drive
X65406332 - 00450QSFP28, CWDM4,2KM
X5054-R6108 - 00224BLANK, FILLING DSK DRV, DS2246, R6
X6567-R6332 - 00378SFP Optical 1GB Shortwave Multimode
Driver
X6567-R6-C332 - 00378SFP Optical 1GB Shortwave Multimode,-C
X319A108 - 00687SSD, 7,6TB, 12G, DS224C
X6567-R6-NC332 - 00378SFP Optical 1GB Shortwave Multimode,-C
X356A-R6108 - 00468SSD, 3,8TB, DS2246, FAS2552
X6589-NC332-00279R6SFP+Optical 10Gb Shortwave,-C
X357A108 - 00572SSD, 3.8TB, 12G, DS224C, W/MSW
X6589-R6332-00279R6SFP+Optical 10Gb Shortwave
X358A [1]108 - 00575SSD, 3,8TB, 12G, NSE, DS224C
X6589-R6-C332-00279R6SFP+ Optical 10Gb Shortwave,-C
X359A108 - 00736SSD, 30,6TB, 12G, DS224C
X6596-R6332 - 00331SFP+ FC Optical 16Gb
X365A-R6 [1]108 - 00477SSD, 1,6 TB, NSE, DS2246, FAS2552
X6596-R6-C332 - 00331SFP+ FC Optical 16Gb,-C
X371A108 - 00546SSD, 960GB, 12G, DS224C, W/MSW
X6596-R6-NC332 - 00331SFP+ FC Optical 16Gb,-C
X386A [1]108 - 00806SSD, 960GB, 12G, NSE, DS224C
X6599A-NC332 - 00363SFP+ Optical 10Gb Shortwave,-C
X438A-R6108 - 00369SSD, 400GB, DS224x, FAS2552/2240-2
X6599A-R6332 - 00363SFP+ Optical 10Gb Shortwave
X439A-R6108 - 00372SSD, 1,6TB, DS224x, FAS2552/2240-2
X6599A-R6-C332 - 00363SFP+ Optical 10Gb Shortwave,-C
X440A-R6 [1]108 - 00374SSD,800GB,NSE,DS224x,FAS2240-2,FAS2552
X6603A332 - 00400SFP+ Optical, 32Gb FC Shortwave
X440B-R6 [1]108 - 00460SSD, 800GB, 12G, NSE, DS224C
X6603A-C332 - 00400SFP+ Optical, 32Gb FC Shortwave, -C
X446B-R6108 - 00323SSD,200GB,B,DS224x,FAS2240-2,FAS2552
X6603A-NC332 - 00400SFP+ Optical, 32Gb FC Shortwave, -C
X447A-R6108 - 00260SSD, 800GB, DS224x, FAS2552/2240-2
X6604A332 - 00405SFP+ Optical, UTA, 10GbE LongReach
X670A108 - 00530SSD, 15,3TB, 12G, DS224C
X6604A-C332 - 00405SFP+ Optical, UTA, 10GbE LongReach, -C
Memory module
X6604A-NC332 - 00405SFP+ Optical, UTA, 10GbE LongReach, -C
X3222A107 - 00172SODIMM, 16GB, ECC, FAS2650
Footnote:
Power cable
[1] The maximum number of all Ethernet ports on the FAS9000 and AFF A700 is 32 per node and 64 per HA pair
X-50617-00N / DJumper Crd, In Cab, 2m, C20-C13, E Series
[2] Connecting tape drives or tape libraries to FC or UTA2 ports requires the use of an FC switch.
X-50617-00-0E-CN / DJumper Crd,In Cab,2m,C20-C13,E-Series,0E,-C
[3] Both ports on the X91440A I/O module can be configured as 40GbE or 4 x 10GbE. All combinations are supported.
X1558A-R6N / DJumper Crd,In Cab,48-IN,C13-C14
[4] The basic FAS9000 or AFF A700 configuration includes a 40GbE adapter in slot 4 (four) and a SAS HBA in slot 9 (nine).
X1558A-R6-CN / DJumper Crd,In Cab,48-IN,C13-C14-C
[5] The maximum number of all Ethernet ports on the FAS9000 and AFF A700 is 32 per node and 64 per HA pair. When using the fan out cable to split 40GbE ports into 10GbE ports, each resulting 10GbE port counts towards the maximum Ethernet port limit
X800-42U-35N / DJumper Crd, In Cab, C13-C14, 35 inch
[6] 4x10GbE optical breakout cable configuration supported on both ports.
X800-42U-35-CN / DJumper Crd,In Cab,C13-C14,35 inch,-C
[7] Combining NSE drives or enclosures with any other type of encrypted or unencrypted drives or enclosures in a standalone platform or high availability (HA) pair is not supported.
X800-42U-35-KNN / DJumper Crd, In Cab, C13-C14, 35 inch
[8] This unit does not support the sanitization feature.
X800-42U-35-NN / DPower cable, in cabinet, C13-C14, 35 inches
X800-42U-43N / DJumper Crd, In Cab, C13-C14,43 inches
X800-42U-43-CN / DJumper Crd,In Cab,C13-C14,43 inch,-C
X800-42U-43-KNN / DJumper Crd, In Cab, C13-C14,43 inches
X800-42U-43-NN / DPower cable, in cabinet, C13-C14, 43 inches
X800-42U-64N / DJumper Crd, In Cab, C13-C14,64 inches
X800-42U-64-CN / DJumper Crd,In Cab,C13-C14,64 inch,-C
X800-42U-64-KNN / DJumper Crd, In Cab, C13-C14,64 inches
X800-42U-64-NN / DPower cable, in cabinet, C13-C14, 64 inches
X800-42U-R6N / DJumper Crd, In Cab, C13-C14
X800-42U-R6-CN / DJumper Crd,In Cab,C13-C14,-C
X800B-R6N / DPower cord, Continental Europe, R6
X800B-R6-CN / DPower Cord,Continental Europe,-C,R6
X800C-R6N / DPower cord, UK and Ireland, R6
X800C-R6-CN / DPower cord, UK and Ireland,-C,R6
X800D-R6N / DPower cord, Japan, R6
X800D-R6-CN / DPower cord, Japan,-C,R6
X800E-R6N / DPower cord, North America, R6
X800E-R6-CN / DPower cord, North America, -C,R6
X800F-R6N / DPower cord, Australia/New Zealand, R6
X800F-R6-CN / DPower cord, Australia/New Zealand,-C,R6
X800G-R6N / DPower cord, Switzerland, R6
X800G-R6-CN / DPower cord, Switzerland,-C,R6
X800H-R6N / DPower cord, Argentina, R6
X800H-R6-CN / DPower cord,Argentina,-C,R6
X800I-R6N / DPower cord, China, R6
X800I-R6-CN / DPower cord,China,-C,R6
X800J-R6N / DPower cord, Denmark, R6
X800J-R6-CN / DPower cord, Denmark,-C,R6
X800K-R6N / DPower cord, India, South Africa, R6
X800K-R6-CN / DPower cord, India, South Africa, -C,R6
X800L-R6N / DPower cord, Israel, R6
X800L-R6-CN / DPower cord,Israel,-C,R6
X800M-R6N / DPower cord, Italy, R6
X800M-R6-CN / DPower cord, Italy,-C,R6
X800NN / DPOWER CORD, INDIA BIS
X800N-CN / DPower cord, India BIS,-C
X800P-R6N / DPower cord, North America, 250V, R6
X800P-R6-CN / DPower cord, North America, 250V, -C, R6
X800T-R6N / DPower cable, Taiwan, BSMI, R6
X800T-R6-CN / DPower cable,Taiwan,BSMI,-C,R6
X800VB-R6N / DPower cord, Brazil, IEC-60906-1-Plug
X800W-R6N / DPower cord, Taiwan, 250V, BSMI, R6
X800W-R6-CN / DPower cord, Taiwan, 250V, BSMI, -C
X800Y-R6N / DPower cord, Japan, 250V/15A
X800Y-R6-CN / DPower cord, Japan, 250V/15A,-C
Charger
X5726A114 - 00148PSU, 913W
Processor controller module (PCM)
X3218A111-03965 Years, 111-04373 YearsController,No MEM,CNA,C190,FAS2700
X3219A111 - 04043Controller,No MEM,RJ45,FAS2700
power supply
X5726A114 - 00148PSU, 913W
Transceiver
X6567-R6332-00378, AFBR-5710PZ-NA1, AFBR-5710PZ-NA2, AFBR-5718PZ, AFBR-5718PZ-NA1, AFBR-5718PZ-NA2, FTLF8519P3BTL-N1, FTLF8519P3BTL-NQSFP Optical 1GB Shortwave Multimode
X6567-R6-C332-00378, AFBR-5710PZ-NA1, AFBR-5710PZ-NA2, AFBR-5718PZ, AFBR-5718PZ-NA1, AFBR-5718PZ-NA2, FTLF8519P3BTL-N1, FTLF8519P3BTL-NQSFP Optical 1GB Shortwave Multimode,-C
X6567-R6-NC332-00378, AFBR-5710PZ-NA1, AFBR-5710PZ-NA2, AFBR-5718PZ, AFBR-5718PZ-NA1, AFBR-5718PZ-NA2, FTLF8519P3BTL-N1, FTLF8519P3BTL-NQSFP Optical 1GB Shortwave Multimode,-C
X6568-R6332-00374, FCLF8522P2BTL-N1, FCLF8522P2BTL-NQSFP Copper 1GB RJ-45
X6568-R6-C332-00374, FCLF8522P2BTL-N1, FCLF8522P2BTL-NQSFP Copper 1GB RJ-45,-C
X6568-R6-NC332-00374, FCLF8522P2BTL-N1, FCLF8522P2BTL-NQSFP Copper 1GB RJ-45,-C
X6588-R6332-00278R6, AFBR-57D7AMZ-NA1, AFBR-57D7AMZ-NA2, AFBR-57D7APZ-NA1, AFBR-57D7APZ-NA2, AFBR-57D9AMZ-NA1, AFBR-57D9AMZ-NA2, FTLF8528P2BNV-(N1), FTLF8528P2BNV-(NQ ), FTLF8528P3BNV-(N1), FTLF8528P3BNV-N1, FTLF8528P3BNV-NQSFP+Optical 8Gb Shortwave
X66250-15112 - 00346Cable, LC-LC, OM4,15m
X66250-15-C112 - 00346Cable,LC-LC,OM4,15m,-C
X66250-15-NC112 - 00346Cable,LC-LC,OM4,15m,-C
X66250-2112 - 00342Cable, LC-LC, OM4,2m
X66250-2-C112 - 00342Cable,LC-LC,OM4,2m,-C
X66250-2-NC112 - 00342Cable,LC-LC,OM4,2m,-C
X66250-30112 - 00347Cable, LC-LC, OM4,30m
X66250-30-C112 - 00347Cable,LC-LC,OM4,30m,-C
X66250-30-NC112 - 00347Cable,LC-LC,OM4,30m,-C
X66250-5112 - 00344Cable, LC-LC, OM4,5m
X66250-5-C112 - 00344Cable,LC-LC,OM4,5m,-C
X66250-5-NC112 - 00344Cable,LC-LC,OM4,5m,-C
X66260-30112 - 00354Cable, LC-LC, OPT, OS2,30, XNUMXM
Battery
X66260-30-C112 - 00354Cable, LC-LC, OPT, OS2,30, XNUMXM, -C
X1847271 - 01847CR2032 lithium system battery
X66260-30-NC112 - 00354Cable, LC-LC, OPT, OS2,30, XNUMXM, -C
X1847-R6271 - 01847CR2032,R6 lithium system battery
X66260-5112 - 00353Cable, LC-LC, OPT, OS2,5, XNUMXM
X3152A111 - 02499ASSY, BATT, 2CELL, HLDR, NV, FAS2650
X66260-5-C112 - 00353Cable, LC-LC, OPT, OS2,5, XNUMXM, -C
Advertising frame
X66260-5-NC112 - 00353Cable, LC-LC, OPT, OS2,5, XNUMXM, -C
X80111A111 - 03707Bezel, AFF-A220
Highlight Control Power Module
boot media
X98100A111 - 02591DCPM unit, 90XX
X3320A501 - 01119DRIVE, SSD, 128GB, mSATA
Driver
cable management guide
X302A-R5108 - 00268Disk Drive, 1,0TB 7,2k, DS424x, FAS2240-4
X3322A111 - 02809ASSEMBLY SUB, SM, BKT, CBL MGMNT ASSEMBLY, FAS2650
X306A-R5108 - 00270Disk Drive, 2,0TB 7,2k, DS424x, 2554/2240-4
Chassis
X308A-R5108 - 00277Disk Drive, 3,0TB 7,2K, DS424x, 2554/2240-4
X5721A111 - 02889SHELF, EMPTY, 2 PSU, 913W, MIDPLANE II, DS224C
X309A-R6 [7]108 - 00301DSK DRV,3TB 7.2k,NSE,DS424x,FAS2220/2240-4
Data cable
X315A-R6 [7]108 - 00368DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4
X-SFP-H10GB-CU1M-R6112 - 00210Cable, 10GBase Copper SFP+ 1m
X316A-R6108 - 00389Disk drive, 6TB 7,2k, DS4246, FAS2554
X-SFP-H10GB-CU1M-R6-C112 - 00210Cable, 10GBBase Copper SFP+ 1m,-C
X317A [7]108 - 00399DSK DRV, 6TB, 7.2K, 12G, NSE, DS212C
X-SFP-H10GB-CU1M-R6-NC112 - 00210Cable, 10GBBase Copper SFP+ 1m,-C
X318A-R6108 - 00455DSK DRV, 8TB, 7.2K, 12G, DS212C
X-SFP-H10GB-CU3M-R6112 - 00211Cable, 10GBase Copper SFP+ 3m
X319A108 - 00687SSD, 7,6TB, 12G, DS224C
X-SFP-H10GB-CU3M-R6-C112 - 00211Cable, 10GBbase copper SFP+ 3m,-C
X322A [7]108 - 00551DSK DRV, 10TB, 7.2K, 12G, NSE, DS212C
X-SFP-H10GB-CU3M-R6-NC112 - 00211Cable, 10GBbase copper SFP+ 3m,-C
X336A-R6108 - 00427DSK DRV, 4TB, 7.2K, 12G, DS212C
X-SFP-H10GB-CU5M-R6112 - 00212Cable, 10GBase Copper SFP+ 5m
X339A108 - 00426DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620
X-SFP-H10GB-CU5M-R6-C112 - 00212Cable, 10GBbase copper SFP+ 5m,-C
X341A-R6108 - 00430DSK DRV, 900GB, 10K, 12G, DS224C
X-SFP-H10GB-CU5M-R6-NC112 - 00212Cable, 10GBbase copper SFP+ 5m,-C
X342A-R6108 - 00432DSK DRV, 1.2TB, 10K, 12G, DS224C
X1983-1-R6112 - 00210Cable, Twinax CU, SFP+, 1M, X1962/X1963/X1967
X343A-R6108 - 00433DSK DRV, 1.8TB, 10K, 12G, DS224C
X1983-3-R6112 - 00211Cable, Twinax CU, SFP+, 3M, X1962/X1963/X1967
X356A-R6108 - 00468SSD, 3,8TB, DS2246, FAS2552
X1983-5-R6112 - 00212Cable, Twinax CU, SFP+, 5M, X1962/X1963/X1967
X357A108 - 00572SSD, 3.8TB, 12G, DS224C, W/MSW
X6536-R6112 - 00090Cable, Cntlr-Shelf/Switch, 5m, LC/LC, Op
X358A [7]108 - 00575SSD, 3,8TB, 12G, NSE, DS224C
X6536-R6-C112 - 00090Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X359A108 - 00736SSD, 30,6TB, 12G, DS224C
X6536-R6-NC112 - 00090Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X363A-R6108 - 00467SSD, 3,8TB, FAS2520/2554
X6537-R6112 - 00091Cable, Cntlr-Shelf/Switch, 30m, LC/LC, Op
X364A108 - 00650SSD, 3,8 TB, DS212C, FAS2620, with MSW
X6537-R6-C112 - 00091Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X365A-R6 [7]108 - 00477SSD, 1,6 TB, NSE, DS2246, FAS2552
X6537-R6-NC112 - 00091Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X366A-R6 [7]108 - 00470SSD, 1,6 TB, NSE, DS4246, FAS2554
X65420112 - 00508Cable, ASSEMBLY, USB 2.0 MICRO-B, USB-A, 2M
X371A108 - 00546SSD, 960GB, 12G, DS224C, W/MSW
X6546-R6112 - 00074Cable, Cntlr-Shelf/Switch, 30m, LC/SC, Op
X374A108 - 00573SSD, 960GB, 12G, DS212C, W/MSW
X6547-R6112 - 00073Cable, Cntlr-Shelf/Switch, 5m, LC/SC, Op
X375A108 - 00590DSK DRV, 4TB, 7.2K, 12G, DS460C
X6553-R6112 - 00188Cable, Cntlr-Shelf/Switch, 2m, LC/LC, Op
X376A108 - 00591DSK DRV, 8TB, 7.2K, 12G, DS460C
X6553-R6-C112 - 00188Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X377A108 - 00592DSK DRV, 10TB, 7.2K, 12G, DS460C
X6553-R6-NC112 - 00188Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X378A [7]108 - 00597DSK DRV, 10TB, 7.2K, 12G, NSE, DS460C
X6554-R6112 - 00189Cable, Cntlr-Shelf/Switch, 15m, LC/LC, Op
X379A108 - 00598SSD, 960GB, 12G, DS460C, W/MSW
X6554-R6-C112 - 00189Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6
X380A108 - 00549DSK DRV, 10TB, 7.2K, 12G, DS212C
X6554-R6-NC112 - 00189Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6,-C
X381A108 - 00550Disk Carrier, 2x10TB 7.2k, DS4486
X6560-R6112 - 00194Cable, Ethernet, 0,5m RJ45 CAT6
X386A [7]108 - 00806SSD, 960GB, 12G, NSE, DS224C
X6560-R6-C112 - 00194Cable, Ethernet, 0,5m RJ45 CAT6,-C
X387A108 - 00886DSK DRV, 16TB, 7.2K, 12G, DS460C
X6560-R6-NC112 - 00194Cable, Ethernet, 0,5m RJ45 CAT6
X388A108 - 00885DSK DRV, 16TB, 7.2K, 12G, DS212C
X6561-R6112 - 00195Cable, Ethernet, 2m RJ45 CAT6
X416A-R5 [7]108 - 00223Disk drive, 600 GB 10k, NSE, DS224x, FAS2240-2
X6561-R6-C112 - 00195Cable, Ethernet, 2m RJ45 CAT6,-C
X417A-R6 [7]108 - 00246DSK DRV,900GB,10K,NSE,DS2246,2552/2240-2
X6561-R6-NC112 - 00195Cable, Ethernet, 2m RJ45 CAT6,-C
X421A-R5108 - 00220Disk drive, 450 GB 10k, DS224x, FAS2240-2
X6562-R6112 - 00196Cable, Ethernet, 5m RJ45 CAT6
X422A-R5108 - 00221Disk drive, 600 GB 10k, DS224x, 2552/2240-2
X6562-R6-C112 - 00196Cable, Ethernet, 5m RJ45 CAT6,-C
X423A-R5108 - 00222DSK DRV,900GB,10K,DS2246,2552/2240-2,R5
X6562-R6-NC112 - 00196Cable, Ethernet, 5m RJ45 CAT6,-C
X425A-R6108 - 00321DSK DRV,1.2TB,10K,DS2246,2552/2240-2
X6566B-05-NC112 - 00297Cable, Direct Connect CU SFP+ 10G,0,5M,-C
X426A-R6108 - 00424DSK DRV,1.8TB,10K,DS2246,2552/2240-2
X6566B-05-R6112 - 00297Cable, Direct Connect CU SFP+ 10G,0,5M
X427A [7]108 - 00476DSK DRV, 1.8TB, 10k, NSE, DS2246, FAS2552
X6566B-05-R6-C112 - 00297Cable, Direct Connect CU SFP+ 10G,0,5M,-C
X427B-R6 [7]108 - 00438DSK DRV, 1.8TB, 10K, 12G, NSE, DS224C
X6566B-2-NC112 - 00299Cable, Direct Connect CU SFP+ 10G,2M,-C
X438A-R6108 - 00369SSD, 400GB, DS224x, FAS2552/2240-2
X6566B-2-R6112 - 00299Cable, Direct Connect CU SFP+ 10G,2M
X439A-R6108 - 00372SSD, 1,6TB, DS224x, FAS2552/2240-2
X6566B-2-R6-C112 - 00299Cable, Direct Connect CU SFP+ 10G,2M,-C
X440A-R6 [7]108 - 00374SSD,800GB,NSE,DS224x,FAS2240-2,FAS2552
X6566B-3-NC112 - 00300Cable, Direct Connect CU SFP+ 10G,3M,-C
X440B-R6 [7]108 - 00460SSD, 800GB, 12G, NSE, DS224C
X6566B-3-R6112 - 00300Cable, Direct Connect CU SFP+ 10G,3M
X441A-R5108 - 00278Solid State Drive, 100GB, DS424x
X6566B-3-R6-C112 - 00300Cable, Direct Connect CU SFP+ 10G,3M,-C
X442A-R5 [8]108 - 00249Solid State Drive, 100GB, 3Gb, DS4243
X6566B-5-NC112 - 00301Cable, Direct Connect CU SFP+ 10G,5M,-C
X446A-R6108 - 00257SSD, 200GB, DS224x, FAS2240-2
X6566B-5-R6112 - 00301Cable, Direct Connect CU SFP+ 10G, 5M
X446B-R6108 - 00323SSD,200GB,B,DS224x,FAS2240-2,FAS2552
X6566B-5-R6-C112 - 00301Cable, Direct Connect CU SFP+ 10G,5M,-C
X447A-R6108 - 00260SSD, 800GB, DS224x, FAS2552/2240-2
X6577-R6112 - 00238Cable, Ethernet, 30m RJ45 CAT6
X448A-R6108 - 00253SSD, 200GB, DS4246, FAS2554/2240-4/2220
X6577-R6-C112 - 00238Cable, Ethernet, 30m RJ45 CAT6,-C
X449A-R6108 - 00319SSD,800GB,DS4246,FAS2554/2240-4/2220
X6577-R6-NC112 - 00238Cable, Ethernet, 30m RJ45 CAT6,-C
X477A-R6108 - 00315DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4
X6584-R6112 - 00290Cable, Ethernet, 1m RJ45 CAT6
X478A-R5108 - 00250Disk Carrier, 2x3TB, DS448x
X6584-R6-C112 - 00290Cable, Ethernet, 1m RJ45 CAT6,-C
X480A-R6108 - 00302Disk Carrier, 2x4TB 7.2k, DS4486
X6584-R6-NC112 - 00290Cable, Ethernet, 1m RJ45 CAT6,-C
X481A-R6108 - 00398Disk carrier, 2x6TB 7,2k, DS4486
X6585-R6112 - 00291Cable, Ethernet, 3m RJ45 CAT6
X483A-R6108 - 00456Disk carrier, 2x8TB 7,2k, DS4486
X6585-R6-C112 - 00291Cable, Ethernet, 3m RJ45 CAT6,-C
X488A-R5108 - 00298Disk drive, 900 GB 10K, 2520/2220
X6585-R6-NC112 - 00291Cable, Ethernet, 3m RJ45 CAT6,-C
X489A-R6108 - 00322Disk drive, 1,2TB 10K, 2520/2220
X6592-R6112 - 00246Cable, Ethernet, 10m RJ45 CAT6
X490A-R6108 - 00425Disk Drive, 1,8TB 10K, FAS2520
X6592-R6-NC112 - 00246Cable, Ethernet, 10m RJ45 CAT6,-C
X575A-R6108 - 00370SSD, 400GB, DS424x, FAS2554/2240-4/2220
X6593-R6112 - 00247Cable, Ethernet, 20m RJ45 CAT6
X576A-R6108 - 00373SSD, 1,6 TB, DS424x, FAS2554/2240-4/2220
X6593-R6-C112 - 00247Cable, Ethernet, 20m RJ45 CAT6,-C
X577A-R6 [7]108 - 00375SSD, 800GB, NSE, DS4246, FAS2554
X6593-R6-NC112 - 00247Cable, Ethernet, 20m RJ45 CAT6,-C
X670A108 - 00530SSD, 15,3TB, 12G, DS224C
X66020A-R6112 - 00429Cable, Storage, MiniSAS HD, QSFP, 12G, 1m
Ventilador
X66020A-R6-C112 - 00429Cable, Storage, MiniSAS HD, QSFP, 12G, 1m, -C
X98500A441 - 00058Fan Assembly, Module, 90XX
X66021A-R6112 - 00430Cable, Storage, MiniSAS HD, QSFP, 12G, 2m
hardware kit
X66021A-R6-C112 - 00430Cable, Storage, MiniSAS HD, QSFP, 12G, 2m, -C
X90102A400 - 00725Hardware Kit, System De-pop Trays
X66022A-R6112 - 00431Cable, Storage, MiniSAS HD, QSFP, 12G, 5m
usb led
X66022A-R6-C112 - 00431Cable, Storage, MiniSAS HD, QSFP, 12G, 5m, -C
X91400A111 - 02543LED set, 90XX
X66030A112 - 00435Cable, 12 Gb, Mini SAS HD, 0,5 m
Memory module
X66030A-C112 - 00435Cable, 12Gb, Mini SAS HD, 0,5m, -C
X93141A107 - 00175DIMM, 16GB (NVS), 90XX
X66030A-KN112 - 00435Cable, 12 Gb, Mini SAS HD, 0,5 m
X93142A107 - 00176DIMM, 32GB, 90XX, 8200, A300
X66030A-N112 - 00435Cable, 12 Gb, Mini SAS HD, 0,5 m
Power cable
X66030A-NC112 - 00435Cable, 12Gb, Mini SAS HD, 0,5m, -C
X-50617-00N / DJumper Crd, In Cab, 2m, C20-C13, E Series
X66031A112 - 00436Cable, 12 Gb, Mini SAS HD, 1 m
X-50617-00-0E-CN / DJumper Crd,In Cab,2m,C20-C13,E-Series,0E,-C
X66031A-C112 - 00436Cable, 12Gb, Mini SAS HD, 1m, -C
X1558A-R6N / DJumper Crd,In Cab,48-IN,C13-C14
X66031A-KN112 - 00436Cable, 12 Gb, Mini SAS HD, 1 m
X1558A-R6-CN / DJumper Crd,In Cab,48-IN,C13-C14-C
X66031A-N112 - 00436Cable, 12 Gb, Mini SAS HD, 1 m
X800-42U-35N / DJumper Crd, In Cab, C13-C14, 35 inch
X66031A-NC112 - 00436Cable, 12Gb, Mini SAS HD, 1m, -C
X800-42U-35-CN / DJumper Crd,In Cab,C13-C14,35 inch,-C
X66032A112 - 00437Cable, 12 Gb, Mini SAS HD, 2 m
X800-42U-35-KNN / DJumper Crd, In Cab, C13-C14, 35 inch
X66032A-C112 - 00437Cable, 12Gb, Mini SAS HD, 2m, -C
X800-42U-35-NN / DPower cable, in cabinet, C13-C14, 35 inches
X66032A-KN112 - 00437Cable, 12 Gb, Mini SAS HD, 2 m
X800-42U-43N / DJumper Crd, In Cab, C13-C14,43 inches
X66032A-N112 - 00437Cable, 12 Gb, Mini SAS HD, 2 m
X800-42U-43-CN / DJumper Crd,In Cab,C13-C14,43 inch,-C

Supported Firmware Matrix - AFF A220A

Major operating system versionoperating system versionfirmware
BIOS
ONTAP 9.11.19.11.111.15*
ONTAP 9.11.19.11.1RC111.16, 11.15 *
ONTAP 9.10.19.10.1P7, 9.10.1P5-P611.16, 11.15 *
ONTAP 9.10.19.10.1P3-P4, 9.10.1P2, 9.10.1P111.16, 11.15, 11.13*
ONTAP 9.10.19.10.1, 9.10.1RC111.16, 11.15, 11.13, 11.11*
ONTAP 9.9.19.9.1P11, 9.9.1P1011.16, 11.15 *
ONTAP 9.9.19.9.1P8-P9, 9.9.1P711.16, 11.15, 11.13*
ONTAP 9.9.19.9.1P4-P6, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC111.16, 11.15, 11.13, 11.11*
ONTAP 9.89.8P1311.16, 11.15 *
ONTAP 9.89.8P11-P1211.16, 11.15, 11.13*
ONTAP 9.89.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P411.16, 11.15, 11.13, 11.11*
ONTAP 9.89.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC111.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.79.7P19, 9.7P17-P18, 9.7P16, 9.7P15, 9.7P1411.16, 11.15, 11.13, 11.11*
ONTAP 9.79.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P811.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.79,7P7, 9,7P6, 9,7P5, 9,7P4, 9,7P3, 9,7P2, 9,7P1, 9,7, 9,7RC111.16, 11.15, 11.13, 11.11, 11.9, 11.7*
ONTAP 9.69.6P18, 9.6P17, 9.6P16, 9.6P1511.16, 11.15, 11.13, 11.11*
ONTAP 9.69.6P13-P14, 9.6P1211.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.69.6P10-P1111.16, 11.15, 11.13, 11.11, 11.9, 11.7*
ONTAP 9.69.6P9, 9.6P7-P8, 9.6P5-P6, 9.6P4, 9.6P311.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5*
ONTAP 9.69.6P2, 9.6, 9.6P1, 9.6RC2, 9.6RC111.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5*
ONTAP 9.59.5P19, 9.5P1811.16, 11.15, 11.13, 11.11*
ONTAP 9.59.5P17, 9.5P16, 9.5P1511.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.59.5P1411.16, 11.15, 11.13, 11.11, 11.9, 11.7*
ONTAP 9.59.5P13, 9.5P12, 9.5P10-P11, 9.5P9, 9.5P8, 9.5P7, 9.5P6, 9.5P5, 9.5P4, 9.5P2-P3, 9.5P1, 9.5, 9.5RC111.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5, 11.4*
ONTAP 9.49.4P8, 9.4P7, 9.4P6, 9.4P5, 9.4P4, 9.4P3, 9.4P2, 9.4P111.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5, 11.4, 11.2.1*
ONTAP 9.49.4, 9.4RC111.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5, 11.4, 11.2.1, 11.2*
BMC
ONTAP 9.11.19.11.1, 9.11.1RC111,8*
ONTAP 9.10.19.10.1P7, 9.10.1P5-P611,8*
ONTAP 9.10.19.10.1P3-P4, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC111.8, 11.7 *
ONTAP 9.9.19.9.1P1111,8*
ONTAP 9.9.19.9.1P10, 9.9.1P8-P9, 9.9.1P7, 9.9.1P4-P611.8, 11.7 *
ONTAP 9.9.19.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC111.8, 11.7, 11.6*
ONTAP 9.89.8P1311,8*
ONTAP 9.89.8P11-P12, 9.8P10, 9.8P9, 9.8P811.8, 11.7 *
ONTAP 9.89,8P7, 9,8P6, 9,8P5, 9,8P4, 9,8P311.8, 11.7, 11.6*
ONTAP 9.89.8P2, 9.8P111.8, 11.7, 11.6, 11.5P1*
ONTAP 9.89.8, 9.8RC111.8, 11.7, 11.6, 11.5P1, 11.5*
ONTAP 9.79.7P19, 9.7P17-P1811.8, 11.7 *
ONTAP 9.79.7P16, 9.7P15, 9.7P14, 9.7P1311.8, 11.7, 11.6*
ONTAP 9.79.7P12, 9.7P1111.8, 11.7, 11.6, 11.5P1*
ONTAP 9.79.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P611.8, 11.7, 11.6, 11.5P1, 11.5*
ONTAP 9.79,7P5, 9,7P4, 9,7P3, 9,7P2, 9,7P1, 9,7, 9,7RC111.8, 11.7, 11.6, 11.5P1, 11.5, 11.4*
ONTAP 9.69.6P18, 9.6P1711.8, 11.7 *
ONTAP 9.69.6P16, 9.6P1511.8, 11.7, 11.6*
ONTAP 9.69.6P13-P1411.8, 11.7, 11.6, 11.5P1*
ONTAP 9.69.6P12, 9.6P10-P1111.8, 11.7, 11.6, 11.5P1, 11.5*
ONTAP 9.69.6P9, 9.6P7-P8, 9.6P5-P611.8, 11.7, 11.6, 11.5P1, 11.5, 11.4*
ONTAP 9.69.6P4, 9.6P311.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2*
ONTAP 9.69.6P211.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1*
ONTAP 9.69.6, 9.6P1, 9.6RC2, 9.6RC111,8, 11,7, 11,6, 11,5P1, 11,5*, 11,4, 11,3P2, 11,3P1*
ONTAP 9.59.5P1911.8, 11.7 *
ONTAP 9.59.5P1811.8, 11.7, 11.6*
ONTAP 9.59.5P17, 9.5P1611.8, 11.7, 11.6, 11.5P1*
ONTAP 9.59.5P15, 9.5P1411.8, 11.7, 11.6, 11.5P1, 11.5*
ONTAP 9.59.5P13, 9.5P12, 9.5P10-P1111.8, 11.7, 11.6, 11.5P1, 11.5, 11.4*
ONTAP 9.59,5P9, 9,5P8, 9,5P711.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2*
ONTAP 9.59.5P611.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1*
ONTAP 9.59.5P5, 9.5P4, 9.5P2-P3, 9.5P1, 9.5, 9.5RC111.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1, 11.3, 11.2*
ONTAP 9.49.4P811.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1*
ONTAP 9.49.4P7, 9.4P6, 9.4P5, 9.4P4, 9.4P311.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1, 11.3, 11.1P3*
ONTAP 9.49.4P211.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1, 11.3, 11.1P3, 11.1P2*
ONTAP 9.49.4P1, 9.4, 9.4RC111.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1, 11.3, 11.1P3, 11.1P2, 11.1*
Footnote:
[1]* Indicates that the firmware ships with the storage operating system version

Platform LED for AFF A220A

LED labelLED nameModelstatus indicatorOverview
1Chassis power setting-in greenAt least one of the two PSUs is supplying power to the system.
---OffNone of the PSUs are supplying power to the system.
2Chassis Attention LED, front-in amberThe system has stopped or a chassis failure has occurred.
---OffThe system is operating normally.
3Location LED on front of chassis-Lit or flashing blueThe LED was manually activated to assist in the physical location of the equipment
---OffThe LED was not manually activated to help with physical location
Back view
LED labelLED nameModelstatus indicatorOverview
0aIntegrated SAS port 2 LED configurationAttentionYellowSAS link requires attention
---OffSAS link works normally
--LigaçãoVerdeLink is established on at least one external SAS path
---OffNo link is established on any external SAS path
0bIntegrated SAS port 2 LED configurationAttentionYellowSAS link requires attention
---OffSAS link works normally
--LigaçãoVerdeLink is established on at least one external SAS path
---OffNo link is established on any external SAS path
e0aSFP Ethernet port configurationAttentionYellowThe Ethernet port requires attention.
---OffThe Ethernet port works normally
--LigaçãoVerdeA connection is established with the port.
---OffNo connection is established on the port.
e0bSFP Ethernet port configurationAttentionYellowThe Ethernet port requires attention.
---OffThe Ethernet port works normally
--LigaçãoVerdeA connection is established with the port.
---OffNo connection is established on the port.
e0c10GBase-T Ethernet port configurationPort Activityflashing greenTraffic is flowing over the connection
---OffNo traffic is flowing over the connection.
--port linkVerdeA connection is established on the port
