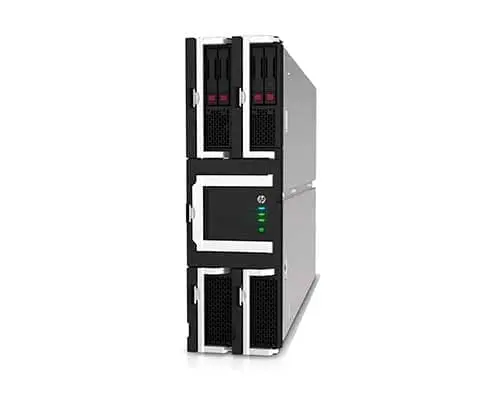

HP Synergy 680 Gen9 CTO Compute Module – With warranty and technical service for installation or support.
A DC Parts HP Inc. is a distributor of new and refurbished HP equipment and accessories. Our technology experts can help you select and configure the right HP blade solution for your specific data needs. Like all of our equipment, HP blades are fully tested, so you can count on years of worry-free service. And if you need it, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about HP equipment offerings, please contact us.
– SPARE PARTS AVAILABLE FOR EACH MODEL. CONSULT THE PRICE OF spare drives, controllers, power supplies, network cards, HBAs, SFPs, cables, etc.
HP Synergy 680 Gen9 Product Description
The HP Synergy 680 Gen9 Compute Module is part of a composable infrastructure (CI) solution that is easily discovered and provisioned in minutes and can be repurposed just as easily. The HP Synergy 680 Gen9 Compute Module delivers mission-critical availability and performance, as well as flexible memory, storage, and fabric options in a full-height, double-wide, 4-socket form factor.
Designed to support demanding data-intensive enterprise workloads, this module is powered by Intel Xeon processors, supports up to 12TB of DDR4 memory, HP DDR4 memory, has flexible storage controller options, ten I/O connectors, and is part of a flexible compute capacity pool within a composable infrastructure.
run anything
The HP Synergy 680 Gen9 Compute Module supports up to 12 TB of DDR4 memory and Intel Xeon processors in a 4S full-height double-wide form factor for demanding workloads such as business processing, decision support, IT infrastructure, and other mission-critical workloads with high memory demands.
The flexible design supports driveless stateless configuration, up to four SFF or eight uFF drives, NVMe workload acceleration, and direct-attach composite storage to meet demanding workload, data protection, and data security requirements.
Ten mezzanine connectors with simplified I/O architecture for expandability and a wide variety of storage and fabric options.
move faster
The HP Synergy 680 Gen9 Compute Module provides a composable compute resource that can be auto-discovered, rapidly provisioned, easily managed, and seamlessly redeployed to provide the right compute capacity for changing workload needs.
HP Synergy template-based provisioning enables rapid time-to-service with a single point of definition for compute module state, pooled storage, network connectivity, and boot image.
Características do produto
| Feature | Overview |
|---|---|
| cache memory | See the processor list above for cores, model number and cache memory size |
| chipset | Intel C602J series chipset |
| In the system management chipset | HP iLO (HP iLO4 Firmware 2.0), 4GB NAND with 1GB USB user space configurable VIA UEFI and accessiblevia iLO. |
| memory protection | Advanced ECC Memory Mirroring Memory Online Spare Mode (Rank Spare Mode) |
| Memory | HP SmartMemory model or DDR4 Load Reduced (LRDIMM) or Registered (RDIMM) |
| Available DIMM slots | 98 (24 DIMM slots per processor, 8 channels per processor, 3 DIMMs per channel) |
| Maximum (LRDIMM) | 6 TB (96 x 64 GB) |
| Maximum (RDIMM) | 3 TB (96 x 32 GB) |
| Network controller | HP Synergy 6810C 25/50Gb Ethernet Adapter HP Synergy 3830C 16Gb Fibre Channel Host Bus Adapter HP Synergy 3530C 16Gb Fibre Channel Host Bus Adapter HP Synergy 3820C 10/20Gb Converged Network Adapter HP Synergy 2820C 10Gb Converged Network Adapter Standard iLO Network Controller: One (1) 1 Gb/s port for HP iLO 4 link to HP Synergy composer |
| Mezzanine Connectors | Ten (10) I/O expansion mezzanine connectors (in PCIe discovery order): Mezzanine connectors 4 and 10 are X8 PCIe 3.0 and support Type-C and Type-D mezzanine cards for fabric 1 Mezzanine connectors 6 and 12 are X16 PCIe 3.0 and support Type-C mezzanine card for fabric 3 Mezzanine connectors 3 and 9 are X8 PCIe 3.0 and support Type-C mezzanine cards for fabric 3 Mezzanine connectors 1 and 7 are X8 PCIe 3.0 and support Type-C and Type-D mezzanine cards for fabric 1 Mezzanine connectors 2 and 8 are X16 PCIe 3.0 and support Type-C and Type-D mezzanine cards for fabric 2 Mezzanine options include: Dual-Port Compute Module 10/20Gb mezzanine adapter options for additional network ports 16Gb single-port Fibre Channel HBA dual for SAN connectivity |
| storage controller | HP Smart Array P240nr Controller with 1GB Flash-Backed Write Cache (FBWC) supporting RAID 0, 1,10, 5, 6, and 1 ADM HP Smart Array P542D Controller with 2GB FBWC supporting RAID 0, 1,10, 5, 50, 6, 60, 1 ADM, and 10 ADM HP H240nr Smart HBA supporting RAID 0, 1, 10, 5 |
| Maximum internal storage | Models Capacity Configuration Hot plug SFF SAS 8,0 TB 4 x 2,0 TB Hot plug SFF SATA 8,0 TB 4 x 2,0 TB Hot plug SFF SAS SSD 15,28 TB 4 x 3,84 TB Hot plug SFF SATASSD 6,4 TB 4 x 1,6 TB Hot plug SFF NVMeSSD 8,0 TB 4 x 2,0 TB Hot plug uFF SATA SSD 2,72TB 8 x 340GB |
| Interfaces | Micro SDHC Slot One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot USB 2.0 Port One (1) internal USB 2.0 connector for USB flash media drive keys USB 2.0 Port One (1) external USB 2.0 connector for USB flash media drive keys |
| Industry standard compliance | ACPI 2.0 Microsoft Logo Certifications USB 2.0 support IPMI 2.0 Secure Digital 2.0 TPM 1.2 and 2.0 support IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed) Advanced Encryption Standard (AES) Triple Data Encryption Standard (3DES) SNMP SSL 2.0 DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP) Active Directory v1.0 PCIe 3.0 ASHRAE A3 |
| Frames | The HP Synergy 12000 Frame is the foundation for all Synergy products and stands: Up to 12 half-height, 6 full-height single-width, or 3 full-height double-width compute modules (mixing allowed) Up to 5 half-height, double-width HP Synergy D3940 storage modules (mixing with compute modules in any ratio allowed) Up to three (3) HP Synergy 680 Gen9 compute modules |
| Recorders | Matrox G200eh video controller integrated 1600 x 1200 (32 bp) 1920 x 1200 (16 bp) HP iLO management in system management memory 16 MB flash video memory 256 MB DDR 3 with ECC (112 MB after ECC and video) |
| Form factor | The HP Synergy 680 Gen9 is a full-height, double-width compute module that attaches to the HP Synergy 12000 frame |
| Safety | Power-on password Administrator password Keyboard password (QuickLock) HP iLO management on the system management chipset with: SSL encryption Secure Shell version 2 AES and Triple Data Encryption Standard (3DES) in the browser, PLC and XML scripting interface Video AES and RC4 encryption External USB port enable/disable Network server mode Serial interface control Trusted Platform Module (TPM) 1.2 and 2.0 AES options Intel AES-New Instructions (AES-NI) |
| Support for fiber channels | Up to four (4) optional Fibre Channel mezzanine HBAs are supported on the HP Synergy 680 Gen9 |
| compatible SAN | HP Synergy 680 Gen9 Compute Modules are optimized for HP MSA, EVA, 3PAR, XP, and LeftHand |
Software overview
| Feature | Overview |
|---|---|
| Support for operating systems and virtualization software for computational modules | Microsoft Windows Server 2012 Datacenter and 2012 R2 Datacenter Microsoft Windows Server 2012 Standard and 2012 R2 Standard Microsoft Windows Server 2016 Standard Edition (includes Nano Server) Microsoft Windows Server 2016 Datacenter Edition (includes Nano Server) Microsoft Hyper-V 2016 Microsoft Hyper-V Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware ESXi |
Physical Specifications
| Specification | Overview |
|---|---|
| Height (H x W x D) with frame | 127 x 430,3 x 600 mm (5,06 x 16,94 x 23,62 in.) |
| Weight | Maximum: 31,752 kg (69,85 lb) Minimum: 27,15 kg (59,73 lb) |
Power Specifications
For power specifications, including input requirements, BTU rating, and power supply output, see HP Synergy Frame TechSpecs.
HP smart array controllerP542D
| storage interface | 12Gb/s SAS (Serial Attached SCSI) 6Gb/s SATA (Serial Advanced Technology Attachment) |
| SAS Connectors | Two (2) external ports supporting SAS links x4 each and two (2) internal ports supporting SAS links x4 each |
| SAS speed | x16 12 Gb / s per physical link |
| PCIe link rate | PCIe 3.0 x8 links |
| Memory bus speed | DDR3-1866 MHz, 72-bit wide bus at 14,92 Gb/s (2GB cache module) |
| Supported logical commands | 64 logical drives |
| Max drives supported | Up to 256 units (up to 128 units per logical unit) |
| RAID support | RAID 6, 60 (Advanced Data Protection) RAID 5, 50 (Distributed Data Protection) RAID 1, 10 (Drive Mirroring) RAID 1 ADM, 10 ADM (Advanced Data Mirroring) RAID 0 (Striping) |
| Upgradeable firmware | Flashable ROM with redundant firmware images |
HP smart arrayP240nr/1GB controller
| Disk drive interface | 12Gb/s SAS (Serial Attached SCSI) 6Gb/s SATA (Serial ATA) |
| server interface | x8 5G PCIe 3.0 provides maximum bandwidth of 8GB/sec |
| cache memory | Write cache cache standard with 1GB flash support (FBWC) |
| Supported logical commands | 64 (with 1GB cache included) |
| Host memory address | 64-bit, with support for servers with memory space greater than 4 GB |
| RAID support | RAID 1 (mirroring), RAID 0 (striping), RAID 5, RAID 10 |
| Other | Recovery ROM drive flash upgradeable firmware (with SAS drives) |
HP smart HBAH240nr smartHBA
| Disk drive interface | 12Gb/s SAS (Serial Attached SCSI) 6Gb/s SATA (Serial ATA) |
| computing module interface | x8 5G PCIe 3.0 provides maximum bandwidth of 8GB/sec |
| cache memory | No |
| Supported logical commands | 64 |
| Host memory address | 64-bit, with support for compute modules with memory space greater than 4 GB |
| RAID support | RAID 1 (mirroring) and RAID 0 (striping), RAID 5, RAID 10 |
| Other | Recovery ROM drive flash upgradeable firmware (with SAS drives) |
HP Synergy2820C 10Gbconvergednetwork Adapter
| Córdoba | 10Gb Double Door Mezzanine |
| network processor | QLogic 57840S with built-in MAC / PHY |
| Data transfer method | x8 PCI express 3.0 |
| network transfer rate | Two ports, each at 20 Gb/s full duplex; 40 Gb/s aggregate full duplex theoretical bandwidth |
| IEEE Compliance | 802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.3p, 802.1q, 802.3ae, 802.3ap |
| Standard Features | Provides flexibility to compose multiple network streams, including Ethernet and FCoE oriSCSI on each connection Full hardware offload of FCoE and iSCSI storage protocol processing for converged Ethernet data and high-performance storage networking Flex-10 technology lets you adjust bandwidth for up to four partitioned NICs and FlexHBAs to optimize connectivity for different application needs. From 100 Mb/s to 10 Gb/s on up to four physical function NICs per port, in 100 Mb/s increments per NIC |
HPESynergy 3820C10 / 20Gbconvergednetwork adapter
| Córdoba | 10/20 Gb Double Door Mezzanine |
| network processor | QLogic 57840S with built-in MAC / PHY |
| Data transfer method | x8 PCI express 3.0 |
| network transfer rate | Two ports, each at 40 Gb/s full duplex; 80 Gb/s aggregate full duplex theoretical bandwidth |
| IEEE Compliance | 802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.3p, 802.1q, 802.3ae, 802.3ap |
| Standard Features | Provides flexibility to compose multiple network streams, including Ethernet and FCoE oriSCSI on each connection Full hardware offload of FCoE and iSCSI storage protocol processing for converged Ethernet data and high-performance storage networking Flex-20 technology allows the user to adjust bandwidth for up to four partitioned FlexNICs and FlexHBAs to optimize connectivity for different application needs. From 100 Mb/s to 20 Gb/s on up to four physical function NICs per port, in 100 Mb/s increments per NIC. Combined bandwidth of NICs cannot exceed port bandwidth, i.e. 20 Gb |
Environmental Specifications
| Specification | Overview |
|---|---|
| Operating Temperature | 10° to 35°C (50° to 95°F) |
| Out of operation temperature | -30° to 60°C (-22° to 140°F) |
| Extended operational support for environments | For approved hardware configurations, the supported system input range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at the sea with an analtitude reduction of 1,0°C for every 175 m (1,8°F for every 574 ft) above 900 m (2953 ft) to a maximum of 3.050 m (10.000 ft). |
| Operating relative humidity | 8% a 90% |
| Non-operating relative humidity | 5% a 95% |
| operational altitude | 3050 m (10.000 ft) |
| Operation out of altitude | 9144 m (30.000 ft) |
| acoustic noise | For acoustic noise specifications, see the HP Synergy 12000TechSpecs chart located at: [placeholder] |
