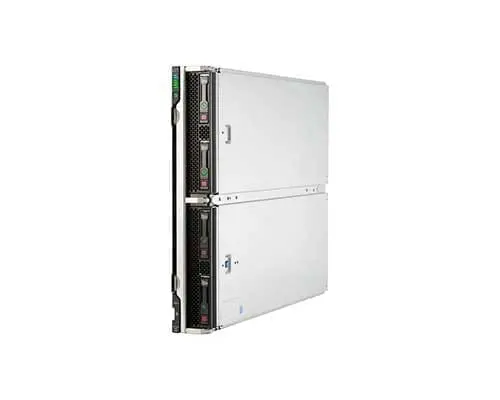

HP Synergy 660 Gen9 CTO Compute Module

Warranty: up to 12 months

HP Synergy 660 Gen9 CTO Compute Module – With warranty and technical service for installation or support.

A DC Parts is a distributor of new and refurbished HPE equipment and accessories. Our technology experts can help you select and configure the right HPE blade solution for your specific data needs. Like all of our equipment, HPE blades are fully tested, you can count on worry-free service for years to come. And, should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about HPE equipment offerings, please contact contact us.

– SPARE PARTS AVAILABLE FOR EACH MODEL. CONSULT THE PRICE OF spare drives, controllers, power supplies, network cards, HBAs, SFPs, cables, etc.

Product Description HPE Synergy 660 Gen10
The HPE Synergy 660 Gen10 Compute Module delivers increased performance and scalability for your demanding data-intensive enterprise workloads. Powerful Intel® Xeon® Scalable family of processors (2 or 4 sockets), large memory footprint (up to 6TB of HPE DDR4 memory in 48 DIMM slots), and flexible I/O configuration deliver large workloads such as structured databases and business processing applications, the computing power and memory support they require.

What's New in HPE Synergy 660 Gen9

Next-generation processors from Intel's scalable family.
New 2933 MT/s memory for the next generation of Intel's scalable family of processors.
New HPE persistent memory optimized for data intensive workloads with Intel Optane DC persistent memory.
Additional drive systems and replacements.

Highly flexible – composite/software defined infrastructure
The HPE Synergy 660 Gen10 Computing Module offers more options for performance, capacity, efficiency and flexibility to power most workloads with support for the full range of 2 generations of scalable Intel Xeon family processors.

Composable compute resource that is intelligently auto-discovered, easily provisioned, and integratedly managed. Synergy Composability simplifies IT operations and reduces over-provisioning costs.
Integrated OneView – RESTful API with an ecosystem of combinable infrastructure partners ​​offers extensive options for third-party integration, protecting existing key investments.

Optimal performance for increasing workloads
The HPE Synergy Gen10 Computing Module offers a performance boost over the previous generation with a choice of 2 generations of scalable Intel family processors.
Increased memory speeds with a wide range of memory sizes for registered and off-load DDR4 DIMMs.
Faster compute for network connectivity speeds get your data where it's needed faster.

Flexible and Secure
The HPE Synergy 660 Gen10 Computing Module delivers superior enterprise-grade availability that enables IT to implement change quickly and confidently through model-based operations.
Unmatched threat protection with HPE Silicon Root of Trust and a unique chain of trusted architecture to protect, detect and recover firmware.
System tuning to create smooth performance while matching customer workloads
Up to 6 mezzanine options with enough I/O and redundancy for workloads that require high availability.
160 zoned drives per storage controller, framed and hybrid RAID / HBA Smart Array to make your controller investment more effective.

Características do produto

Feature
Overview
Processors (one of the following depending on the model)
  • HPE Synergy 660 Gen9 Intel Xeon E5-4650 v4 (2,2GHz / 14 cores / 35MB / 105W)

  • HPE Synergy 660 Gen9 Intel Xeon E5-4640 v4 (2,1GHz / 12 cores / 30MB / 105W)

  • HPE Synergy 660 Gen9 Intel Xeon E5-4660 v4 (2,2GHz / 16 cores / 40M / 120W)

  • HPE Synergy 660 Gen9 Intel Xeon E5-4610 v4 (1,8GHz / 10 cores / 25MB / 105W)

  • HPE Synergy 660 Gen9 Intel Xeon E5-4667 v4 (2,2GHz / 18 cores / 45MB / 135W)

  • HPE Synergy 660 Gen9 Intel Xeon E5-4669 v4 (2,2GHz / 22 cores / 55MB / 135W)

  • HPE Synergy 660 Gen9 Intel Xeon E5-4655 v4 (2,5GHz / 8 cores / 30MB / 135W)

  • HPE Synergy 660 Gen9 Intel Xeon E5-4620 v4 (2,1GHz / 10 cores / 25MB / 105W)

  • HPE Synergy 660 Gen9 Intel Xeon E5-4627 v4 (2,6GHz / 10 cores / 25MB / 135W)

chipset
  • Intel C610 Series Chipset

  • Intel E5-4600v4 Processor Family

On the system management chipset
HPE iLO (HPE iLO4 2.0 Firmware), 4GB NAND with 1GB USB user space configurable via UEFI and accessible via iLO.
memory protection
  • Advanced ECC

  • memory mirroring

  • Online Memory Spare Mode (Classification Spare Mode)

Memory (one of the following, depending on the model)
Model
HPE SmartMemory, DDR4 Load Reduced (LRDIMM) or Registered (RDIMM)
Available DIMM slots
48 (12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel)
Maximum (LRDIMM)
3,0 TB (48 x 64 GB)
Maximum (RDIMM)
1,5 TB (48 x 32 GB)
Network controller
  • HPE Synergy 3820C 10/20 Gb Converged Network Adapter

  • HPE Synergy 2820C 10Gb Converged Network Adapter

  • Default iLO network controller:

    One (1) 1 Gb / ps port for the HPE iLO 4 link to HPE Synergy composer.

Mezzanine Connectors
Six (6) mezzanine I/O expansion connectors:
  • Mezzanine connector 1 is x16 PCIe 3.0 Type D (supports Type C and Type D mezzanine boards) for fabric 1

  • Mezzanine connector 2 is x16 PCIe 3.0 Type D (supports Type C and Type D mezzanine cards) for fabric 2

  • Mezzanine 3 connector is x16 PCIe 3.0 Type C (supports Type C mezzanine cards) for fabric 3

  • Mezzanine connector 4 is x16 PCIe 3.0 Type D (supports Type C and Type D mezzanine cards) for fabric 1

  • Mezzanine 5 connector is x16 PCIe 3.0 Type D (supports Type C and Type D mezzanine cards for fabric 2

  • Mezzanine 6 connector is x16 PCIe 3.0 Type C (supports Type C mezzanine cards) for fabric 3

    Mezzanine options include:

  • 10/20Gb Dual Port Computing Module Mezzanine Adapter Options for Additional Network Ports

  • Dual Port 16Gb Fiber Channel HBA for SAN Connectivity

  • 2GB FBWC Storage Adapter for Direct Attach Storage

storage controller
  • HPE Smart Array P240nr Controller with 1GB Flash-Backed Write Cache (FBWC) compatible with RAID 0, 1,10, 5, 6 and 1 ADM

  • HPE Smart Array P542D Controller with 2GB Flash-Backed Write Cache (FBWC) compatible with RAID 0, 1, 10, 5, 50, 6, 60, 1 ADM and 10 ADM

  • HPE H240nr Smart HBA supports RAID 0, 1, 10, 5

  • HPE B140i (SATA chipset)

Maximum internal storage (one of the following depending on the model)
Models
Capacity
Asset
SFF SAS Hot Plug
8,0 TB
4 x 2,0 TB
SFF SATA Hot Plug
8,0 TB
4 x 2,0 TB
Hot Plug SFF SAS SSD
15,36 TB
4 x 3,84 TB
Hot Plug SFF SATA SSD
6,4 TB
4 x 1,6 TB
Hot Plug SFF NVMe SSD
8,0 TB NVMe
4 x 2,0 TB NVMe
Hot Plug UFF SATA SSD
2,72 TB
GB x 8 340
Interfaces
Micro SDHC slot
One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot
3.0 USB port
One (1) internal USB 3.0 connector for USB flash media drive keys
3.0 USB port
One (1) external USB 3.0 connector for USB flash media drive keys
Industry standard compliance
  • ACPI 2.0

  • Microsoft logo certifications

  • USB 3.0 support

  • IPMI 2.0

  • Secure Digital 2.0

  • TPM 1.2 and 2.0 support

  • IEEE (specific IEEE standards depending on the installed Ethernet adapter(s) card(s))

  • Advanced Encryption Standard (AES)

  • Triple Data Encryption Standard (3DES)

  • SNMP

  • SSL 2.0

  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

  • Active Directory v1.0

  • PCIe 3.0

  • ASHRAE A3

Recorders
Integrated Matrox G200eh Video Controller
  • 1600 x 1200 (32 b/p)

  • 1920 x 1200 (16 b/p)

    HPE iLO Management in system management memory

  • 16 MB flash video memory

  • 256MB DDR 3 with ECC (112MB after ECC and video)

Form factor
The HPE Synergy 660 Gen9 is a full-height computing module that plugs into the HPE Synergy Frame 12000.
Security
  • Power-on password

  • admin password

  • Keyboard password (QuickLock)

  • HPE iLO Management On System Management Chipset with:

    • SSL encryption

    • Secure Shell version 2

    • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) in browser, CLP and XML script interface

    • AES and RC4 Video Encryption

  • Enable / disable external USB port

  • network server mode

  • Serial Interface Control

  • Trusted Platform Module (TPM) 1.2 Option

  • Advanced Encryption Standard (AES)

  • Intel Advanced Encryption Standard - New Instructions (AES-NI)

Software overview

Feature
Overview
Supported operating systems
  • Microsoft Windows Server

  • Microsoft Hyper-V Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • VMware ESXi

Environmental Specifications

Specification
Overview
Operating Temperature
10° to 35°C (50° to 95°F)
Out of operation temperature
-30° to 60°C (-22° to 140°F)
Operating relative humidity
8 to 90% @ -12°C (10,4°F)
Non-operating relative humidity
5 to 95% @ 38,7°C (101,7°F)
Operating altitude
3050 m (10.000 ft)
non-operational altitude
9144 m (30.000 ft)
