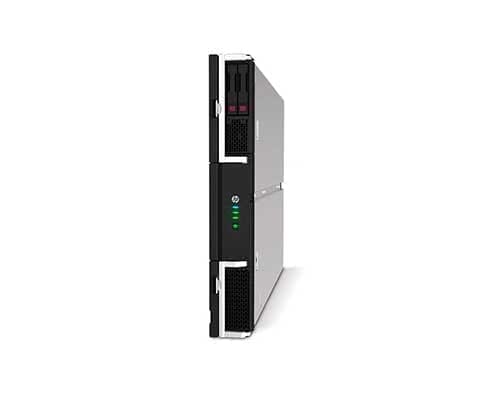

HP Synergy 620 Gen9 CTO Compute Module – With warranty and technical service for installation or support.
DC Parts is a distributor of new and refurbished HP equipment and accessories. Our technology experts are ready to help you select and configure the right HP blade solution for your data needs. All of our equipment, including HP blades, are rigorously tested to ensure reliable, worry-free service for years to come. And if you need it, our team of certified engineers is on hand to provide expert technical support. Contact us to learn about our HP equipment offerings.
– SPARE PARTS AVAILABLE FOR EACH MODEL. See price for spare units, controllers, power supplies, network cards, HBAs, SFPs, cables, etc.
Product Description HP Synergy 620 Gen9
The HP Synergy 620 Gen9 Compute Module is part of a composite infrastructure (CI) solution that is easily discoverable and provisioned in minutes, and can be repurposed just as simply. It offers mission-critical availability and performance, as well as flexible memory, storage, and fabric options in a full-height, 2-socket form factor.
Designed to support demanding enterprise data workloads, it is powered by Intel Xeon processors, supporting up to 3TB of HP DDR4 memory, with flexible storage controller options, five I/O connectors, and is part of a flexible compute capacity pool in a composite infrastructure.
Run Any Workload
The HP Synergy 620 Gen9 Compute Module supports up to 3TB of DDR4 memory and Intel Xeon processors in a 2S full-height form factor for demanding workloads such as business processing, decision support, IT infrastructure, and other mission-critical workloads with high memory demands.
The flexible design supports stateless configuration with no drives, up to two SFF drives or four uFF drives, NVMe workload acceleration, and direct-attached composite storage to meet demanding workload, data protection, and data security requirements.
It features five mezzanine connectors with simplified I/O architecture for expandability and a wide range of storage and fabric options.
Accelerated Agility
The HP Synergy 620 Gen9 Compute Module provides a composite compute capability that can be self-discovered, provisioned quickly, easily managed, and redeployed seamlessly to provide the right compute capacity for changing workload needs.
HP Synergy model-based provisioning enables fast service time with a single point to define compute module state, pooled storage, network connectivity, and boot image.
Product Features
Characteristic | Description |
---|---|
Processors (one of the following, depending on model) | HP Synergy 620/680 Gen9 Intel Xeon E7-4850 v4 (2.1 GHz / 16 cores / 40 MB / 115 W) HP Synergy 620/680 Gen9 Intel Xeon E7-4830 v4 (2.0 GHz / 14 cores / 35 MB / 115 W) HP Synergy 620/680 Gen9 Intel Xeon E7-4820 v4 (2.0 GHz / 10 cores / 25 MB / 115 W) HP Synergy 620/680 Gen9 Intel Xeon E7-4809 v4 (2.1 GHz / 8 cores / 20 MB / 115 W) HP Synergy 620/680 Gen9 Intel Xeon E7-8891 v4 (2.8 GHz / 10 cores / 60 MB / 165 W) HP Synergy 620/680 Gen9 Intel Xeon E7-8893 v4 (3.2 GHz / 4 cores / 60 MB / 140 W) HP Synergy 620/680 Gen9 Intel Xeon E7-8890 v4 (2.2GHz / 24-core / 60MB / 165W) HP Synergy 620/680 Gen9 Intel Xeon E7-8880 v4 (2.2 GHz / 22 cores / 55 MB / 150 W) HP Synergy 620/680 Gen9 Intel Xeon E7-8870 v4 (2.1 GHz / 20 cores / 50 MB / 140 W) HP Synergy 620/680 Gen9 Intel Xeon E7-8860 v4 (2.2 GHz / 18 cores / 45 MB / 140 W) HP Synergy 620/680 Gen9 Intel Xeon E7-8867 v4 (2.4 GHz / 18 cores / 45 MB / 165 W) |
Cache Memory (one of the following, depending on the model) | See the list of processors above for cores, model number, and cache size. |
Chipset (one of the following, depending on model) | Intel C602J Series Chipset |
On the System | HP iLO (HP iLO4 Firmware 2.0), 4 GB NAND with 1 GB USB user space configurable via UEFI and accessible via iLO. |
Memory Protection | Advanced ECCMemory Mirroring Online Memory Spare Mode (Sorting Spare Model) |
Memory (one of the following, depending on the model) | Model HP SmartMemory Reduced DDR4 load (LRDIMM) or registered load (RDIMM) |
Available DIMM | 48 (24 DIMM slots per processor, 8 channels per processor, 3 DIMMs per channel) |
Maximum (LRDIMM) | 3.0 TB (48 x 64 GB) |
Maximum (RDIMM) | 1.5 TB (48 x 32 GB) |
Network | HP Synergy 3820C 10/20 Gb Converged Network Adapter HP Synergy 2820C 10 Gb Converged Network Adapter Standard iLO Network Controller: One (1) 1 Gbps port for HP iLO 4 link to HP Synergy Composer. |
Mezzanine Connectors | Five (5) I/O expansion mezzanine connectors (in PCIe discovery order): The 4 mezzanine connector is X8 PCIe 3.0 and supports Type C and D mezzanine cards for Fabric 1. The mezzanine 6 connector is X16 PCIe 3.0 and supports Type-C mezzanine board for Fabric 3. The Mezzanine 3 connector is X8 PCIe 3.0 and supports Type-C mezzanine cards for Fabric 3. The Mezzanine 1 connector is X8 PCIe 3.0 and supports Type-C and Type-D mezzanine cards for Fabric 1. The Mezzanine 2 connector is X16 PCIe 3.0 and supports Type-C and Type-D mezzanine cards for Fabric 2. Mezzanine options include: Dual-port 10/20 Gb compute module mezzanine adapter options for additional network ports Dual-port 16 Gb Fibre Channel HBA for SAN connectivity |
Storage Controller | HP Smart Array P240nr Controller with 1 GB Flash Write Cache (FBWC) supporting RAID 0, 1, 10, 5, 6, and 1 ADM HP Smart Array P542D Controller with 2 GB Flash-Backed Write Cache (FBWC) supporting RAID 0, 1, 10, 5, 50, 6, 60, 1 ADM, and 10 ADM HP H240nr Smart HBA supporting RAID 0, 1, 10, 5 |
Maximum internal storage (one of the following, depending on model) | Templates Capacity Configuration |
Hot Plug SFF SAS | 4.0 TB 2 x 2.0 TB |
Hot Plug SFF SATA | 4.0 TB 2 x 2.0 TB |
Hot Plug SFF SAS SSD | 7.68 TB 2 x 3.84 TB |
Hot Plug SFF SATA SSD | 3.2 TB 2 x 1.6 TB |
Hot Plug SFF NVMe SSD | 4.0 TB 2 x 2.0 TB |
Hot Plug uFF SATA SSD | 1.36 TB 4 x 340 GB |
Interfaces | Micro SDHC SlotOne (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot |
USB 2.0 | One (1) internal USB 2.0 connector for USB flash drive keys |
USB 2.0 | One (1) external USB 2.0 connector for USB flash drive keys |
Industry standard compliance | ACPI 2.0 Microsoft Logo Certifications USB 2.0 IPMI 2.0 Secure Digital 2.0 Support TPM 1.2 and EEE 2.0 Support (Specific IEEE Standards Depending on Installed Ethernet Adapter Card(s)) Advanced Encryption Standard (AES) Triple Data Encryption Standard (3DES) SNMP SSL 2.0 DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP) Active Directory v1.0 PCIe 3.0 ASHRAE A3 |
Graphics | Matrox G200eh Integrated Video Controller 1600 x 1200 (32 b/p) 1920 x 1200 (16 b/p) HP iLO Management in System Management Memory 16 MB Flash Video Memory 256 MB DDR 3 with ECC (112 MB after ECC and Video) |
Form | The HP Synergy 620 Gen9 is a single-height, wide-rise compute module that connects to the HP Synergy 12000Frame. |
Safety | Startup Password Administrator Password Keyboard Password (QuickLock) HP iLO Management On System Management Chipset with: SSL Secure Shell Version 2 Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) encryption in browser, PLC and XML script interface AES and RC4 encryption of video Enable/Disable external USB port Network Server Mode Serial interface control Trusted Platform Module (TPM) 1.2 and 2.0 options Advanced encryption standard (AES) Intel Advanced Encryption Standard – New Instructions (AES-NI) |
Software | Characteristic Description |
Operating Systems | Microsoft Windows Server Microsoft Hyper-V Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware ESXi |
Physical | Specification Description |
Height (H x W x D) with frame | 63.5 x 430.3 x 600 mm (2.5 x 16.94 x 23.62 in.) |
Weight | Maximum: 34.61 pounds (15.7 kg) Minimum: 29.92 pounds (13.57 kg) |
Environmental Specifications | Specification Description |
Operating | 10° to 35°C (50° to 95°F) |
Temperature out of operation | -30° to 60°C (-22° to 140°F) |
Operating | 8% to 90% @ 24°C (75.2°F) |
Non-operating | 5 to 95% @ 38.7 °C (101.7 °F) |
Operating Altitude | 3050 m (10,000 ft) |
Non-operating | 9144 m (30,000 ft) |
