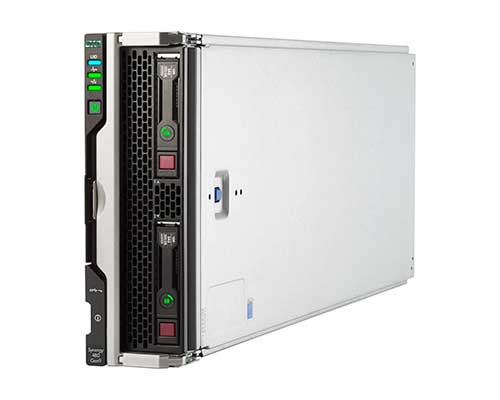

HP Synergy 480 Gen9 CTO Compute Module

$9.999.999,00

Warranty: up to 12 months

SKU 480-gen9 Category Brand:

HP Synergy 480 Gen9 CTO Compute Module – With warranty and technical service for installation or support.

DC Parts is a distributor of new and refurbished HP equipment and accessories. Our technology experts can help you select and configure the right HP blade solution for your specific data needs. Like all of our equipment, HP blades are fully tested, you can count on worry-free service for years to come. And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about HP equipment offerings, please contact us.

– SPARE PARTS AVAILABLE FOR EACH MODEL. SEE PRICE FOR spare units, controllers, power supplies, network cards, HBAs, SFPs, cables, etc.

Product description HP Synergy 480 Gen9

The HP Synergy 480 Gen9 Compute Module delivers superior capacity, efficiency, and flexibility in a two-socket, half-height form factor to support demanding workloads. Powered by the latest Intel® E5-2600 v4 processors, HP DDR4 SmartMemory supporting up to 1.5TB, flexible storage controller options, three I/O connectors, and designed to create a pool of flexible computing capacity in a composite infrastructure, the HP Synergy 480 Gen9 Compute Module is the ideal platform for general-purpose enterprise workload performance now and in the future.

Run anything

The HP Synergy 480 Gen9 Compute Module supports up to 1.5TB of HP DDR4 SmartMemory and Intel Xeon E5-2600 v4 processors in a half-height, 2-socket form factor to support demanding workloads such as collaborative/content/business applications, IT/Web infrastructure, and GPU applications.

The flexible design supports stateless configuration with no drives, up to two SFF drives or four uFF drives, NVMe PCIe workload acceleration, and direct-attached composite storage to meet demanding workload, data protection, and data security requirements.

Three mezzanine connectors with simplified I/O architecture for expandability, fabric choice, and long-term design for enhanced ROI.

Move faster

The HP Synergy 480 Gen9 Compute Module supports up to 1.5TB of HP DDR4 SmartMemory and Intel ® Xeon ® E5-2600 v4 processors in a half-height, 2-socket form factor to support demanding workloads such as collaborative/content/business applications, IT/Web infrastructure, and GPU applications.

The flexible design supports stateless configuration with no drives, up to two SFF drives or four uFF drives, NVMe PCIe workload acceleration, and direct-attached composite storage to meet demanding workload, data protection, and data security requirements.

Three mezzanine connectors with simplified I/O architecture for expandability, fabric choice, and long-term design for enhanced ROI.

Graphics processing options

The HP Synergy 480 Gen9 Compute Module now offers the Synergy SY 480 Mezzanine Graphics Accelerator for NVIDIA Tesla M6, NVIDIA Quadro M3000SE, and AMD Firepro S7100. These GPUs provide graphics acceleration for a compute module.

Synergy SY 480 Graphics Multi-MXM Expansion Module. This single-height, single-width module supports MXM GPUs from 7 to 100 watts. The module also has two Mezz 4 and 5 pass-through slots available.

Synergy SY 480 Graphics PCIe 3.0 Expansion Module. This single-height, single-width module supports up to two 300-watt double-width PCIe GPU cards.

Synergy SY 480 GPU support. NVIDIA Tesla M6, Quadro M3000SE, and AMD S7100X MXM GPUs for use with the Multi-MXM Module. NVIDIA Quadro M5000 GPU in the PCIe Module.

Product Features

memory

management chipset

protection

Controller

Controller

internal storage

compliance

factor

solution

Utilities

Characteristic Description
Processor 1 HP Synergy 480 Gen9 Intel Xeon E5-2699 v4 (2.2 GHz / 22 cores / 55 MB / 145 W) HP Synergy 480 Gen9 Intel Xeon E5-2698 v4 (2.2 GHz / 20 cores / 50 MB / 135 W) HP Synergy 480 Gen9 Intel Xeon E5-2697 v4 (2.3 GHz / 18 cores / 45 MB / 145 W) HP Synergy 480 Gen9 Intel Xeon E5-2697A v4 (2.6 GHz / 16 cores / 40 MB / 145 W) HP Synergy 480 Gen9 Intel Xeon E5-2695 v4 (2.1 GHz / 18 cores / 45 MB / 120 W) HP Synergy 480 Gen9 Intel Xeon E5-2690 v4 (2.6 GHz / 14 cores / 35 MB / 135 W) HP Synergy 480 Gen9 Intel Xeon E5-2683 v4 (2.1 GHz / 16 cores / 40 MB / 120 W) HP Synergy 480 Gen9 Intel Xeon E5-2680 v4 (2.4 GHz / 14 cores / 35 MB / 120 W) HP Synergy 480 Gen9 Intel Xeon E5-2667 v4 (3.2 GHz / 8 cores / 25 MB / 135 W) HP Synergy 480 Gen9 Intel Xeon E5-2660 v4 (2.0GHz / 14 cores / 35MB / 105W) HP Synergy 480 Gen9 Intel Xeon E5-2650 v4 (2.2GHz / 12 cores / 30MB / 105W) HP Synergy 480 Gen9 Intel Xeon E5-2650L v4 (1.7GHz / 14 cores / 35MB / 65W) HP Synergy 480 Gen9 Intel Xeon E5-2643 v4 (3.4GHz / 6 cores / 20MB / 135W) HP Synergy 480 Gen9 Intel Xeon E5-2640 v4 (2.4GHz / 10 cores / 25MB / 90W) HP Synergy 480 Gen9 Intel Xeon E5-2637 v4 (3.5 GHz / 4 cores / 15 MB / 135 W) HP Synergy 480 Gen9 Intel Xeon E5-2630 v4 (2.2 GHz / 10 cores / 20 MB / 85 W) HP Synergy 480 Gen9 Intel Xeon E5-2630L v4 (1.8 GHz / 10 cores / 25 MB / 55 W) HP Synergy 480 Gen9 Intel Xeon E5-2623 v4 (2.6 GHz / 4 cores / 10 MB / 85 W) HP Synergy 480 Gen9 Intel Xeon E5-2620 v4 (2.1 GHz / 8 cores / 20 MB / 85 W) HP Synergy 480 Gen9 Intel Xeon E5-2609 v4 (1.7 GHz / 8 cores / 20 MB / 85 W) HP Synergy 480 Gen9 Intel Xeon E5-2603 v4 (1.7 GHz / 6 cores / 15 MB / 85 W)
Cache 55 MB (1 x 55 MB) L3 Cache 2 50 MB (1 x 50 MB) L3 Cache 3 45 MB (1 x 45 MB) L3 Cache 4 40 MB (1 x 40 MB) L3 Cache 5 35 MB (1 x 35 MB) L3 Cache 6 30 MB (1 x 30 MB) L3 Cache 7 25 MB (1 x 25 MB) L3 Cache 8 20 MB (1 x 20 MB) L3 Cache 9 15 MB (1 x 15 MB) L3 Cache 10 10 MB (1 x 10 MB) L3 Cache 11
Chipset Intel C610 Series Chipset Click here for more information on Intel chipsets
On the system HP Integrated Lights Out (iLO) (HP iLO4 2.0 Firmware) 4 GB NAND with 1 GB USB user space configurable via UEFI and accessible via iLO
Memory ECC Advanced Memory Mirroring Online Memory Spare Mode (Sorting Spare Mode)
Memory 12 HP SmartMemory DDR4 Reduced Load (LRDIMM) or Registered (RDIMM) Model
Dual In-Line Memory Module (DIMM) slots available 24 (12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel)
Maximum capacity (LRDIMM) 1.5 TB (24 x 64 GB)
Maximum capacity (RDIMM) 768 GB (24 x 32 GB)
Network HP Synergy 3820C 10/20 Gb Converged Network Adapter 13 HP Synergy 2820C 10/20 Gb Converged Network Adapter 14 iLO Network Controller Standard: One (1) 1 Gb/s port to the HP iLO 4 for HP Frame Link Module connection
Mezzanine Connectors Three (3) I/O expansion mezzanine connectors: x16 PCIe 3.0 Type-D (supports Type-C and Type-D mezzanine cards) (Mezzanine 1 connector) 15 x16 PCIe 3.0 Type-D (Supports Type-C and Type-D mezzanine cards (Mezzanine 2 connector) 16 x16 PCIe 3.0 Type-C (supports Type-C mezzanine cards) (Mezzanine 3 connector) 17 Mezzanine options include: Dual-port 10/20 Gb compute module mezzanine adapter options for additional network ports Dual-port 16 Gb Fibre Channel HBA options for SAN connectivity
Storage HP Smart Array P240nr Controller with 1 GB Flash Write Cache (FBWC) compatible with RAID 0, 1, 10, 5, 6, and 1 ADM HP Smart Array P542D Controller with 2 GB FBWC compatible with RAID 0, 1, 10, 5, 50, 6, 60, 1 ADM, and 10 ADM HP H240nr Smart HBA compatible with RAID 0, 1, 10, 5 HP B140i (SATA chipset)
Compute Module ROM HP read-only memory (ROM) is now digitally signed using the HP Corporate subscription service. This signature is verified before the flashing process begins, reducing accidental programming and preventing malicious efforts to corrupt the system ROM HP Synergy compute ROM is used to configure the following: Processor and chipset status loggers System memory, memory map, and memory initialization System hardware configuration (onboard PCI devices and optional PCIe cards) User-specific BIOS configuration using the UEFI system
Maximum Models Capacity Configuration Hot Plug SFF SAS 4.0 TB 2 x 2.0 TB Hot Plug SFF SATA 4.0 TB 2 x 2.0 TB Hot Plug SFF SAS SSD 7.68 TB 2 x 3.84 TB Hot Plug SFF SATA SSD 3.2 TB 2 x 1.6 TB Hot Plug SFF NVMe SSD 4.0 TB NVMe 2 x 2.0 TB NVMe Hot Plug uFF SATA SSD 1.36 TB 4 x 340 GB
Interfaces 18 Micro SDHC Slot One (1) Internal Micro Secure Digital High Capacity (Micro SDHC) Card Slot USB 3.0 Port One (1) Internal USB 3.0 Connector for USB Flash Media Drive Keys USB 3.0 Port One (1) External USB 3.0 Connector for USB Flash Media Drive Keys
Industry standard ACPI 2.0 Microsoft Logo Certifications Support USB 3.0 IPMI 2.0 Secure digital 2.0 Support TPM 1.2 and 2.0 IEEE (specific IEEE standards depending on installed Ethernet adapter card(s)) Advanced Encryption Standard (AES) Triple Data Encryption Standard (3DES) SNMP SSL 2.0 Systems Management Architecture DMTF for Server Hardware Command Line Protocol (SMASH CLP) Active Directory v1.0 PCIe 3.0 ASHRAE A3
Graphics Matrox G200eh Integrated Video Controller 1600 x 1200 (32 b/p) 1920 x 1200 (16 b/p) HP iLO Management in System Management Memory 16 MB Flash Video Memory 256 MB DDR 3 with ECC (112 MB after ECC and Video)
Form HP Synergy 480 Gen9 is a half-height computing module that attaches to the HP 12000 frame.
Management HP Synergy Composer with HP OneView, HP iLO, UEFI, API, HP RESTful, Smart Provisioning
Server Smart Update Scripting Tools HP iLO Mobile App
Safety Boot Password Administrator Password Keypad Password (QuickLock) HP iLO Management on System Management Chipset with: SSL Secure Shell Version 2 AES and 3DES Encryption in Browser, PLC and XML Script Interface AES and RC4 Video Encryption Enable/Disable External USB Port Network Server Mode Serial Interface Control TPM 1.2 or 2.0 AES Option Intel AES-New (AES-NI) Instructions
Offices HP Synergy 12000 Frame, is the foundation for all products and supports: Up to 12 half-height, 6 single-width full-height, or 3 double-width full-height compute modules (combination allowed) Up to 5 HP Synergy D3940 half-height double-width storage modules (combination with compute modules in any ratio allowed) One HP Synergy 12000 frame will support up to twelve (12) HP Synergy compute modules 480 Gen9

NOTE:

  • All processors in the compute module must be identical.
  • HT indicates that the processor model supports Intel Hyper-Threading Technology.
  • Turbo indicates the maximum potential frequency when using Intel Turbo Boost Technology. The increment of the frequency boost depends on the processor SKU and the number of active cores. In general, a larger boost increment is achieved when fewer cores are active.
  • DDR4 speed is the maximum speed of the processor’s memory. Actual memory speed may depend on the number and type of DIMMs installed.
  • Supports 1 or 2 processors. Mixing different processor models is not supported.
  • For the Intel C610 E5-2600 v4 Series Chipset, the letter preceding the model number indicates the product line (E3, E5, E7); 2600x, 2 = number of CPUs on a module, 6 is the socket/segment designation, 00 = processor SKU ex = L for low-power SKUs.
  • The HP Synergy 480 Gen9 Compute Module includes three mezzanine I/O connectors. One processor must be installed in processor slot 1 for access to mezzanine connectors one and three (mezzanine connectors 1 and 3). One processor must be installed in processor slot 2 for access to mezzanine connector two (mezzanine connector 2).
  • For 22-core processors.
  • For 20-core processors.
  • For 18-core processors.
  • For 16-core processors.
  • For 14-core processors.
  • For 12-core processors.
  • For 8-core or 10-core processors.
  • For 6-, 8-, or 10-core processors.
  • For 4 or 6 core processors.
  • For Quad-core processors.
  • LRDIMM and RDIMM are distinct memory technologies and cannot be combined into one compute module.
  • Previous generation HP server memory (DDR3) is not compatible with this compute module. HP SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9.
  • Supports full hardware offload of FCoE storage protocol processing for high-performance converged Ethernet data and storage networks.
  • Provides flexibility to compose multiple network streams, including Ethernet and FCoE or iSCSI on each connection.
  • This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 1 and the other to bay 4.
  • This mezzanine connector supports dual-port mezzanine boards: one port is routed to interconnect module 2 bay and the other to bay 5. A second processor must be installed (in processor slot 2) to gain access to the mezzanine 2 connector.
  • This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 3 and the other to bay 6.
  • The options are intended for integrated hypervisor virtualization environments.

Software Overview

Characteristic Description
Supports operating systems (OS) Microsoft Windows Server, Microsoft Hyper-V, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), VMware ESXi

Physical Specifications

Specification Description
Height (H x W x D) with frame 63.5 x 214 x 600 mm (2.5 x 8.43 x 23.62 in.)
Weight (approx) Maximum: 8.16 kg (18 lb) Minimum: 6.57 kg (14.5 lb)

Environmental specifications

Temperature

relative humidity

relative humidity

noise

Specification Description
Operating 10° to 35°C (50° to 95°F)
Temperature out of operation -30° to 60°C (-22° to 140°F)
Operating 10% to 90% 28 °C (82.4 °F)
Non-operating 5% to 95% 38.7 °C (101.7 °F)
Acoustic For acoustic noise specifications, see the HP Synergy 12000 Frame QuickSpecs

Electrical Specifications

Specification

Specification Description
Power For power specifications, including input, BTU rating, and power supply output requirements, see HP Synergy Frame Quick Specs

Technical Specifications

HP Smart Array P542D Controller

Speed

Link Rate

bus speed

logical units

Support

firmware

Specification Description
Storage Interface 12 Gb/s SAS (serial-attached SCSI) 6 Gb/s SATA (serial advanced technology attached)
SAS Connectors Two (2) external ports supporting x4 SAS links each and two (2) internal ports supporting x4 SAS links each
SAS x16 12 Gb/s per physical link
PCIe PCIe 3.0 x8 Links
Memory DDR3-1866 MHz, 72-bit wide bus at 14.92 GB/s (2 Gb cache module)
Supported 64 logical drives
Maximum Supported Drives Up to 256 drives (up to 128 drives per logical drive)
RAID RAID 6, 60 (Advanced Data Protection) RAID 5, 50 (Distributed Data Protection) RAID 1, 10 (Drive Mirroring) RAID 1 ADM, 10 ADM (Advanced Data Mirroring) RAID 0 (Striping)
Upgradable Flashable ROM with redundant firmware images

HP Smart Array P240NR/1GB Controller

drive interface

interface

memory

logical units

Memory Addressing

Support

Specification Description
Disk 12 Gb/s SAS (Dries Attached SCSI) 6 Gb/s SATA (Serial ATA)
Server x8 5G PCIe 3.0 provides maximum bandwidth of 8 Gb/s
Cache Standard 1 Gb Flash Backed Write Cache (FBWC)
Supported 64 (with 1 Gb cache included)
Host 64-bit, with support for servers with memory space greater than 4 Gb
RAID RAID 1 (mirroring), RAID 0 (striping), RAID 5, RAID 10
Other Firmware upgradeable with online flash drive ROM recovery (with SAS drives)

HP H240nr Smart HBA

drive interface

Module Interface

memory

logical units

Memory Addressing

Support

Specification Description
Disk 12 Gb/s SAS (Dries Attached SCSI) 6 Gb/s SATA (Serial ATA)
Compute x8 5G PCIe 3.0 provides maximum bandwidth of 8 Gb/s
Cache None
Supported 64
Host 64-bit, with support for compute modules with memory space greater than 4 Gb
RAID RAID 1 (mirroring) and RAID 0 (striping), RAID 5, RAID 10
Other Firmware upgradeable with recovery ROM memory drive flash (with SAS drives)

HP Dynamic Smart Array B140i Controller

drive interface

Module Interface

memory

Speed

logical units

Memory Addressing

support

Support

Specification Description
Disk 6 Gb/s SATA (Serial ATA)
Compute Integrated PCIe x4 2.0
SAS Connectors 2 internal SATA ports
Cache None
SAS SATA 6 Gb/s links
Supported Up to 10 logical volumes (4 physical drives)
Host 64-bit, with support for more than 4 Gb of compute module memory space
Hot plug yes
RAID RAID 1 (mirroring), RAID 0 (striping), RAID 5
Other Upgradable firmware with recovery ROM

HP Synergy 2820C 10 Gb Converged Network Adapter

Processor

Method

throughput

Compliance

Features

Specification Description
Model Dual-port 10Gb mezzanine
Network QLogic 57840S with Integrated MAC/PHY
Data Transfer x8 PCI express 3.0
Network Two ports, each in 20 Gb/s full duplex; Aggregate full duplex theoretical bandwidth of 40 Gb/s
IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.3p, 802.1q, 802.3ae, 802.3ap
Standard Provides flexibility to compose multiple network streams, including Ethernet and FCoE or iSCSI on each connection Full offload FCoE and iSCSI storage protocol processing hardware for high-performance converged Ethernet data and storage networks

HP Synergy 3820C 10/20 Gb Converged Network Adapter

Processor

Method

throughput

Compliance

Features

Specification Description
Model 10/20 Gb double door mezzanine
Network QLogic 57840S with Integrated MAC/PHY
Data Transfer x8 PCI express 3.0
Network Two ports, each in 40 Gb/s full duplex; Aggregate theoretical full duplex bandwidth of 80 Gb/s
IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.3p, 802.1q, 802.3ae, 802.3ap
Standard Provides flexibility to compose multiple network streams, including Ethernet and FCoE or iSCSI on each connection Full offload FCoE and iSCSI storage protocol processing hardware for high-performance converged Ethernet data and storage networks

HP Synergy 3830C 16 Gb Fibre Channel Host Bus Adapter

Processor

Method

throughput

Compliance

Features

Specification Description
Model Dual-port 16Gb mezzanine
Network QLogic 8324
Data Transfer x8 PCI express 3.0
Network Two ports, each at 16 Gb/s, each direction; Aggregate full duplex theoretical bandwidth of 64 Gb/s
IEEE 802.3ae, 802.1Q, 802.3x, 802.1p, 802.3ad/LACP, 802.1AB (LLDP), 802.1Qbg, 802.1Qbb, 802.1Qaz, 802.3ap
Standard Flexible configuration and connection of compute resource pools Optimized performance Optimized virtualization Supports QLogic StorFusionâ„¢ technology designed to enhance diagnostic and troubleshooting capabilities, accelerate SAN deployment, and improve QoS when connected to Brocade 16 Gb FC fabrics Optimized RAS power optimized Security optimized management

NVIDIA Tesla M6 GPU Mezzanine Board

Size

Type

interface

Interface

consumption

Systems

Specification Description
Memory 8 Gb
Memory GDDR-5
Memory 256-bit
Type of letter MXM-v3.1
I/O PCIe (x16) Gen3
Maximum power 100 W
API DirectX 12, Mmodel 5.0 shader; openGL4.5, CUDA, DirectCompute, OpenCL
Operating Citrix XenServer 6.5 or later (GPU Pass-through) VMware vSphere 5.5 or later (vDGA) Microsoft Windows Server 2012 R2 (64-bit) Standard, Enterprise, and DataCenter editions

NOTE: Microsoft Windows Server only supported in a virtualized Citrix or pure VMware Metal environment not supported at this time
