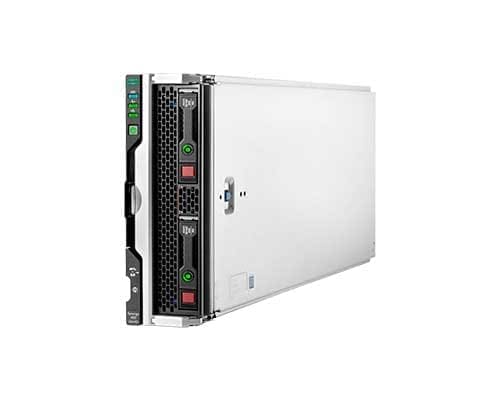

HP Synergy 480 Gen10 CTO Compute Module

HP Synergy 480 Gen10 CTO Compute Module – With warranty and technical service for installation or support.

A DC Parts is a distributor of new and refurbished HPE equipment and accessories. Our technology experts can help you select and configure the right HPE blade solution for your specific data needs. Like all of our equipment, HPE blades are fully tested, you can count on worry-free service for years to come. And, should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about HPE equipment offerings, please contact contact us.

– SPARE PARTS AVAILABLE FOR EACH MODEL. CONSULT THE PRICE OF spare drives, controllers, power supplies, network cards, HBAs, SFPs, cables, etc.

Product Description HPE Synergy 480 Gen10

The HPE Synergy 480 Gen10 Compute Module provides an efficient and flexible two-socket workforce to support the most demanding workloads. Powered by the scalable Intel Xeon processor family, up to 4,5TB DDR4, more storage and controllers, and a variety of GPU options in a composable architecture. The HPE Synergy 480 Gen10 Compute Module is the ideal platform for general-purpose enterprise workload performance now and in the future.

What's New in HPE Synergy 480 Gen10

Scalable Intel Xeon Processors in the 2nd Generation Family
New 2933 MT/s memory for the next generation of Intel scalable family processors
New HPE persistent memory optimized for data intensive workloads with Intel optane DC persistent memory
Additional Drive Systems and Replacements
Improve the user experience in engineering and analytical applications with the expansion of the GPU, which supports the density of concurrent knowledge workers in a 10U rack space

Highly flexible – composite/software defined infrastructure

The HPE Synergy 480 Gen10 Computing Module offers more options for performance, capacity, efficiency and flexibility to power most workloads with support for the full range of 2 generations of scalable Intel Xeon family processors.
Composable compute resource that is intelligently auto-discovered, easily provisioned, and integratedly managed. Synergy Composability simplifies IT operations and reduces over-provisioning costs.
Integrated OneView – RESTful API with an ecosystem of combinable infrastructure partners offers extensive options for third-party integration, protecting existing key investments.

Optimal performance for general purpose workloads

The HPE Synergy Gen10 Computing Module offers a performance boost over the previous generation with a choice of 2 generations of scalable Intel family processors.

Increased memory speeds with a wide range of memory sizes for registered and off-load DDR4 DIMMs.

Faster compute for network connectivity speeds get your data where it's needed faster.

Ongoing support for more concurrent knowledge workers in a 10U space with HPE GPU options and expansion modules to drive larger scale VDI workloads.

Flexible and Secure

The HPE Synergy 480 Gen10 Computing Module provides flexible business solutions that enable IT to implement change quickly and confidently through intelligent model-based operations, reducing downtime and errors in manual operations.

Unmatched threat protection with HPE Silicon Root of Trust and a unique chain of trusted architecture to protect, detect and recover firmware.

Tuning the system to select cores, smooth performance and match customer workloads.

Up to 3 mezzanine options with I/O flexibility for redundancy on high availability use case requirements.

Up to 200 zoned drives per storage controller and Hybrid RAID / HBA Smart Array to make your controller investment more effective.

Características do produto

Feature

Overview

Processors ¹

Scalable Processor Family Intel Xeon – 1st Generation

Intel Xeon models	CPU frequency	Core	The ability to	DDR4	Memory per socket
Platinum Processors
8180M Platinum Processor	2,5 GHz	28	205 W	2666 MT/s	1,5 TB
Platinum 8180 Processor	2,5 GHz	28	205 W	2666 MT/s	768 GB
Platinum 8176 Processor	2,1 GHz	28	165 W	2666 MT/s	768 GB
Platinum 8170 Processor	2,1 GHz	26	165 W	2666 MT/s	768 GB
Platinum 8168 Processor	2,7 GHz	24	205 W	2666 MT/s	768 GB
Platinum 8164 Processor	2,0 GHz	26	150 W	2666 MT/s	768 GB
8160M Platinum Processor	2,1 GHz	24	150 W	2666 MT/s	1,5 TB
Platinum 8160 Processor	2,1 GHz	24	150 W	2666 MT/s	768 GB
Platinum 8158 Processor	3,0 GHz	12	150 W	2666 MT/s	768 GB
Platinum 8156 Processor	3,6 GHz	4	150 W	2666 MT/s	768 GB
Platinum 8153 Processor	2,0 GHz	16	125 W	2666 MT/s	768 GB
Gold Processors
6154 Gold Processor	3,0 GHz	18	200 W	2666 MT/s	768 GB
6152 Gold Processor	2,1 GHz	22	140 W	2666 MT/s	768 GB
6150 Gold Processor	2,7 GHz	18	165 W	2666 MT/s	768 GB
6148 Gold Processor	2,4 GHz	20	150 W	2666 MT/s	768 GB
6146 Gold Processor	3,2 GHz	12	165 W	2666 MT/s	768 GB
6144 Gold Processor	3,5 GHz	8	150 W	2666 MT/s	768 GB
6142M Gold Processor	2,6 GHz	16	150 W	2666 MT/s	1,5 TB
6142 Gold Processor	2,6 GHz	16	150 W	2666 MT/s	768 GB
6140 Gold Processor	2,3 GHz	18	140 W	2666 MT/s	768 GB
6138 Gold Processor	2,0 GHz	20	125 W	2666 MT/s	768 GB
6136 Gold Processor	3,0 GHz	12	150 W	2666 MT/s	768 GB
6134 Gold Processor	3,2 GHz	8	130 W	2666 MT/s	768 GB
6132 Gold Processor	2,6 GHz	14	140 W	2666 MT/s	768 GB
6130 Gold Processor	2,1 GHz	16	125 W	2666 MT/s	768 GB
6128 Gold Processor	3,4 GHz	6	115 W	2666 MT/s	768 GB
6126 Gold Processor	2,6 GHz	12	125 W	2666 MT/s	768 GB
5122 Gold Processor	3,6 GHz	4	105 W	2666 MT/s	768 GB
5120 Gold Processor	2,2 GHz	14	105 W	2400 MT/s	768 GB
5118 Gold Processor	2,3 GHz	12	105 W	2400 MT/s	768 GB
5115 Gold Processor	2,4 GHz	10	85 W	2400 MT/s	768 GB
silver processors
4116 Silver Processor	2,1 GHz	12	85 W	2400 MT/s	768 GB
4114 Silver Processor	2,2 GHz	10	85 W	2400 MT/s	768 GB
4112 Silver Processor	2,6 GHz	4	85 W	2400 MT/s	768 GB
4110 Silver Processor	2,1 GHz	8	85 W	2400 MT/s	768 GB
Bronze Processors
Bronze 3104 Processor	1,7 GHz	6	85 W	2133 MT/s	768 GB

Scalable Processor Family Intel Xeon – 2st Generation

Intel Xeon models	CPU frequency	Core	The ability to	DDR4	Maximum memory per socket	Persistent memory support
Platinum Processors
Platinum 8280L Processor	2,7 GHz	28	205 W	2933 MT/s	4,5 TB	yes
8280M Platinum Processor	2,7 GHz	28	205 W	2933 MT/s	2 TB	yes
Platinum 8280 Processor	2,7 GHz	28	205 W	2933 MT/s	1 TB	yes
Platinum 8276L Processor	2,2 GHz	28	165 W	2933 MT/s	4,5 TB	yes
8276M Platinum Processor	2,2 GHz	28	165 W	2933 MT/s	2 TB	yes
Platinum 8276 Processor	2,2 GHz	28	165 W	2933 MT/s	1 TB	yes
Platinum 8270 Processor	2,6 GHz	26	205 W	2933 MT/s	1 TB	yes
Platinum 8268 Processor	2,9 GHz	24	205 W	2933 MT/s	1 TB	yes
Platinum 8260Y Processor	2,4 GHz	24	165 W	2933 MT/s	1 TB	yes
	2,5 GHz	20
	2,8 GHz	16
Platinum 8260L Processor	2,4 GHz	24	165 W	2933 MT/s	4,5 TB	yes
8260M Platinum Processor	2,4 GHz	24	165 W	2933 MT/s	2 TB	yes
Platinum 8260 Processor	2,4 GHz	24	165 W	2933 MT/s	1 TB	yes
Platinum 8256 Processor	3,4 GHz	4	105 W	2933 MT/s	1 TB	yes
Platinum 8253 Processor	2,2 GHz	16	125 W	2933 MT/s	1 TB	yes
Gold Processors
6262V Gold Processor	1,9	24	135 W	2933	1 TB	yes
6254 Gold Processor	3,1 GHz	18	200 W	2933 MT/s	1 TB	yes
Gold 6252N Processor	2,6 GHz	24	150 W	2933 MT/s	1 TB	yes
6252 Gold Processor	2,1 GHz	24	150 W	2933 MT/s	1 TB	yes
6248 Gold Processor	2,5 GHz	20	150 W	2933 MT/s	1 TB	yes
6246 Gold Processor	3,3 GHz	12	165 W	2933 MT/s	1 TB	yes
6244 Gold Processor	3,6 GHz	8	150 W	2933 MT/s	1 TB	yes
6242 Gold Processor	2,8 GHz	16	150 W	2933 MT/s	1 TB	yes
6240Y Gold Processor	2,6 GHz	18	150 W	2933 MT/s	1 TB	yes
	2,8 GHz	14
	3,1 GHz	8
6240L Gold Processor	2,6 GHz	18	150 W	2933 MT/s	4,5 TB	yes
6240M Gold Processor	2,6 GHz	18	150 W	2933 MT/s	2 TB	yes
6240 Gold Processor	2,6 GHz	18	150 W	2933 MT/s	1 TB	yes
6238L Gold Processor	2,1 GHz	22	140 W	2933 MT/s	4,5 TB	yes
6238M Gold Processor	2,1 GHz	22	140 W	2933 MT/s	2 TB	yes
6238 Gold Processor	2,1 GHz	22	140 W	2933 MT/s	1 TB	yes
6234 Gold Processor	3,3 GHz	8	130 W	2933 MT/s	1 TB	yes
Gold 6230N Processor	2,3 GHz	20	125 W	2933 MT/s	1 TB	yes
6230 Gold Processor	2,1 GHz	20	125 W	2933 MT/s	1 TB	yes
6226 Gold Processor	2,8 GHz	12	125 W	2933 MT/s	1 TB	yes
Gold 6222V	1,8 GHz	20	115 W	2933 MT/s	1 TB	yes
5222 Gold Processor	3,8 GHz	4	105 W	2933 MT/s	1 TB	yes
Gold 5220S Processor	2,6 GHz	18	125 W	2933 MT/s	1 TB	yes
5220 Gold Processor	2,2 GHz	18	125 W	2666 MT/s	1 TB	yes
Gold 5218B Processor	2,3 GHz	16	125 W	2666 MT/s	1 TB	yes
Gold 5218N Processor	2,3 GHz	16	105 W	2666 MT/s	1 TB	yes
5218 Gold Processor	2,3 GHz	16	125 W	2666 MT/s	1 TB	yes
5217 Gold Processor	3 GHz	8	125 W	2666 MT/s	1 TB	yes
5215L Gold Processor	2,6 GHz	10	85 W	2666 MT/s	1 TB	yes
5215M Gold Processor	2,6 GHz	10	85 W	2666 MT/s	1 TB	yes
5215 Gold Processor	2,6 GHz	10	85 W	2666 MT/s	1 TB	yes
silver processors
4216 Silver Processor	2,1 GHz	16	85 W	2400 MT/s	1 TB	No
4215 Silver Processor	2,5 GHz	8	85 W	2400 MT/s	1 TB	yes
Silver 4214Y Processor	2,2 GHz	12	85 W	2400 MT/s	1 TB	No
	2,3 GHz	10
	2,4 GHz	8
4214 Silver Processor	2,2 GHz	12	85 W	2400 MT/s	1 TB	No
4210 Silver Processor	2,2 GHz	10	85 W	2400 MT/s	1 TB	No
4208 Silver Processor	2,1 GHz	8	85 W	2400 MT/s	1 TB	No
Bronze Processors
Bronze 3204 Processor	1,9 GHz	6	85 W	2133 MT/s	1 TB	No

chipset

chipset ^{2 of} Intel C621 series

synergy management

HPE Composer with OneView technology

Modes of Operation

New memory class that can be configured as large server memory or fast storage

Flexibility to deploy as dense memory or fast storage.
Unique technology used as memory or storage, reducing data center complexity.

On the compute management chipset

HPE iLO 5 ASIC

Memory ³

One of the following depending on the model

The following memory is compatible with scalable 2nd generation Intel Xeon family processors (Models x2xx)

HPE 8GB Memory Kit (1 x 8GB) Single Rank x8 DDR4-2933 Registered CAS-21-21-21
HPE 16GB Memory Kit (1 x 16GB) Single Rank x4 DDR4-2933 Registered CAS-21-21-21
HPE 16GB Registered Memory Kit (1 x 16GB) x8 DDR4-2933 CAS-21-21-21
HPE 32GB Memory Kit (1 x 32GB) Dual Rank x4 DDR4-2933 Registered CAS-21-21-21
HPE 64GB RDIMM Memory Kit (1 x 64GB) x4 DDR4-2933 CAS-21-21-21 RDIMM
HPE 64GB Memory Kit (1 x 64GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 LRDIMM
HPE 128GB Memory Kit (1 x 128GB) octal x4 DDR4-2933 CAS-24-21-21 LRDIMM

The following memory is compatible with scalable 1nd generation Intel Xeon family processors (Models x1xx)

HPE 8GB (1 x 8GB) single rank x8 DDR4-2666 CAS-4-19-19-19 Registered memory kit
Registered HPE 16GB Memory Kit (1 x 16GB) x4 Registered DDR4-2666 CAS-19-19-19 Registered
HPE 16GB Registered Memory Kit (1 x 16GB) x8 DDR4-2666 CAS-19-19-19
HPE 32GB Registered Memory Kit (1 x 32GB) x4 DDR4-2666 CAS-19-19-19
HPE 64GB Memory Kit (1 x 64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 LRDIMM
HPE 128GB Memory Kit (1 x 128GB) octal x4 DDR4-2666 CAS-22-19-19 LRDIMM

HPE Persistent Memory with Intel optane DC Persistent Memory

HPE 128GB 2666 Persistent Memory Kit with Intel optane DC Persistent Memory
HPE 256GB 2666 Persistent Memory Kit with Intel optane DC Persistent Memory
HPE 512GB 2666 Persistent Memory Kit with Intel optane DC Persistent Memory

Model

HPE DDR4 SmartMemory, registered (RDIMM), reduced load (LRDIMM)

Available DIMM slots

24 (12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel)

Maximum Capacity (LRDIMM)

3TB (24 x 128GB LRDIMM)

Maximum Capacity (RDIMM)

1,5 TB (24 x 64 GB RDIMM)

memory protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct simple errors and all the multibits that occur on a single DRAM chip

online spare

Online memory spare mode detects a rank that is degrading and switches the operation to the spare rank

Online mode

Online Memory Spare Mode (Classification Spare Mode)

For details on the HPE Server Memory Options RAS feature, check the link below:

Click here to go to How RAS Memory Technologies Can Increase Uptime for HPE ProLiant Servers .

Mezzanine Connectors

Three (3) I/O expansion mezzanine connectors:

x16 PCIe 3.0 type D (supports mezzanine cards type C and type D) (mezzanine connector 1) ⁴
x16 PCIe 3.0 type D (supports mezzanine cards type C and type D (mezzanine connector 2) ⁵
x16 PCIe 3.0 type C (supports mezzanine type C cards) (mezzanine connector 3) ⁶

Interfaces

Micro SDHC slot

One (1) slot ⁷ for built-in Secure Digital High Capacity (Micro SDHC) micro card

3.0 USB port

One (1) internal USB 3.0 connector for USB flash media drive keys ⁹
One (1) external USB 3.0 connector for USB flash media drive keys

iLO port

One (1) external USB port for iLO direct access to the computer

Network adapters

HPE Synergy 3820C 10/20 Gb Converged Network Adapter (CNA)
HPE Synergy 2820C 10GbE CNA
HPE Synergy 4820C 10/20/25Gb CNA
HPE Synergy 4610C 10/25Gb Ethernet Adapter
HPE Synergy 6810C 25/50 Gb Ethernet
HPE Synergy 6410C 25/50 Gb Ethernet
HPE Synergy 5330C 32G Fiber Channel (FC) Host Bus Adapters (HBA)
HPE Synergy 5830C 32G FC HBA
HPE Synergy 3530C 16G FC Host Bus Network Adapter
HPE Synergy 3830C 16G FC Host Bus Network Adapter

HPE Compute module ROM

The HPE Synergy Compute ROM is used to configure the following:

Processor and Chipset Status Registers
System memory, memory map and memory initialization
System hardware configuration (integrated PCI devices and optional PCIe cards)
End-user-specific BIOS configuration using Unified Extensible Firmware Interface (UEFI) system utilities

Inventory controllers

One of the following, depending on the model:

software RAID
essential RAID controller
Performance RAID controller
Premium Backplane CTO Computing Module

Maximum internal storage

Store	Capacity	Asset
Hot Plug SFF SAS SSD	30,6 TB	2 x 15,3 TB (with standard front SFF drive cage)
Hot Plug SFF SATA SSD	7,68 TB	2 x 3,84 TB (with standard front SFF drive cage)
Hot Plug SFF SATA/SAS HDD	4,0 TB	2 x 2,0 TB (with standard front SFF drive cage)
Hot Plug SFF NVMe SSD	15,6 TB	2 x 7,8 TB (with Premium Front SFF Drive Cage)
Hot Plug UFF SATA SSD	1,3 TB	2 x 340 GB (with standard front SFF drive cage)
M.2 optional SSD SATA drives	1,9 TB	2 2GB ATA M.960 drives (internal with adapter)

Frames

The HPE Synergy 12000 board is the foundation for all Synergy products and supports:

Up to 12 half-height, 6 single-width full-height, or 3 double-width full-height compute modules (mix allowed)
Up to 5 HPE Synergy D3940 Storage Modules with Half-Height Double Width (combined with compute modules in any allowed ratio)
One HPE Synergy 12000 board will support up to twelve (12) HPE Synergy 480 Gen9 compute modules

Industry standard compliance

Microsoft logo certifications
WOL enabled on some adapters
PXE support enabled
Compatible with USB 3.0
compatible with iLO USB 2.0
Trusted Platform Module (TPM) 2.0 support (ROM-Based Setup Utility (RBSU) support for TPM 1.2)
IEEE (specific IEEE standards depending on the installed Ethernet adapter(s) card(s))
Advanced Encryption Standard (AES)
Triple Data Encryption Standard (3DES)
SNMP v3
SSL 2.0
DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
Active Directory v1.0
Compatible with PCIe 3.0
UEFI Forum
Redfish API (iLO5)

Graphics (iLo)

Integrated matrix G200eH2 video standard with 16MB of video RAM
- 1280x1024 (32bp)
- 1920x1200 (16bp)
HPE iLO 5 in system management memory
- 32 MB Flash
- 512MB with ECC (224MB after ECC and video)

HPE Server UEFI/ROM ⁸legacy

UEFI is an industry standard that provides better management and more secure configuration than legacy ROM when interacting with the server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support UEFI mode (default) and legacy BIOS mode.
UEFI Enables several new features specific to HPE Synery Computing Modules, such as
- Safe boot and safe start allow for greater security
- Operating system (OS) specific functionality
- Support for boot drives >2,2TB (using GPT)
- USB 3.0 battery
- Embedded UEFI shell
- Bulk configuration deployment tool using iLO RESTful API compliant with redfish API
- PXE boot support for IPv6 networks
- Workload Profiles for Simple Performance Optimization
UEFI boot mode only:
- TPM 2.0 support
- NVMe boot support
- Platform Trust Technology (PTT) can be enabled
- iSCSI software initiator support
- HTTP / HTTPs boot support as PXE alternative
- Boot support for option boards that support only a UEFI option ROM

Integrated management

HPE Synergy Composer with HPE OneView Technology
HPE Integrated Lights-Out (HPE iLO)
UEFI
Smart Provisioning
iLO RESTful API

Security

The newest forms of security based on the features of iLO 5

Secure Start with Trusted Root of Hardware
The designed logic of the HPE hardware on the iLO chip validates the iLO firmware written on the chip
iLO then validates the system firmware / compute ROM for digital signature
iLO completes the chain of trust
ROM Validates OS Secure Boot ROMs and Bootloader VIA UEFI Option

Standard security features

Power on password
admin password
Keyboard password (QuickLock)
HPE iLO management on system management chipset with SSL encryption, secure shell version 2, AES and 3DES in browser, CLP and XML script interface, AES and RC4 video encryption
Enable / disable external USB port
network server mode
Serial Interface Control
TPM 1.2 or 2.0 option
BEA
Intel Advanced Encryption Standard - New Instructions (AES-NI)

Graphics Accelerators

Mezzanine Graphics Adapter Options for 480 Compute Modules ⁹

HPE Synergy NVIDIA Quadro M3000SE Mezzanine Card

High Density Multi MXM Expansion Module GPU Options

HPE Synergy 480 Gen10 Multi MXM FIO Expansion Module
HPE SY 480 NVIDIA Tesla P6 Multi MXM Option

GPU Options ^{10 do}standard PCIe expansion module

HPE Synergy 480 Gen10 PCIe FIO Expansion Module
HPE NVIDIA Tesla P40 24GB Module
HPE NVIDIA Quadro P6000 GPU Module
NVIDIA Tesla M10 Quad GPU Module

FC support

Up to two (2) optional FC Mezzanine HBAs are supported on the HPE Synergy 480 Gen10

HPE Synergy 3530C 16G FC HBA
HPE Synergy 3830C 16G FC HBA
HPE Synergy 5330C 32G FC HBA
HPE Synergy 5830C 32G FC HBA

compatible SAN

HPE Synergy 480 Gen10 Computing Modules are optimized for HPE MSA, EVA, 3PAR, XP and Storevirtual VSA

HPE virtual connect

The HPE Virtual Connect SE 40Gb F8 module, master module, based on composite fabric, is designed for combinable infrastructure. Its rack-scale disaggregated design uses a master/satellite architecture to consolidate data center network connections, reduce hardware, and scale network bandwidth across multiple HPE Synergy frames.

A simple configuration (SCE)

SCE is a guided self-service tool to help sales and non-technical personnel provide end users with initial setups in 3-5 minutes.

NOTE:

- Platinum – 8100 series – Supports 2-socket (Synergy 480 Gen10) or up to 4-socket (Synergy 660 Gen10) compute modules, 2-socket supports 2UPI and 4 sockets supports 3UPI – 10,4 GT / s, supports 6 DDR4 channels – 2666 MT/s providing memory capacity up to 768GB (1,5TB on select processor skus). Intel turbo boost technology, Intel Hyper-Threading technology supported. Intel AVX-512 (2 x 512-Bit FMA), 48 lanes PCIe 3.0, advanced RAS.
- Gold – 5100, 6100 series – Supports 2 socket (Synergy 480 Gen10) or up to 4 socket (Synergy 660 Gen10) computing modules, 2 socket supports 2UPI and 4 sockets supports 3UPI – 10,4 GT / s, supports 6 DDR4 channels – 2400 (51xx) / 2666 (61xx) MHz (SKU 5122 = supports 2666) providing up to 768GB of memory capacity (1,5TB on select skus). Intel turbo boost technology, Intel Hyper-Threading technology, Intel AVX-512 (1 x 512-Bit FMA) (SKU 5122 supports 2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS supported.
- Silver – 4100 series – Support 2 socket compute module (Synergy 480 Gen10), 2 socket support 2UPI – 9,6 GT / s, 6 channel DDR4 – 2400 MHz providing up to 768 GB of memory capacity. Intel turbo boost technology, Intel Hyper-Threading technology, Intel AVX-512 (1 x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.
- Bronze – 3100 series – Supports 2 socket compute module (Synergy 480 Gen10), 2 sockets support 2UPI – 9,6 GT / s, supports 6 DDR4 channels – 2133 MHz providing up to 768GB of memory capacity. Intel AVX-512 (1 x 512-bit FMA), 48 lanes PCIe 3.0, RAS standard supported.
- Silver and Bronze level processors are primarily designed for 2-socket compute modules and will have Synergy 480 Gen10 in processor names only.
For more information on Intel chipsets, check the link below:Click here to access the Intel Server Chipsets page
- Previous generation HPE server memory (DDR3) is not supported by this compute module. HPE DDR4 SmartMemory is required to realize the memory performance enhancements and enhanced functionality listed in this document for Gen10.
- LRDIMM and RDIMM are distinct memory technologies and cannot be combined in a compute module.
This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 1 and the other to bay 4.
- This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 2 and the other to bay 5.
- A second processor must be installed (in processor slot 2) to gain access to mezzanine connector 2.
This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 3 and the other to bay 6.
The options above are intended for embedded hypervisor virtualization environments.
- The UEFI System Utilities tool is analogous to the legacy BIOS HPE RBSU. For more information, check the link below:Click here to access the Unified Extensible Firmware Interface (UEFI) page .
- For UEFI boot mode, the boot environment and operating system image installations must be configured correctly to support UEFI.
- The UEFI FIO setting (758959-B22) can be selected to configure the system in legacy mode at the factory for the HPE Synergy Gen10 Server.
All MXM graphics card options are sold in GPU pairs. If there are GPU slots available on the module, it can be field upgraded with additional GPUs. Note that GPU mixing is not supported.
GRID license for use with NVIDIA Tesla M6 must be purchased separately through a virtualization partner verified by NVIDIA under “NVIDIA design and visualization”.

Software overview

Feature	Overview
Operating Systems (OS) and Virtualization Software Support ¹	Microsoft Windows Server Microsoft Hyper-V Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESVi VMware vSphere Citrix Xenserver 7.0, 7.1 (main use for HPE / XENDesktop GPU options)
Client OS (only with GPU options)	Windows and Enterprise client OS Red Hat Enterprise Linux Desktop / Workstation SLES Desktop (64-bit - Includes XEN and KVM)
NOTE: Operating system support may change. For the most up-to-date information, go to the HPE OS Support Matrix:Click here to access the Server Operating Systems and Virtualization Software page .

Physical Specifications

specification	Overview
Dimensions (H x W x D)	6,35 x 21,4 x 60,0 cm (2,5 x 8,43 x 23,62 in.) With frame
Shot Put (approximate)	Maximum: 8,16 kg (18 lb) (All processors, 24 DIMMs, drives, mezzanine cards, and one flash cache battery installed) Minimum: 6,57 kg (14,5 lb)(One processor and 1 DIMM installed)

Environmental Specifications

specification	Overview
System inlet temperature	Operating Temperature: 10° to 35°C (50° to 95°F) The upper limit can be limited by the type and number of options installed. System performance may be reduced if operating with a fan failure
	Out of operation temperature: -30° to 60°C (-22° to 140°F)
	Extended ambient operation support: Qualifications for extended environment configurations are detailed in the link below: Click here to access the extended environment operational support page .
Relative humidity (non-condensing)	Operating relative humidity: 10% to 90% - 28°C (82,4°F)
Relative humidity (non-condensing)	Non-operating relative humidity: 5% to 95% - 38,7°C (101,7°F)
acoustic noise	For acoustic noise specs, check the link below for HPE Synergy 12000 frame quickspecs: Click here to access HPE Synergy 12000 board quick specs .

Electrical Specifications

specification	Overview
The ability to	For power specifications, including input requirements, BTU rating, and power supply output, see the HPE Synergy Frame QuickSpecs To review typical system power ratings, use the HPE Power Advisor which is available through the online tool located at Click here to access “Rack and Power Infrastructure” for more information .

Some segments of the economy that we help

Third party maintenance for HPE End-of-Life (EOL) and HPE End-of-Service-Life (EOSL)

A DC Parts made an analysis on more than 250 customer contracts that use storage, servers, networks and tapes and showed us that 40-60% of the equipment of these customers operate beyond the end dates of support.

There are simple options for you to reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.

How can we help:

We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in the most affordable way, without compromising their performance.

HPE Blade Leases

A DC Parts provides HPE server rentals for a convenient and affordable solution to a range of data center issues such as seasonal spikes and data center relocation. We work to match the right approach with the right equipment to properly meet your customized need for HPE Storage and Blade leases. With a highly trained team of certified engineers ready to solve any problems, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about leasing HPE machines, please contact us.

HPE Blade Support

Support services DC Parts support HPE appliances. We work to match the right approach with the right equipment to meet your HPE equipment support needs. With a highly trained team of certified engineers ready to resolve any issues with HPE equipment, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing HPE Equipment Support, please contact us. THE DC Parts helps companies of all sizes better manage their IT data centers by providing third-party support services to leading equipment manufacturers, including: IBM, HPE, DELL EMC, NETAPP and much more. With support DC Parts, we manage all your hardware, between the manufacturers through a link. Support from DC Parts offers flexible service level agreements, certified engineering support teams and dedicated customer service representatives. Extend the life and value of your IT assets. contact support DC Parts immediately.

HPE - Hewlett Packard Enterprise	HPE ProLiant BLADE Servers

Solutions

Services

Pieces

Contents

Material

DC blog

Success stories

end of life

Data sheets

part numbers

Project Manager

ask the engineer

Contact
