HP ProLiant DL560 Gen9 Server – With warranty and technical service for installation or support.

HP ProLiant DL560 Gen9 Server – With warranty and technical service for installation or support.

DC Parts is a distributor of new and refurbished HPE equipment and accessories. Our technology experts can help you select and configure the right HPE server solution for your specific data needs. Like all of our equipment, HPE servers are fully tested, you can count on worry-free service for years to come. And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about HPE equipment offerings, please contact us.

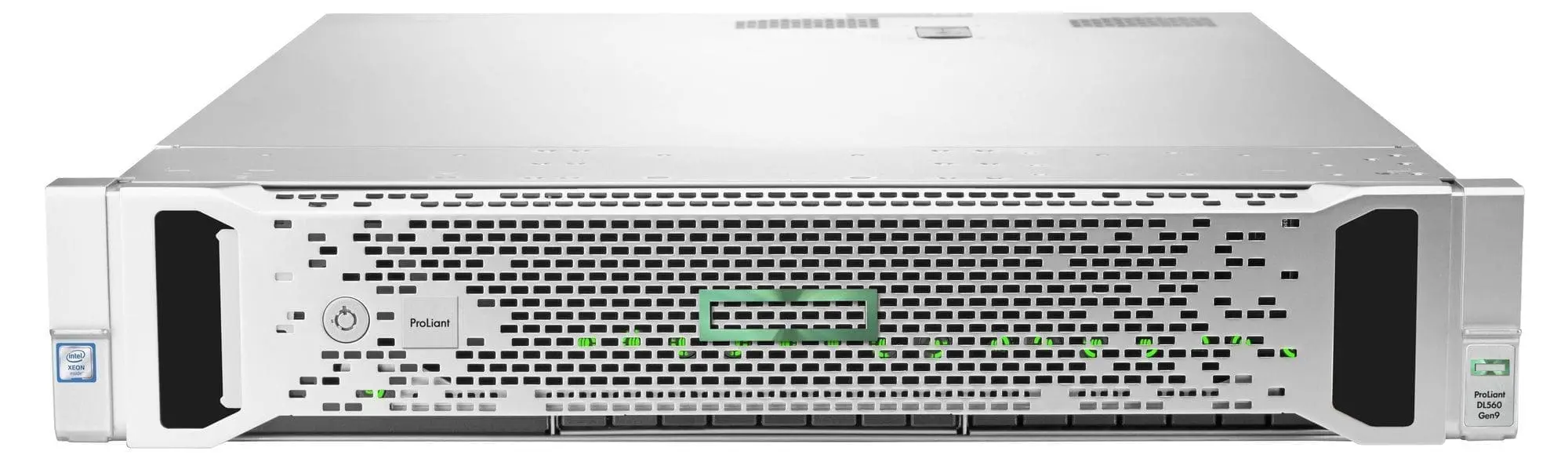

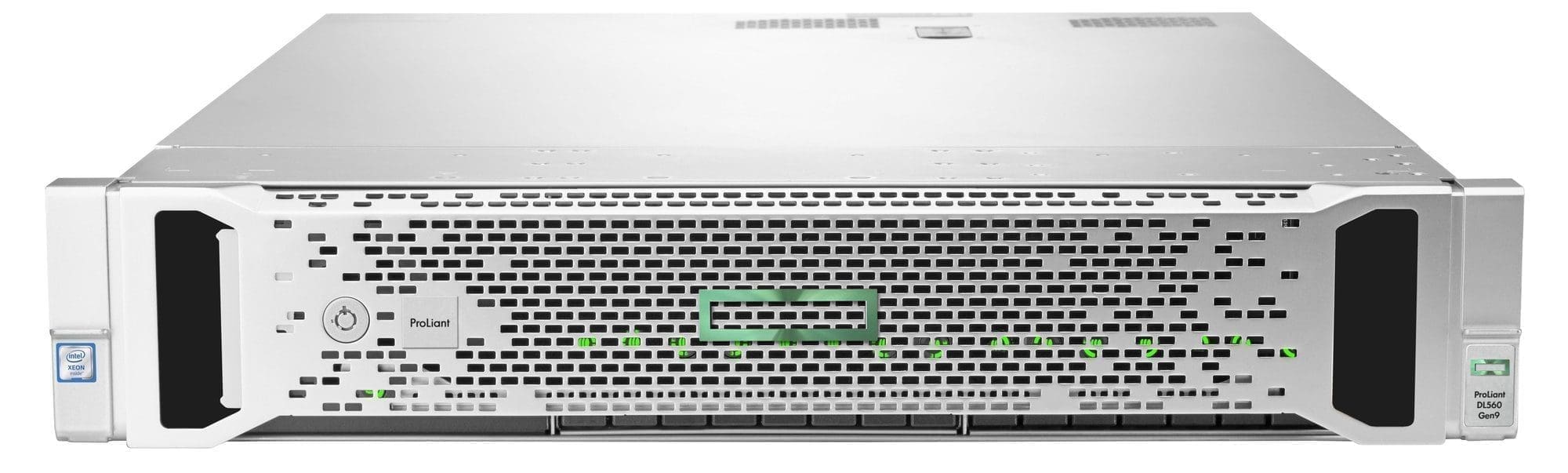

HP ProLiant DL560 Gen9 Server

The HP ProLiant DL560 Gen9 Server is the four-socket (4S) server with balanced performance, increased scalability and reliability, high density all in a 2U chassis. Supporting the latest Intel Xeon E5-4600 v3 processors, the DL560 Gen9 server delivers increased processing power, along with increased storage capacity, IO bandwidth of up to seven (7) PCIe Gen 3.0 slots, up to 3 TBs of memory, and the intelligence and simplicity of automated management with HPE OneView and HPE iLO 4.

Built for enterprise data centers, service providers requiring server consolidation, and virtualized environments with limited space, the HP ProLiant DL580 Gen9 server delivers powerful four-socket performance in a rack form factor. It provides exceptional scalability, reliability, and management capabilities to handle database, messaging, and business processing tasks.

What’s new in the HP ProLiant DL560 Gen9

• The Intel Xeon processor E5-2600v4 family for demanding, entry-level scale-up workload requirements.
• HPE DDR4 2400MHz Memory Modules for increased performance for data-intensive application workloads.
• The HPE Trusted Platform Module (TPM) 2.0 prevents unauthorized access to servers and stores artifacts used to authenticate server platforms.

DL560 Gen9 8SFF NVMe 6 Drives

4-socket performance in a dense 2U form factor

The HPE ProLiant DL560 Gen9 server delivers 4S compute in a dense 2U form factor and supports up to four Intel Xeon E5-4600 v4/v3 processors with the E5-4600 v4 processor providing up to 21% more bin-to-bin processor performance and 22% more cores and cache than the previous generation.

The HPE Flexible Smart Array and HPE Smart SAS HBA Controllers, supporting up to 4 GB FBWC, allow you the flexibility to choose the optimal 12 Gb/s controller that best fits your environment. Along with the integrated HPE Dynamic Smart Array B140i SATA Controller for boot, data, and media needs.

HPE DDR4 SmartMemory improves workload performance and energy efficiency by preventing data loss and downtime with improved error handling. Support for up to 3TB DDR4 maximum capacity (48 DIMM slots) with speeds up to 2,400MHz with up to 23% performance gain.

Hewlett Packard Enterprise servers and 25GbE networking will transform data centers with better performance and an overall TCO of less than 10GbE.

Next-generation scalability and reliability for multiple workloads

The HPE ProLiant DL560 Gen9 Server supports up to seven PCIe 3.0 expansion slots, to support a GPU and network cards that offer increased I/O bandwidth and expandability.

Gain greater capacity with a redesigned chassis, including up to 24 HPE SmartDrive options and small form factor NVMe (SFF); along with an optional HPE Universal Media Bay, which delivers optimal performance, capacity, and reliability to meet various customer workload requirements with the right economics.

You have a choice of 4x1GbE, HPE FlexibleLOM, PCIe standup 1GbE, 10GbE, or 25GbE 1 embedded adapters, which provide bandwidth and network fabric flexibility so you can adapt and grow to changing business needs.

Support for up to two HPE 1200W or 1500W common slot power supplies to increase redundancy and reduce unnecessary downtime.

Optimal efficiencies for scale-up environments

The HPE ProLiant DL560 Gen9 Server supports ASHRAE A3 and A4 standards for enhanced ambient temperature, helping to reduce your cooling expenses.

HPE High Efficiency Common Slot Power Supplies provide up to 94% efficiency (Platinum Plus) and support for HPE Energy Discovery Services.

Customer-inspired, easily accessible features include: improved chassis design for ease of maintenance, hot-pluggable fans and drives, optional SID for component health and monitoring, and quick reference code for quick access to product information.

Product Features

Some segments of the economy we help

Some segments of the economy we help

Third-Party Maintenance for HPE End-of-Life (EOL) and HPE End-of-Service-Life (EOSL)

DC Parts has analyzed more than 250 customer contracts using storage, servers, networks, and tapes and shown us that 40-60% of these customers’ equipment operates beyond their end-of-support dates.

There are simple options so you can reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.

How we can help:

We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in a more affordable way, without compromising their performance.

HPE Server Support

DC Parts Support Services provides HPE server support. We work to match the right approach with the right equipment to meet your HPE server support needs.

With a highly trained team of certified engineers ready to troubleshoot any HPE server issues, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing HPE Storage Support, please contact us.

DC Parts support helps businesses of all sizes better manage their IT data centers by providing third-party support and maintenance services to leading equipment manufacturers including: IBM, HPE (HP), DELL EMC, DELL, NETAPP, and more.

With DC Parts support, we manage all your hardware, between manufacturers via one call. DC Parts support offers flexible service level agreements, certified engineering support teams, and dedicated customer service representatives.

Extend the life and value of your IT assets. Contact DC Parts support immediately.
