HP ProLiant BL460c Gen10 CTO Blade Server – With warranty and technical service for installation or support.
A DC Parts is a distributor of new and refurbished HPE equipment and accessories. Our technology experts can help you select and configure the right HPE blade solution for your specific data needs. Like all of our equipment, HPE blades are fully tested, you can count on worry-free service for years to come. And, should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about HPE equipment offerings, please contact contact us.

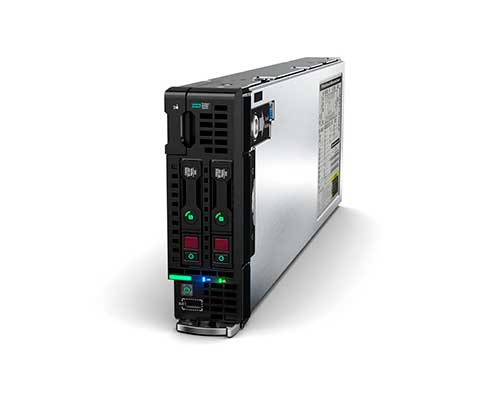

Product description HP ProLiant BL460c Gen10 CTO Blade Server
Are you looking to scale business performance and securely drive traditional and hybrid IT workloads on a converged infrastructure? Designed for a wide range of configuration and deployment options, the HPE ProLiant BL460c Gen10 Blade Server gives you the flexibility to optimize your core IT applications with right-sized storage for the right workload for a lower TCO. All of this can be managed by HPE OneView, the converged management platform that accelerates IT operations, business delivery, and increases overall performance.
The HPE ProLiant BL460c Gen10 Blade Server now offers the Intel Xeon Processor Scalable Family with up to 25% performance gain 5 bin-to-bin over the previous generation, plus 2666 MT/s HPE DDR4 SmartMemory. Additional support includes tiered storage controller options, internal 12Gb/s SAS, 20Gb n, support for two M.2, NVMe or up to four uFF drives.
What's New in HPE ProLiant BL460c Gen10
Gen 2 (x2xx) family of scalable Intel Xeon processors – New level of performance by core processors – New workload Processors optimized for the
top app categories
Two new CTO BladeSystem server models for use with Intel® Xeon® Scalable Family Generation 2 processors.
High speed memory at 2933 MT / s for some new Intel Generation 2 processors
Additional Drive Solutions
BL460c Gen10 side view
Improved performance to accelerate your business operations
Savings for your infrastructure.
The HPE ProLiant BL460c Gen10 server blade delivers up to 75% reduction in licensing costs by modernizing your IT infrastructure.
Improve your time to value with 64% faster server deployment, enabling you to capitalize on business opportunities in an ever-faster environment.
Accelerate to increase business agility
The HPE ProLiant BL460c Gen10 server blade supports industry-standard technology, leveraging the latest scalable family of Intel Xeon processors with up to 28 cores, 12Gb internal SAS, and up to 2TB of HPE DDR4 smart memory.
Flexible storage options to quickly enable extended local capacity and cost-effective boot disk storage Up to four drives with uFF or up to two drives with SFF and NVMe.
The HPE ProLiant BL460c Gen10 server blade with the scalable Intel Generation 2 processor family delivers unprecedented levels of performance for databases and analytical workloads.
Simplify operations with converged solutions and management with OneView
Save up to 40% of staff time in daily operations.
Reduce IT deployment, maintenance time and support costs with software-defined templates to automate new server deployments.
Faster HPE Virtual Connect Enterprise Manager Software in Service Domain migration transitioning from legacy management tools to HPE OneView 3.0 and later compared to previous versions.
HPE Integrated Lights-out (iLO) 5.0 software features advances in server lifecycle management, including iLO Federation, which manages server groups at scale with built-in fast discovery of all iLOs, group configurations, server health status. group and ability to determine iLO licenses.
HPE Security Innovations
Silicon trust root. Only HPE offers industry-standard servers with core firmware (FW) anchored directly to silicon. Millions of lines of FW code are executed before the server operating system boots.
Firmware runtime validation. Daily firmware check every 24 hours checking validity and credibility of UEFI, CPLD, iLO, IE and ME.
Safe Recovery – Restores firmware to a known good state upon detection of compromised code.
National Commercial Security Algorithms (CNSA). The highest level of security not offered by any other server provider in the industry.
BL460c Gen10 on chassis
Características do produto
Feature
Overview
Processors
Scalable Processor Family Intel Xeon – 2st Generation 1
Intel Xeon models
CPU frequency
Core
The ability to
DDR4 MT/s
Maximum memory per socket
Platinum Processors
Platinum 8256 Processor
3,8 GHz
4
105 W
2933 MT/s
1 TB
Platinum 8253 Processor
2,2 GHz
16
125 W
2933 MT/s
1 TB
Gold Processors
6252 Gold Processor
2,1 GHz
24
150 W
2933 MT/s
1 TB
6248 Gold Processor
2,5 GHz
20
150 W
2933 MT/s
1 TB
6242 Gold Processor
2,8 GHz
16
150 W
2933 MT/s
1 TB
6240Y Gold Processor
2,6 / 2,8 / 3,1 GHz
18/14/8
150 W
2933 MT/s
1 TB
6240 Gold Processor
2,6 GHz
18
150 W
2933 MT/s
1 TB
6230 Gold Processor
2,1 GHz
20
125 W
2933 MT/s
1 TB
5222 Gold Processor
3,8 GHz
4
105 W
2933 MT/s
1 TB
5220 Gold Processor
2,2 GHz
18
125 W
2666 MT/s
1 TB
Gold 5218B Processor
2,3 GHz
16
125 W
2666 MT/s
1 TB
5218 Gold Processor
2,3 GHz
16
125 W
2666 MT/s
1 TB
5217 Gold Processor
3,0 GHz
8
115 W
2666 MT/s
1 TB
5215 Gold Processor
2,5 GHz
10
85 W
2666 MT/s
1 TB
silver processors
4216 Silver Processor
2,1 GHz
16
100 W
2400 MT/s
1 TB
4215 Silver Processor
2,5 GHz
8
85 W
2400 MT/s
1 TB
Silver 4214Y Processor
2,2 / 2,3 / 2,4 GHz
10/12/08
85 W
2400 MT/s
1 TB
4214 Silver Processor
2,2 GHz
12
85 W
2400 MT/s
1 TB
4210 Silver Processor
2,2 GHz
10
85 W
2400 MT/s
1 TB
4208 Silver Processor
2,1 GHz
8
85 W
2400 MT/s
1 TB
Bronze Processor
Bronze 3204 Processor
1,9 GHz
6
85 W
2133 MT/s
1 TB
Características do produto
Feature
Overview
Processors
Scalable Processor Family Intel Xeon – 1st Generation 2
Intel Xeon models
CPU frequency
Core
L3 cache
The ability to
QPI
Platinum Processors
Platinum 8164 Processor
2,0 GHz
26
35,75 MB
150 W
3 @ 10,4 GT / s
8160M Platinum Processor
2,1 GHz
24
33,00 MB
150 W
3 @ 10,4 GT / s
Platinum 8160 Processor
2,1 GHz
24
33,00 MB
150 W
3 @ 10,4 GT / s
Platinum 8158 Processor
3,0 GHz
12
24,75 MB
150 W
3 @ 10,4 GT / s
Platinum 8156 Processor
3,6 GHz
4
16,50 MB
150 W
3 @ 10,4 GT / s
Platinum 8153 Processor
2,0 GHz
16
22,00 MB
125 W
3 @ 10,4 GT / s
Gold Processors
6152 Gold Processor
2,1 GHz
22
30,25 MB
140 W
3 @ 10,4 GT / s
6148 Gold Processor
2,4 GHz
20
27,50 MB
150 W
3 @ 10,4 GT / s
6142M Gold Processor
2,6 GHz
16
22,00 MB
150 W
3 @ 10,4 GT / s
6142 Gold Processor
2,6 GHz
16
22,00 MB
150 W
3 @ 10,4 GT / s
6140M Gold Processor
2,3 GHz
18
24,75 MB
140 W
3 @ 10,4 GT / s
6140 Gold Processor
2,3 GHz
18
24,75 MB
140 W
3 @ 10,4 GT / s
6138 Gold Processor
2,0 GHz
20
27,50 MB
125 W
3 @ 10,4 GT / s
6136 Gold Processor
3,0 GHz
12
24,75 MB
150 W
3 @ 10,4 GT / s
6134M Gold Processor
3,2 GHz
8
24,75 MB
130 W
3 @ 10,4 GT / s
6134 Gold Processor
3,2 GHz
8
24,75 MB
130 W
3 @ 10,4 GT / s
6132 Gold Processor
2,6 GHz
14
19,25 MB
140 W
3 @ 10,4 GT / s
6130 Gold Processors
2,1 GHz
16
22,00 MB
125 W
3 @ 10,4 GT / s
6128 Gold Processor
3,4 GHz
6
19,25 MB
115 W
3 @ 10,4 GT / s
6126 Gold Processor
2,6 GHz
12
19,25 MB
125 W
3 @ 10,4 GT / s
5122 Gold Processor
3,6 GHz
4
16,50 MB
105 W
2 to 10,4 GT / s
5120 Gold Processor
2,2 GHz
14
19,25 MB
105 W
2 to 10,4 GT / s
5118 Gold Processor
2,3 GHz
12
16,50 MB
105 W
2 to 10,4 GT / s
5115 Gold Processor
2,4 GHz
10
13,75 MB
85 W
2 to 10,4 GT / s
silver processors
4116 Silver Processor
2,1 GHz
12
16,50 MB
85 W
2 @ 9,6 GT / s
4114 Silver Processor
2,2 GHz
10
13,75 MB
85 W
2 @ 9,6 GT / s
4112 Silver Processor
2,6 GHz
4
8,25 MB
85 W
2 @ 9,6 GT / s
4110 Silver Processor
2,1 GHz
8
11,00 MB
85 W
2 @ 9,6 GT / s
4108 Silver Processor
1,8 GHz
8
11,00 MB
85 W
2 @ 9,6 GT / s
Bronze Processors
Bronze 3106 Processor
1,7 GHz
8
11,00 MB
85 W
2 @ 9,6 GT / s
Bronze 3104 Processor
1,7 GHz
6
11,00 MB
85 W
2 @ 9,6 GT / s
Memory 3
One of the following, depending on the model:
The following memory is compatible with the 1st generation Intel Xeon family of scalable processors
HPE 8GB (1 x 8GB) Single rank x 8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit
HPE 16GB (1 x 16GB) Single rank x 4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit
HPE 16GB (1 x 16GB) Dual rank x 8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit
One (1) 2-port 20Gb FlexFabric FLB, 10-port 2Gb FlexFabric FLB or Ethernet FLB 4 of 10Gb 2 ports
One (1) HPE FlexFabric 10Gb 2 Ports 536FLB FlexibleLOM 5
One (1) HPE FlexFabric 10Gb 2 Ports 560FLB FlexibleLOM 5
One (1) HPE FlexFabric 20Gb 2 Ports 630FLB FlexibleLOM 5
One (1) HPE FlexFabric 20Gb 2 Ports 650FLB FlexibleLOM 5
Standard iLO Network Controller: One 10/100 Mb/s port for HPE iLO 5 for built-in admin link Onboard Administrator (with 10/100/1000 Mb/s) for BladeSystem link is 1 Gb/s
Expansion slots
Two (2) mezzanine I/O expansion slots:
x16 PCIe 3.0 Type A (Supports Type A mezzanine cards) (Expansion slot 1) 6
x16 PCIe 3.0 Type B (Supports Type A and Type B mezzanine cards (expansion slot 2) 7
Mezzanine card options include:
Dual Port 20Gb FlexFabric, Dual Port 10Gb FlexFabric, 10GbE Options
Dual Port 16Gb Fiber Channel HBA for SAN Connectivity
Dual Port 16Gb Fiber Channel HBA for SAN Connectivity
QDR and FDR InfiniBand for low-latency, high-bandwidth server interconnectivity
I/O accelerator mezzanine options for high transaction rate local storage
HPE Server ROM
HPE ProLiant ROM is used to configure:
Processor and Chipset Status Registers
System memory, memory map and memory initialization
System hardware configuration (integrated PCI devices and optional PCIe cards)
User-specific BIOS setup using the HPE ROM-Based Setup Utility (RBSU)
HPE Server Unified Extensible Firmware Interface (UEFI) / Legacy ROM 8
UEFI Enables several new features specific to HPE ProLiant servers, such as:
Safety mode
Operating system-specific functionality
Support for boot drives >2,2TB (using GPT)
USB 3.0 battery
Embedded UEFI Shell
Bulk configuration deployment tool using iLO RESTful API
PXE boot support for IPv6 networks
Boot support for option boards that support only a UEFI option ROM
UEFI boot mode only:
TPM 2.0 support
NVMe boot support
Platform Trust Technology (PTT) can be enabled
iSCSI software initiator support
Support HTTP / HTTPs boot as PXE alternative
Boot support for option boards that support only a UEFI option ROM
HPE High Performance Computing (HPC) Interconnects
Connect to HPE
Expansion Blade Support
Factory Express Portfolio for Servers and Storage
One Config Simple (SCE)
SCE is a guided self-service tool to help salespeople and non-technical individuals provide users with initial setups in 3-5 minutes
If the user needs custom rack configuration or configuration for products not available in SCE, please contact the Hewlett Packard Enterprise User Business Center or an authorized partner for assistance.
NOTE:
All processors are as-is and subject to change by HPE or Intel.
Memory per socket is based on the processor's maximum supported memory, not the BL460c's maximum memory.
Platinum – 8200 Series – Supports 2-socket compute module (BL460c Gen10), 2-socket supports 2UPI at 10,4 GT / s, 4-channel DDR6 at 2933 MT / s with memory capacity up to 1 TB. Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported. Intel AVX-512 (2 x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, node controller support, advanced RAS support.
Silver – 4200 Series – Supports 2-socket compute module (BL460c Gen10), 2-socket supports 2UPI @ 9,6 GT / s, 4-channel DDR6 at 2666 MHz with memory capacity up to 1 TB. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1 x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, standard RAS supported.
Bronze – 3200 Series – Supports 2-socket compute module (BL460c Gen10), 2-socket supports 2UPI @ 9,6 GT / s, 4-channel DDR6 at 2133 MHz with memory capacity up to 1 TB. Intel AVX-512 (1 x 512-bit FMA), VNNI, 48 PCIe 3.0 lanes, RAS standard supported.
Y processors come with Intel Speed Select. These processors allow core selection at boot through HPE RBSU. The selected cores determine how often the processor operates. The processor offers the ability to configure and operate at 3 different operating points. The selected core count defines the frequency of operations (lower core = higher frequency). Boot-time static configuration: BIOS discovers and prompts for configuration only at boot time. Frequency may vary.
Intel Xeon Platinum 8160M, Gold 6142M, 6140M and 6134M support extended memory capacities of up to 1,5TB per socket versus 768GB per socket for standard processors. However, the server's maximum memory capacity will be limited by the maximum capacity of available DIMMs and the number of DIMM slots. The BL460c Gen10 will support a maximum memory capacity of 512GB per socket with 64GB DIMMs, regardless of the processor chosen. This maximum will increase as higher-capacity DIMMs qualify for the server.
When using processors of 135W or more, 10 fans are required on the c7000 for optimal performance.
Memory per socket is based on the processor's maximum supported memory, not the BL460c's maximum memory.
Platinum – 8100 Series – 2S – 2UPI at 10,4 GT / s, 6 DDR4 channels at 2666 MT / s, 768 GB memory capacity (1,5 TB on select skus), Intel Turbo Boost Technology, Intel Hyper- Technology Threading Intel AVX-512 (2 x 512-bit FMA), 48 PCIe 3.0 lanes, advanced RAS.
Silver – 4100 Series – 2S – 2UPI @ 9,6 GT / s, 6 DDR4 channels at 2400 MHz, 768 GB memory capacity, Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1 x 512 bit FMA), 48 lanes PCIe 3.0, standard RAS.
HPE memory from previous generation servers is not supported by this server. HPE SmartMemory is required to realize the memory performance enhancements and enhanced functionality listed in this document for Gen10.Click here to view HPE SmartMemory QuickSpecs for more information .
LRDIMM and RDIMM are distinct memory technologies and cannot be mixed in one server.
It supports FCoE, TCP/IP offload engine, hardware-based accelerated iSCSI, iSCSI boot, and 10Gb/1Gb Ethernet autosensing.
Each port automatically senses speed and can interoperate with 1Gb HPE BladeSystem c-Class interconnect components. Both ports will work at the same speed.
: FlexFabric features require the use of an HPE Virtual Connect FlexFabric or Flex10 / 10D module. Fiber Channel over Ethernet (FCoE) supports HPE interconnects.
FlexibleLOMs are not compatible with pre-Gen9 c-Class server blades.
This expansion slot supports dual-port mezzanine cards: one port is routed to bay 3 of the interconnect module and the other to bay 4.
This expansion slot supports dual-port and quad-port mezzanine cards. For dual-port cards, one port is routed to interconnect module bay 5 and the other to bay 6. For quad-port cards, one port is routed to interconnect module bay 5, one to bay 6 , one for bay 7 and one for bay 8. A second processor must be installed (in processor slot 2) to gain access to the second expansion slot (expansion slot 2).
The UEFI System Utilities function is analogous to the legacy BIOS HPE ROM-Based Setup Utility (RBSU).
For UEFI boot mode, the boot environment and operating system image installations must be configured correctly to support UEFI.
The HPE Legacy FIO setting (758959-B22) can be selected to set the system to Legacy mode at the factory.
The HPE Smart Array P204i-b and the HPE Smart Array S100i SR Gen10 SW RAID (SATA chipset) support up to two (2) small form factor (SFF) or 4 ultra form factor (uFF) hot plug drive bays.
For NVMe support, select the NVMe FIO setting (873373-B21) available on CTO models only.
The ProLiant BL460c Gen10 server blade includes the HPE Small Form Factor (SFF) SmartDrive carrier for improved manageability and reduced maintenance errors. HPE drives from previous generation servers (prior to Gen8) are not compatible with ProLiant BL460c Gen10 drive bays.
Software overview
Feature
Overview
Operating Systems (OS) and Virtualization Software
NOTE: For optimal cooling and system performance, the BL460c Gen10 server blade requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure with 6 fans.
Environmental Specifications
Specification
Overview
System inlet temperature
Operational:
10° – 35°C (50 – 95°F) at sea level with an altitude reduction of 1,0°C per 305 m (1,8°F per 1000 ft) above sea level to one 3050 m (10.000 ft) maximum, without sustained direct sunlight
The maximum rate of change is 10°C/h (18°F/h). The upper limit can be limited by the type and number of options installed.
System performance during standard operating support may be reduced if operating with fan failure or above 30°C (86°F)
Not operational: (-30°) to 60°C (-22° to 140°F). The maximum rate of change is 20°C/hr (36°F/hr)
Extended ambient operation support
For approved hardware configurations, the supported system input range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at the sea with an altitude reduction of 1,0°C for every 175 m (1,8°F for every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10.000 ft)
Relative humidity (non-condensing)
Operating: 10 to 90% relative humidity (Rh), maximum wet bulb temperature 28°C (82,4°F)
Non-operational: 5 - 95% relative humidity (Rh), maximum wet bulb temperature of 38,7 °C (101,7 °F)
Altitude
In operation: 3.050 m (10.000 ft)
This value can be limited by the type and number of options installed. The maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Out of operation: 9144 m (30000 ft)
The maximum allowable altitude change rate is 457 m/min (1500 ft/min)
acoustic noise
For acoustic noise specifications, see HPE BladeSystem c-Class Enclosure QuickSpecs
Third party maintenance for HPE End-of-Life (EOL) and HPE End-of-Service-Life (EOSL)
A DC Parts made an analysis on more than 250 customer contracts that use storage, servers, networks and tapes and showed us that 40-60% of the equipment of these customers operate beyond the end dates of support.
There are simple options for you to reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.
How can we help:
We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in the most affordable way, without compromising their performance.
HPE Blade Leases
A DC Parts provides HPE server rentals for a convenient and affordable solution to a range of data center issues such as seasonal spikes and data center relocation. We work to match the right approach with the right equipment to properly meet your customized need for HPE Storage and Blade leases. With a highly trained team of certified engineers ready to solve any problems, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about leasing HPE machines, please contact us.
HPE Blade Support
Support services DC Parts support HPE appliances. We work to match the right approach with the right equipment to meet your HPE equipment support needs. With a highly trained team of certified engineers ready to resolve any issues with HPE equipment, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing HPE Equipment Support, please contact us. THE DC Parts helps companies of all sizes better manage their IT data centers by providing third-party support services to leading equipment manufacturers, including: IBM, HPE, DELL EMC, NETAPP and much more. With support DC Parts, we manage all your hardware, between the manufacturers through a link. Support from DC Parts offers flexible service level agreements, certified engineering support teams and dedicated customer service representatives. Extend the life and value of your IT assets. contact support DC Parts immediately.
