HP EVA 8400

Warranty: up to 12 months

Storage HP EVA 8400 – With warranty and technical service for installation or support.



A DC Parts is a distributor of new and refurbished HPE equipment and accessories. Our technology experts can help you select and configure the right HPE server solution for your specific data needs. Like all of our equipment, HPE arrays are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers are on hand to provide support for any issues you may have. If you would like to speak with a representative about HPE equipment offerings, please contact us.

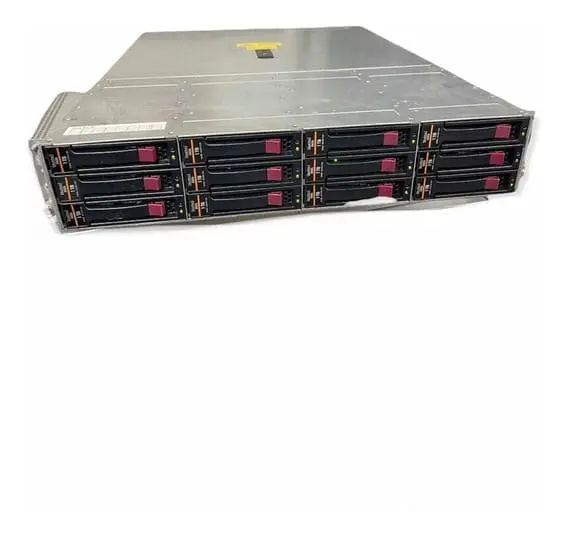

Used HP EVA 8400 StorageWorks Array

The HP EVA 8400 Disk Array (Enterprise Virtual Array) is an enterprise-class storage array system designed to aggregate and automate your array management tasks to manage more storage capacity with fewer resources. EVA was designed specifically for customers in the business-critical enterprise market and is a scalable, highly available and highly reliable “virtual” array storage solution. Used HP EVA P8400 saves time, space and costs compared to traditional architecture storage. It is supported by an extremely simple set of management software, making it easy for users to provision storage and achieve the highest level of productivity.

Specifications

Controller Model HSV450
virtual controller software (XCS)XCS v10.0xx
Management software Command View EVA v9.4 or v10.0
Application environment support Oracle, SAP, Microsoft Exchange, SQL
Virtual server technology support VMware, Microsoft Hyper-V, Citrix XenServer, RHEL Virtualization and Oracle Virtual Machine
Local Data Replication — HP Business Copy EVA Yes
remote data replication – – HP Continuous Access EVA Yes
Support for managing and configuring Command View EVA Array up to 16 EVAs
App block and file storage Yes
O/S support

HP-UX
HP OpenVMS
Windows 2003
Windows 2008
Windows Server 2008 HyperV
Sun Solaris
Linux
IBM AIX
VMware
Apple MacOSX
Xen
RAID supported Vraid 0, Vraid1, Vraid 0+1, Vraid 5, Vraid 0+5, Vraid 6 and Cross Vraid Snaps (SSDs do not support Vraid 0 or Vraid 6)
LUN size Up to 32TB
Number of controllers 2
cache 14 GB or 22 GB
battery backup cache Yes, up to 96 hours
host connectivity Fiber Channel, iSCSI, FCoE and Direct Connect
Number of supported hosts 256
host ports 8
Host port speed 4GB
device connectivity Redundant FC-AL pairs from each controller to JBOD switched to redundant paths for dual drive ports
device ports 12
Device port speed 4GB
Device Path Aggregate Bandwidth 48 GB
Switched device shelves 3 to 27
Units per Cabinet 12
unit types Solid-state drives (SSD), high-performance fiber channel, and adapted fiber-attached (FATA) technology
Supported disks, minimum 6 SSD, 8 FC and FATA
Supported disks, maximum 8 SSD, 324 FC and FATA
Capacity 0,4 at 550TB
Drive capacities and speeds 200GB SSD
400GB SSD 450GB
10.000 rpm
600 GB 10.000 rpm 300 GB 15.000
rpm 450 GB 15.000
rpm
600 GB 15.000 rpm 1 TB
FATA
2TB FATA
JBOD support (behind XP) Yes
unit interface Six 4Gb/s FC-AL ports per controller in redundant pairs, two paths to each dual-port unit
Redundant variable speed fans Yes
Environmental Monitoring Unit Monitors Power and Temperature
