HP EVA 8400 Storage – With warranty and technical service for installation or support.
DC Parts is a distributor of new and refurbished HPE equipment and accessories. Our technology experts can help you select and configure the right HPE server solution for your specific data needs. Like all of our appliances, HPE arrays are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about HPE equipment offerings, please contact us.

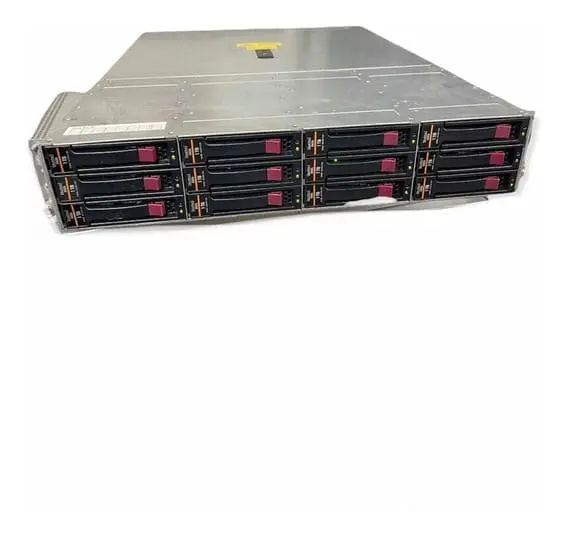

Used HP EVA 8400 StorageWorks Array
The HP EVA 8400 Disk Array (Enterprise Virtual Array) is an enterprise-class storage array system designed to aggregate and automate your array management tasks to manage more storage capacity with fewer resources. EVA is designed specifically for customers in the business-critical enterprise market and is a scalable, highly available, and highly reliable “virtual” array storage solution. The used HP EVA P8400 saves time, space, and costs compared to traditional architecture storage. It is supported by an extremely simple set of management software, making it easy for users to provision storage and achieve the highest level of productivity.
Specifications
Controller Model HSV450
XCS Virtual Controller Software (XCS) v10.0xx
Management software Command View EVA v9.4 or v10.0
Application Environment Support Oracle, SAP, Microsoft Exchange, SQL
Virtual Server Technology Support VMware, Microsoft Hyper-V, Citrix XenServer, RHEL Virtualization, and Oracle Virtual Machine
Local Data Replication —HP Business Copy EVA Yes
Remote Data Replication – – HP Continuous Access EVA Yes
Support for Command View EVA management and configuration Array up to 16 EVAs
Application Block and File Storage Yes
O/S Support
HP-UX
HP OpenVMS
Windows 2003
Windows 2008
Windows Server 2008 HyperV
Sun Solaris
Linux
IBM AIX
VMware
Apple Mac OSX
Xen
Supported RAID Vraid 0, Vraid1, Vraid 0+1, Vraid 5, Vraid 0+5, Vraid 6, and Cross Vraid Snaps (SSDs do not support Vraid 0 or Vraid 6)
LUN size Up to 32TB
Number of Controllers 2
14 GB or 22 GB cache
Battery backup cache Yes, up to 96 hours
Host connectivity Fibre Channel, iSCSI, FCoE, and Direct Connect
Number of Hosts Supported 256
8 Host Ports
Host port speed 4GB
Device connectivity Redundant FC-AL pairs from each controller to switched JBOD to redundant paths to dual-drive ports
Device Ports 12
Device port speed 4GB
Aggregate Device Path Bandwidth 48 GB
Switched Device Shelves 3 to 27
Units per cabinet 12
Unit Types Solid-state drives (SSD), high-performance Fibre Channel and Adapted Fibre Attached Technology (FATA)
Supported disks, minimum 6 SSD, 8 FC, and FATA
Supported disks, maximum 8 SSD, 324 FC and FATA
Capacity 0.4 to 550 TB
Drive capacities and speeds 200GB
SSD 400GB SSD 450GB
10,000rpm
600GB 10,000rpm 300GB 15,000rpm
450GB 15,000rpm
600GB 15,000rpm 1TB
FATA 2TB FATA
JBOD support (behind XP) Yes
Unit Interface Six 4 Gb/s FC-AL ports per controller in redundant pairs, two paths for each dual-port drive
Redundant variable speed fans Yes
Environmental Monitoring Unit Monitors Power and Temperature
