Storage HP EVA 6400 – With warranty and technical service for installation or support.
A DC Parts is a distributor of new and refurbished HPE equipment and accessories. Our technology experts can help you select and configure the right HPE server solution for your specific data needs. Like all of our equipment, HPE arrays are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers are on hand to provide support for any issues you may have. If you would like to speak with a representative about HPE equipment offerings, please contact us.

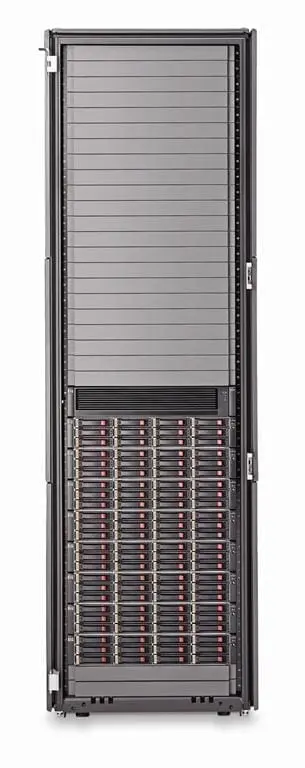

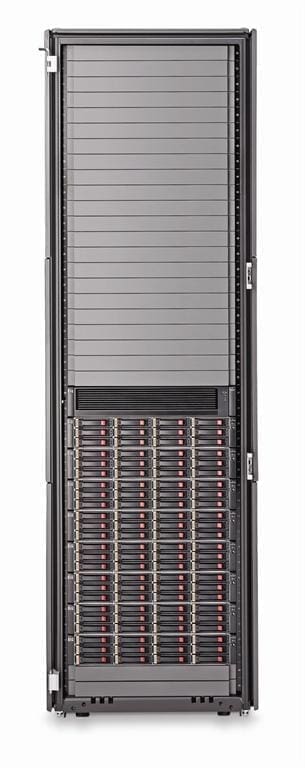

Array StorageWorks HP EVA P6400 used
The HP EVA Disk Array (EVA) family is an enterprise-class storage array system designed to aggregate and
automate your array management tasks to manage more storage capacity with fewer resources. The 6400, the smaller version of the 8400, is a great choice for a midsize business. We offer completely refurbished/refurbished EVA 6400's in a variety of configurations to suit every need and every budget.
| Specifications | |
|---|---|
| Controller Model | HSV400 |
| Virtual Controller Software (XCS) | XCS v10.0xx |
| Management software | Command View EVA v9.4 or v10.0 |
| Application environment support | Oracle, SAP, Microsoft Exchange, SQL |
| Virtual server technology support | VMware, Microsoft Hyper-V, Citrix XenServer, RHEL Virtualization and Oracle Virtual Machine |
| Local Data Replication — HP Business Copy EVA | Yes |
| Remote Data Replication – – HP Continuous Access EVA | Yes |
| Support for managing and configuring the Command View EVA Array | up to 16 EVAs |
| App block and file storage | Yes |
| O/S support | HP-UX HP OpenVMS Windows 2003 Windows 2008 Windows Server 2008 HyperV Sun Solaris Linux IBM AIX VMware Apple MacOSX Xen |
| RAID supported | Vraid 0, Vraid1, Vraid 0+1, Vraid 5, Vraid 0+5, Vraid 6 and Cross Vraid Snaps (SSDs do not support Vraid 0 or Vraid 6) |
| LUN size | up to 32TB |
| Number of controllers | 2 |
| cache | 8GB |
| battery backup cache | Yes, up to 96 hours |
| host connectivity | Fiber Channel, iSCSI, FCoE and Direct Connect |
| Number of supported hosts | 256 |
| host ports | 8 |
| Host port speed | 4GB |
| device connectivity | Redundant FC-AL pairs from each controller to JBOD switched to redundant paths for dual drive ports |
| device ports | 8 |
| Device port speed | 4GB |
| Device Path Aggregate Bandwidth | 32 GB |
| Switched device shelves | 2 to 18 |
| Units per Cabinet | 12 |
| unit types | Solid-state drives (SSD), high-performance fiber channel, and adapted fiber-attached (FATA) technology |
| Supported disks, minimum | 6 SSD, 8 FC and FATA |
| Supported disks, maximum | 8 SSD, 216 FC and FATA |
| Capacity | 0,4 at 330TB |
| Drive capacities and speeds | 200GB SSD 400GB SSD 450GB 10.000 rpm 600 GB 10.000 rpm 300 GB 15.000 rpm 450 GB 15.000 rpm 600 GB 15.000 rpm 1 TB FATA 2TB FATA |
| JBOD support (behind XP) | Yes |
| unit interface | Four 4Gb/s FC-AL ports per controller in redundant pairs, two paths to each dual-port unit |
| Redundant variable speed fans | Yes |
| Environmental Monitoring Unit | Monitors Power and Temperature |
