DELL EMC Storage VNXe3300 – With warranty and technical service for installation or support.
DC Parts is a distributor of new and refurbished DELL-EMC storage and accessories. Our technology experts can help you select and configure the right DELL-EMC storage solution for your specific data needs.
Like all of our equipment, DELL-EMC arrays are fully tested, so you can count on worry-free service for years to come.
And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.

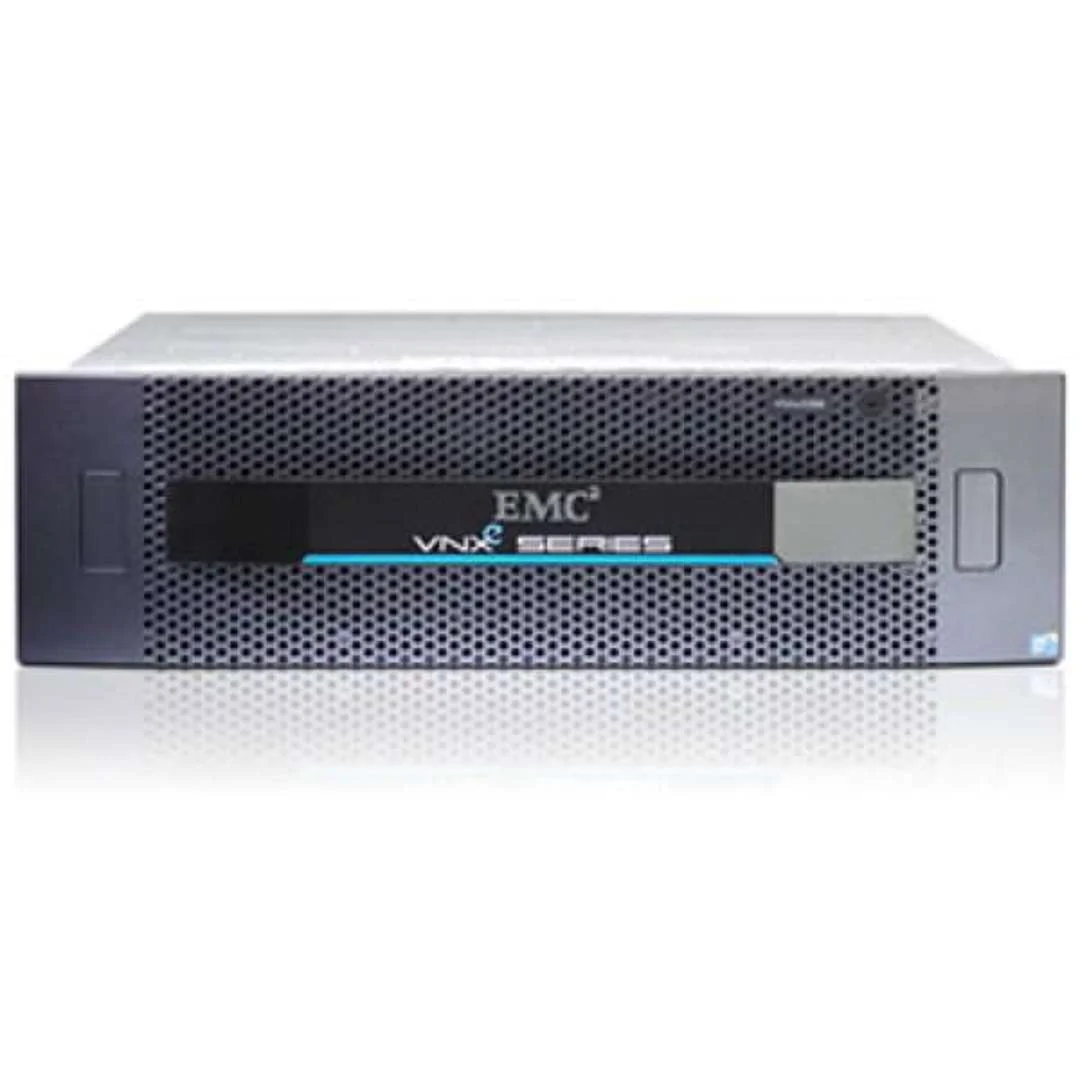

EMC VNXe3300 Description
The VNXe3150 Storage Processor Enclosure (SPE) enables VNXe3150 customers to grow their business by expanding the storage capacity of the system. The intuitive design of the VNXe3150 allows you to easily add new disks that can be used to expand existing storage pools or create new ones.
– 15 x 3.5″ bays or 25 x 2.5″
– 3.5″ and 2.5″ bays SAS/NL-SAS/Flash
– RAID 5/6/10-NAS
/iSCSI-
Gigabit Ethernet
The VNXe3300 system with integrated disk storage can be used with two controllers and supports multi-protocol IP connectivity for concurrent NAS and iSCSI SANs. Great for small and medium-sized businesses, the VNXe3300 can be easily expanded to meet your storage needs, adding any required combination of performance SAS, NL-SAS, or Flash drives to meet enterprise capacity and performance needs. The VNXe3300 supports iSCSI, CIFS, and NFS.
EOS: 31/01/2023
EMC VNXe3300 Technical Specifications
| EMC VNXE3300 TECHNICAL SPECIFICATIONS | |
|---|---|
| Form | 3U Rack |
| Storage | Unified |
| Maximum Gross Capacity | 135 TB |
| Dual controllers (SPs) | Pattern |
| Number of Units (Min/Max) | 6/150 |
| Drive | 12 x 3.5″ SAS/Flash drives (2U) 25 x 2.5″ Flash/SAS drives (2U) |
| Drive Options | 3.5″ (12 x 3.5″) drive enclosure300 GB 15K SAS (V2-PS15-300) 300 GB 10K SAS 600GB 15K SAS (V2-PS15-600) 600GB 10K SAS 900GB 10K SAS (V2-PS10-900) 1TB 7.2K NL-SAS (V2-PS07-010) 2TB 7.2K NL-SAS (V2-PS07-020) 3TB 7.2K NL-SAS (V2-PS07-030) 2.5″ (25 x 2.5″) Drive Enclosure 300GB 10K SAS 600GB 10K SAS 900GB 10K SAS SSD Enterprise Flash Drives (EFD) 100GB 6Gbps SAS 2.5″ SSD 200 GB 6 Gbps SAS 2.5″ SSD |
| CPU/Memory per controller | 1 x Xeon Quad Core / 12 GB |
| 1 Gbps base IP ports per controller | 4 |
| Max Flex IO Modules per controller | 2 |
| Management | 2x 10/100/1000 GbE |
| Interconnect | Four 6Gbps x 4 SAS ports |
| RAID | 1/0, 5, 6 |
| System limits and support | |
| Maximum Number of LUNs Supported | up to 512 |
| Maximum LUN | 2TB |
| Maximum File System Size | 16 TB |
| Total | 135 TB |
| Maximum | 512 |
| Copper Module 10/100/1000 BASET 1 Gbps | NAS/iSCSI, 4 ports per module |
| 10 Gbps | NAS/iSCSI, 2 ports per module |
| Copper 10G BaseT Ethernet | NAS/iSCSI, 2 ports per module |
| disk arrays | V31-DAE-R-15 V31-DAE-N-15 25-bay 2.5″ DAE |
| Chassis | 100-562-503 DPE Chassis VNX 33/51/53/5500 15 Slot Chassis & Midplane |
| Host | 1Gb iSCSI, 10Gb iSCSI, 1GbE, 10GbE |
| Supported Protocols | Common Criteria EAL3+ CIFS (SMB 1 and SMB 2), NFSv2 and v3 Certified, iSCSI Network Lock Manager (NLM) v3, v4 Routing Information Protocol (RIP) v1-v2 Simple Network Management Protocol (SNMP) Network Data Management Protocol (NDMP) v1-v4 Address Resolution Protocol (ARP) Internet Control Message Protocol (ICMP) Simple Network Time Protocol (SNTP) Lightweight Directory Access Protocol (LDAP) |
| Server operating system support | Microsoft Windows Server 2003 , Microsoft Windows Server 2008 and Windows Server 2008 R2+ Microsoft Windows 7 and Vista Microsoft Hyper-V VMware® ESX ®RedHat Enterprise Linux Novell Suse Enterprise Linux Solaris 10 x86 Solaris 10 Sparc HP-UX IBM AIX Citrix XenServer |
