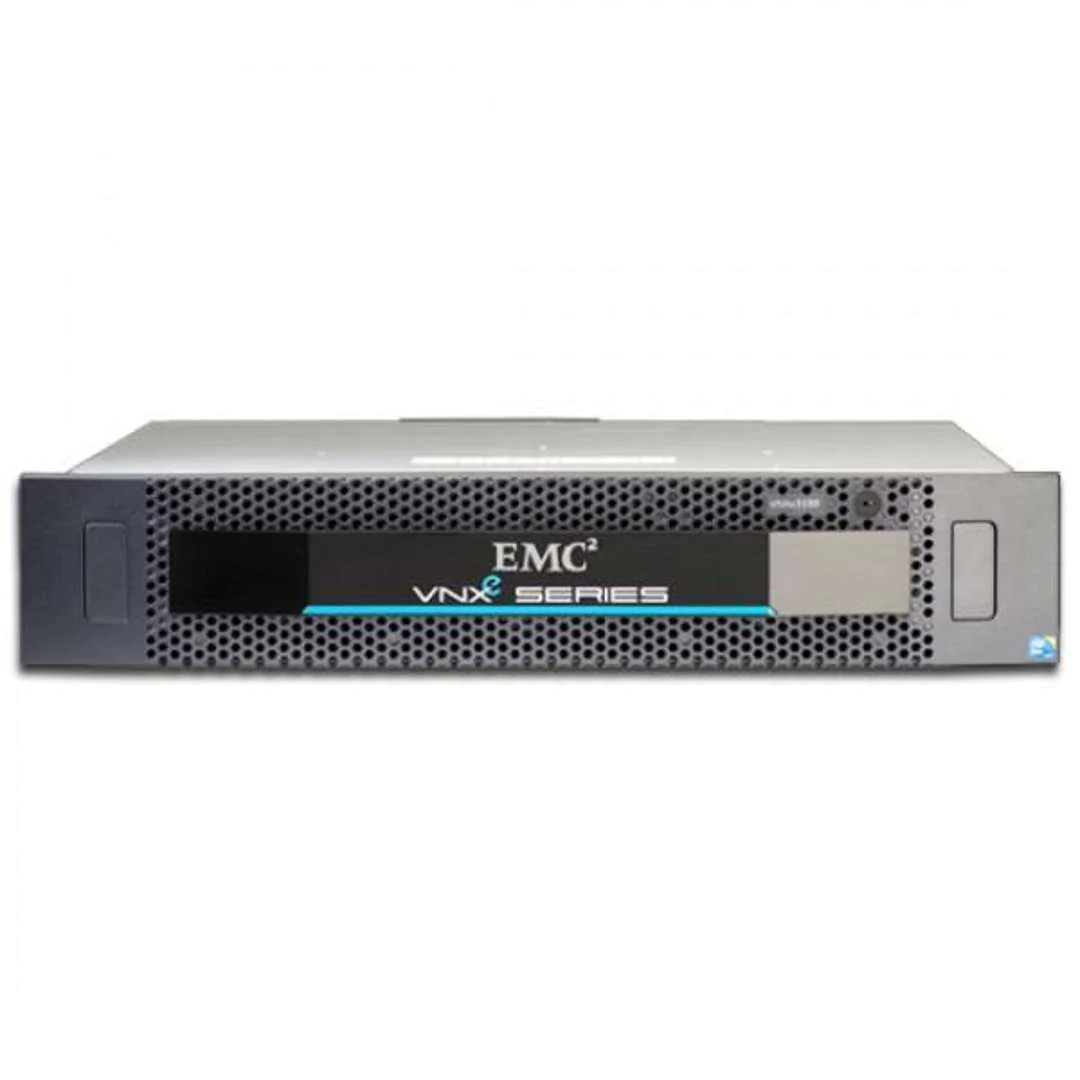

EMC VNXe3150

Warranty: up to 12 months

SKU Storage DELL EMC VNXe3150 Category Storage DELL EMC, dell emc Tags DELL, DELL EMC VNXe3150, DELL-EMC, storage, VNXe3150

DELL EMC VNXe3150 Storage – With warranty and technical service for installation or support.

A DC Parts is a new and refurbished DELL-EMC storage and accessories distributor. Our technology experts can help you select and configure the right DELL-EMC storage solution for your specific data needs.

Like all of our equipment, DELL-EMC arrays are fully tested, you can count on worry-free service for many years.

And, if necessary, our team of certified engineers is on hand to provide support for any problems you may have. If you want to speak to a representative about NetApp storage offerings, contact contact us.

EMC VNXe3150 Description

The VNXe3150 Storage Processor Enclosure (SPE) allows VNXe3150 customers to grow with their business by expanding the system's storage capacity. The VNXe3150's intuitive design allows you to easily add new disks that can be used to expand existing storage pools or create new pools. The VNXe3150 allows you to add any combination of SAS or NL-SAS to target certain storage capacities or performance metrics. As a unified storage system, data can be shared across SAN for applications and NAS for CIFS or NFS shares. The VNXe3150 is a high-performance, I/O-dense, high-capacity storage system in a small 2U form factor.

The VNXe3150 system with integrated disk storage can be used with two controllers and supports multiprotocol IP connectivity to concurrent NAS and iSCSI SANs. Great for small and medium-sized businesses, the VNXe3150 can be easily expanded to meet your storage needs. With a choice of NL-SAS and combo SAS drives, you can find just the right amount of capacity and performance to meet your enterprise storage needs.

EOS: 31/12/2020

EMC VNXe3150 technical specifications
TECHNICAL SPECIFICATIONS EMC VNXE3150
Form factor 2U Rack
Storage type Unified
Maximum Gross Capacity (Single Controller | Dual Controller) 150 TB | 300 TB
Dual Controllers (SPs) Optional
Number of units Single controller: 50 (max)
Dual controller: 100 (max)
Minimum/maximum number of units (Single SP | Dual SP) 6/50 | 6/100
Drive bay options 12 x 3,5″ SAS/NL-SAS drives
(2U) 25 2,5″ (2U) Flash/SAS drives
Drive options 3,5″ drive bay (12 x 3,5″)
300GB 15K SAS (V2-PS 15-300) 300GB 10K SAS (
V2-PS 10-300)
600GB 15K SAS (V2-PS 15-600)
600GB 10K SAS (V2-PS 10-600)
900GB 15K SAS (V2-PS 15-900)
900GB 10K SAS (V2-PS 10-900)
1 TB 7,2 K NL-SAS (V2-PS07-010)
2TB 7,2K NL-SAS (V2-PS07-020)
3 TB 7,2 K NL-SAS (V2-PS07-030)2,5″ drive bay (25 x 2,5″)
300GB 10K SAS 600GB 10
K SAS
900GB 10K SASSSD Enterprise Flash Drives (EFD)
100GB 6Gbps 2,5″ SAS SSD
200GB 6Gbps 2,5″ SAS SSD
CPU/Memory per controller Single Controller: 1x Xeon Quad Core/4GB
Dual Controllers: 1x Xeon Quad Core/8GB
Basic 1Gbps IP ports per controller 2
Max Flex IO Modules per controller 1
Management ports Single controller: 1x 10/100 or 1GbE
Dual controller: 2x 10/100 or 1GbE
Interconnect Four 6Gbps x 4 SAS ports
RAID Options 1/0
Limits and Support
Maximum number of LUNs supported (Single SP | Dual SP) 128 | 256
Maximum LUN size 2TB
Max File System Size 16 TB
Maximum gross capacity Single Controller: 144TB
Dual controller: 288TB
Maximum file systems Single controller: 128
Dual controller: 256
G-BASET Ethernet module covers 10/100/1000 NAS/iSCSI, 4 ports per module
Compatible disk arrays V2-DAE-12
V2-DAE-N-25-A
V2-AED-R-25-A
