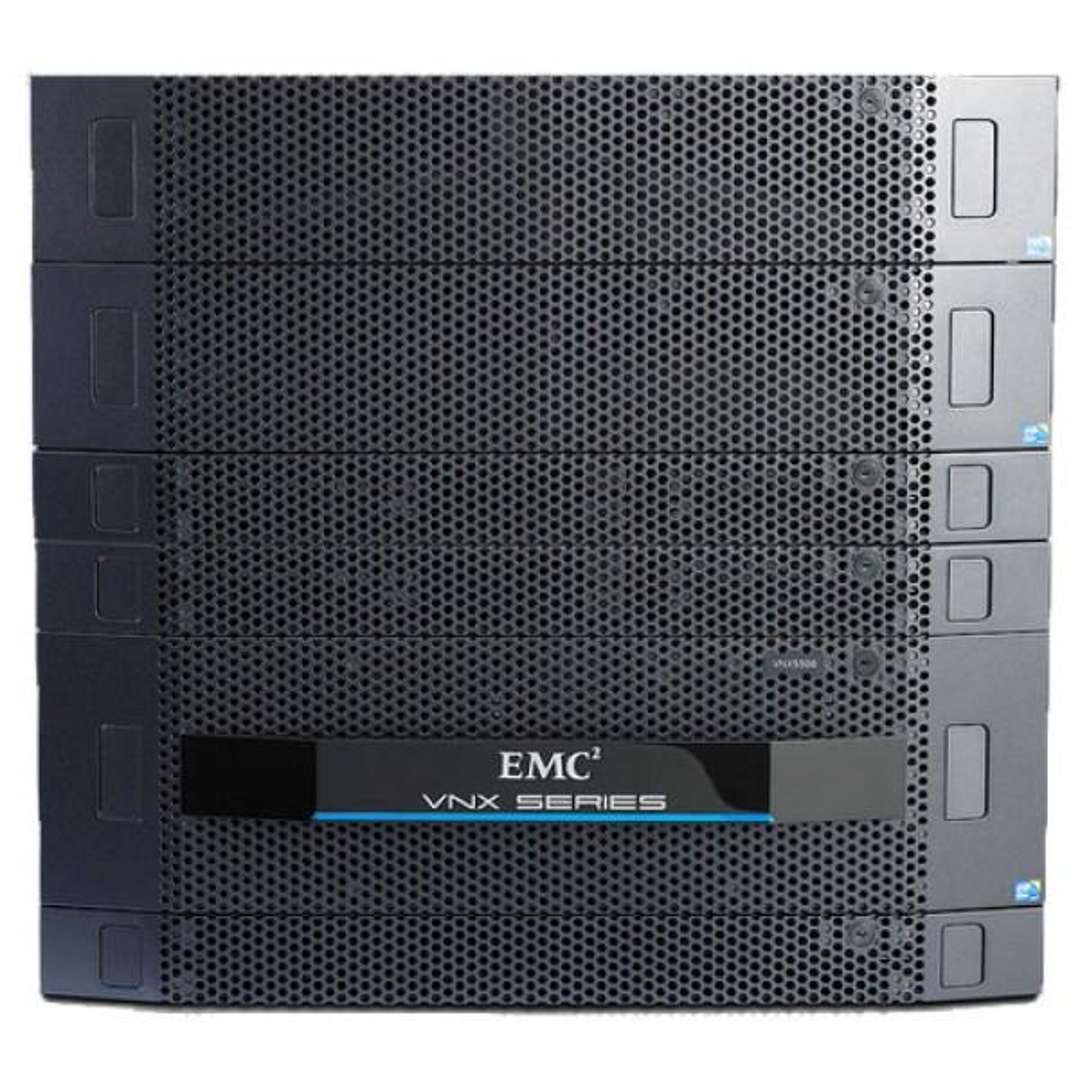

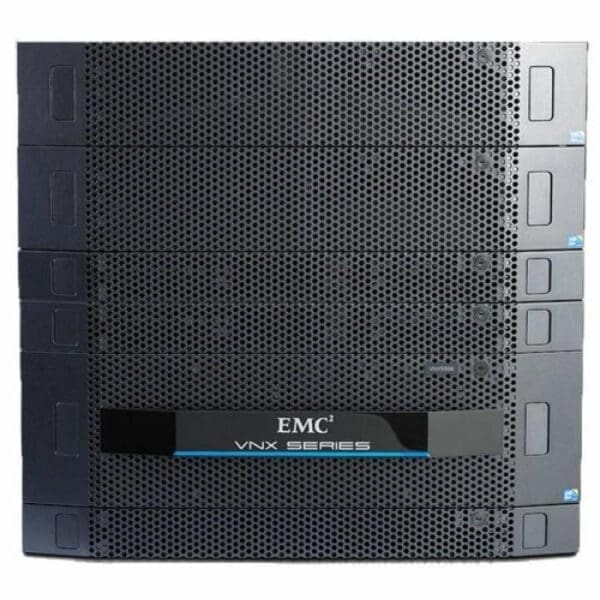

EMC VNX5500

Warranty: up to 12 months

SKU Storage DELL EMC VNX5500 Category Storage DELL EMC, dell emc Tags DELL, DELL EMC VNX5500, DELL-EMC, EMC, storage, VNX5500

DELL EMC VNX5500 Storage – With warranty and technical service for installation or support.

A DC Parts is a new and refurbished DELL-EMC storage and accessories distributor. Our technology experts can help you select and configure the right DELL-EMC storage solution for your specific data needs.

Like all of our equipment, DELL-EMC arrays are fully tested, you can count on worry-free service for many years.

And, if necessary, our team of certified engineers is on hand to provide support for any problems you may have. If you want to speak to a representative about NetApp storage offerings, contact contact us.

Description of the EMC VNX5500

VNX5500 Disk Processor Enclosure helps customers grow with their business by expanding system storage capacity. The VNX5500's intuitive design allows you to easily add new disks that can be used to expand existing storage pools or create new pools.

– 15 3,5″ bays, 25 2,5″ bays or 60 3,5″ bays
– 3,5″ and 2,5″ SAS/Flash
– RAID 0/1/3/5/6/10
- iSCSI, FCoE, Fiber Channel (FC), NFS, CIFS, MPFS, pNFS
- Maximum 250 disk drives
VNX5500 Disk Processor Enclosure (DPE) is a high-performance unified storage system based on a modular architecture that integrates block, file, and object hardware components with concurrent support for native NAS, iSCSI, Fiber Channel, and FCoE protocols. The VNX5500 offers file functionality (NAS) through X-Blade data movers and block storage (iSCSI, FCoE and FC) through dual storage processors leveraging the full 6Gbps SAS disk drive topology. The VNX5500 lets you start with block or file functionality and easily upgrade to unified storage when needed. Great for medium to large businesses, the VNX5500 can support up to 250 drives with dual SPs.

EOS: 31/12/2019

EMC VNX5500 technical specifications
TECHNICAL SPECIFICATIONS EMC VNX5500
Form factor 3U Rack
Storage type Unified
Maximum Gross Capacity 720 TB
Maximum SAN hosts 4,096
Maximum Number of Pools 40
Maximum number of LUNs 4,096
Maximum LUN size 16 TB (virtual pool LUN)
Maximum file system size 16 TB
Maximum usable file capacity per X-Blade 256 TB
Dual Controllers (SPs) Sensors
Number of Units (Min/Max) 4/250
Drive bay options 15 3,5″ (3U) SAS/Flash drives 25
2,5″ (2U) Flash/SAS drives
60 3,5″ (4U) SAS/Flash drives
Drive options 3,5″ (15 x 3,5″) and (60 x 3,5″) drive bays
300GB 10K 6Gbps SAS (VX-VS10-300) (15 DAE disks) 300GB 15K 6Gbps
SAS (VX-VS15-300) (15 DAE disks)
600GB 10K 6Gbps SAS (VX-VS10-600) (15 DAE disks) 600GB 15K 6Gbps SAS (VX-VS15-600)
) (15 DAE discs)
900 GB 10 K 6 Gbps SAS (VX-VS10-900) (15 DAE disks)
1 TB 7,2 K 6 Gbps SAS (VX-VS07-010) (15 DAE disks)
2 TB 7,2 K 6 Gbps SAS (VX-VS07-020) (15 DAE disks)
3TB 7,2K 6Gbps SAS (VX-VS07-030) (15 disk DAE)600GB 10K 6Gbps SAS (VX-DS10-600) (60 DAE disks)
900 GB 10 K 6 Gbps SAS (VX-DS10-900) (60-disk DAE)
1 TB 7,2 K 6 Gbps SAS (VX-DS07-010) (60-disk DAE)
2TB 7,2K 6Gbps SAS (VX-DS07-020) (60 disk DAE)
3TB 7,2K 6Gbps SAS (VX-DS07-030) (60 disk DAE)100GB 6Gbps 3,5″ EFD SAS (Enterprise Flash Drive) (FLVXVS6F-100) (15 DAE disks)
100 GB 6 Gbps SAS 3,5″ EFD (Enterprise Flash Drive) (VX-VS6F-100) (15 DAE disks) 200 GB 6
Gbps SAS 3,5” EFD (Enterprise Flash Drive) (FLVXVS6F-200) (15 DAE disks) 200 GB 6
Gbps SAS 3,5″ EFD (Enterprise Flash Drive) (VX-VS6F-200) (15 DAE disks)100 GB 6 Gbps SAS 3,5″ EFD (Enterprise Flash Drive) (FLVXDS6F-100) (60 DAE disks)
100 GB 6 Gbps SAS 3,5″ EFD (Enterprise Flash Drive) (VX-DS6F-100) (60 DAE disks)
200 GB 6 Gbps SAS 3,5″ EFD (Enterprise Flash Drive) ( FLVXDS6F-200) (60 disk DAE)
200 GB 6 Gbps SAS 3,5″ EFD (Enterprise Flash Drive) (VX-DS6F-200) (60 disk DAE)2,5″ drive bay (25 x 2,5″)
300GB 10K 6Gbps SAS (VX -2S10-300) (25 disk DAE)
600 GB 10 K 6 Gbps SAS (VX-2S10-600) (25 DAE disks)
900 GB 10 K 6 Gbps SAS (VX-2S10-900) (25 DAE disks)
100 GB 6 Gbps 2,5″ EFD (Enterprise Flash Drive) (FLVX2S6F-100) (25 DAE disks)
100 GB 6 Gbps 2,5″ EFD (Enterprise Flash Drive) (VX-2S6F-100) (25 DAE disks) 200 GB 6
Gbps 2,5″ EFD (Enterprise Flash Drive) (FLVX2S6F-200) (25 DAE disks)
200 GB 6 Gbps 2,5″ EFD (Enterprise Flash Drive) (VX-2S6F-200) (25 disk DAE)
Block Components
CPU/Memory per controller Intel Xeon 5600 Series / 24 GB
Standby power system 1U 1,2KW
2U 2,2KW required for 60 disk array
Max Block UltraFlex IO modules per array 4
Array built-in IO ports 8 FC ports
4 SAS ports (2 BE SAS buses) (4 built-in FC ports per array are reserved for file connectivity)
Maximum total ports per array 24
RAID Options 0, 1, 10, 3, 5, 6
2/4/8 Gbps FC maximum ports per array 16
1 GBaseT iSCSI maximum total ports per array 16
Total maximum iSCSI ports of 10GbE per array 8
Total maximum FCoE ports per array 8
6 Gbps SAS buses (4 lanes per bus) for DAE connections 2 or 6 (6 if high bandwidth option is required)
file components
# X-Blades file 1 - 3
# Control Stations 1-2 x 1U Server
X-Blade: CPU/Memory Intel Xeon 5600 Series / 12 GB
Maximum file UltraFlex IO modules per X-Blade 4
Min/max 2/4/8 Gbps FC ports per X-Blade 4
Maximum IP ports per X-Blade 12
Maximum 1GBaseT ports per X-Blade 12
Maximum 10 GbE ports per X-Blade 6
Management 2x LAN 10/100/1000 Copper GbE
Compatible disk arrays VNX6GSDAE60
VNX6GSDAE15
VNX6GSDAE15F
VNX6GSDAE25
VNX6GSDAE25F
Chassis part number 100-562-178 SPE & DME Chassis Assembly; Empty Enclosure 2U SPE4 -CR
100-562-440 Chassis Assembly, Empty Chassis Cabinet 2U CX4 SPE
100-562-503 DPE Chassis VNX 33/51/53/5500 15-Slot Chassis and Midplane
100-563-109 Chassis Assembly: 2U SPE4 Cabinet Empty; Gen-2 AC only
host connections 2 Gbps Fiber Channel
4 Gbps Fiber Channel 8 Gbps Fiber
Channel
1 Gbps iSCSI 10 Gbps iSCSI
10
Gbps FCoE
