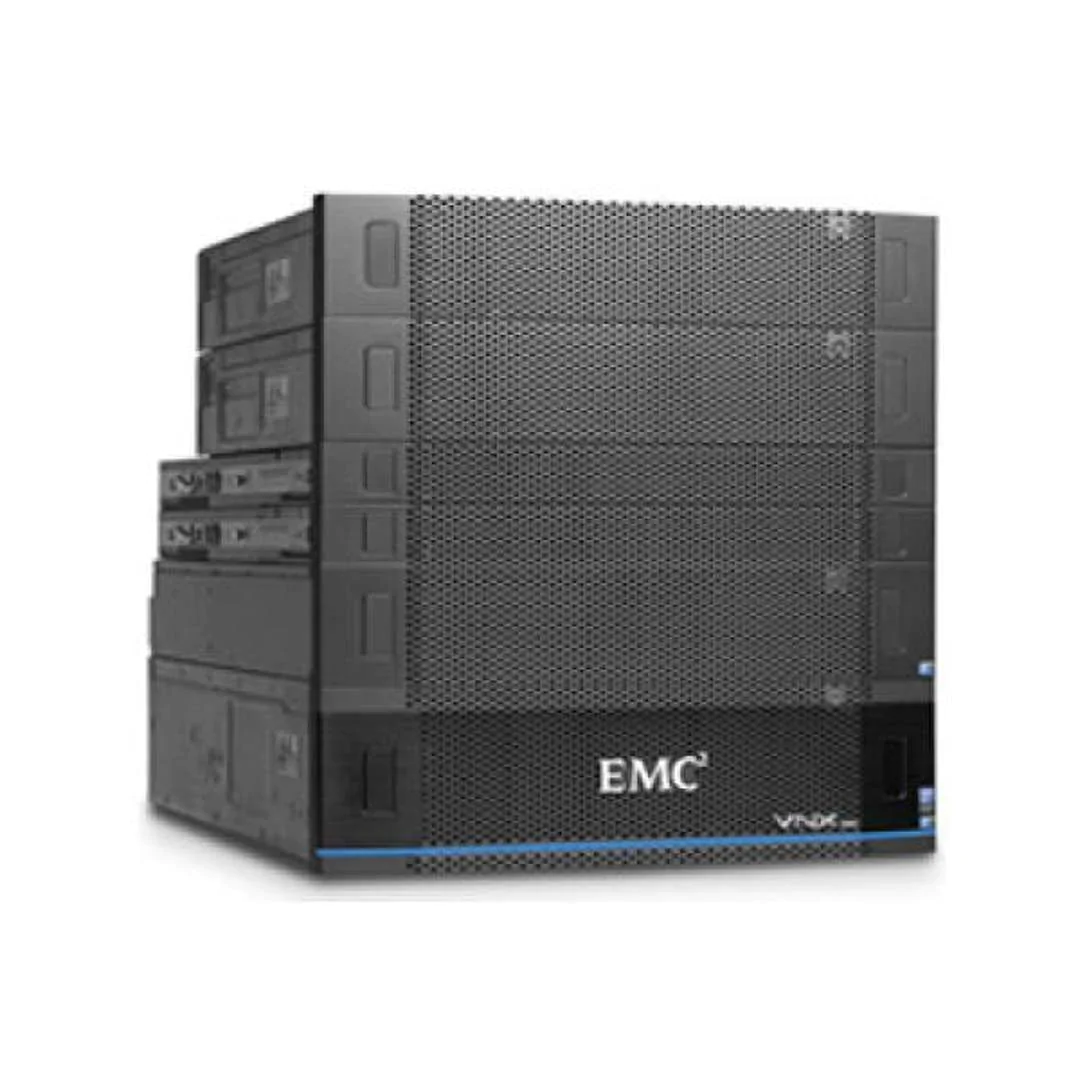

Description of the EMC VNX5400
VNX5400 Disk Processor Enclosure helps customers grow with their business by expanding system storage capacity. The VNX5400's intuitive design allows you to easily add new disks that can be used to expand existing storage pools or create new pools.
– 15 x 3,5″, 25 x 2,5″, 60 x 3,5″ and 120 x 2,5″
– 3,5″ and 2,5″ SAS/NL-SAS/Flash
– RAID 0/1/3/5/6/10
– Fiber Channel (FC)
- Maximum 250 disk drives
The EMC VNX5400 Series unified storage system offers uncompromising scalability and flexibility for mid-range applications, while delivering industry-leading simplicity and efficiency to minimize total cost of ownership. Using a modular architecture, the VNX5400 integrates block, file and object hardware components with concurrent support for native NAS, iSCSI, Fiber Channel and FCoE protocols. The VNX5400 provides file (NAS) functionality through 1-4 Data Movers and block storage (iSCSI, FCoE and FC) through dual storage processors leveraging the full 6Gbps SAS disk drive topology.
EOS: 31/01/2023
EMC VNX5400 technical specifications
TECHNICAL SPECIFICATIONS EMC VNX5400 | |
---|---|
Storage type | Unified |
Maximum Gross Capacity (per controller) | 1000TB |
Maximum FAST Cache | 1TB |
Number of Units (Min/Max) | 4/250 |
matrix cabinet | 3U Disk Processor Enclosure – 25 2,5″ SAS/Flash Drives |
Drive bay options | 25 NL-SAS/SAS/Flash 2,5″ (2U) drives 15 NL-SAS/SAS/Flash 3,5″ (3U) drives 60 NL-SAS/SAS/Flash 3,5″ (4U) drives 120 x 2,5″ NL- SAS/SAS/Flash Drives (3U) |
Drive options | 15 x 3.5″ Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 2TB 6Gbps 7,2K NL-SAS 3TB 6Gbps 7,2K NL-SAS 4TB 6Gbps 7,2K NL-SAS25 x 2,5″ Drive Enclosure: 100GB 6Gbps SAS SSD 200 GB 6 Gbps SAS SSD 400GB 6 Gbps SAS SSD 800 GB 6 Gbps SAS SSD 1,6 TB 6 Gbps SAS 6 Gbps SSD 300 GB 300 GB 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 1TB 6Gbps 7.2K NL-SAS60 x 3,5″ drive bay: 100GB SAS SSD and 6Gbps SAS SSD 200GB and 6Gbps SSD 400GB SAS 6Gbps SSD 800GB SAS 6Gbps SSD 1,6TB SAS and 6 Gbps SSD 300 GB 6 Gbps 15 K SAS 600 GB 6 Gbps 10 K SAS 900 GB 6 Gbps 1 TBK 6 SAS G 1,2 TBK 6 SAS G 1,2 TBK 6 SAS G 1,2 TBK 6 SAS -SAS 3 TB 6 Gbps 7,2 .4K NL-SAS 6TB 7,2Gbps XNUMXK NL-SAS 120 x 2,5″ Disc Compartment: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1,6TB 6Gbps SAS SSD 300GB 6Gbps 1,2K SAS 6Gbps 10KSAS |
Standby power system | Internal batteries, one for each SP |
CPU/Memory per controller | 2x Intel Xeon E5-2600 Quad Core 1,8GHz / 32GB per controller |
Max Block UltraFlex IO modules per array | 8 |
Array built-in IO ports | 2 x 4-way SAS ports (for BE connection) |
6 Gbps SAS BE Base Buses per Array | 2x 4 lanes |
Maximum 6 Gbps SAS BE buses per array | 2x 4 lanes |
Maximum total ports per array | 36 |
2/4/8 Gbps FC maximum ports per array | 32 |
1 GBaseT iSCSI maximum total ports per array | 32 |
Total maximum iSCSI ports of 10GbE per array | 16 |
Total maximum FCoE ports per array | 16 |
file components | |
# File data movers | 1 - 4 |
# Control Stations | 1 x 1U Standard Server, 2nd x 1U Server Optional |
Data Mover CPU/Memory | Intel Xeon 5600/6GB |
Maximum file UltraFlex IO modules per Data Mover | 3 |
Min./Max. 2/4/8 Gbps of FC ports per Data Mover | 4 |
Maximum IP ports per Data Mover | 8 |
Maximum 1 GBaseT port per Data Mover | 8 |
Maximum 10 GbE ports per Data Mover | 3 |
Management | 2x LAN 10/100/1000 Copper GbE |
Functional Limits | |
Maximum gross capacity | 1000TB |
Maximum SAN hosts | 1.024 |
Maximum Maximum Number of Pools | 20 |
Maximum number of LUNs (Pool) | 1000 |
Maximum number of LUNs (Classic) | 2048 |
Maximum pool-based LUN size | 256 TB (virtual pool LUN) |
Maximum file system size | 16 TB |
Maximum usable file capacity per Data Mover | 256 TB |
Supported Disk Array Expansions (DAEs) | VNXB6GSDAE15 VNXB6GSDAE25 VNXB6GSDAE60 VNXB6GSDAE120 |
supported protocols | CIFS, NFS, pNFS, FC, FCoE, ISCSI |
Power – 25 x 2,5″ DPE | |
AC Line Current (Operating Maximum) | 4,3A maximum at 200 Vac 8,0A max at 100V |
Power consumption (maximum operational) | 860 VA (835 W) max. (200V) 798 VA (768 W) max. (100V) |
Power factor | 0,97 min at 200 V at full load, low voltage 0,96 min at 100 V at full load, low voltage |
peak current | 30 A maximum for 1/2 line cycle, per line cable at 240 Vac |
Start-up surge current | 29 A rms max. for 50 ms, at any line voltage |
AC protection | 10 Amp fuse on each power supply |
AC input type | IEC320-C14 appliance coupler, by power zone |
Dimensions | |
High jump | 5,25" |
Largura | 17,5" |
Depth | 24" |
Vertical Size | 3 NEMA Units |
Shot Put | Libras 90,395 |
