DELL EMC Storage VNX5300 – Warranted and technical service for installation or support.
DC Parts is a distributor of new and refurbished DELL-EMC storage and accessories. Our technology experts can help you select and configure the right DELL-EMC storage solution for your specific data needs.
Like all of our equipment, DELL-EMC arrays are fully tested, so you can count on worry-free service for years to come.
And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.

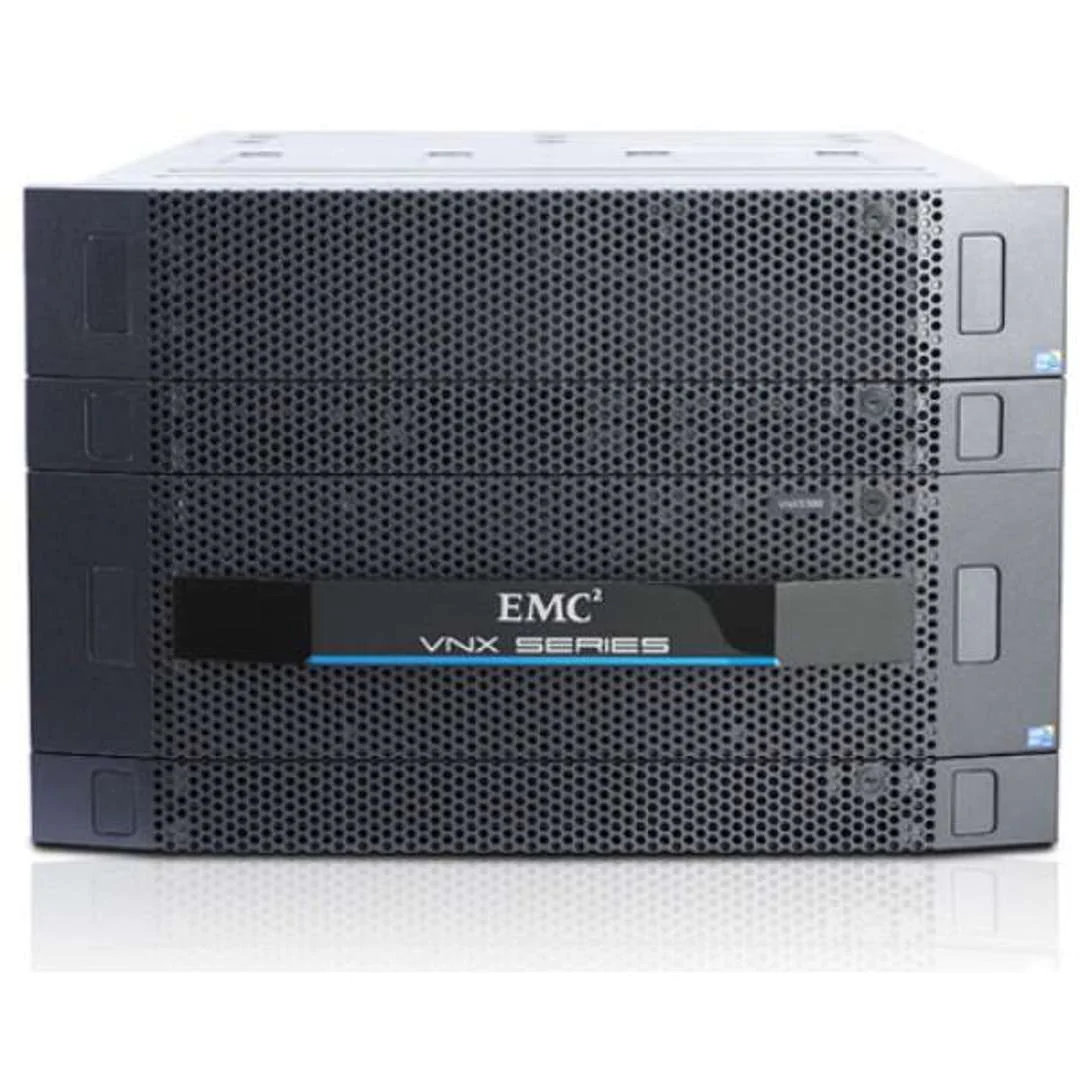

EMC VNX5300 Description
VNX5300 Disk Processor Enclosure helps customers grow with their business by expanding the storage capacity of the system. The intuitive design of the VNX5300 allows you to easily add new disks that can be used to expand existing storage pools or create new ones.
– 15 x 3.5″ bays or 25 x 2.5″
bays- 3.5″ and 2.5″
SAS/Flash- RAID 0/1/3/5/6/10
– Fibre Channel (FC), NFS, CIFS, MPFS, pNFS
– 125 maximum
disk drives VNX5300 Disk Processor Enclosure (DPE) is a high-performance unified storage system based on modular architecture that integrates hardware components for block, file, and object with simultaneous support for NAS protocols, Native iSCSI, Fibre Channel, and FCoE. The VNX5300 provides file functionality (NAS) through X-Blade data movers and block storage (iSCSI, FCoE, and FC) through dual storage processors, leveraging the full 6 Gbps SAS disk drive topology. VNX5300 allows you to start with block or file functionality and easily upgrade to unified storage when needed.
EOS: 31/12/2019
EMC Technical Specifications VNX5300
| EMC VNX5300 TECHNICAL SPECIFICATIONS | |
|---|---|
| Form | 3U Rack |
| Storage | Unified |
| Maximum Gross Capacity | 360 TB |
| Maximum SAN | 2,048 |
| Maximum Number of Pools | 20 |
| Maximum number of LUNs | 2,048 |
| Maximum LUN | 16 TB (Virtual Pool LUN) |
| Maximum file | 16 TB |
| Maximum usable file capacity per X-Blade | 256 TB |
| Dual controllers (SPs) | Pattern |
| Number of Units (Min/Max) | 4/125 |
| Drive | 15 x 3.5″ SAS/Flash drives (3U) 25 x 2.5″ Flash/SAS drives (2U) |
| Drive Options | 3.5″ (15 x 3.5″) drive cabinet300 GB 10K 6 Gbps SAS (V3-VS10-300) (15 DAE disks) 300 GB 15K 6 Gbps SAS (V3-VS15-300) (15 DAE disks) 600 GB 10K 6 Gbps SAS (V3-VS10-300). -CS10-600) (15-disk DAE) 600 GB 15K 6 Gbps SAS (V3-VS15-600) (15-disk DAE) 900 GB 10K 6 Gbps SAS (V3-VS10-900) (15-disk DAE) 1 TB 7.2K 6 Gbps SAS (V3-VS07-010) (15 DAE disks) 2 TB 7.2K 6 Gbps SAS (V3-VS07-020) (15 DAE disks) 3 TB 7.2K 6 Gbps SAS (V3-VS07-030) (15-disk DAE) 4 TB 7.2K 6 Gbps SAS (V3-VS07-040) (15 DAE disks) 100 GB 6 Gbps SAS 3.5″ EFD (Enterprise Flash Drive) (FLV3VS6F) (15 DAE disks) 100 GB 6 Gbps SAS 3.5″ EFD ( Enterprise Flash Drive) (V3 -VS6F-100) (15 DAE disks) 200 GB 6 3.5″ EFD (Enterprise Flash Drive) (FLV3VS6F) SAS Gbps (15 DAE disks) 200 GB 6 Gbps SAS 3.5″ EFD (Enterprise Flash Drive) (V3-VS6F-200) (15 DAE disks) 2.5″ drive enclosure (25 x 2.5″) 300 GB 10K 6 Gbps SAS (V3-2S10-300) (25 DAE disks) 600 GB 10K 6 Gbps SAS (V3-2S10-600) (25 DAE disks) 900 GB 10K 6 Gbps SAS (V3-2S10-900) (25 DAE disks) 100 GB 6 Gbps 2.5″ EFD (Enterprise Flash Drive) (FLV32S6F-100) (25-disk DAE) 100 GB 6 Gbps 2.5″ EFD (Enterprise Flash Drive) (V3-2S6F-100) (25 DAE disks) 200 GB 6 2.5″ Gbps EFD (Enterprise Flash Drive) (FLV32S6F-200) (25-disk DAE) 200 GB 6 Gbps 2.5″ EFD (Enterprise Flash Drive) (V3-2S6F-200) (25-disk DAE) |
| Block Components | |
| CPU/Memory per controller | Intel Xeon 5600 Series / 16GB |
| Standby | 1U 1.2KW |
| Max Block UltraFlex IO Modules per Array | 4 |
| Built-in IO ports per array | 8 FC ports 4 SAS ports (2 BE SAS buses) (4 built-in FC ports per array are reserved for file connectivity) |
| Maximum total ports per array | 24 |
| RAID | 0, 1, 10, 3, 5, 6 |
| 2/4/8 Gbps FC maximum ports per array | 16 |
| 1 GBaseT iSCSI maximum total ports per array | 8 |
| Maximum total 10 GbE iSCSI ports per array | 8 |
| Maximum total FCoE ports per array | 8 |
| 6 Gbps SAS buses (4 lanes per bus) for DAE | 2 |
| File components | |
| # X-Blades | 1-2 |
| # Control | 1-2 x 1U Server |
| X-Blade: CPU/Memory | Intel Xeon 5600 Series / 6 GB |
| Maximum UltraFlex IO Archive Modules per X-Blade | 3 |
| Minimum/maximum 2/4/8 Gbps FC ports per X-Blade | 4 |
| Maximum IP ports per X-Blade | 8 |
| Maximum 1GBaseT ports per X-Blade | 8 |
| Maximum 10GbE ports per X-Blade | 4 |
| Management | 2x 10/100/1000 Copper GbE LAN |
| disk arrays | V31-DAE-R-15 V31-DAE-N-15 V2-DAE-R-25-A V2-DAE-N-25-A |
| Chassis | 100-562-178 SPE & DME Chassis Set 100-562-440 2U SPE4 Chassis Set with Empty Box |
| Host Connections | 2 Gbps Fibre Channel 4 Gbps Fibre Channel 8 Gbps Fibre Channel 1 Gbps iSCSI 10 Gbps iSCSI 10 Gbps FCoE |
