DELL EMC Storage VNX5200 – With warranty and technical service for installation or support.
DC Parts is a distributor of new and refurbished DELL-EMC storage and accessories. Our technology experts can help you select and configure the right DELL-EMC storage solution for your specific data needs.
Like all of our equipment, DELL-EMC arrays are fully tested, so you can count on worry-free service for years to come.
And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.

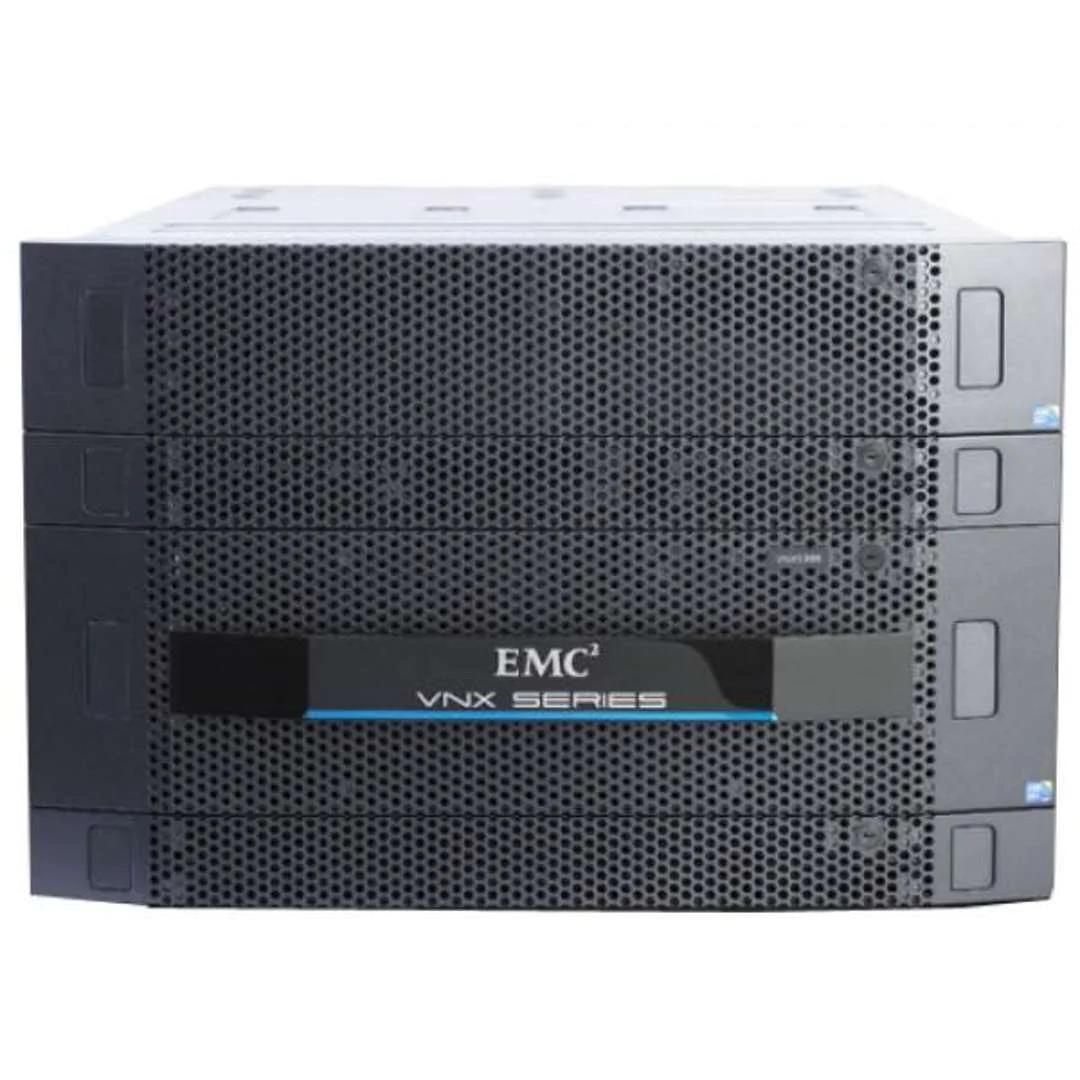

EMC VNX5200 Description
VNX5200 Disk Processor Enclosure helps customers keep up with their business growth by expanding the storage capacity of the system. The intuitive design of VNX5200 allows you to easily add new disks that can be used to expand existing storage pools or create new ones.
– 15 x 3.5″ bays or 25 x 2.5″
– 3.5″ and 2.5″ bays SAS/NL-SAS/Flash
– RAID 0/1/3/5/6/10
– Fibre Channel (FC)
– 150 maximum
disk drives EMC VNX5200 Series unified storage system delivers uncompromising scalability and flexibility for mid-tier applications while delivering industry-leading simplicity and efficiency to minimize total cost of ownership. Using a modular architecture, VNX5200 integrates block, file, and object hardware components with simultaneous support for native NAS, iSCSI, Fibre Channel, and FCoE protocols. The VNX5200 provides file functionality (NAS) through 1-3 Data Movers and block storage (iSCSI, FCoE, and FC) through dual storage processors, leveraging the full 6 Gbps SAS disk drive topology.
EOS: 31/01/2023
EMC Technical Specifications VNX5200
| EMC VNX5200 TECHNICAL SPECIFICATIONS | |
|---|---|
| Storage | Unified |
| Maximum Gross Capacity (per controller) | 500 TB |
| Maximum | 600 GB |
| Number of Units (Min/Max) | 6/150 |
| Drive | 15 x 3.5″ NL-SAS/SAS/Flash drives (3U) 25 x 2.5″ NL-SAS/SAS/Flash drives (2U) |
| Drive Options | 3.5″ (15 x 3.5″) drive bay100GB 6Gbps SAS SSD 200 GB 6 Gbps SAS SSD 400 GB 6 Gbps SAS SSD 800 GB 6 Gbps SAS SSD 1.6 TB 6 Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 10K SAS G 90 10K SAS 2TB 6Gbps 7.2K NL-SAS 3TB 6Gbps 7.2K NL-SAS 4TB 6Gbps 7.2K NL-SAS 2.5″ Drive Enclosure (25 x 2.5″) 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS1TB 6Gbps 7.2K NL-SAS |
| CPU/Memory per controller | 2x Intel Xeon E5-2600 Quad Core 1.2GHz / 32GB per controller |
| Max Block UltraFlex IO Modules per Array | 6 |
| Built-in IO ports per array | 2 x 4-way SAS ports (for BE connection) |
| 6 Gbps SAS BE Base Buses per Array | 2x 4 tracks |
| Maximum 6 Gbps BE SAS buses per array | 2x 4 tracks |
| Maximum total ports per array | 28 |
| 2/4/8 Gbps FC maximum ports per array | 24 |
| 1 GBaseT iSCSI maximum total ports per array | 24 |
| Maximum total 10 GbE iSCSI ports per array | 12 |
| Maximum total FCoE ports per array | 12 |
| File components | |
| # File Data | 1-3 |
| # Control | 1 x 1U Standard Server, 2nd x 1U Optional Server |
| CPU/Data | Intel Xeon 5600 / 6GB |
| Maximum File UltraFlex IO Modules per Data Mover | 3 |
| Min/Max 2/4/8 Gbps FC ports per Data Mover | 4 |
| Maximum IP ports per Data Mover | 8 |
| Maximum of 1 GBaseT port per Data Mover | 8 |
| Maximum 10 GbE ports per Data Mover | 3 |
| Management | 2x 10/100/1000 Copper GbE LAN |
| Functional Limits | |
| Maximum | 500 TB |
| Maximum SAN | 1,024 |
| Maximum Maximum Number of Pools | 15 |
| Maximum Number of LUNs (Pool) | 1000 |
| Maximum Number of LUNs (Classic) | 2048 |
| Maximum pool-based | 256 TB (Virtual Pool LUN) |
| Maximum file | 16 TB |
| Maximum usable file capacity per Data Mover | 256 TB |
| Supported Disk Array Expansions (DAEs) | VNXB6GSDAE15VNXB6GSDAE25 |
| Supported | CIFS, NFS, pNFS, FC, FCoE, ISCSI |
| Power – 25 x 2.5″ DPE | |
| AC Line Current (Maximum Operating) | 4.3A maximum at 200 Vac 8.0A maximum at 100V |
| Power Consumption (Maximum Operating) | 860 VA (835 W) max. (200 V) 798 VA (768 W) max. (100 V) |
| Power | 0.97 min at 200 V at full load, low voltage 0.96 min at 100 V at full load, low voltage |
| Peak | Maximum 30 A for 1/2 line cycle, per line cable at 240 Vac |
| Start-up surge current | 29 A rms max. for 50 ms, at any line voltage |
| AC | 10 A fuse on each power supply |
| AC | IEC320-C14 Appliance Coupler, by Power Zone |
| Dimensions | |
| Height | 5.25″ |
| Width | 17.5″ |
| Depth | 24″ |
| Vertical Size | 3 NEMA Units |
| Weight | 90,395 lbs |
