DELL EMC VNX5100 Storage – With warranty and technical service for installation or support.
A DC Parts is a new and refurbished DELL-EMC storage and accessories distributor. Our technology experts can help you select and configure the right DELL-EMC storage solution for your specific data needs.
Like all of our equipment, DELL-EMC arrays are fully tested, you can count on worry-free service for many years.
And, if necessary, our team of certified engineers is on hand to provide support for any problems you may have. If you want to speak to a representative about NetApp storage offerings, contact contact us.

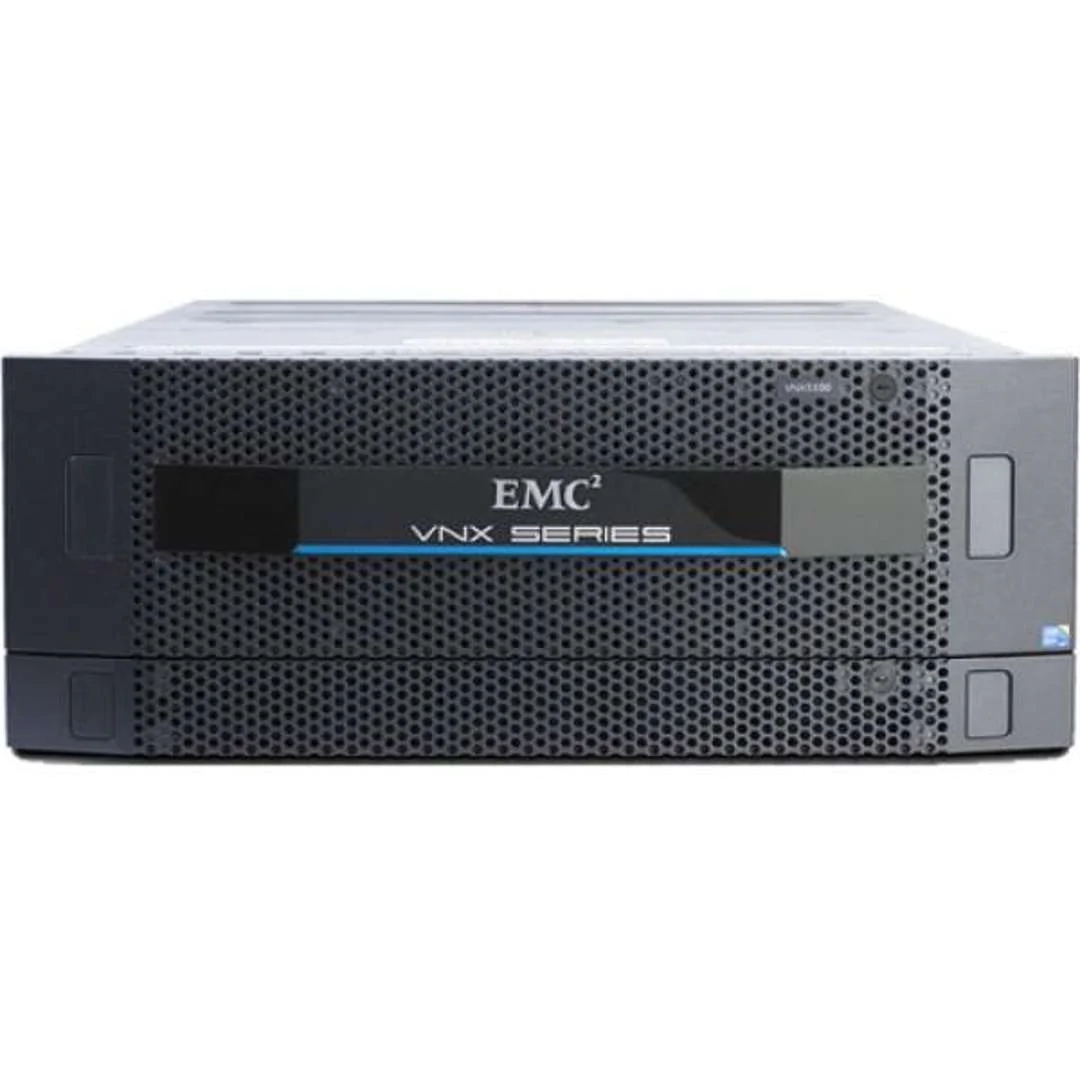

Description of the EMC VNX5100
VNX5100 Disk Processor Enclosure helps customers grow with their business by expanding system storage capacity. The VNX5100's intuitive design allows you to easily add new disks that can be used to expand existing storage pools or create new pools.
– 15 bays of 3,5″ or 25 bays of 2,5″
– 3,5″ and 2,5″ SAS/Flash
– RAID 0/1/3/5/6/10
– Fiber Channel (FC)
- Maximum 75 disk drives
VNX5100 Disk Processor Enclosure (DPE) is a high-performance unified storage system based on a modular architecture that integrates block, file, and object hardware components with Fiber Channel (FC) support. The VNX5100 offers file (NAS) functionality through X-Blade data movers and block storage (iSCSI, FCoE and FC) through dual storage processors leveraging the full 6Gbps SAS disk drive topology. The VNX5100 lets you start with block or file functionality and easily upgrade to unified storage when needed.
EOS: 31/12/2019
EMC VNX5100 technical specifications
TECHNICAL SPECIFICATIONS EMC VNX5100 | |
---|---|
Form factor | 3U Rack |
Storage type | Unified |
Maximum Gross Capacity | 225 TB |
Maximum SAN hosts | 512 |
Maximum Number of Pools | 10 |
Maximum number of LUNs | 512 |
Maximum LUN size | 16 TB (virtual pool LUN) |
Maximum file system size | N / D |
Maximum usable file capacity per X-Blade | N / D |
Dual Controllers (SPs) | Sensors |
Number of Units (Min/Max) | 4/75 |
Drive bay options | 15 3,5″ (3U) SAS/Flash drives 25 2,5″ (2U) Flash/SAS drives |
Drive options | 3,5″ drive bay (15 x 3,5″) 300GB 10K 6Gbps SAS (V3-VS10-300) (15 DAE disks) 300GB 15K 6Gbps SAS (V3-VS15-300) (15 DAE discs) 600GB 10K 6Gbps SAS (V3 -CS10-600) (15 disk DAE) 600GB 15K 6Gbps SAS (V3-VS15-600) ( 15 disc DAE) 900GB 10K 6Gbps SAS (V3-VS10-900) (15 disk DAE) 1TB 7,2K 6 Gbps SAS (V3-VS07-010) (15 disk DAE) 2 TB 7,2 K 6 Gbps SAS (V3-VS07-020) (15-disk DAE) 3 TB 7,2 K 6 Gbps SAS (V3-VS07-030) (15-disk DAE) 100 GB 6 Gbps SAS 3,5″ EFD (Enterprise Flash Drive) (FLV3VS6F) (15 DAE disks) 100 GB 6 Gbps SAS 3,5″ EFD (Enterprise Flash Drive) (V3-VS6F-100) (15 DAE disks) 200 GB 6 Gbps SAS 3,5″ EFD (Enterprise Flash Drive) (FLV3VS6F) (15 disk DAE) 200 GB 6 Gbps SAS 3,5″ EFD (Enterprise Flash Drive) (V3-VS6F-200) (15 DAE disks)2,5″ Drive Enclosure (25 x 2,5″)300 GB 10K 6 Gbps SAS (V3-VS10-300) (25 DAE discs) 600 GB 10K 6 Gbps SAS (V3-VS10-600) (25 DAE disks) 900 GB 10K 6 Gbps SAS (V3-VS10-900) (25 DAE disks) 100 GB 6 Gbps 2,5″ EFD (Enterprise Flash Drive) (FLV32S6F-100) (25 disk DAE) 100 GB 6 Gbps 2,5″ EFD (Enterprise Flash Drive) (V3-2S6F-100) (25 DAE disks) 200 GB 6 Gbps 2,5″ EFD (Enterprise Flash Drive) (FLV32S6F-200) (25 disk DAE) 200 GB 6 Gbps 2,5″ EFD (Enterprise Flash Drive) (V3-2S6F-200) (25 disk DAE) |
Block Components | |
CPU/Memory per controller | Intel Xeon 5600 Series / 8 GB |
Standby power system | 1U 1,2KW |
Max Block UltraFlex IO modules per array | 0 |
Array built-in IO ports | 8 FC ports 4 SAS ports (2 BE SAS buses) |
Maximum total ports per array | 8 |
RAID Options | 0, 1, 10, 3, 5, 6 |
2/4/8 Gbps FC maximum ports per array | 8 |
1 GBaseT iSCSI maximum total ports per array | N / D |
Total maximum iSCSI ports of 10GbE per array | N / D |
Total maximum FCoE ports per array | N / D |
6 Gbps SAS buses (4 lanes per bus) for DAE connections | 2 |
file components | |
# X-Blades file | N / D |
# Control Stations | N / D |
X-Blade: CPU/Memory | N / D |
Maximum file UltraFlex IO modules per X-Blade | N / D |
Min/max 2/4/8 Gbps FC ports per X-Blade | N / D |
Maximum IP ports per X-Blade | N / D |
Maximum 1GBaseT ports per X-Blade | N / D |
Maximum 10 GbE ports per X-Blade | N / D |
Management | 2x LAN 10/100/1000 Copper GbE |
Compatible disk arrays | V31-DAE-R-15 V31-DAE-N-15 V2-AED-R-25-A V2-DAE-N-25-A |
Chassis part number | 100-562-203 DPE Chassis VNX 33/51/53/5500 15 Slot Chassis and Midplane 100-563-138 DPE Chassis VNX 51/53/5500 25 Slot Chassis and Midplane |
host connections | 1 Gbps Fiber Channel 2 Gbps Fiber Channel 4 Gbps Fiber Channel 8 Gbps Fiber Channel |
