Dell EMC Unity 650F ALL Flash Storage – With warranty and technical service for installation or support.
A DC Parts is a company specializing in refurbished DELL-EMC storage and accessories. Our technology experts can help you select and configure the right DELL-EMC storage solution for your specific data needs.
Like all of our equipment, DELL-EMC arrays are fully tested, you can count on worry-free service for many years.
And, if necessary, our team of certified engineers is on hand to provide support for any problems you may have. If you want to speak to a representative about NetApp storage offerings, contact contact us.
Dell EMC Unity 650F All-Flash: Maximum Performance and Storage Efficiency

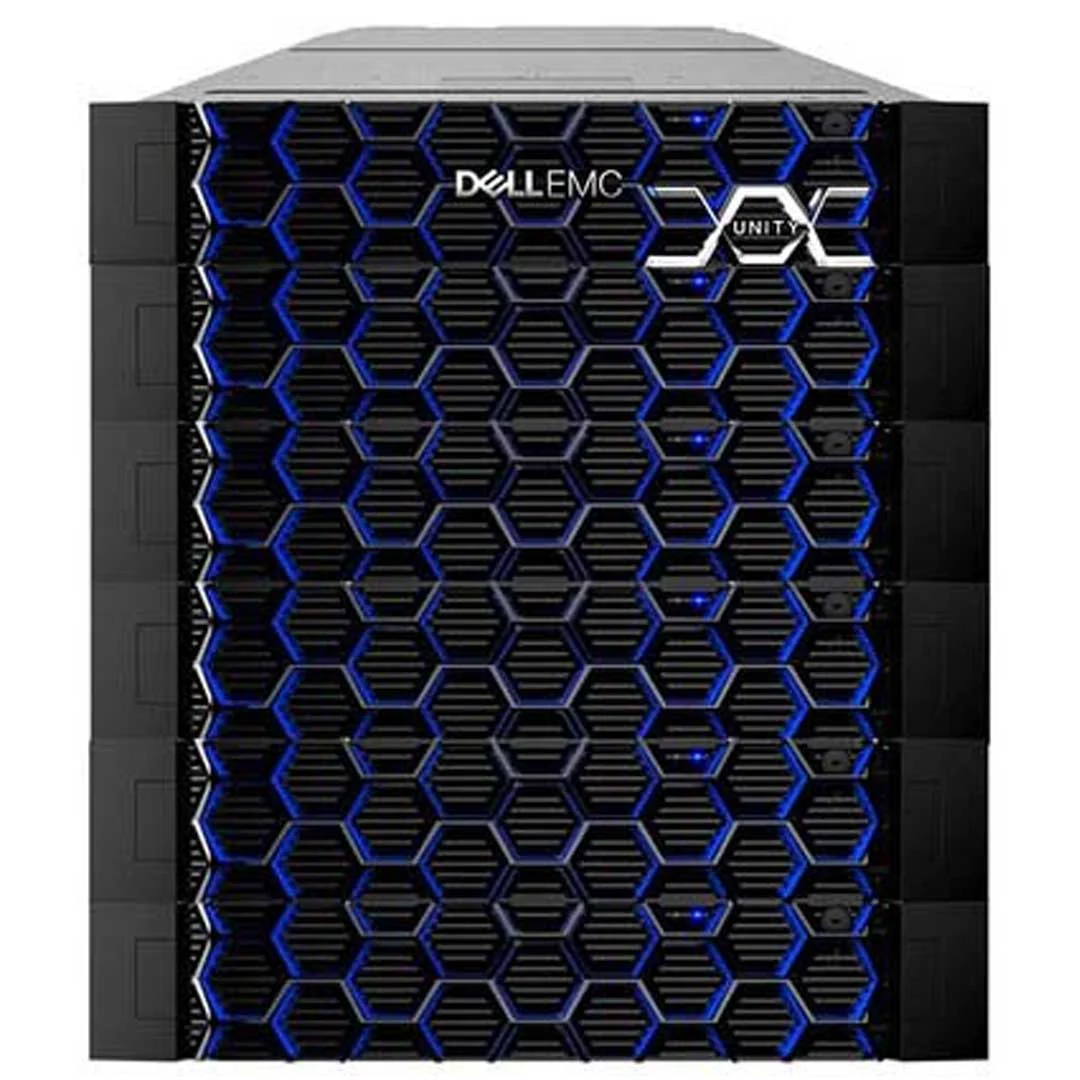

O Dell EMC Unity 650F is an all-flash storage system designed to deliver high performance with impressive scalability and rugged reliability. This model is ideal for businesses looking to handle large volumes of data without compromising speed or efficiency, supporting a variety of mission-critical applications in SAN (Storage Area Network) and NAS (Network Attached Storage) environments.
Technical Specifications
- Format: 2U, maintaining a compact profile and saving precious rack space.
- Maximum Drives (Dell Unity OE 4.1 and later): Up to 1.000 units, allowing for significant expansion capabilities.
- Maximum Gross Capacity: Up to 16PB, designed for fast-growing organizations with large volumes of data.
- Supported Drive Types: SAS, and Flash, providing flexibility to balance between cost and performance.
- RAID Options: Available configurations include 1/0, 5, and 6, offering data protection and increased performance.
- Maximum Memory: 256 GB DDR4, ensuring high performance in heavy data operations and demanding workflows.

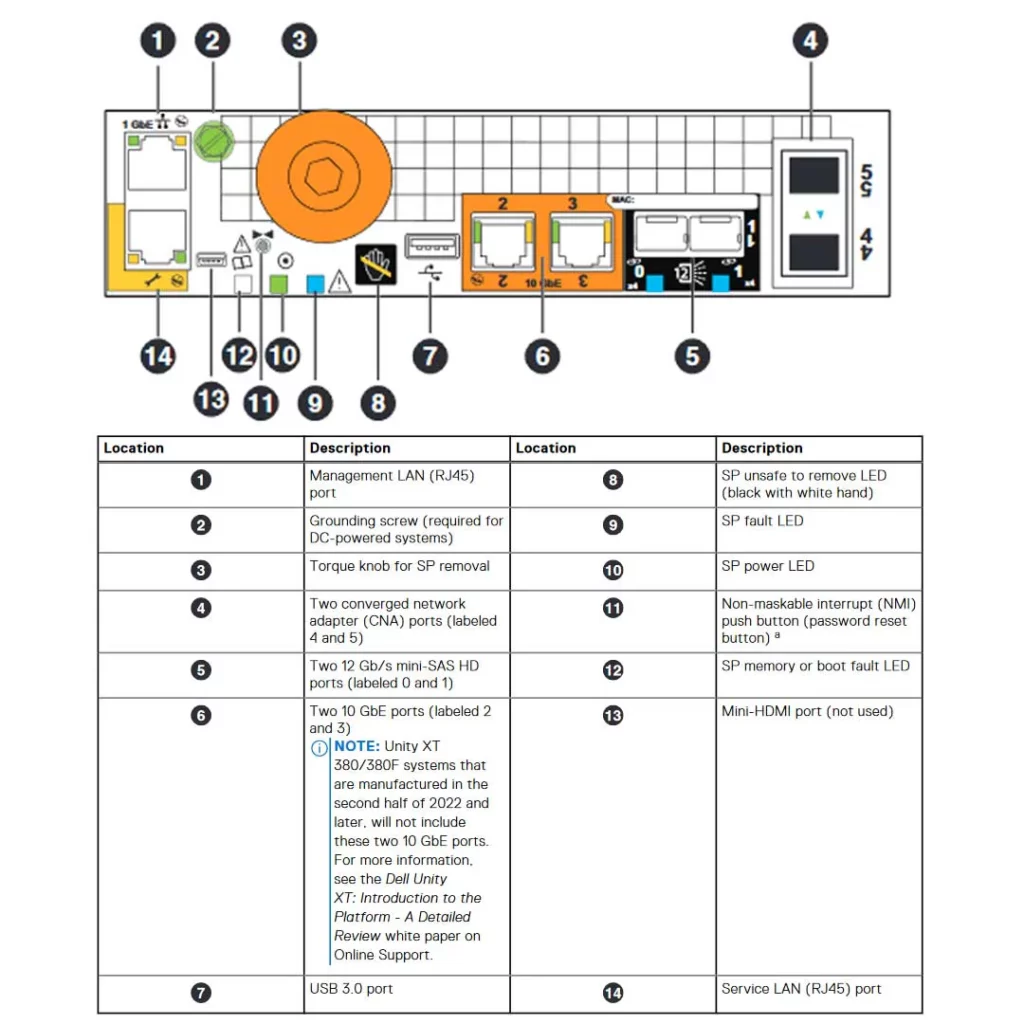

Storage Processor (SP) Features

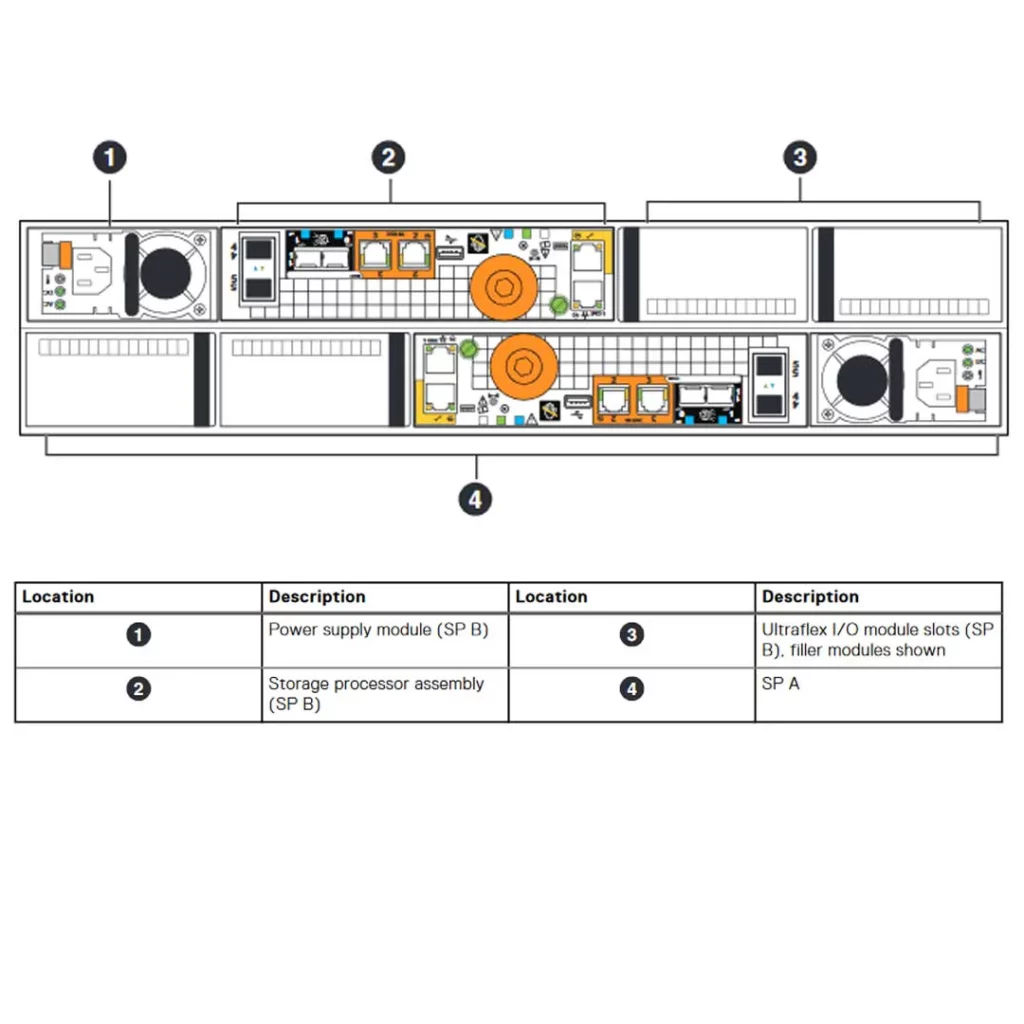

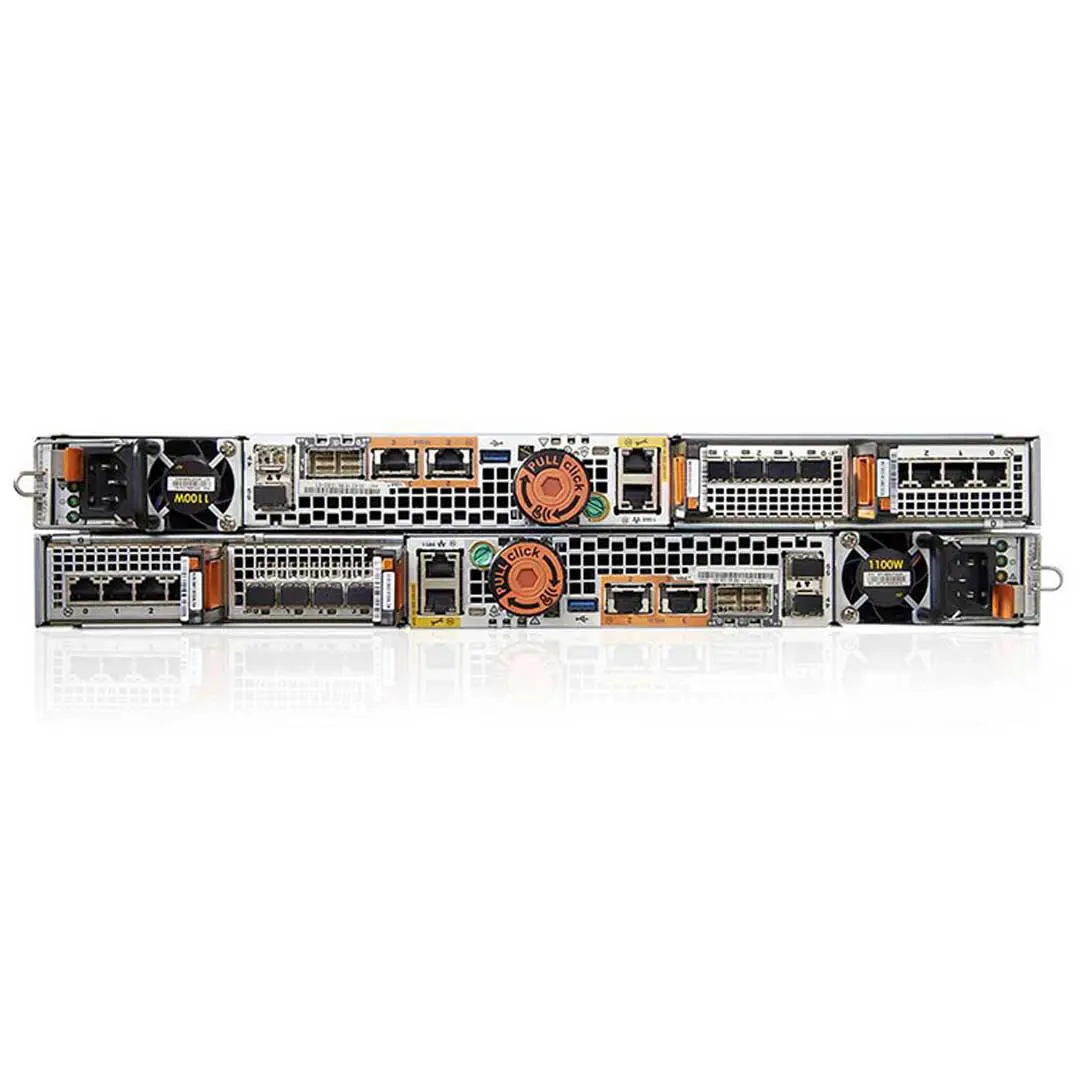

The Unity 650F comes equipped with two Storage Processors that ensure high availability and reliability:
| - Processor: Intel Xeon E5-2680 with 14 cores at 2.4 GHz, providing the processing power needed for high volumes of data and intensive applications. |
|---|
- Memory by SP: 256 GB DDR4, distributed across four 64 GB modules, enabling efficient and fast multitasking operations.
- CNA Ports: Two integrated ports per SP, configurable for Ethernet or Fibre Channel, offering connectivity flexibility and support for diverse network architectures.
- 10GBaseT ports: Two ports per SP ensure stable and high-speed network connection.
Expandability and I/O Modules
Each SP is equipped to support up to six different I/O module options via two slots:
| - Available Modules Include: |
|---|
- Four-port 12Gb/s SAS module
- Four-port 16 Gb/s Fibre Channel module
- Four-port 10 Gb/s Optical Module
- Four-port 10GBASE-T module
- Four-port 1GBASE-T module
- Dual-port 10 Gb/s optical
The I/O modules must be installed in pairs to ensure a uniform configuration and system efficiency.
Disk Enclosure Support (DAE)
O Unity 650F supports two main types of DAEs, providing broad flexibility and adaptability:
| - 2U DAE: Supports up to 39 DAEs, each with a capacity of 25 2.5-inch drives. |
|---|
- 3U DAE: Supports up to 12 DAEs, each with a capacity of 80 2.5-inch drives.
Additional benefits
- Intuitive Management Interface: Managing the system is simple and efficient, thanks to an HTML5-based user interface.
- Advanced Data Efficiency: With inline compression and deduplication capabilities, effective storage utilization is maximized, reducing overall operational costs.
- High Reliability: Redundant power supplies, supporting both AC and DC, ensure that the system operates uninterruptedly, even during power failures.
- File and Block Support: Integration with support for file and block operations, including FC, iSCSI and FCoE, increasing the system's adaptability to diverse network demands.
O Dell EMC Unity 650F All-Flash offers a complete storage solution for companies looking to maximize the performance, efficiency and reliability of their IT operations. This system is designed to evolve along with your strategic needs, ensuring that your applications and data remain accessible and secure.
