Dell EMC Unity 600F ALL Flash Storage – With warranty and technical service for installation or support.
A DC Parts is a company specializing in refurbished DELL-EMC storage and accessories. Our technology experts can help you select and configure the right DELL-EMC storage solution for your specific data needs.
Like all of our equipment, DELL-EMC arrays are fully tested, you can count on worry-free service for many years.
And, if necessary, our team of certified engineers is on hand to provide support for any problems you may have. If you want to speak to a representative about NetApp storage offerings, contact contact us.

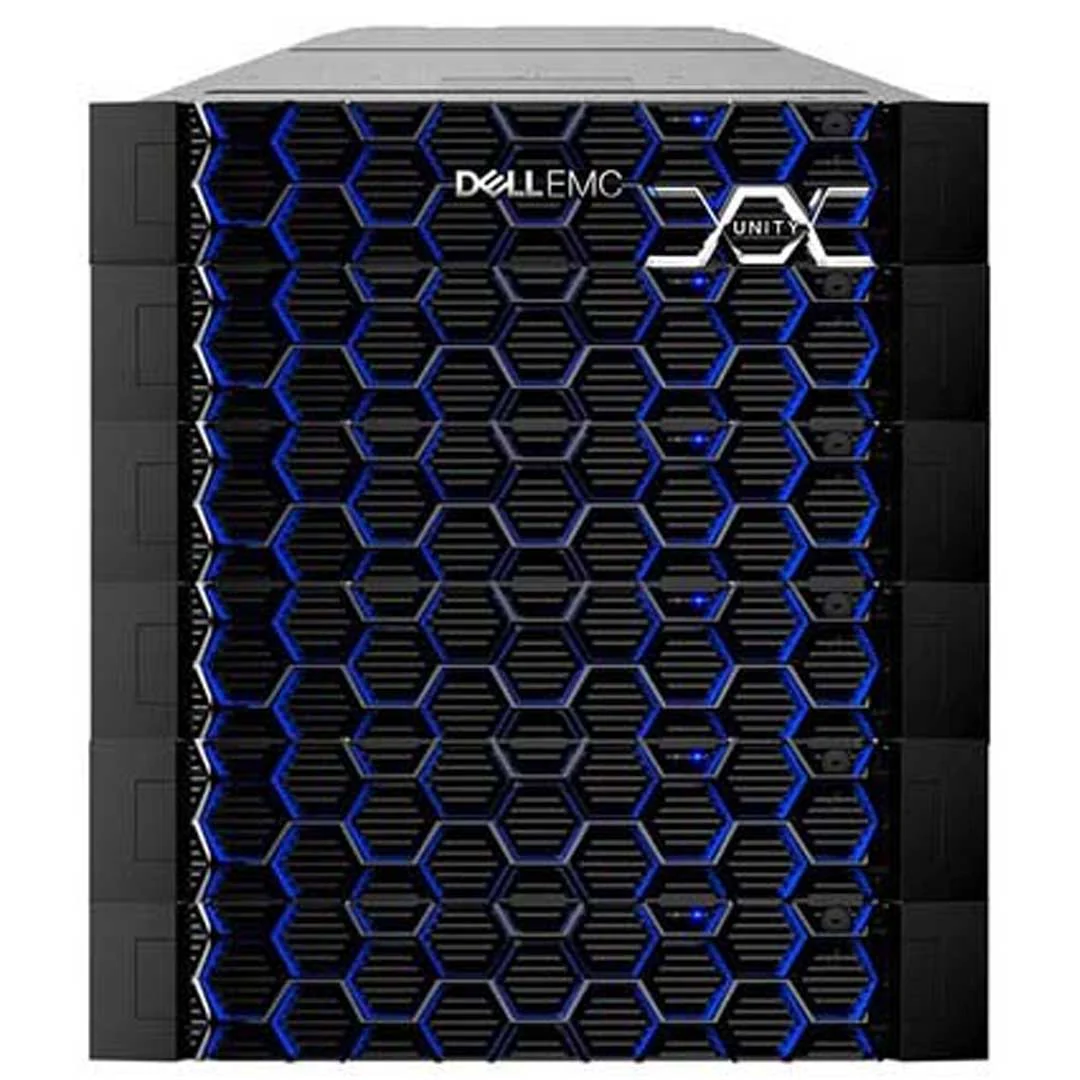

Dell EMC Unity 600F All-Flash: Ultra-High Capacity Storage Solution
O Dell EMC Unity 600F is a next-generation flash storage system designed to deliver superior performance and ultra-low latency. Ideal for businesses seeking robust solutions for their critical storage needs, this model is built to support SAN (Storage Area Network) and NAS (Network Attached Storage) environments with ease.
Technical Specifications
- Format: 2U, optimized to maximize space in data center racks while taking up minimal physical space.
- Maximum Drives (Dell Unity OE 4.1 and later): Up to 1.000 units, offering immense expansion capacity.
- Maximum Gross Capacity: Up to 16PB, ideal for fast-growing organizations with large volumes of data.
- Supported Drive Types: SAS and Flash (SSD), providing flexibility between fast and high-capacity storage.
- RAID Options: Available configurations include 1/0, 5, and 6, providing multiple options for optimized protection and performance.
- Maximum Memory: 256 GB of DDR4 memory, allowing high performance in simultaneous tasks and efficient data processing.
Storage Processor (SP) Features
The Unity 600F system is equipped with two Storage Processors, ensuring high availability and redundancy:
| - Processor: Intel Xeon E5-2680 with 12 cores at 2.5 GHz, ensuring even the most intensive workloads run smoothly and reliably. |
|---|
- Memory by SP: 128GB DDR4, distributed across four 32GB DIMMs, supporting seamless multitasking and data processing operation.
- CNA Ports: Two integrated ports per SP, providing Ethernet or Fibre Channel connection capabilities as needed.
- 10GBaseT ports: Two ports per SP to ensure fast and secure network connectivity.
Expandability and I/O Module Options
Each SP has two slots that support up to six different I/O module options, ensuring connectivity flexibility and scalability:
| - Available Modules Include: |
|---|
- Quad-port 12Gb/s SAS module
- Four-port 16 Gb/s Fibre Channel module
- Four-port 10 Gb/s Optical Module
- Four-port 10GBASE-T module
- Four-port 1GBASE-T module
- Dual-port 10 Gb/s optical
To ensure system integrity and consistency, I/O modules must be installed in pairs, one module on each storage processor.
Disk Enclosure Support (DAE)
O Unity 600F supports two main types of DAEs, ensuring that capacity can be expanded as needed:
| - 2U DAE: Supports up to 39 DAEs, each with 25 2.5-inch drives. |
|---|
- 3U DAE: Supports up to 12 DAEs, each with 80 2.5-inch drives.
Additional Benefits and Features
- Guided by Intuitive Management Interface: Easy system administration through the HTML5-based Unisphere interface.
- Superior Data Efficiency: Inline compression and deduplication capabilities to maximize storage utilization and reduce operational costs.
- Advanced Reliability: Redundant power supplies (AC and DC) ensure operational continuity during power failures.
- File and Block Support: Integration supported for both file and block operations, including FC, iSCSI, and FCoE, enabling broad deployment versatility.
O Dell EMC Unity 600F All-Flash is the ideal solution for companies that need high-performance and completely flexible storage, ensuring that all critical applications operate efficiently and without interruptions. This platform is designed to evolve with your IT needs, allowing growth without compromising performance or reliability.
