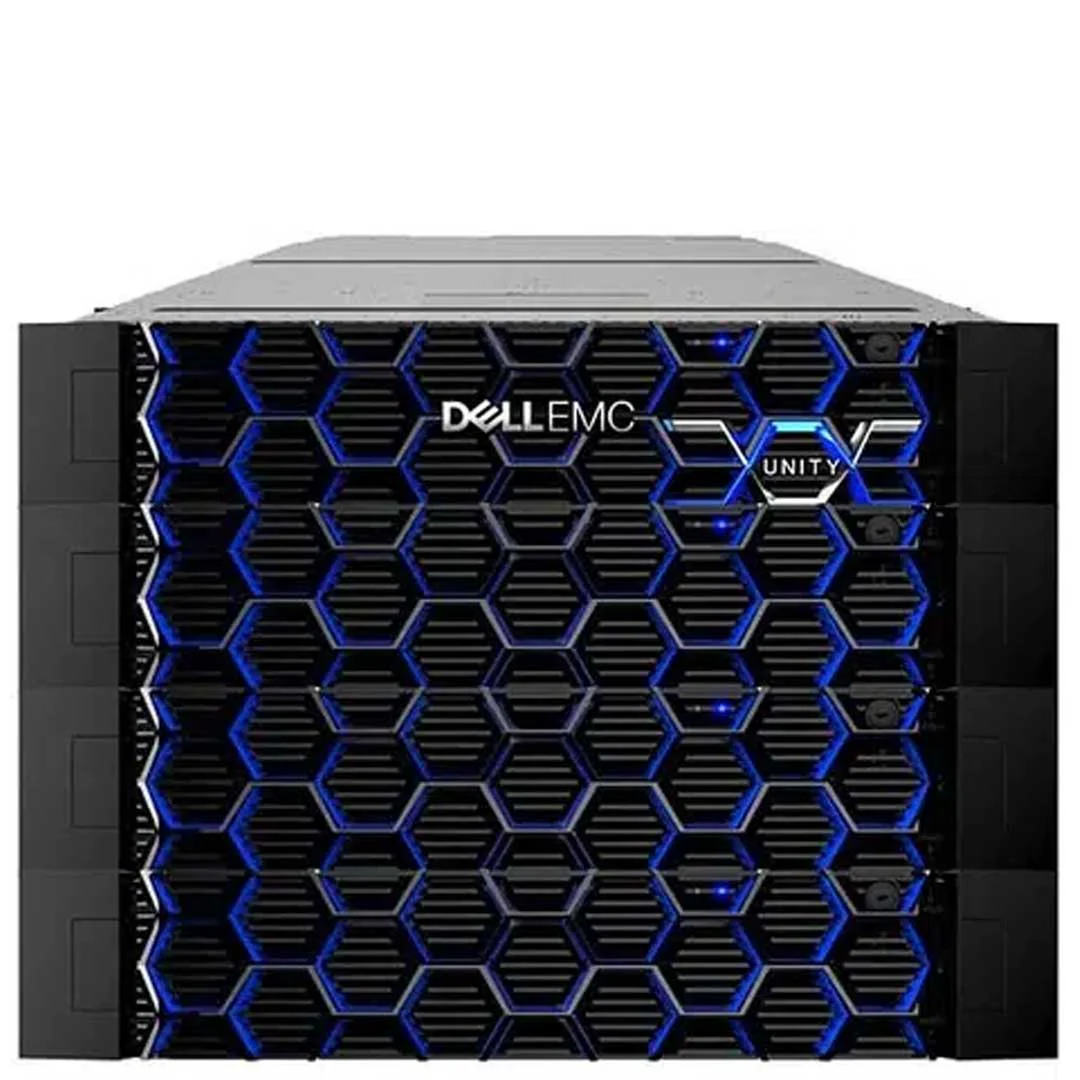

EMC Unity 500F

Dell EMC Unity 500F ALL Flash Storage – With warranty and technical service for installation or support.

A DC Parts is a company specializing in refurbished DELL-EMC storage and accessories. Our technology experts can help you select and configure the right DELL-EMC storage solution for your specific data needs.

Like all of our equipment, DELL-EMC arrays are fully tested, you can count on worry-free service for many years.

And, if necessary, our team of certified engineers is on hand to provide support for any problems you may have. If you want to speak to a representative about NetApp storage offerings, contact contact us.

Dell EMC Unity 500F All-Flash: Robust, High-Performance Storage

O Dell EMC Unity 500F is a flash storage solution designed to deliver exceptional performance and low latency, ideal for meeting the demands of critical enterprise applications. This platform is specially adapted for SAN (Storage Area Network) and NAS (Network Attached Storage) environments, offering flexibility and scalability.

Technical specifications:

• Maximum Units: Supports up to 500 drives with Dell Unity OE 4.1 or later, and up to 350 with OE 4.0, providing flexibility to adapt to expansion needs.
• Maximum Gross Capacity: Up to 8PB, providing massive-scale storage for growing businesses.
• Supported Drive Types: SAS and Flash (SSD), ensuring a balance between speed and cost.
• RAID Options: 1/0, 5, 6, offering different levels of data protection and performance depending on business demands.
• Maximum Memory: 128 GB, ensuring high performance in data processing.

Storage Processor (SP) Features:

• Processor: Intel Xeon E5-2660 with 10 cores at 2.6 GHz, providing robust processing power for intensive workloads.
• Memory by SP: 64 GB DDR4, distributed in 4 16 GB DIMMs, ensuring multitasking capacity and high response in data operations.
• CNA Ports: Two built-in ports per SP, configurable for Ethernet, iSCSI, or Fibre Channel operations.
• 10GBaseT ports: Provide fast, stable network connectivity for critical operations.

I/O Modules and Expandability:

• Connection Options:
  • Four-port 12Gb/s SAS module
  • 16 Gb/s Fiber Channel Module
  • 10 Gb/s optical module
  • 10GBASE-T Module
  • 1GBASE-T Module
  • 10 Gb/s Optical

To ensure system uniformity and stability, I/O modules must be installed in pairs, one in each SP.

Disk Enclosure Support (DAE):

• 2U DAE: Up to 19 enclosures of 25 2.5-inch drives.
• 3U DAE: Up to 5 enclosures of 80 2.5-inch drives.

This support allows the system to scale as needed, simplifying growth and storage integration.

Key Benefits:

• Highly Flexible Scalability: Supports a wide range of expansion, ideal for growing with business demands.
• Simple Management Interface: An HTML5-based interface that facilitates system administration and monitoring.
• Versatile Connectivity: Supports file and block operations including FC, iSCSI, and FCoE, meeting diverse connectivity needs.
• High Reliability: Redundant AC and DC power supplies provide protection against power failures, ensuring operational continuity.

This solution offers a powerful combination of performance, cost-effectiveness and flexibility to meet the modern storage needs of any organization. It is the ideal choice for companies looking to maximize the efficiency and responsiveness of their critical operations.
