Dell EMC Unity 450F ALL Flash Storage – With warranty and technical service for installation or support.
DC Parts is a company specialized in storage and accessories. Our technology experts can help you select and configure the right DELL-EMC storage solution for your specific data needs.
Like all of our equipment, DELL-EMC arrays are fully tested, so you can count on worry-free service for years to come.
And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about NetApp storage offerings, please contact us.

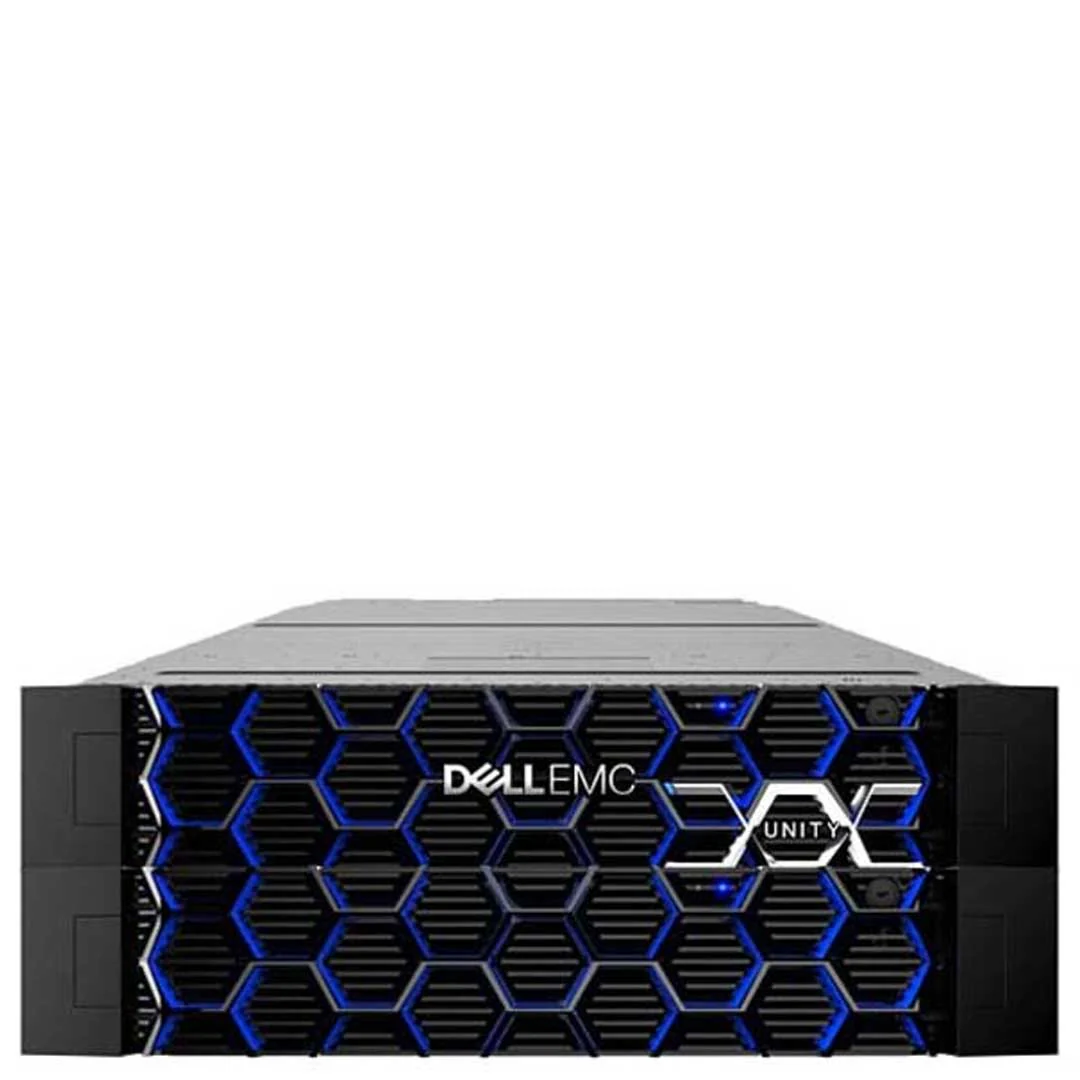

Dell EMC Unity 450F All-Flash: High-Performance Storage
The Dell EMC Unity 450F is an all-flash storage system designed to deliver high performance and low latency for a wide range of enterprise applications in both storage area network (SAN) and network attached storage (NAS) environments. This model is ideal for companies looking to modernize their storage infrastructure with simplicity and flexibility.
Technical Specifications
- Form factor: 2U – A compact design that optimizes rack space.
- Maximum Units: Up to 250 drives supported with Dell Unity OE firmware 4.1 or later.
- Maximum Gross Capacity: 4 PB, allowing broad support for growing environments.
- Supported Drive Types: SAS and Flash (SSD), ensuring flexibility in the choice of storage technology.
- RAID: Supports 1/0, 5 and 6 configurations for varied data protection and efficiency.
- Maximum Memory: 128 GB, providing excellent responsiveness for data processing.

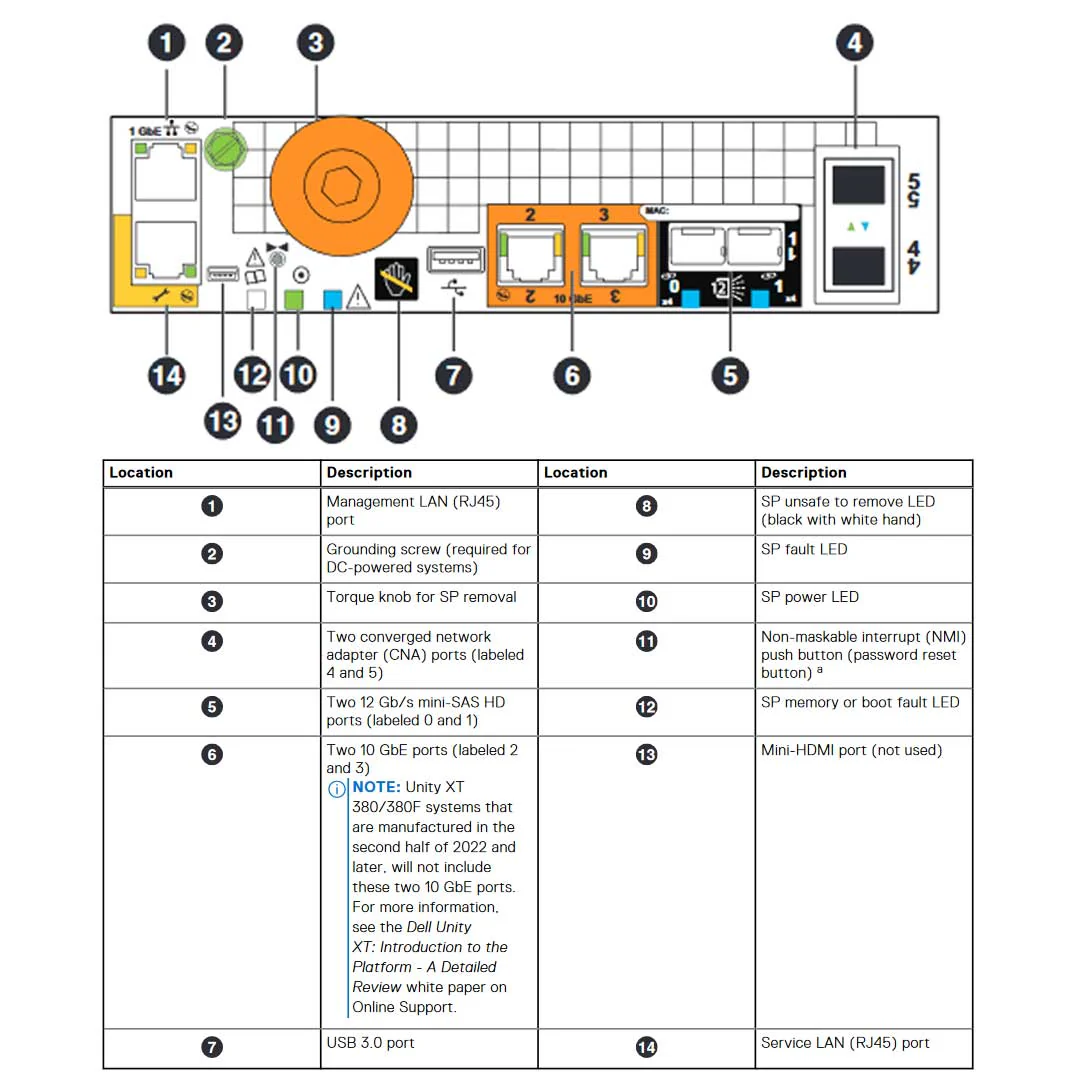

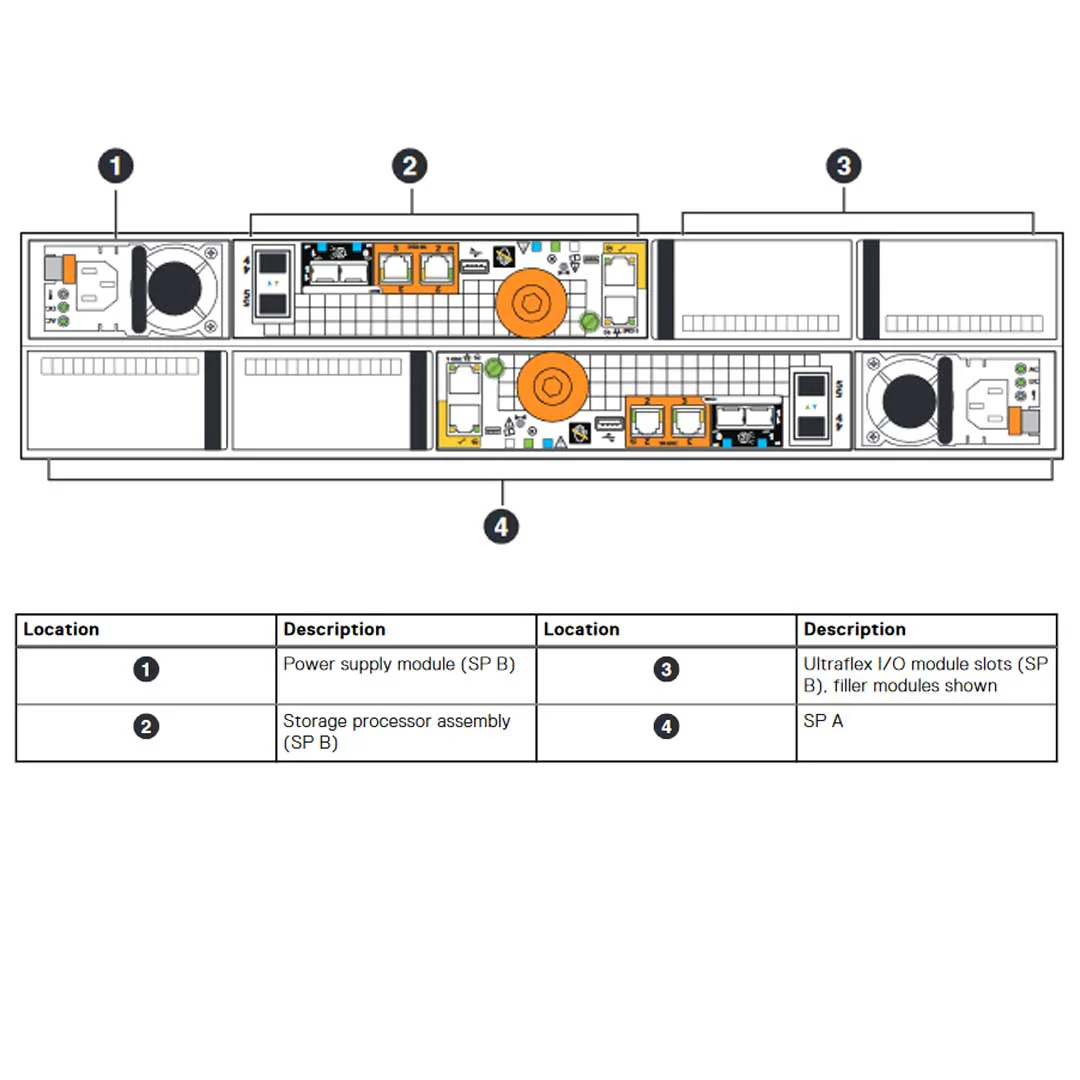

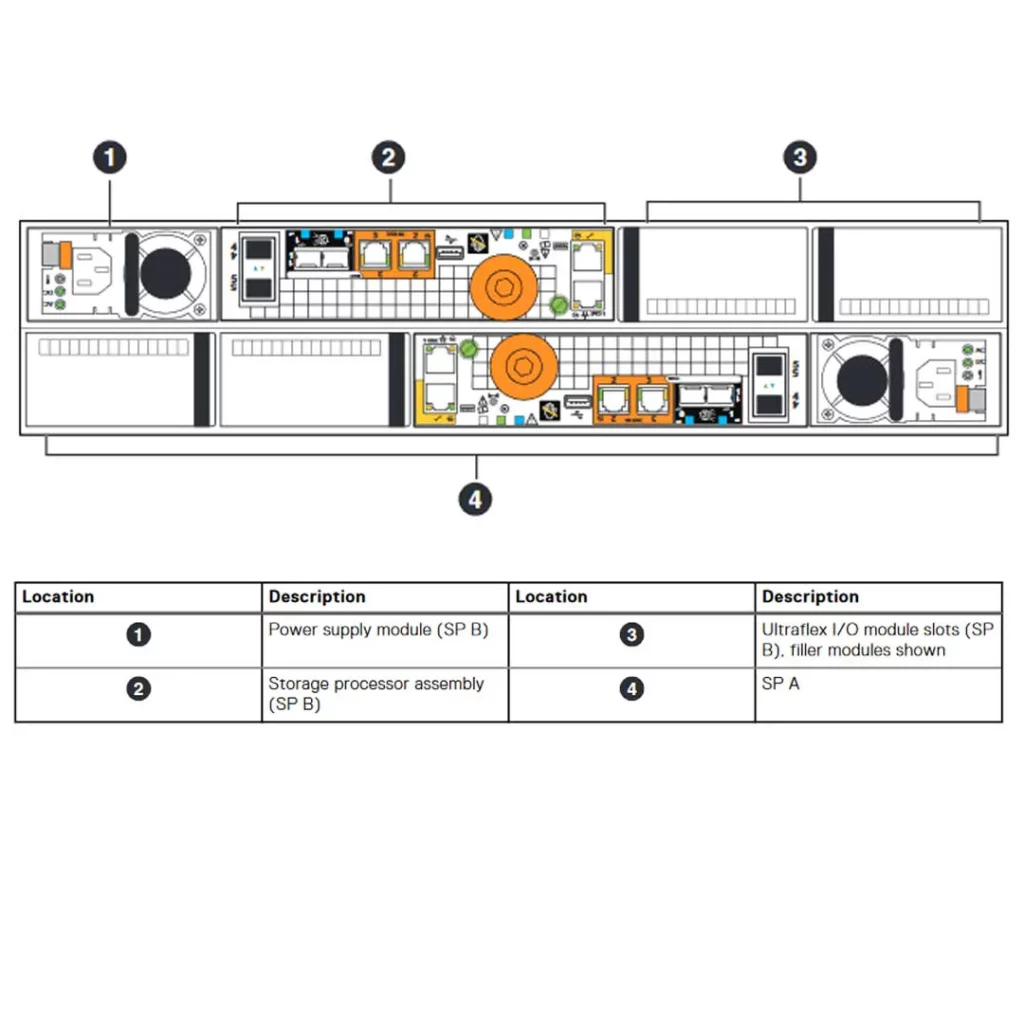

Storage Processor (SP) Features
Each Unity 450F comes equipped with two Storage Processors, ensuring highly available and redundant operations:
| – Processor: Intel Xeon E5-2630 with 10 cores at 2.2 GHz, offering adequate processing power for data-intensive workloads. |
|---|
- Memory per SP: 64GB DDR4 (4x16GB DIMMs), essential for robust performance and multitasking.
- CNA Connections: Two configurable built-in ports, offering Ethernet and Fibre Channel connectivity for maximum network flexibility.
- 10GBaseT Ports: Two ports per SP for fast and stable network connections.
I/O Modules and Expandability
Each SP has two slots that support up to six different I/O module options, providing flexibility and expandability:
| – Available modules include: |
|---|
- SAS de 12 Gb/s
- Fibre Channel de 16 Gb/s
- 10 Gb/s optics
- 10GBASE-T
- 1GBASE-T
When adding new modules, it is important to install in pairs on SPs A and B, ensuring uniformity and system integrity.
Disk Enclosure (DAE) Capacity and Support
The system supports two main types of DAEs, offering flexibility in storage configurations:
| – 2U DAE: Capacity for 25 x 2.5-inch drives. |
|---|
- 3U DAE: Capacity for 80 2.5-inch drives.
This allows the Unity 450F to scale as needed, supporting up to 9 2U DAEs and 2 3U DAEs, depending on capacity demands.
Additional Benefits
- Simple Management Interface: Unisphere based on HTML5 for easy system administration.
- Data Efficiency: Features such as compression and inline deduplication help maximize capacity and reduce operational costs.
- Unified Connections: Support for file and block operations (FC, iSCSI & FCoE), simplifying data management across different protocols.
- Standby Power: Provided by redundant AC and DC sources, ensuring continuous operation in the event of a power failure.
In summary, the Dell EMC Unity 450F All-Flash is a powerful and versatile storage solution that significantly improves the performance of enterprise applications while simplifying storage management and facilitating expansion.
