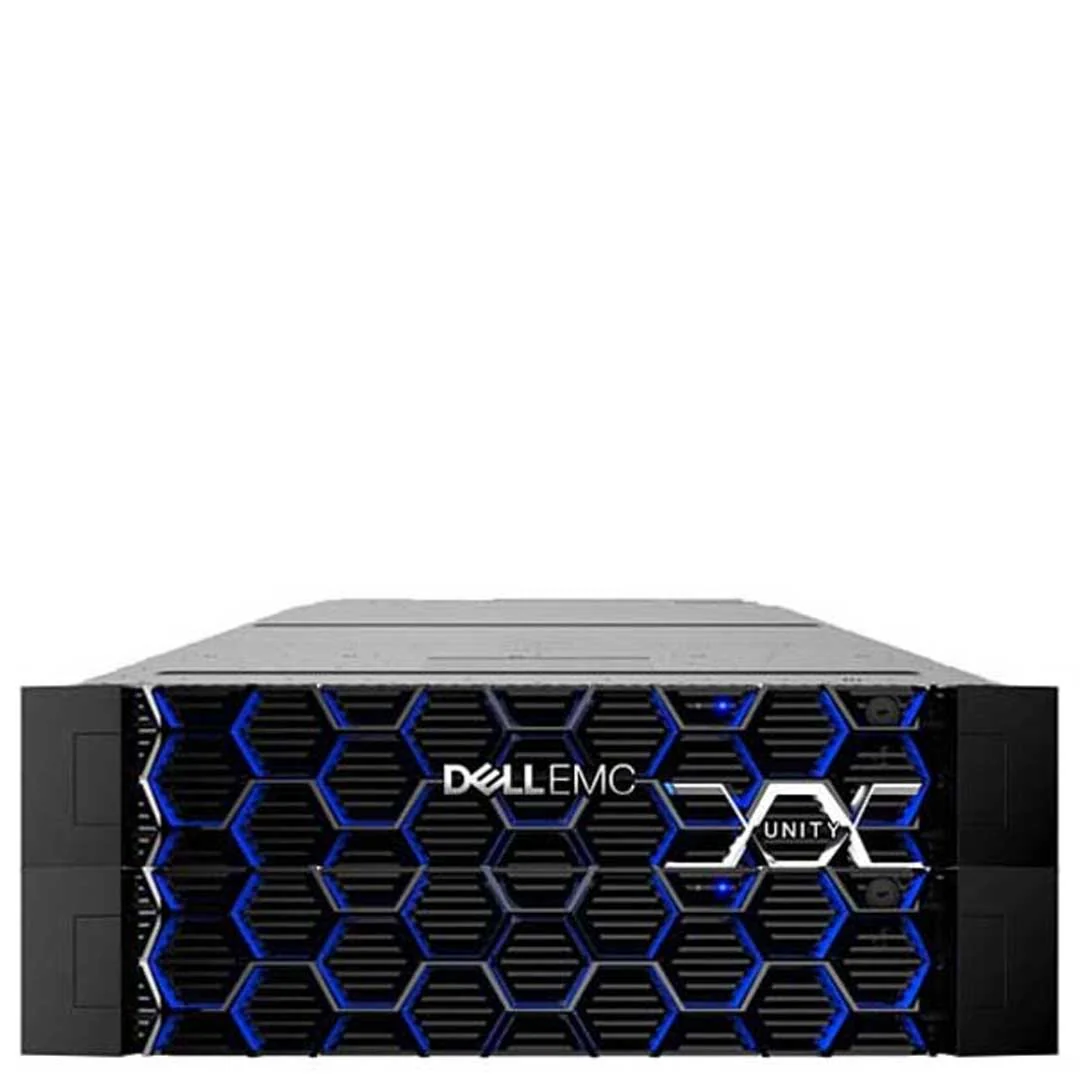

Dell EMC Unity 400 Hybrid – Simplicity and Efficiency in a Compact Design
Overview
The Dell EMC Unity 400 Hybrid is the ideal solution for those seeking advanced features and simplicity in a compact form factor. Designed to deliver the best performance at a cost-effective price, it combines the speed of flash with the cost-effectiveness of disk.
Main Features
- Cabinet Flexibility: Supports 12×3.5” and 25×2.5” disk enclosures for hybrid models, with flash models using only 25×2.5”.
- Storage Processors: Each unit has two processors (SPs) with configurable ports and module slots, allowing high customization.
Performance and Capacity
- FAST and FAST VP Technology: Optimizes tiered storage and high-frequency data access, maximizing efficiency.
- Maximum Gross Capacity: Up to 4PB, supporting SAS, NL-SAS and Flash drives.
- RAID Options: RAID 1/0, 5 and 6, with a maximum memory of 96GB.
Connectivity
- Versatile Protocols: Support for File, Block (FC, iSCSI & FCoE) and Unified, with CNA ports configurable for Ethernet or Fibre Channel.
- I/O Modules: Multiple expansion options, such as 10Gb/s optical and 12-Gb/s SAS modules.
Physical Specifications
- DPE of 12 Units: 8,64 cm x 44,45 cm x 68,58 cm, 29 kg.
- DPE of 25 Units: 8,64 cm x 44,45 cm x 61,39 cm, 20 kg.

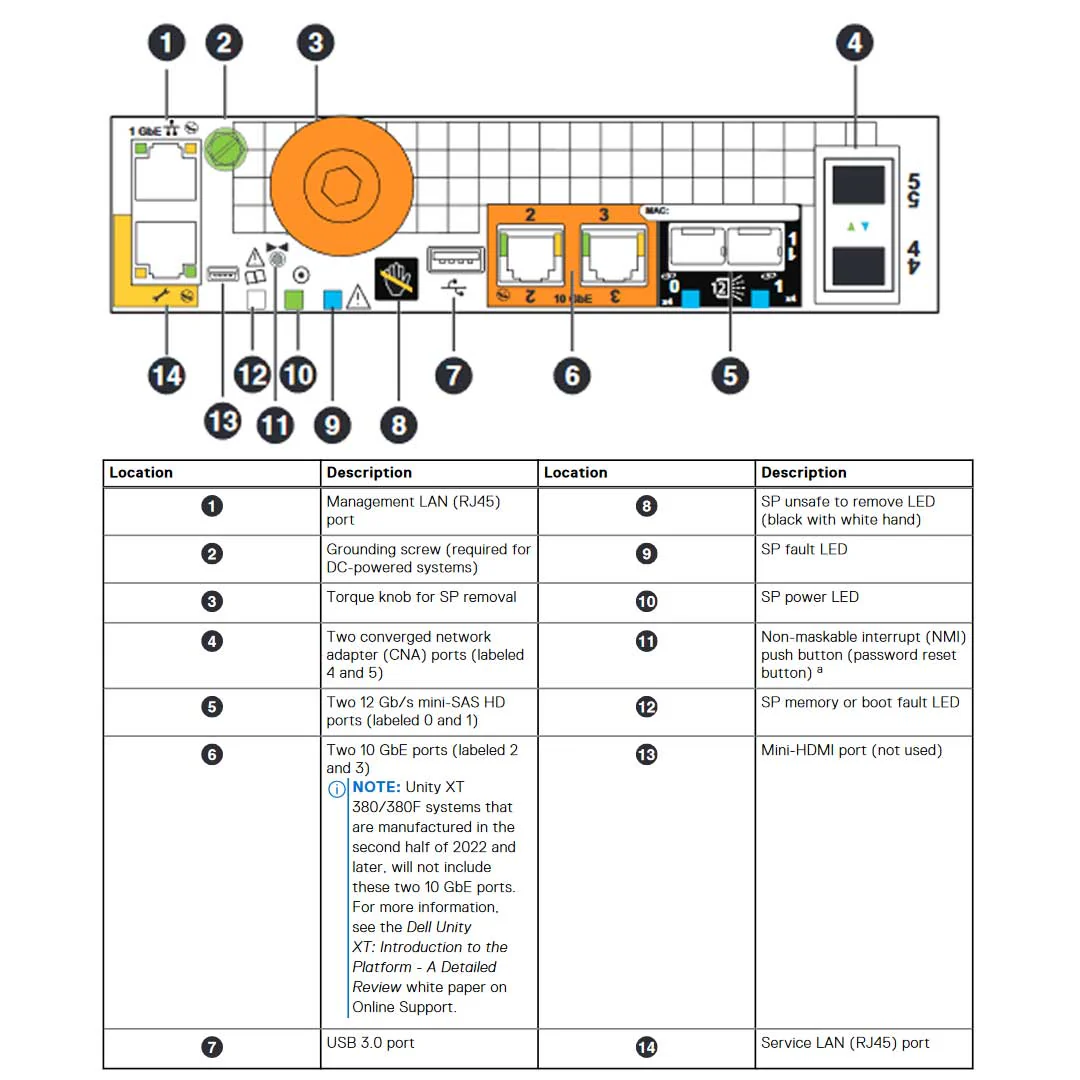

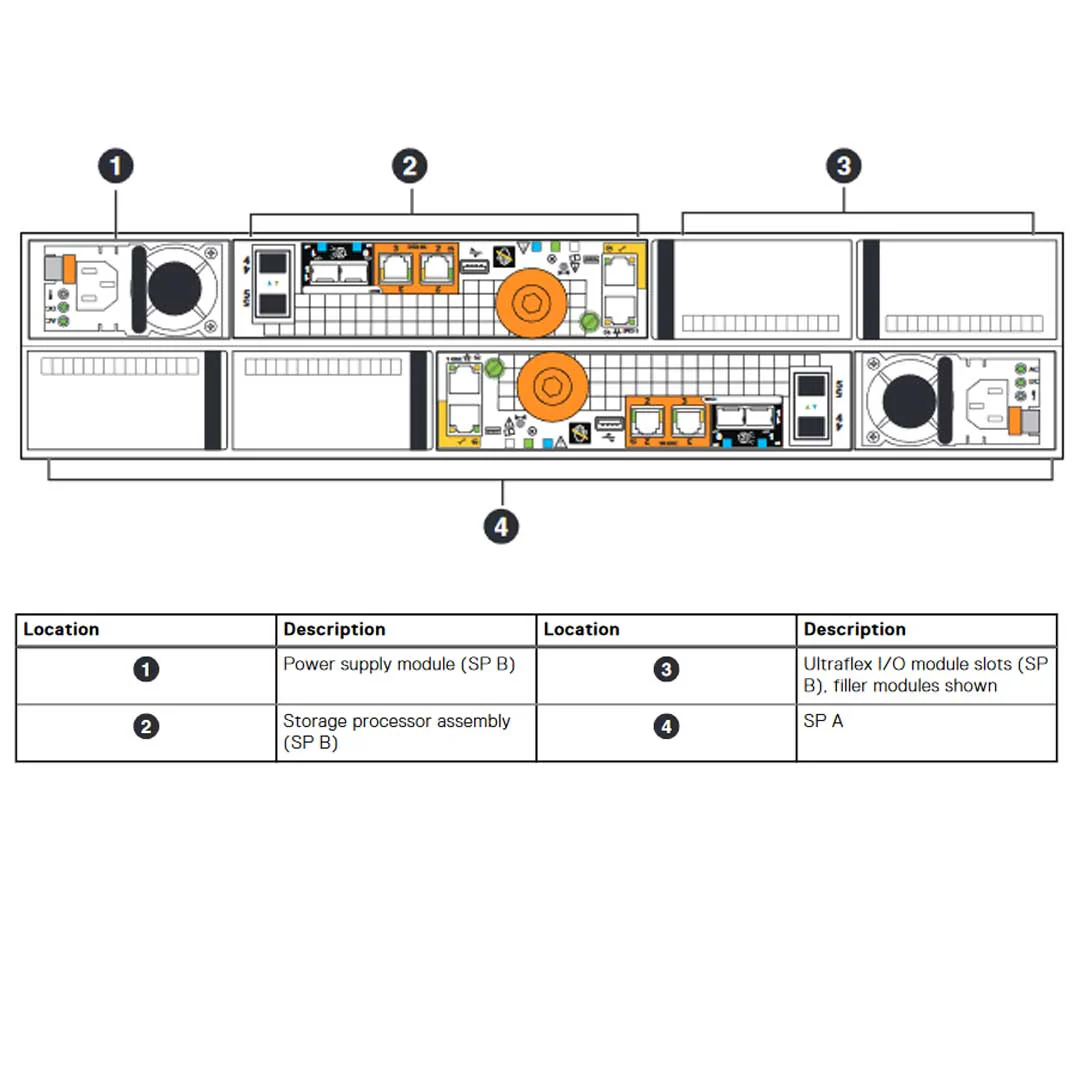

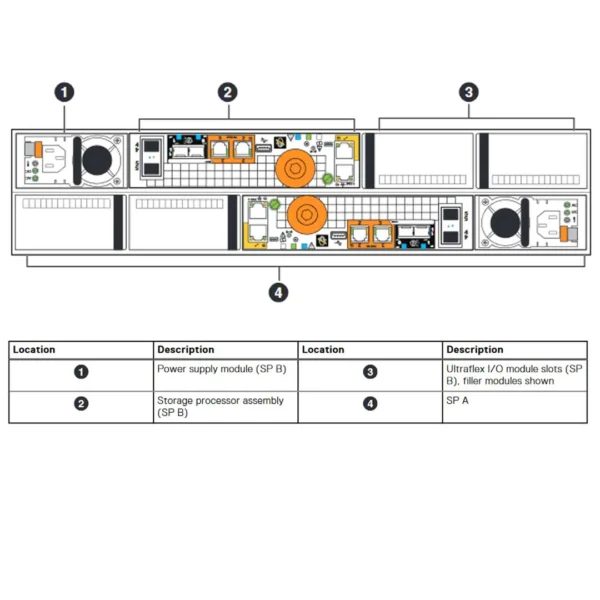

Storage Processor (SP)
- High performance: Powered by 5-core Intel Xeon E2630-8 processors, each SP includes 48GB of DDR4 memory, integrated CNA ports, and PCI 3.0 I/O slots.
CNA Doors
- Flexible Configuration: Ports that support Ethernet (1/10 Gb IP/iSCSI) and Fibre Channel (4/8/16 Gb), with unified configuration for all ports.
I / O modules
- Simplified Expansion: Two slots per SP support SAS, Fibre Channel, and Ethernet modules, making it easy to adapt to your infrastructure needs.
Food
- Standby Source: Compatible with AC 100-240 VAC and DC -39 to -72 V, ensuring continuous and safe operation.
Disk Array Enclosure (DAE)
- Compatibility: Supports up to 15 DAEs or 250 drives, with 2.5-inch and 3.5-inch options for FLASH, SAS and NL-SAS drives.
FAST Cache and FAST VP Features
- FAST Cache: Allows the use of Flash drives as high-capacity secondary cache, optimized for hybrid environments.
- FAST VP: Accelerates performance by dynamically moving data to the appropriate drive technology based on access patterns.
Conclusion
Dell EMC Unity 400 Hybrid is a complete solution for businesses looking for simplicity, efficiency and high performance. For more information, see the official Dell EMC documentation.
Note: This page was last updated on March 30, 2025.
