Dell EMC Unity 350F ALL Flash Storage – With warranty and technical service for installation or support.
A DC Parts is a company specializing in refurbished DELL-EMC storage and accessories. Our technology experts can help you select and configure the right DELL-EMC storage solution for your specific data needs.
Like all of our equipment, DELL-EMC arrays are fully tested, you can count on worry-free service for many years.
And, if necessary, our team of certified engineers is on hand to provide support for any problems you may have. If you want to speak to a representative about NetApp storage offerings, contact contact us.

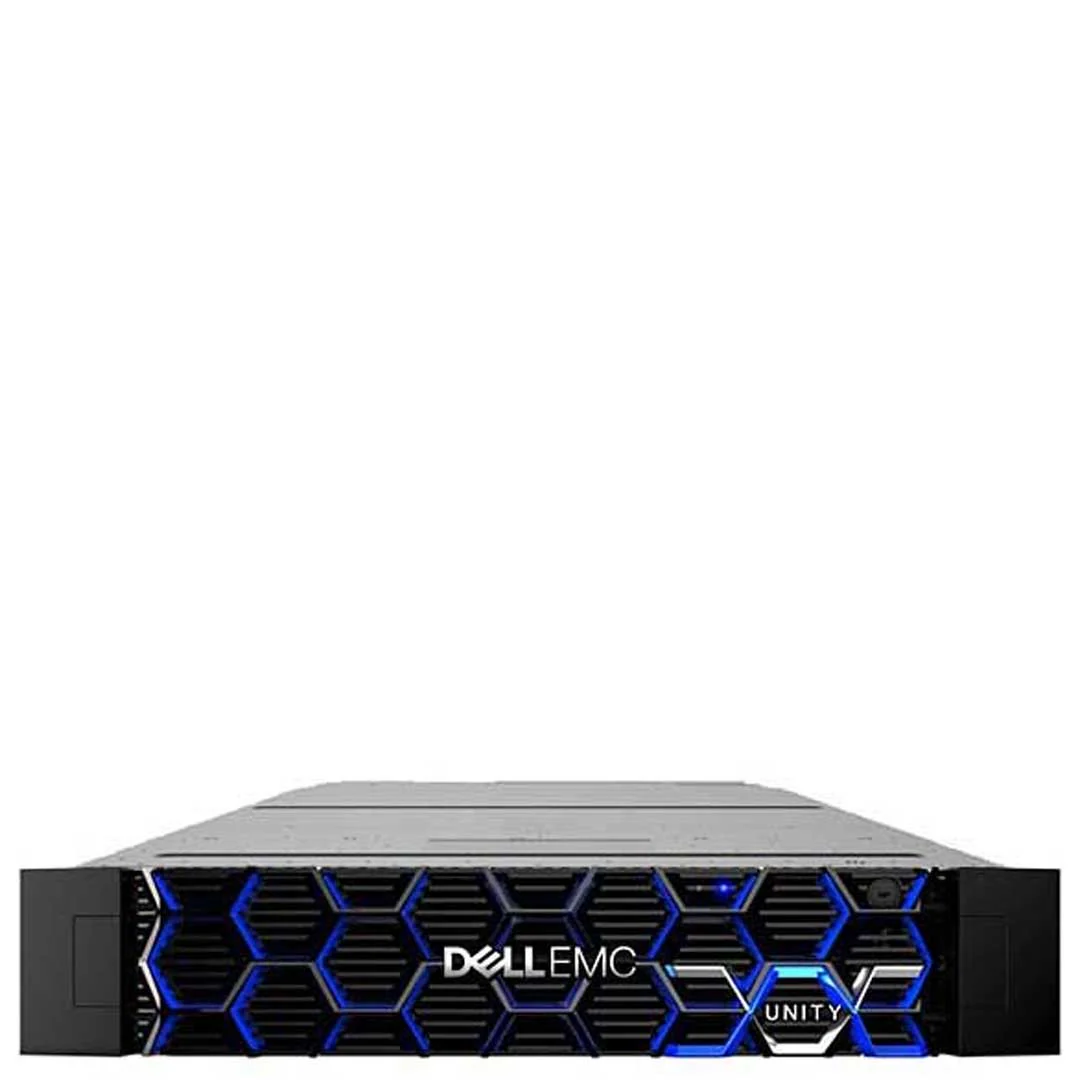

Dell EMC Unity 350F All Flash: High-Performance Storage Made Simple
O Dell EMC Unity 350F is an all-flash storage system designed to deliver high performance and low latency, ideal for a variety of enterprise applications that require fast response times and efficiency. With a modern architecture and robust features, the Unity 350F is the perfect choice for companies looking for a balance between cost, management simplicity and storage power.
Technical Specifications
- Format: 2U – Take up as little space as possible while maximizing capacity.
- Maximum Disks: Up to 150 units for Dell Unity OE 4.1 and later versions.
- Maximum Gross Capacity: Up to 2.4 PB – Enables large-scale storage to meet growing data demands.
- Supported Disks: SAS and Flash – Provides flexibility to choose between fast and high-capacity options.
- RAID: Supports 1/0, 5, and 6 configurations – Offering variable data protection and performance options.
- Maximum Memory: Up to 96 GB – Guaranteed high processing performance.
- No Back-End I/O Modules Supported – Simplifying the architecture and focusing on I/O efficiency.
Capabilities and Benefits
- High Performance All-Flash: Designed exclusively for flash storage, the Unity 350F delivers high IOPS rates and low latency times, serving with excellence critical applications in SAN and NAS environments.
- Simplicity in Management: Equipped with an intuitive HTML5-based management interface called Unisphere, it facilitates system management and storage provisioning, reducing operational complexity.
- Data Efficiency: Features such as inline compression, deduplication, and zero detection help maximize storage capacity while reducing operational costs and physical space requirements.
- Integration and Compatibility: It offers robust support for integration with VMware, Microsoft and OpenStack, enabling effective management in virtualized environments.
- Data Protection and Security: Includes features such as snapshots, local and remote replication, and built-in encryption to ensure data is always secure and available.
- Proactive Support by CloudIQ: Monitoring and predictive analytics tools that help prevent problems before they occur and optimize overall system performance.
Storage Processors (SPs)
The Unity 350F model features two Storage Processors (SPs), ensuring high availability and redundancy. Each SP includes:
| - Processor: 5-core Intel Xeon E2603-6 running at 1.7 GHz – Processing performance suitable for demanding workloads. |
|---|
- Memory: 48 GB DDR4 configured with 3 DIMMs of 16 GB each – Supports multitasking and accelerates data processing.
- CNA Connections: Two integrated ports configurable for Ethernet or Fibre Channel, plus two 10GbaseT ports – Flexibility and speed for different types of networks and storage protocols.
I/O Modules and Expansions
Each SP offers expansion slots supporting multiple I/O module options:
| - Various Options: SAS, Fibre Channel, and Ethernet among others, allowing the infrastructure to adjust according to specific connectivity and performance needs. |
|---|
- Installing Modules in Pairs: Installation must be done in pairs on SPs A and B, ensuring uniformity and stability.
Disc Enclosures (DAEs)
Support for two DAE formats, ensuring flexibility and expandability:
| - 2U enclosures with 25 drives 2.5-inch: Ideal for quickly expanding storage capacity without significantly increasing the space occupied. |
|---|
- 3U enclosures with 80 drives 2.5-inch SSD: Provides even higher storage density to manage data growth without straining physical infrastructure.
Standby Power Supply
Redundant power supply mechanisms to ensure operational continuity even in power failure scenarios:
| - HUNGRY: Single-phase 100 to 240 VAC voltage support, covering a wide range of data center environments. |
|---|
- DC: Compatible with common DC power systems, offering reliable and efficient operation.
To explore how the Dell EMC Unity 350F All Flash can transform your enterprise storage operations, contact our experts today. We’re ready to help you configure a solution that maximizes performance and operational efficiency, ensuring your specific needs are met with the best technology available.
