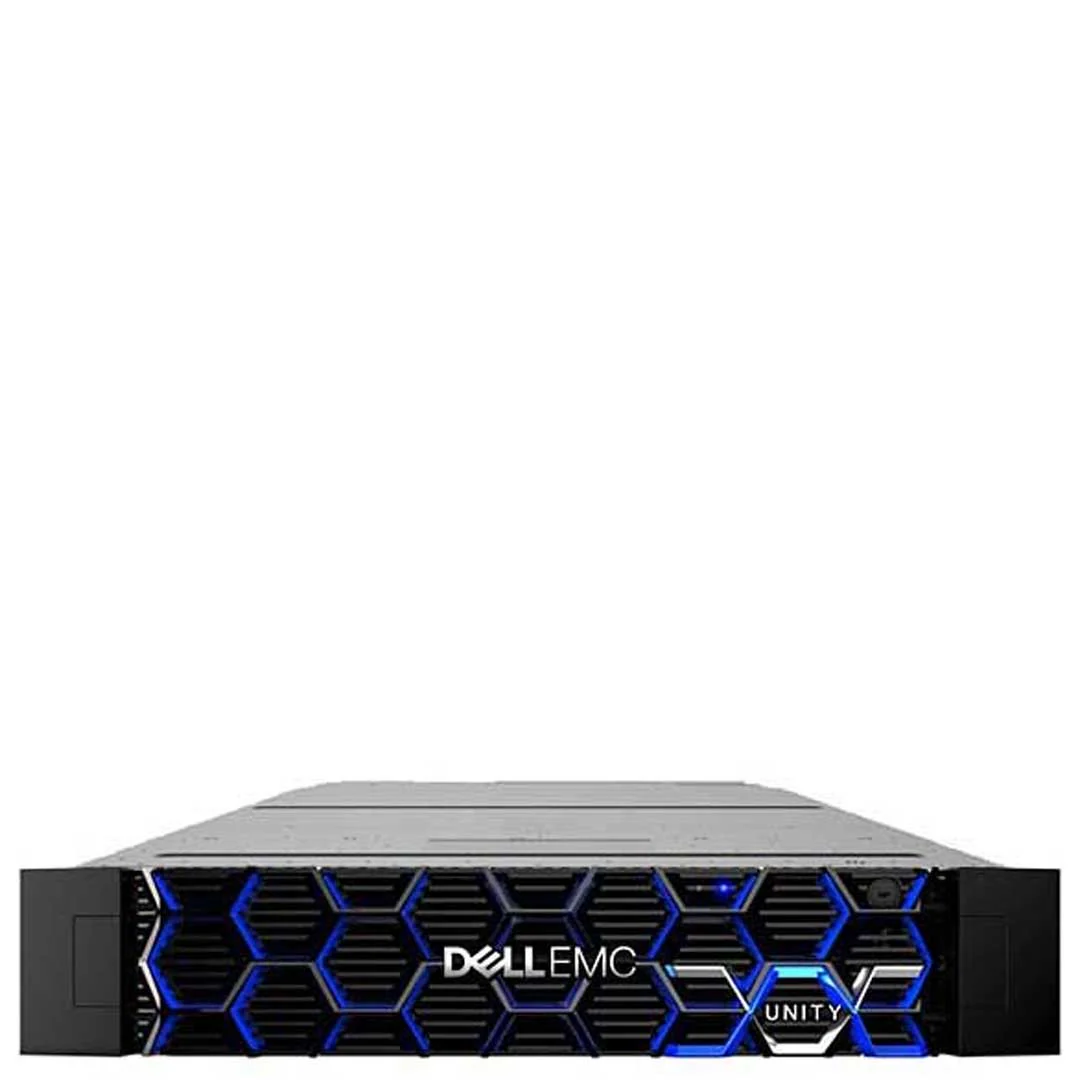

Dell EMC Unity 300F ALL Flash Storage – With warranty and technical service for installation or support.
A DC Parts is a company specializing in refurbished DELL-EMC storage and accessories. Our technology experts can help you select and configure the right DELL-EMC storage solution for your specific data needs.
Like all of our equipment, DELL-EMC arrays are fully tested, you can count on worry-free service for many years.
And, if necessary, our team of certified engineers is on hand to provide support for any problems you may have. If you want to speak to a representative about NetApp storage offerings, contact contact us.
Dell EMC Unity 300F All Flash: Exceptional Performance for Your Storage Needs
The Dell EMC Unity 300F is an all-flash storage solution designed to meet the needs of enterprises seeking exceptional performance and reliability. This system is ideal for environments that demand high IOPS (input/output operations per second) and low latency, delivering fast response times for critical applications such as databases, server virtualization, and virtual desktop infrastructures (VDI). Flash technology ensures that data is accessed almost instantly, optimizing productivity and operational efficiency.
Disk Carrier Support
All-flash models support only one type of disk carrier: the 25×2.5” form factor. This compact and efficient design supports up to 150 drives, allowing the system to reach a maximum raw capacity of 2.4PB (Petabytes). Available disks include SAS (Serial Attached SCSI) and Flash (SSD – Solid State Drive) options, offering a balanced mix of speed and capacity. For example, an environment that requires high speed might opt for a configuration with more SSDs, while an environment that needs large capacity at a lower cost might combine SSDs with high-capacity SAS disks.
Storage Processors (SP)
Each Dell Unity 300F comes with two Storage Processors (SPs) strategically positioned at the rear of the unit. SP redundancy ensures high availability because if one SP fails, the other takes over without interruption. These features include:
| - Processor: Intel Xeon E5-2603 with 6 cores at 1.6 GHz, which delivers consistent performance for data-intensive applications. This processor is suitable for handling large volumes of data and complex read and write operations. |
|---|
- Memory: Each SP has 24GB of DDR4 memory, distributed across 3 8GB DIMMs. DDR4 memory provides low latency and higher bandwidth, which is crucial for maintaining performance in high-demand environments. The memory is used for data caching, further improving response times.
- Connectivity: Two integrated Converged Network Adapters (CNAs) and two 10GbaseT ports provide fast and reliable connectivity. This support is crucial for environments that require efficient data transfers. CNAs enable the convergence of data and storage traffic onto a single network infrastructure, simplifying management and reducing costs.
I/O Slots and Ports
Each SP has two slots that can support up to six different I/O module options. Some of these options include:
| – 12 Gb/s SAS I/O Module: Ideal for connecting expansion enclosures and SAS disks, offering high transfer rates for data at rest. |
|---|
- 16 Gb/s I/O Module for Fibre Channel: Used to connect the system to Fibre Channel SAN (Storage Area Network) networks, providing high-speed connectivity for applications that require low latency.
- 10 Gb/s Optical I/O Module: Allows connection to high-speed Ethernet networks via fiber optic cables, ideal for environments that require high bandwidth.
- 10GBASE-T I/O Module: Provides 10 Gb/s Ethernet connectivity over twisted-pair cables, a more cost-effective option for high-speed connections over shorter distances.
The correct I/O module must be selected based on the specific connection and storage capacity requirements. For example, an environment using a Fibre Channel SAN will need a 16 Gb/s module, while an environment using iSCSI may opt for a 10GBASE-T module. Both SPs should have the same type of I/O modules in the same slots to ensure consistency and simplicity of management, facilitating maintenance and avoiding incompatibilities.
Disk Enclosure (DAE)
O Dell EMC Unity 300F supports two main types of DAE's (Disk Array Enclosures):
| - 2U 25-drive DAE with 2.5-inch disks. This type is generally used to optimize space utilization and allow for simplified scalability. The density of 25 disks in a 2U space allows for maximizing storage capacity in a rack. |
|---|
- 3U 80-drive DAE with 2.5-inch disks offers higher storage density for locations that need to maximize capacity in restricted spaces. This DAE is ideal for environments that require large storage capacity without significantly increasing the occupied area.
The configuration of DAEs and the drives within them should take into account the company’s growth needs, allowing for future expansion without compromising system efficiency. It is important to plan the initial configuration to accommodate future growth, avoiding the need for major reconfigurations in the future.
Energy Support and Sustainability
The stand-by power supply ensures that the system continues to operate during power outages, providing greater security and protection of stored data. The 25 DPE (Disk Processor Enclosure) unit uses:
| - HUNGRY: 100 to 240 VAC ± 10%, single phase, offering flexibility for different regional power requirements. This wide voltage range allows the system to be used in different countries without the need for transformers. |
|---|
- DC: -39 to -72 V DC line voltage, compatible with -48 V or -60 V nominal power systems. This option is common in data centers that use DC power systems for greater efficiency and reliability.
This adaptability allows the Unity 300F to be integrated into a variety of IT infrastructures without the need for major adjustments or reconfigurations. In addition, the system is designed to be energy efficient, reducing power consumption and operating costs.
Explore the advanced capabilities of Dell EMC Unity 300F All Flash and see how it can transform your enterprise storage operations. For more information or to discuss a customized solution for your specific needs, contact our team of technology experts. We’re here to help you choose and implement the right storage solution for your business, ensuring you enjoy maximum performance and efficiency. Our team can assist with system configuration, implementation, and optimization to ensure it meets your specific needs and delivers the best return on investment.
