Dell EMC Unity 300 Hybrid Storage – With warranty and technical service for installation or support.
A DC Parts is a company specializing in refurbished DELL-EMC storage and accessories. Our technology experts can help you select and configure the right DELL-EMC storage solution for your specific data needs.
Like all of our equipment, DELL-EMC arrays are fully tested, you can count on worry-free service for many years.
And, if necessary, our team of certified engineers is on hand to provide support for any problems you may have. If you want to speak to a representative about NetApp storage offerings, contact contact us.

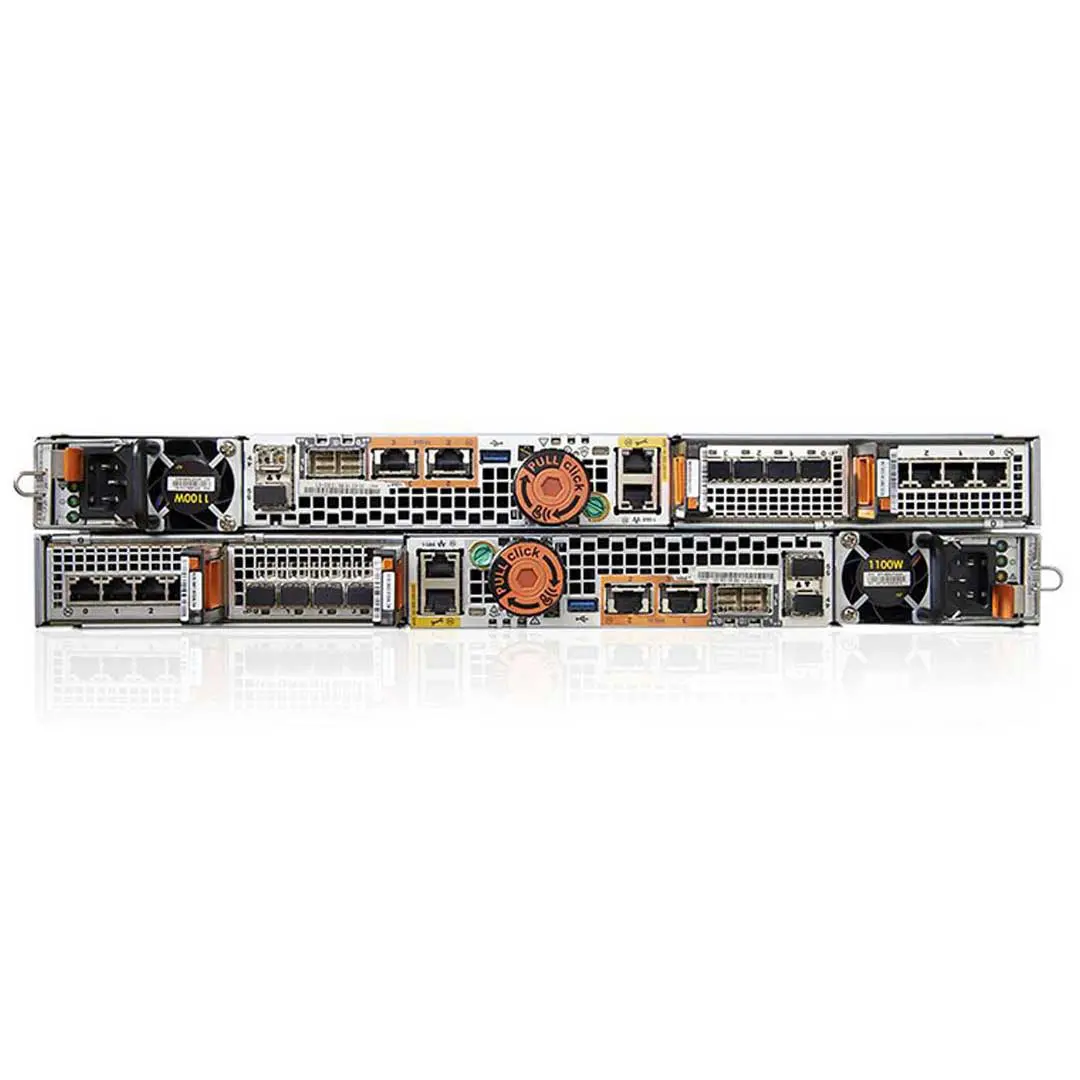

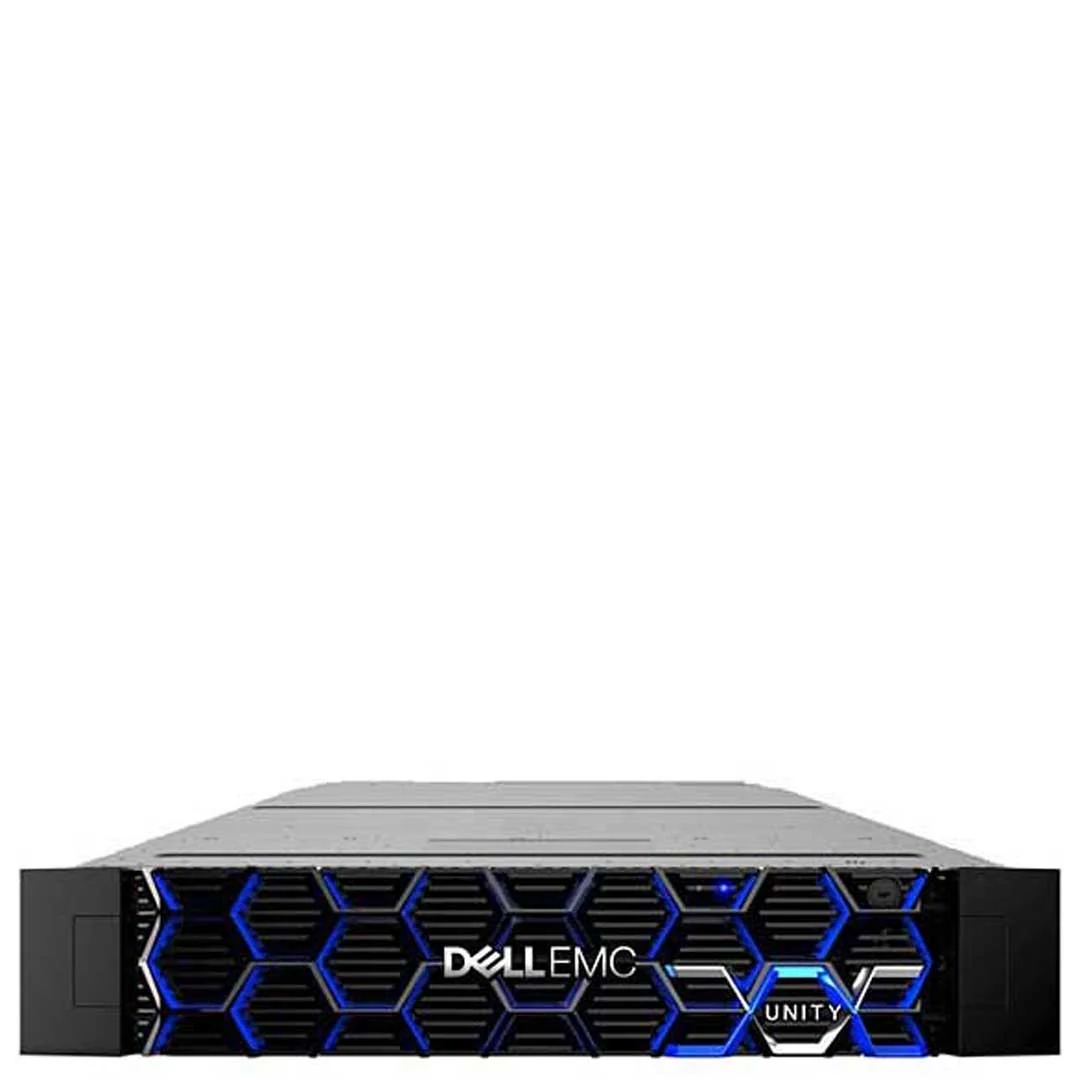

Dell EMC Unity 300 Hybrid – The Complete Storage Solution
Overview
The Dell EMC Unity 300 Hybrid is an advanced solution designed to meet the growing storage demands of today’s enterprise. Combining flexibility and performance, it is ideal for businesses that need to manage large volumes of data efficiently.
Main Features
- Support for Two Types of Cabinets: Hybrid models support 12×3.5” and 25×2.5” disk enclosures. Flash models are only compatible with 25×2.5”.
- Storage Processors: Each unit has two processors (SPs), equipped with CNA ports and module slots, further expanding customization capabilities.
Performance and Capacity
- FAST and FAST VP Technology: Exclusive to hybrid models, these technologies improve tiered storage and high-frequency data accessibility.
- Maximum Gross Capacity: Up to 2.4PB, with support for SAS, NL-SAS and Flash drives.
- RAID Options: RAID 1/0, 5 and 6, with a maximum memory of 48GB.
Connectivity
- Multiple Protocols: Supports File, Block (including FC, iSCSI and FCoE) and Unified, with CNA ports configurable for Ethernet or Fibre Channel.
- I/O Modules: Available for expansion, offering several options, such as 10Gb/s and 12-Gb/s SAS optical modules.
Physical Specifications
- DPE of 12 Units: 8,64 cm x 44,45 cm x 68,58 cm, 29 kg.
- DPE of 25 Units: 8,64 cm x 44,45 cm x 61,39 cm, 20 kg.

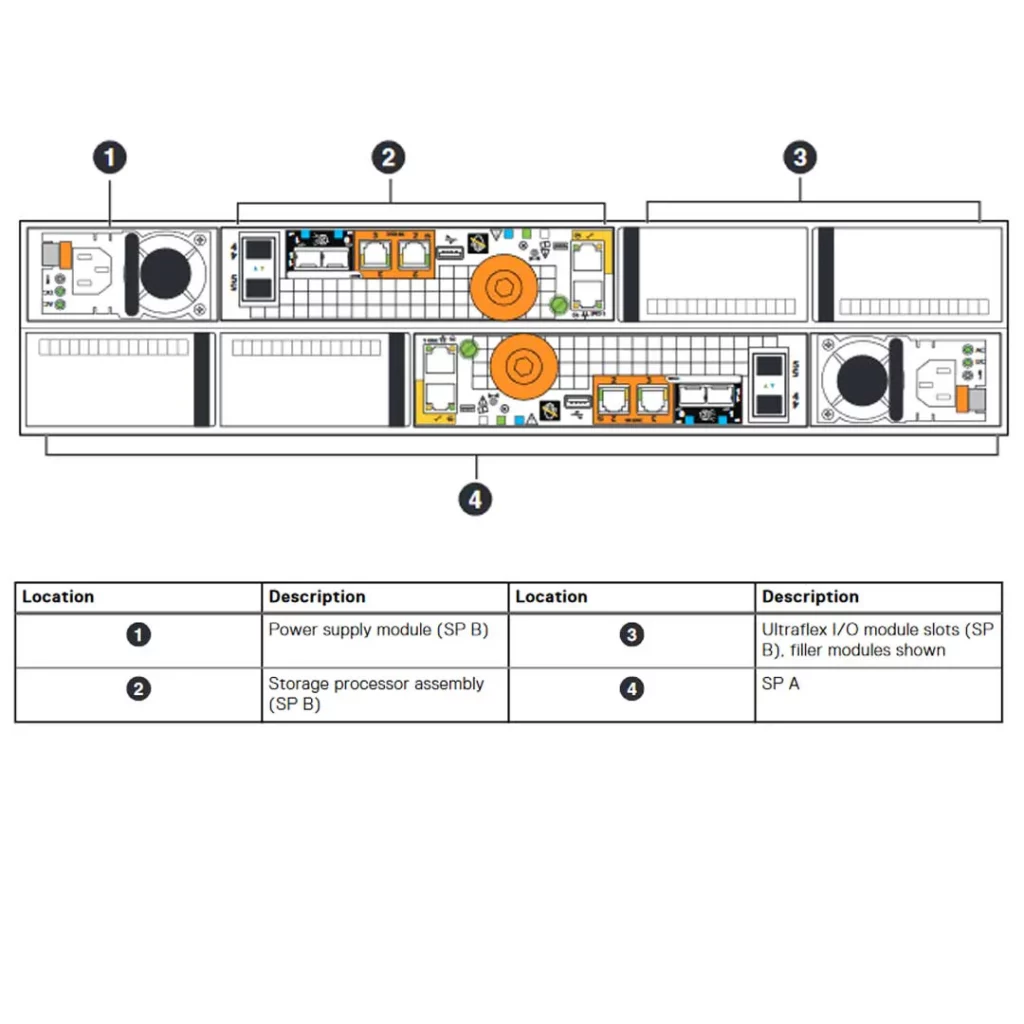

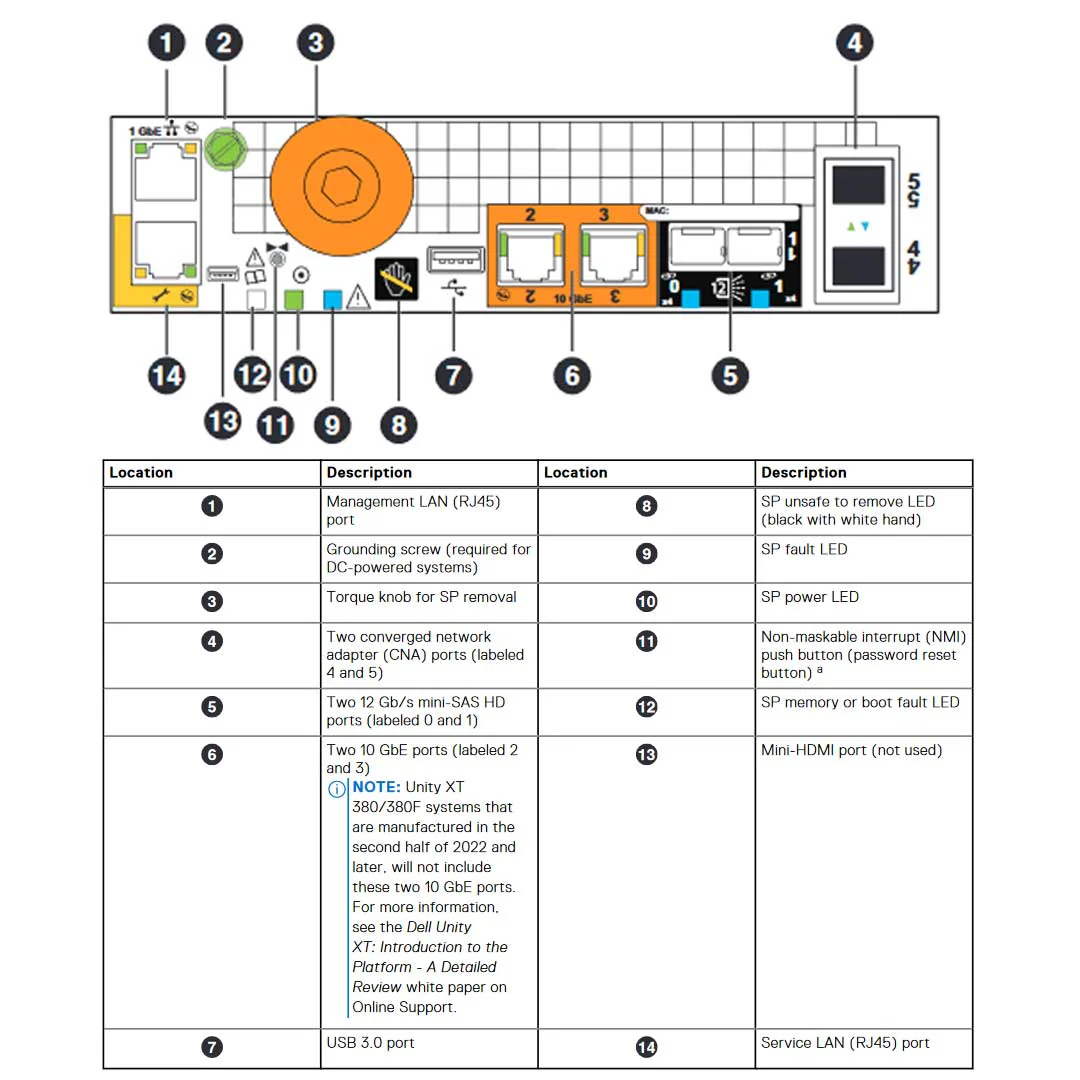

Storage Processor (SP)
- High-Level Performance: Powered by Intel Xeon E5-2603 6-core processors, each SP includes 24GB of DDR4 memory, integrated CNA ports, and support for multiple PCI 3.0 I/O modules.
Food
- Standby Source: Compatible with AC power from 100 to 240 VAC ± 10% and DC line from -39 to -72 V, ensuring safety and energy efficiency.
Drive Array Enclosure (DAE) Compatibility
- Drive Expansion: Compatible with DAEs of up to 9 drives and 150 drives, supporting a variety of drive sizes and formats.
