Dell PowerEdge MX840c CTO Compute Sled Blade – With warranty and technical service for installation or support.
DC Parts is a distributor of new and refurbished DEL equipment and accessories. Our technology experts can help you select and configure the right DELL blade solution for your specific data needs. Like all of our equipment, DELL blades are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about DELL equipment offerings, please contact us.

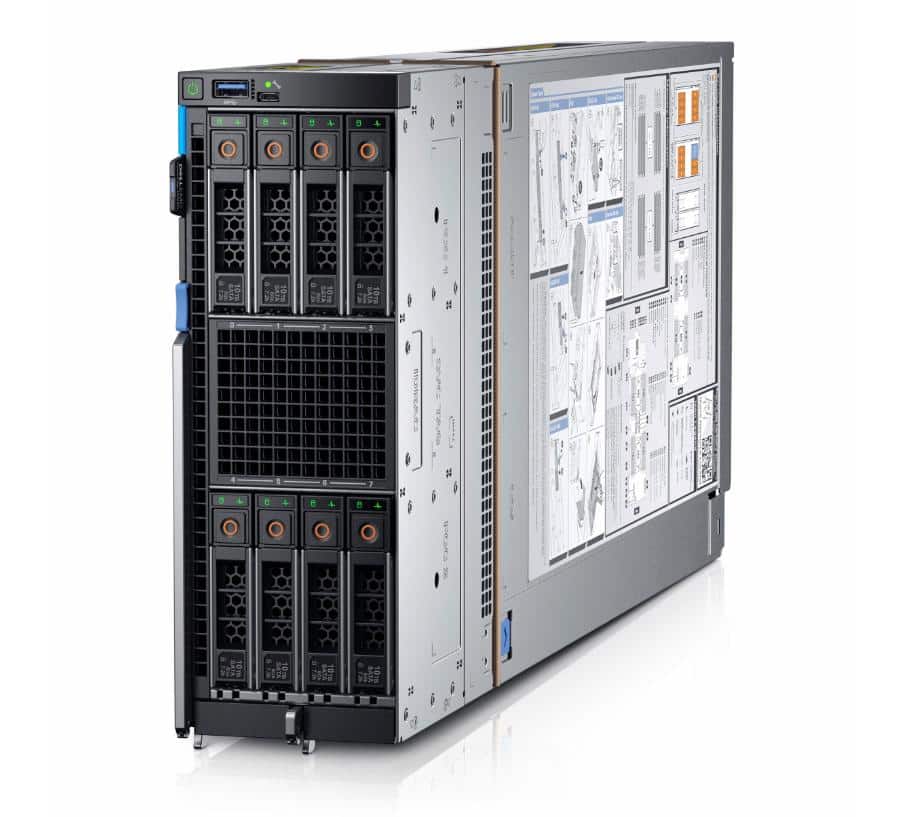

Product Description Dell PowerEdge MX840c CTO Compute Sled Blade Server
The DellPowerEdge MX840c blade server, designed for the PowerEdge MX kinetic infrastructure ecosystem, provides dense four-socket compute, memory, and storage for the modern data center.
Powerful and flexible, four-socket double-width compute sled powered by up to four 2nd Gen Intel Xeon Scalable processors PowerEdge MX840c features a large memory footprint with up to 48 DDR4 DIMM slots. It supports up to eight 2.5-inch SAS/SATA SSD (HDD/SDD) or Express Flash NVMe PCIe drives. The PowerEdge MX7000 chassis supports up to four MX840c servers.
- Exceptionally wide memory configuration capacities of up to 3 TB (RDIMM) or 6.1 TB (LRDIMM); supports up to 192GB NVDIMM for large in-memory applications
- Supports up to 24 slots for Intel OptaneTM DC DCPMM (12.2 TB) persistent memory with a maximum total capacity of 15.36 TB per server
- Choice of optional M.2 Optimized Boot Storage (BOSS) or Internal Dual MicroSD Module (IDSDM) solution to optimize operating system and data storage
- Express Flash NVMe PCIe SSD option for high-performance direct-attached storage requirements
Simplify management and automate intelligently
All PowerEdge servers feature the integrated, agentless Dell Remote Access Controller (iDRAC) 9 integrated with Lifecycle Controller (LC) to simplify the management of server systems. Dell EMC OpenManage Enterprise – Modular Edition (OME-Modular) provides comprehensive management within the PowerEdge MX7000 server chassis. Offering key OpenManage Enterprise systems management skills, the OME-Modular unified Web/RESTful API interface manages the entire PowerEdge MX environment, including computer, storage and networking.
Deploy, monitor, manage, configure, upgrade, troubleshoot and patch Dell EMC servers from any location, regardless of operating system or hypervisor presence or state.
Accelerate system management performance with an improved iDRAC9 processor, up to four times better performance than the previous generation.
Define the foundation for the modern data center
Designed for Dell EMC’s PowerEdge MX kinetic infrastructure ecosystem, the PowerEdge MX840c server, with dense compute, exceptionally large memory capacity and highly scalable storage subsystem, offers the flexibility and agility needed in today’s demanding shared resource environments.
Double width; up to four sleds per PowerEdge MX7000 chassis.
Two or four second-generation Intel Xeon Scalable processors with up to 28 cores per sled, up to 448 cores per chassis.
Up to 48 DDR4 DIMMs slots, maximum 6TB memory, and speeds up to 2933MT/s; up to 192 DIMMS per chassis for up to 24.5 TB of maximum memory.
Supports up to 24 DIMM slots for Intel Optane DC DCPMM persistent memory (12.2 TB) with a maximum total capacity of 15.36 TB per server.
Up to eight 2.5″ drive bays for SAS/SATA (HDD/SDD) and NVMe PCIe SSD support plus optional M.2 boot.
Dynamically configure to optimize workload performance and efficiency
The PowerEdge MX architecture disaggregates and reassigns resources in a granular manner, maximizing utilization while minimizing over-provisioning and idle infrastructure. The fully configurable, compute-free, PowerEdge MX840c maximizes scalability to improve performance and workload optimization.
Scale compute resources with second-generation Intel Xeon Scalable processors and tune performance based on your unique workload requirements.
Flexible memory configurations with capacities from 8 GB to 6 TB; RDIMMs and LRDIMMs for reduced memory load and higher density.
Large high-performance onboard storage with twice as many HDD drives per compute stand.
