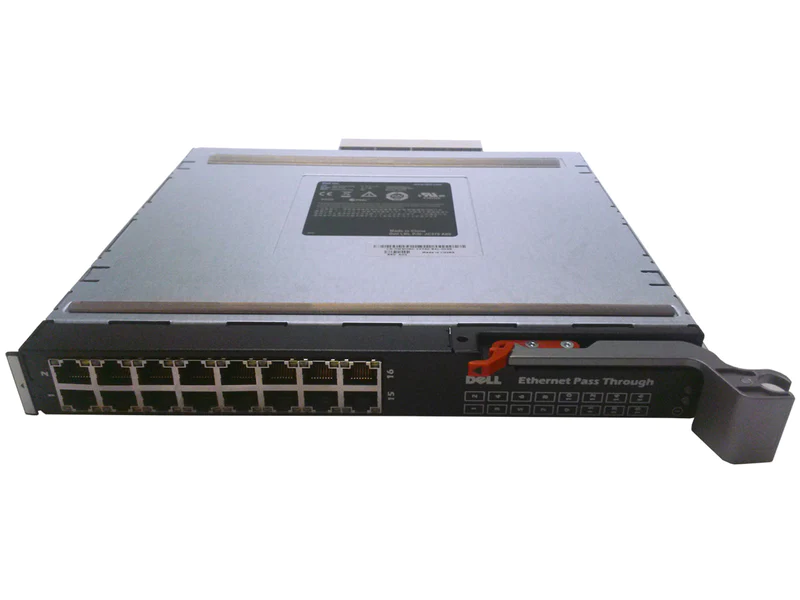

DELL M1000E-10GBE-PTM – 10GbE Passthrough Modules
Anyone looking for exceptional performance should consider Cisco products, which support a variety of density, performance, and service requirements. Cisco hardware is the most widely used networking equipment for enterprise and service provider edge applications.
A DC Parts is a distributor of new and used Cisco equipment. All of our equipment is backed by our warranty, and our manufacturer-certified engineers can help you troubleshoot any issues, including those related to our impressive inventory of new and used Cisco hardware. If you would like to speak with a representative about purchasing Cisco hardware, please contact us.
A DC Parts is a distributor of new and refurbished Cisco storage and accessories. Our technology experts can help you select and configure the right Cisco equipment solution for your specific data needs.
Because all of our equipment is fully tested, you can count on worry-free service for years to come.
And if needed, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about Cisco equipment offerings, please contact us.
DELL M1000E-10GBE-PTM warranty and technical service for installation or support.
10GbE Passthrough Modules for Dell M1000e Blade Enclosures
- Brand: Dell
- Piece number: M1000E-10GBE-PTM
- Specifications:
- Doors:
- 32 total Ethernet ports: 16 internal (server) ports and 16 external (LAN) ports
- 1:1 internal and external port pairs provide dedicated connections for isolated bandwidth between the server and LAN
- All external ports are hot-pluggable, allowing expansion without server disruption
- Options:
- All ports enabled by default
- External ports support 10Gb SFP+ LR optics and SFP+ Direct-Attach (copper) cables (0,5m, 1m, 3m, 5m, 7m)
- Supported Adapters:
- Broadcom 57710 mezzanine card
- Broadcom 57711 mezzanine card
- Intel X520 Mezzanine Board
- Intel X520-x/k mezzanine board
- QLogic QME8142 mezzanine card
- Emulex OCm10102-f-m mezzanine card
- Brocade BR1741M-k mezzanine card
- Broadcom 57712-k Network Daughter Card (NDC)
- Future 10Gb Adapters for PowerEdge Blade Servers
- Can:
- DC input: 2V from shared power supplies in the M1000e blade enclosure
- Energy consumption:
- Approximately 20 Watts without SFP’s
- Approximately 28 Watts with SFP’s
- Doors:
- Condition: Recondicioned
- Warranty: 90 days and may be extended to 1 (one) year by DC Parts
Main Points to Note:
- Dell 10GbE passthrough modules ensure 10Gb Ethernet interoperability for M-Series blade deployments.
- Transparent devices, not seen in LAN topologies, provide direct Ethernet connectivity from server blades to external LANs.
- They require no installation, configuration or management. Plug into the M1000e chassis, connect cables to optional SFP+ optical transceivers, and you're done.
- Automatically connects at 10 Gbps port-to-port, allowing traffic to flow from the server blade to the external 10 Gb network switch.
- By statically linking each internal (server) port to the corresponding external port, they provide dedicated, isolated bandwidth between each server blade and the LAN.
- Sixteen external ports maximize the M1000e's available Ethernet bandwidth for the LAN.
- Hot swap in M1000e chassis with redundant drives for failover protection.
- Supports specific adapters for a variety of models and technologies.
