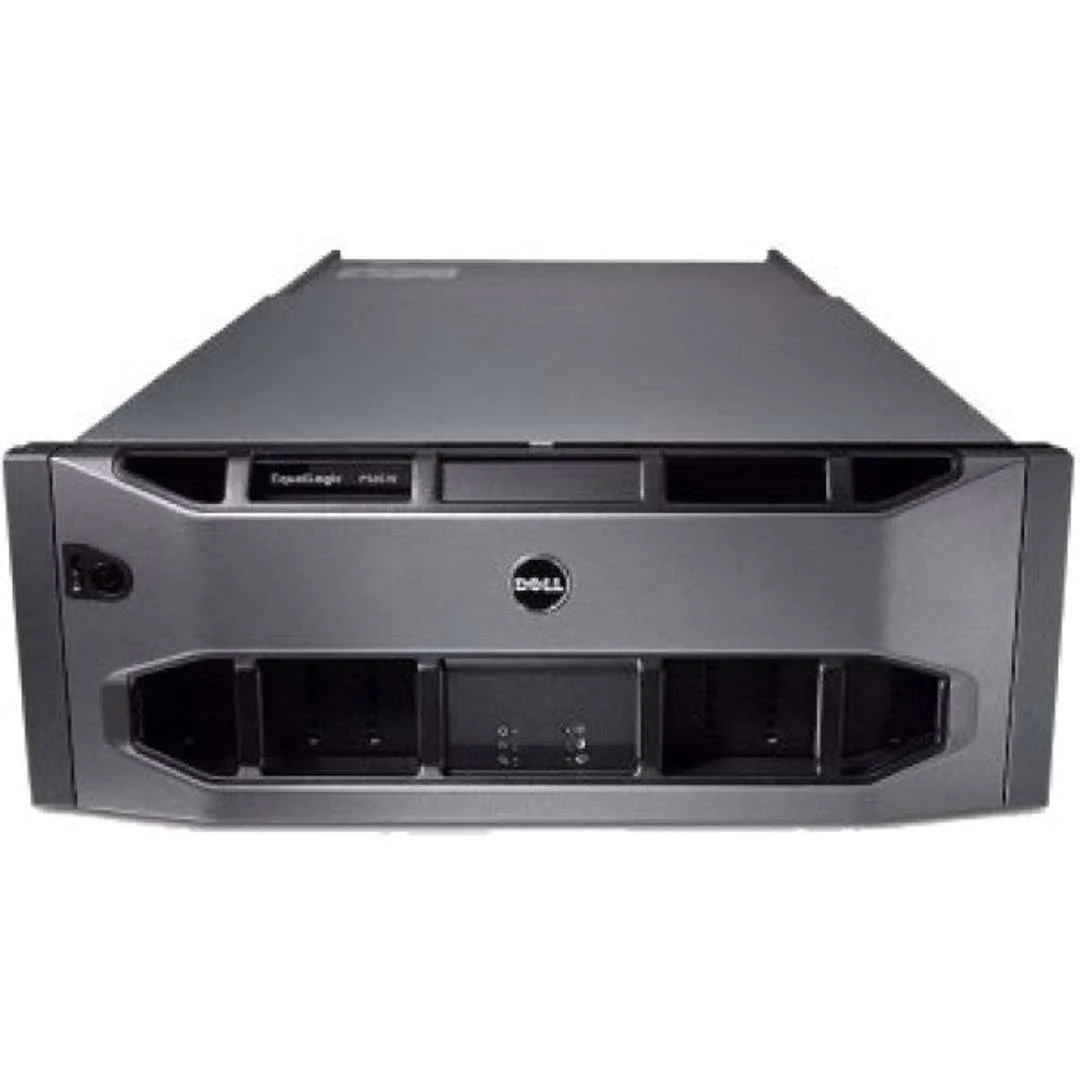

DELL EqualLogic PS6510XV Storage – With warranty and technical service for installation or support.
DC Parts is a distributor of new and refurbished DELL equipment and accessories. Our technology experts can help you select and configure the right DELL server solution for your specific data needs. Like all of our equipment, DELL arrays are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about DELL equipment offerings, please contact us.
EqualLogic PS6510E Description
Dell EqualLogic PS6510 Series virtualized iSCSI SAN maximizes enterprise performance, reliability and capacity while delivering the lowest total cost of ownership in five years compared to other SAN arrays on the market. PS6510 series arrays provide cost-effective capacity and performance designed to scale up to 2.3 PB with no downtime.
The EqualLogic PS6510 Series array is designed to optimize capacity utilization and performance dynamically through automatic tiering and load balancing. Easily integrates with existing virtualized applications and toolsets. Supplied with a 10GbE controller, the PS6510 series array adjusts to changing data demands, reducing latency and balancing performance and capacity across all EqualLogic SAN capabilities.
When combined with EqualLogic FS series NAS devices, PS6510 series arrays offer a unified block and file storage solution, minimizing storage and resource management costs. PS6510 series arrays come with 2 GB of non-volatile memory per controller.
PS6510E ISCSI SAN TECHNICAL FEATURES
| PS6510 | PS6510E ISCSI SAN TECHNICAL CHARACTERISTICS |
|---|---|
| Product | High-capacity storage in a 4U form factor |
| Inventory | Dual controllers with 2 GB non-volatile memory per controller |
| Network | Management network: 1x 100BASE-TX per controller; Interface ports: 2x 10GbE SFP+ for fiber or two-axis copper cabling |
| Hard | 48x 3.5″ 7.2K Hot-Pluggable SATA and NL-SAS Drives |
| Drive | 1 TB, 2 TB SATA or 3 TB NL-SAS as well as 3 TB NL-SAS SED (automatic encryption drive) |
| System | Up to 144 TB |
| Host | Any standards-compliant iSCSI initiator |
| Volumes | Up to 1,024 / 4,096 per group |
| Snapshots | 512 per volume/up to 10,000 total |
| Supported OS and hypervisors | Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Citrix XenServer, Oracle Solaris, IBM AIX, HP-UX, MAC OS X, Novell NetWare |
| Supported | RAID 5, RAID 6, RAID 10, RAID 50 |
| TCP | IPv4, IPv6 Core Support |
| Expansion option | Can be combined with other EqualLogic PS Series arrays in the same SAN group, online. Up to 16 total members per group |
| Unified | Adding an EqualLogic FS7600 or FS7610 NAS device to an EqualLogic group enables block and archive storage from a single storage solution |
| Management | Multi-group event and performance monitoring tool for SAN Headquarters; Serial console; Ability to set up a separate management network; SNMP, Telnet, SSH, HTTP, Web (SSL), Host Script, Multi-Administrator Support |
| Safety | CHAP authentication; Access control for iSCSI; Access control for management interfaces, including support for Active Directory, LDAP, or RADIUS |
| Notification Methods | SNMP traps, email, syslog |
| Physical | Height: 4/U (6.89″) – Width: 19.01″ – Depth: 37.8″ – Maximum Weight: 165 lbs |
| Power | Three 440W DC power supplies; Frequency: 47/63 Hz; AC Voltage: 100-240 VAC |
Some segments of the economy we help
Some segments of the economy we help
Third-Party Maintenance for Dell End-of-Life (EOL) and Dell End-of-Service-Life (EOSL)
DC Parts has analyzed more than 250 customer contracts using storage, servers, networks, and tapes and shown us that 40-60% of these customers’ equipment operates beyond their end-of-support dates.
There are simple options so you can reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.
How we can help:
We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in a more affordable way, without compromising their performance.
Dell storage Support
DC Parts Support Services provides support for Dell storage. We work to match the right approach with the right equipment to meet your Dell storage support needs.
With a highly trained team of certified engineers ready to troubleshoot any Dell storage issues, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing support on Dell storage , please contact us.
DC Parts support helps businesses of all sizes better manage their IT data centers by providing third-party support and maintenance services to leading equipment manufacturers including: IBM, HPE (HP), DELL EMC, DELL, NETAPP, and more.
With DC Parts support, we manage all your hardware, between manufacturers via one call. DC Parts Support offers flexible service level agreements, certified engineering support teams, and dedicated customer service representatives.
Extend the life and value of your IT assets. Contact DC Parts Support immediately.
