Storage DELL EqualLogic PS6500XV – With warranty and technical service for installation or support.
A DC Parts is a distributor of new and refurbished DELL equipment and accessories. Our technology experts can help you select and configure the right DELL server solution for your specific data needs. Like all of our equipment, DELL storages are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers are on hand to provide support for any issues you may have. If you would like to speak with a representative about DELL equipment offerings, please contact us.

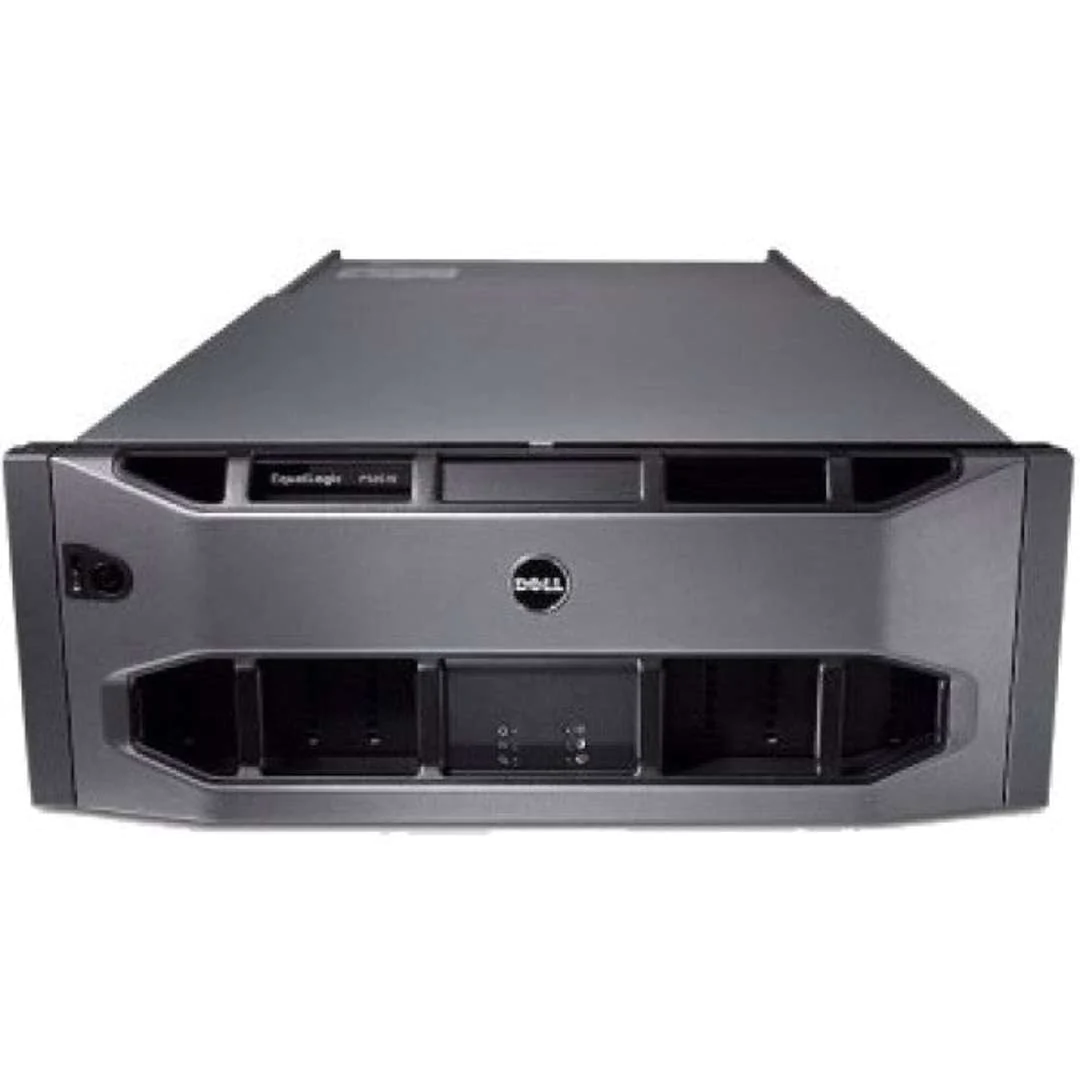

Description of EqualLogic PS6500X
Dell EqualLogic PS6500 Series virtualized iSCSI SANs maximize enterprise performance, reliability and capacity while delivering the lowest five-year total cost of ownership compared to other SAN arrays on the market. PS6500 Series arrays provide cost-effective capacity and performance designed to scale up to 2,3PB without downtime.
The EqualLogic PS6500 Series array is designed to dynamically optimize capacity utilization and performance through automatic tiering and load balancing. Easily integrates with existing virtualized applications and toolsets. Supplied with a 10GbE controller, PS6500 Series arrays adjust to ever-changing data demands, reducing latency and balancing performance and capacity across all EqualLogic SAN features.
The PS6500X offers up to 43,2TB in a 4U/2,5 configuration using 10K SAS drives. When combined with equalLogic FS Series NAS appliances, the PS6500 Series arrays provide a unified block and file storage solution, minimizing storage and resource management costs. PS6500 series arrays ship with 2GB of non-volatile memory per controller.
PS6500X ISCSI SAN TECHNICAL CHARACTERISTICS
PS6500 SERIES FEATURES | PS6500X ISCSI SAN TECHNICAL CHARACTERISTICS |
---|---|
product settings | Capacity for your corporate data needs |
Inventory controllers | Dual controllers with 2GB non-volatile memory per controller |
network interfaces | Interfaces Ports: 4 1000BASE-T ports per controller, one can be used for management purposes |
hard disk drives | 48 hot pluggable 2,5″ 10K SAS drives |
drive capacities | 600GB, 900GB 10K SAS as well as 900GB SAS SED (Self Encrypting Drive) |
System capabilities | Up to 43,2 TB |
host protocol | Any standards-compliant iSCSI initiator |
Volumes | Up to 1.024 / 4.096 per group |
Snapshots | 512 per volume / up to 10.000 total |
Supported OS and hypervisors | Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Citrix XenServer, Oracle Solaris, IBM AIX, HP-UX, MAC OS X, Novell NetWare |
RAID supported | RAID 5, RAID 6, RAID 10, RAID 50 |
TCP Network Support | IPv4, Support IPv6 Core |
expansion option | Can be combined with other EqualLogic PS Series arrays in the same SAN group online. Up to 16 total members per group |
unified storage options | Adding an EqualLogic FS7600 or FS7610 NAS device to an EqualLogic group enables block and file storage from a single storage solution |
management interfaces | SAN Headquarters multi-group event and performance monitoring tool; Serial console; Ability to set up a separate management network; SNMP, telnet, SSH, HTTP, Web (SSL), host script, multi-admin support |
Security | CHAP authentication; Access control for iSCSI; Access control for management interfaces, including support for Active Directory, LDAP or RADIUS |
Notification Methods | SNMP traps, email, syslog |
Physics | Height: 4/U (6,89″) – Width: 19,01″ – Depth: 37,8″ – Max weight: 165 lbs |
The ability to | Three 440W DC power supplies; Frequency: 47/63 Hz; AC Voltage: 100-240 VAC |
Third party maintenance for DELL End-of-Life (EOL) and DELL End-of-Service-Life (EOSL)
A DC Parts made an analysis on more than 250 customer contracts that use storage, servers, networks and tapes and showed us that 40-60% of the equipment of these customers operate beyond the end dates of support.
There are simple options for you to reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.
Learn more at Dell Storage Support and Maintenance
How can we help:
We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in the most affordable way, without compromising their performance.
DELL storage leases
A DC Parts provides DELL storage rentals for a convenient and affordable solution to a variety of data center issues such as seasonal spikes and data center relocation. We work to match the right approach with the right equipment to properly meet your customized need for DELL Storage and Blade rentals. With a highly trained team of certified engineers ready to troubleshoot any problems, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about leasing DELL machines please contact contact with us.
DELL storage support
Support services DC Parts provide support for DELL equipment. We work to combine the right approach with the right equipment to meet your DELL equipment support needs. With a highly trained team of certified engineers ready to solve any problems with DELL equipment, the DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing DELL equipment support, please contact us. THE DC Parts helps companies of all sizes better manage their IT data centers by providing third-party support services to leading equipment manufacturers, including: IBM, HPE, DELL EMC, NETAPP and much more. With support DC Parts, we manage all your hardware, between the manufacturers through a link. Support from DC Parts offers flexible service level agreements, certified engineering support teams and dedicated customer service representatives. Extend the life and value of your IT assets. contact support DC Parts immediately.
