DELL EqualLogic PS6210XV Storage – With warranty and technical service for installation or support.
DC Parts is a distributor of new and refurbished DELL equipment and accessories. Our technology experts can help you select and configure the right DELL server solution for your specific data needs. Like all of our equipment, DELL arrays are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about DELL equipment offerings, please contact us.

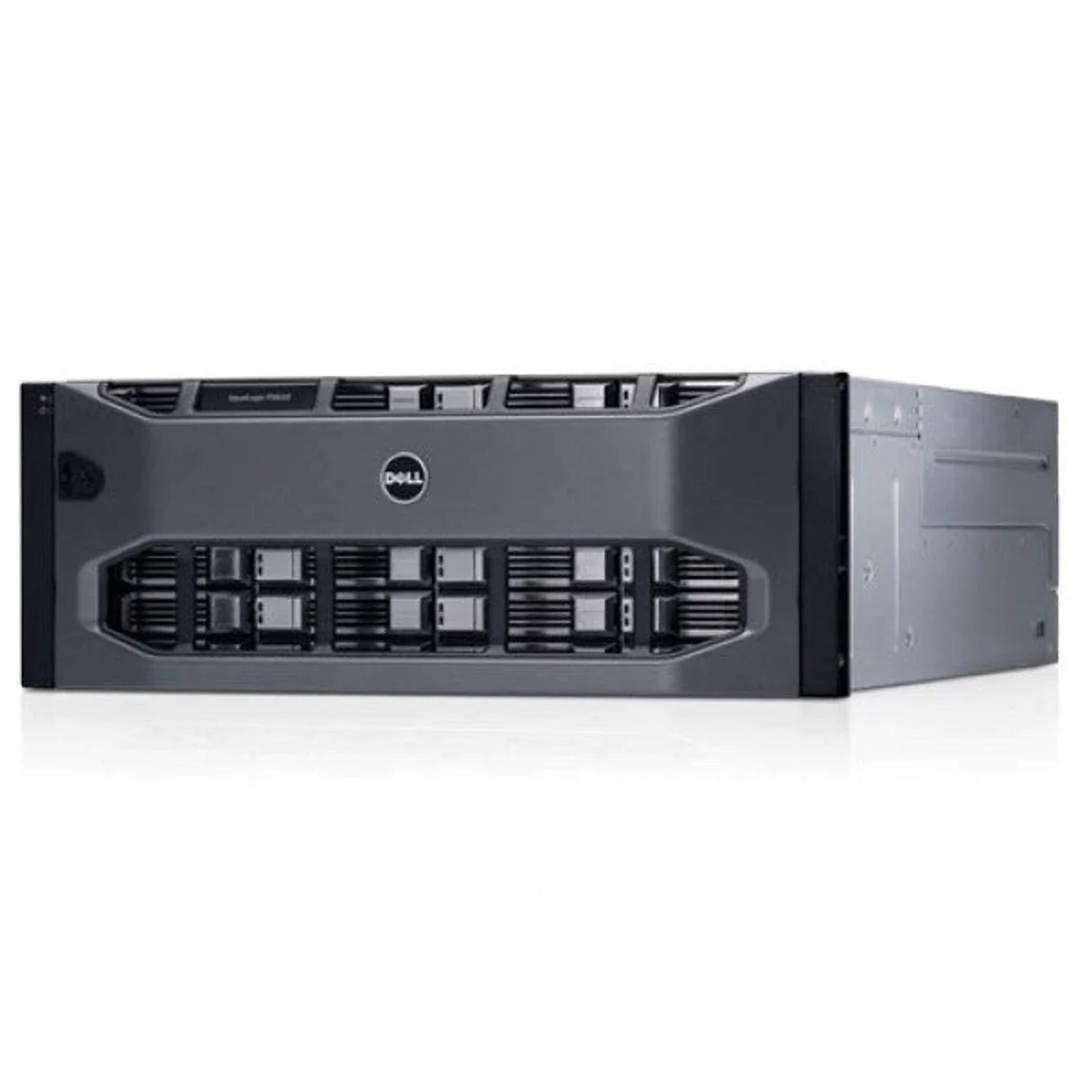

EqualLogic PS6210XV Description
The Dell EqualLogic PS6210 Series Array is an intelligent storage array designed to provide simple management and continuous expansion using Dell’s innovative technology. Dell EqualLogic PS Series arrays include SAN configuration capabilities and capabilities that detect network connections, automatically create RAID sets and conduct system health checks to help ensure that all components are fully functional. All PS Series arrays in a SAN work together to automatically manage data, load balance across all resources, and scale to meet your growing storage needs. With the addition of EqualLogic FS Series applications, you can store block and file data effectively in a unified storage solution.
The EqualLogic PS6210 series arrays offer enterprise-class storage capabilities that are easy to operate and manage. These features are optimized for virtualization platforms and a variety of applications, such as faster networking technology deployments, server virtualization, VDI, Online Transactional Processing (OLTP) database workloads, large block sequential workloads, and other latency-sensitive high-IOPS workloads.
The PS6210 series includes innovative firmware and host software at no additional cost or software licensing fees. EqualLogic host software extends the functionality of array-based software by enabling cooperation with the host.
PS6210XV 3.5″ ISCSI SAN TECHNICAL FEATURES
PS6210 | PS6210XV 3.5″ ISCSI SAN TECHNICAL FEATURES |
---|---|
Product | High performance for your demanding enterprise applications |
Inventory | Dual controllers with 16 GB of non-volatile memory per controller with up to 512 GB of non-volatile memory in a group of 16 arrays |
Network | 10GbE connectivity; network management: 1x 100BASE-TX per controller; interface ports: 2x 10GBASE-T with RJ45 or 2x 10GbE SFP+ for fiber or dual-axis copper cabling |
Hard | 24x hot-pluggable 3.5″ 15K SAS |
Drive | 300 GB, 600 GB SAS, and 600 GB SED (auto-encrypting drive) |
System | Up to 14.4 TB (up to 230.4 TB with 16 arrays) |
Host | Any standards-compliant iSCSI initiator |
Supported OS and hypervisors | Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Citrix XenServer, Oracle Solaris, IBM AIX, HP-UX, MAC OS X, Novell NetWare |
Supported | RAID 6, RAID 10, RAID 50 |
TCP | IPv4 SAN and management traffic supported and IPv6 SAN and in-band management supported |
Expansion option | Can be combined with other EqualLogic PS Series arrays in the same online SAN group; Maximum of 16 total matrices per group that can support a maximum of 384 units. Supports up to 10 types of cross-generation controllers with various network configurations and drive types in a new or existing EqualLogic SAN resource pool, all managed through a single interface |
Reliability | Redundant hot-swappable controllers; hot-swappable disks and power supplies |
Cabinet | Automatic configuration and use of spares; INTELLIGENT; Automatic replacement of bad blocks; Auto-Stat Disk Monitoring System (ADMS) to monitor the integrity of data on disk drives |
Management | Group Manager (GUI and CLI), SAN Headquarters multi-group performance and event monitoring tool; Serial console; Ability to set up a separate management network; SNMP, Telnet, SSH, HTTP, Web (SSL), Host Script, Multi-Administrator Support, vCenter Virtual Storage Manager Plug-in |
Safety | CHAP authentication; Access control for iSCSI; Access control for management interfaces, including Active Directory, LDAP, RADIUS support |
Notification Methods | SAN HQ alert, including Dell SupportAssist, SNMP traps, email, syslog |
Physical | Height: 2/U (3.42″) – Width: 17.57″ – Depth: 21.50″ – Maximum Weight: 58.3 lbs |
Power | Dual 700W, optional dual 700W DC-DC |
Rack Support | ReadyRails II static rails for tool-free mounting in 4-post racks with square or round holes without threads or tool-mounting in 4-post racks with tapped holes |
