Storage DELL EqualLogic PS6100XV – With warranty and technical service for installation or support.
A DC Parts is a distributor of new and refurbished DELL equipment and accessories. Our technology experts can help you select and configure the right DELL server solution for your specific data needs. Like all of our equipment, DELL storages are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers are on hand to provide support for any issues you may have. If you would like to speak with a representative about DELL equipment offerings, please contact us.

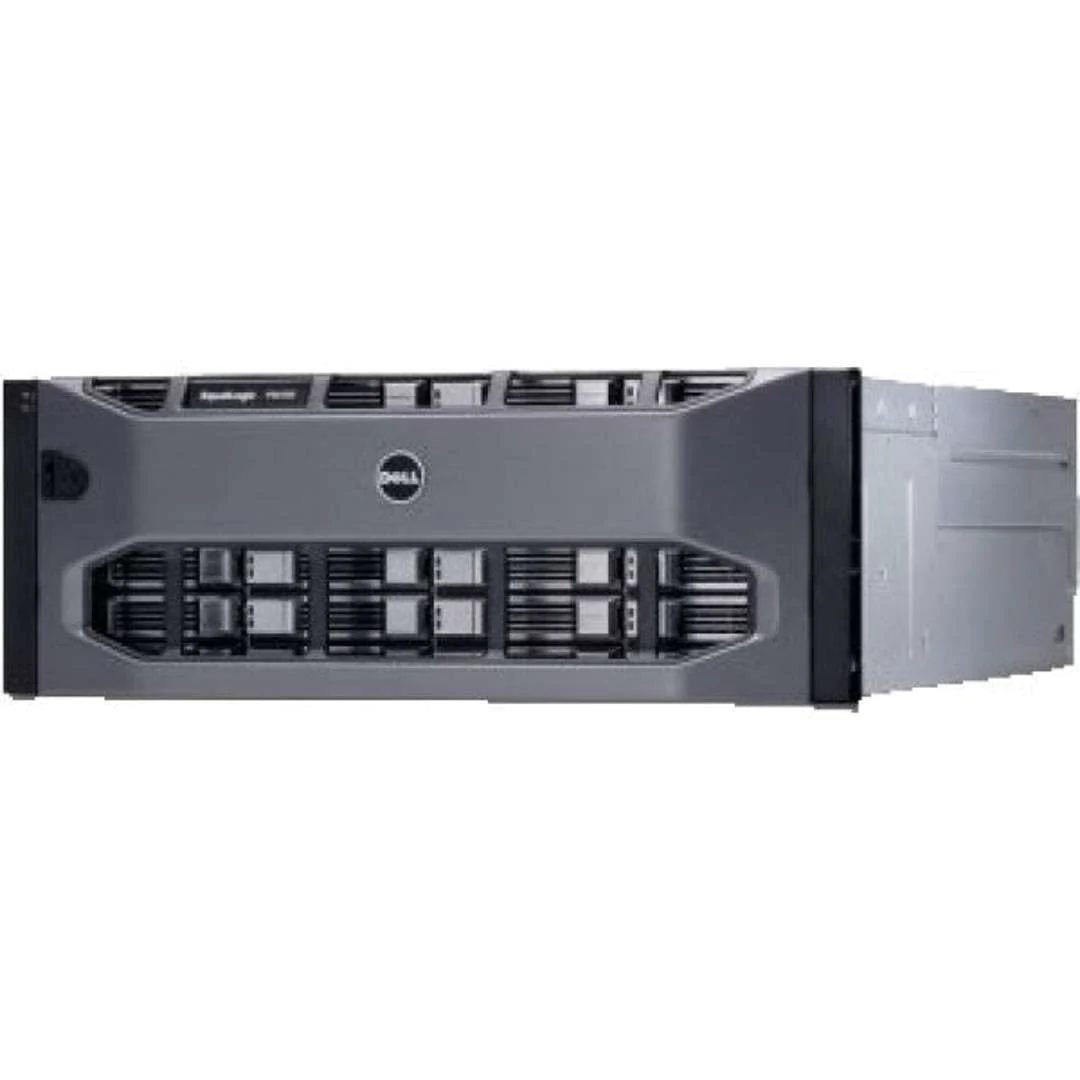

Description of EqualLogic PS6100XV
The 6100” Dell EqualLogic PS3,5XV Storage Array delivers exceptional performance and is optimized for critical data center applications with 14,4TB of storage capacity in a high-performance 4U/3,5 SAS drive solution. The EqualLogic PS6100XV 3,5” scales linearly with capacity. Delivering up to 67% IOPS improvements in typical workloads over previous generation EqualLogic arrays.
Dell EqualLogic PS6100 Series Storage Arrays deliver business power with everyday simplicity. The PS6100 series offers exceptional performance with 1GbE networking to leverage existing infrastructure. The PS6100 Series doesn't force you to choose between scaling storage performance or expanding capacity. PS Series arrays make it possible to buy only the storage you need, when you need it.
Easy-to-use management features accelerate SAN configuration while built-in intelligence detects network connections, automatically creates RAID sets and performs system health checks. It works well with older generation PS series storage arrays to automatically manage data, load balance across all resources, or seamlessly expand the storage pool when you add a new array. PS6100 Series arrays also reduce single points of failure with fully redundant and hot-swappable controllers, fan trays, power supplies, disk drives with hot spares, and vertical port sharing.
PS6100XV 3,5″ ISCSI SAN TECHNICAL CHARACTERISTICS
| PS6100 SERIES FEATURES | PS6100XV 3,5″ ISCSI SAN TECHNICAL CHARACTERISTICS |
|---|---|
| product settings | High-performance storage optimized for your most critical applications |
| Inventory controllers | Dual controllers with 4GB non-volatile memory per controller |
| network interfaces | 4 1000BASE-T ports per controller. Management network: 1 dedicated 100BASE-TX management port per controller |
| hard disk drives | 24x Hot Pluggable 3,5″ 15K SAS |
| drive capacities | 600GB 3,5″ 15K SAS |
| System capabilities | Up to 14,4 TB |
| host protocol | Any standards-compliant iSCSI initiator |
| Volumes | up to 1024 |
| Snapshots | 512 per volume / up to 10.000 total per group |
| Supported OS and hypervisors | Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Citrix XenServer, Oracle Solaris, IBM AIX, HP-UX, MAC OS X, Novell NetWare |
| RAID supported | RAID 5, RAID 6, RAID 10, RAID 50 |
| TCP Network Support | IPv4 SAN and management traffic supported and IPv6 SAN and in-band management supported |
| expansion option | Can be combined with other EqualLogic PS Series arrays in the same SAN group online. A maximum of 16 total members per group |
| Reliability | Redundant hot-swappable controllers with vertical port sharing; hot-swappable disks and power supplies |
| cabinet monitoring system | Automatic configuration and use of spare parts; SMART; Automatic replacement of bad blocks; Auto-Stat Disk Monitoring System (ADMS) to monitor data integrity on disk drives |
| management interfaces | SAN Headquarters multi-group event and performance monitoring tool; Serial console; Ability to set up a separate management network; SNMP, telnet, SSH, HTTP, Web (SSL), host script, multi-admin support |
| Security | CHAP authentication; Access control for iSCSI; Access control for management interfaces including Active Directory, LDAP, RADIUS support |
| Notification Methods | SNMP traps, email, syslog |
| Physics | Height: 4/U (6,89″) – Width: 17,57″ – Depth: 22,6″ – Max weight: 98 lbs |
| The ability to | Dual 700 W |
| Rack Support | ReadyRails II static rails for tool-less mounting in 4-post racks with square or round unthreaded holes or tool-mounting in 4-post racks with threaded holes |
