Storage DELL EqualLogic PS6010XV – With warranty and technical service for installation or support.
A DC Parts is a distributor of new and refurbished DELL equipment and accessories. Our technology experts can help you select and configure the right DELL server solution for your specific data needs. Like all of our equipment, DELL storages are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers are on hand to provide support for any issues you may have. If you would like to speak with a representative about DELL equipment offerings, please contact us.

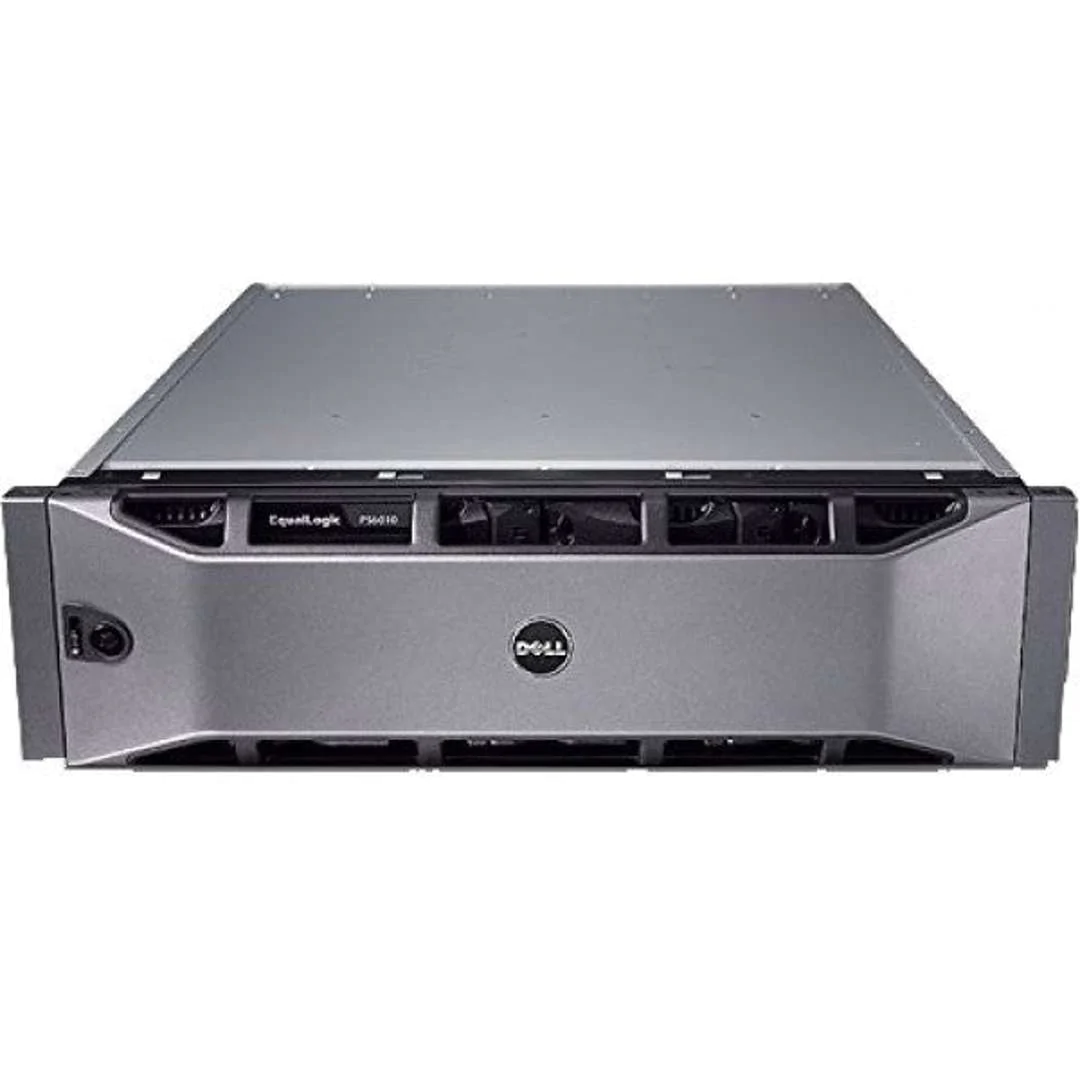

Description of EqualLogic PS6010XV
The Dell EqualLogic PS6010XV is a virtualized iSCSI SAN that combines intelligence and automation with fault tolerance to deliver simplified administration, rapid deployment, enterprise performance, seamless scalability and reliability. With 15.000 SAS drives, the PS6010XV delivers high transactional and sequential performance with up to 9,6TB of storage capacity. The PS6010XV includes two redesigned 10GbE port controllers, offering up to 10x the bandwidth per port and 2,5x the bandwidth per array compared to the previous generation.
EqualLogic PS Series arrays are based on a modular virtualized storage architecture that allows IT managers to purchase only the storage they need, when they need it — helping to avoid under-utilization and over-provisioning. Using innovative data movement technology, all EqualLogic PS Series arrays in a SAN work together to automatically manage data, load balance across all resources, and expand to meet growing storage needs. The EqualLogic SAN line is designed to meet and exceed the rugged requirements of the data center. The PS6010XV includes fault tolerance capabilities through fully redundant and hot-swappable components – dual 10GbE controllers, standard dual fan trays, dual power supplies and disk drives with hot spares. 10GbE controllers provide 4GB of battery-backed memory that provides up to 72 hours of data protection.
PS6010XV ISCSI SAN TECHNICAL CHARACTERISTICS
| PS6010 SERIES FEATURES | PS6010XV ISCSI SAN TECHNICAL CHARACTERISTICS |
|---|---|
| product settings | High performance for your demanding business applications |
| Inventory controllers | Dual 10GbE iSCSI controllers with a total of 4GB of battery-backed memory that provides up to 72 hours of data protection |
| network interfaces | 2x SFP+ per controller 1x 10/100 copper (optional management network only) per controller |
| hard disk drives | 16 3,5″ 15K Hot-Pluggable SAS HDDs |
| drive capacities | 600GB 15K SAS 3,5″ Hard Drives |
| System capabilities | Up to 9,6 TB |
| host protocol | Any standards-compliant iSCSI initiator |
| Volumes | up to 1.024 |
| Snapshots | 512 per volume / up to 10.000 total per group |
| PS series volume connections per group | Up to 1.024 per pool/4.096 per group |
| Supported OS and hypervisors | Windows 2000 Server, Windows Server 2003, Windows Server 2008 including Hyper-V, Windows Vista, Windows Server 2008 R2 including Hyper-V, Windows XP, Red Hat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, IBM AIX, HP- UK , Mac OS X, VMware ESX Server 3/3.5/4/4.1/5, ESXi 3.5/4/4.1/5, Citrix XenServer, Novell NetWare |
| RAID supported | Automatic RAID 5, RAID 6, RAID 10 and RAID 50 |
| TCP Network Support | IPv4, Support IPv6 Core |
| expansion option | Can be combined with other EqualLogic PS Series arrays in the same SAN group online. Up to 16 total members per group. |
| Reliability | Redundant and hot-swappable controllers; power supplies/cooling fans and hot-swappable disks. Individual disk drive slot power control |
| cabinet monitoring system | Automatic configuration and use of spare parts; SMART; Automatic replacement of bad blocks; Auto-Stat Disk Monitoring System (ADMS) to monitor data integrity on disk drives |
| management interfaces | EqualLogic SAN Headquarters multi-group event and performance monitoring tool. Console Serial. Ability to set up a separate management network. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Support for multiple administrators. |
| Security | CHAP authentication; Access control for iSCSI; Access control for management interfaces, including RADIUS support |
| Notification Methods | SNMP traps, email, syslog |
| Physics | Height: 3U (5,12″) Width: 19,00″ Depth: 21,70″ Weight: 78,60 lbs |
| The ability to | Dual 440W DC power supplies. AC Voltage: 100-240 VAC. Frequency: 47-63 Hz |
| Environmental | Temperature range: 5 to 35°C/ 41 to 95°F Storage temperature: -20 to 60°C / -22 to 140°F |
Some segments of the economy that we help
Some segments of the economy that we help
Third party maintenance for DELL End-of-Life (EOL) and DELL End-of-Service-Life (EOSL)
A DC Parts made an analysis on more than 250 customer contracts that use storage, servers, networks and tapes and showed us that 40-60% of the equipment of these customers operate beyond the end dates of support.
There are simple options for you to reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.
Learn more at Dell Storage Support and Maintenance
How can we help:
We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in the most affordable way, without compromising their performance.
DELL storage leases
A DC Parts provides DELL storage rentals for a convenient and affordable solution to a variety of data center issues such as seasonal spikes and data center relocation. We work to match the right approach with the right equipment to properly meet your customized need for DELL Storage and Blade rentals. With a highly trained team of certified engineers ready to troubleshoot any problems, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about leasing DELL machines please contact contact with us.
DELL storage support
Support services DC Parts provide support for DELL equipment. We work to combine the right approach with the right equipment to meet your DELL equipment support needs. With a highly trained team of certified engineers ready to solve any problems with DELL equipment, the DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing DELL equipment support, please contact us. THE DC Parts helps companies of all sizes better manage their IT data centers by providing third-party support services to leading equipment manufacturers, including: IBM, HPE, DELL EMC, NETAPP and much more. With support DC Parts, we manage all your hardware, between the manufacturers through a link. Support from DC Parts offers flexible service level agreements, certified engineering support teams and dedicated customer service representatives. Extend the life and value of your IT assets. contact support DC Parts immediately.
