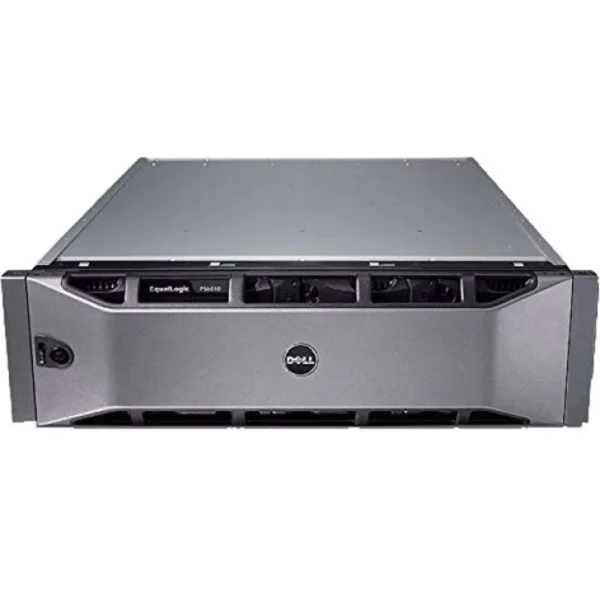

DELL EqualLogic PS6000XV Storage – With warranty and technical service for installation or support.
DC Parts is a distributor of new and refurbished DELL equipment and accessories. Our technology experts can help you select and configure the right DELL server solution for your specific data needs. Like all of our equipment, DELL arrays are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about DELL equipment offerings, please contact us.
EqualLogic PS6000XV Description
Dell EqualLogic PS6000XV is a virtualized iSCSI SAN that combines intelligence and automation with fault tolerance to provide simplified administration, rapid deployment, seamless scalability, enterprise performance and reliability. Equipped with 15,000 SAS drives, the PS6000XV delivers high transactional performance with up to 9.6 TB of storage capacity.
PS6000XV is an intelligent storage array designed to provide quick installation, simple management, and seamless expansion. The PS6000XV includes SAN configuration features and capabilities that detect network connections, automatically create RAID sets, and conduct system health checks to help ensure that all components are fully functional. EqualLogic PS series arrays are based on a modular, virtualized storage architecture that allows IT managers to purchase only the storage they need—when they need it—helping to avoid underutilization and overprovisioning.
PS6000XV ISCSI SAN TECHNICAL FEATURES
| PS6000 | PS6000XV ISCSI SAN TECHNICAL FEATURES |
|---|---|
| Product | High performance for your demanding applications |
| Inventory | Dual 1GbE iSCSI controllers with a total of 4GB of battery-powered memory that provides up to 72 hours of data protection |
| Network | 4x RJ45 1GbE copper per controller |
| Hard | 16 x 3.5″ 15K Hot-Pluggable SAS HDDs |
| Drive | 300GB, 450GB, and 600GB 15K SAS |
| System | Up to 9.6 TB |
| Host | Any standards-compliant iSCSI initiator |
| Volumes | up to 1,024 |
| Snapshots | 512 per volume/up to 10,000 total per group |
| Series Per Group Volume Connections | Up to 1,024 per pool/4,096 per group |
| Supported OS and hypervisors | Windows 2000 Server, Windows Server 2003, Windows Server 2008 including Hyper-V, Windows Vista, Windows Server 2008 R2 including Hyper-V, Windows XP, Red Hat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, IBM AIX, HP-UK, Mac OS X, VMware ESX Server 3/3.5/4/4.1/5, ESXi 3.5/4/4.1/5, Citrix XenServer, Novell NetWare |
| Supported | RAID 5, RAID 6, RAID 10, RAID 50 |
| TCP | IPv4, IPv6 Core Support |
| Expansion option | Can be combined with other EqualLogic PS Series arrays in the same online SAN group. Up to 16 total members per group. |
| Reliability | Redundant and hot-swappable controllers; hot-swappable power supplies/cooling fans and disks. Individual disk drive slot power control |
| Cabinet | Automatic configuration and use of spares; INTELLIGENT; Automatic replacement of bad blocks; Auto-Stat Disk Monitoring System (ADMS) to monitor the integrity of data on disk drives |
| Management Interfaces | EqualLogic SAN Headquarters multi-group performance and event monitoring tool. Serial Console. Ability to configure a separate management network. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Multi-admin support. |
| Safety | CHAP authentication; Access control for iSCSI; Access control for management interfaces, including RADIUS support |
| Notification Methods | SNMP traps, email, syslog |
| Physical | Height: 3U (5.12″) Width: 19.00″ Depth: 21.70″ Weight: 78.60 lbs |
| Power | Dual 440W DC power supplies. AC voltage: 100-240 VAC. Frequency: 47-63 Hz |
| Environment | Temperature range: 5 to 35°C / 41 to 95°F Storage Temperature: -20 to 60°C / -22 to 140°F |
Some segments of the economy we help
Some segments of the economy we help
Third-Party Maintenance for Dell End-of-Life (EOL) and Dell End-of-Service-Life (EOSL)
DC Parts has analyzed more than 250 customer contracts using storage, servers, networks, and tapes and shown us that 40-60% of these customers’ equipment operates beyond their end-of-support dates.
There are simple options so you can reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.
How we can help:
We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in a more affordable way, without compromising their performance.
Dell storage Support
DC Parts Support Services provides support for Dell storage. We work to match the right approach with the right equipment to meet your Dell storage support needs.
With a highly trained team of certified engineers ready to troubleshoot any Dell storage issues, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing support on Dell storage , please contact us.
DC Parts support helps businesses of all sizes better manage their IT data centers by providing third-party support and maintenance services to leading equipment manufacturers including: IBM, HPE (HP), DELL EMC, DELL, NETAPP, and more.
With DC Parts support, we manage all your hardware, between manufacturers via one call. DC Parts Support offers flexible service level agreements, certified engineering support teams, and dedicated customer service representatives.
Extend the life and value of your IT assets. Contact DC Parts Support immediately.
